UOJ-DG04TRemote Programmer

Comfort Digisystem User manual Comfort Digisystem Receiver DT10 & Programmer DT05 US / English Receiver DT10 2 User manual Table of contents Page 1) Regulatory information 3 2) Introduction Comfort Digisystem 4 3) Overview - Receiver DT10 4 4) Check the hearing instruments input 4 5) Getting started 5 6) Acoustic indication, sound signals 5 7) Modes in the Receiver DT10 6 8) Output for user with different input types and 6 programs in the hearing instrument 9) Pairing 8 10) Functions Programmer DT05 - professional tool 9 11) Included accessories 9 12) Menu Programmer DT05 10 13) Battery maintenance Programmer DT05 11 14) Technical data Receiver DT10 11 15) Trouble shooting 12 16) Service and warranty 12 17) Radio range and channels 13 18) Important safety instructions 13 Receiver DT10 3 1) Regulatory information Comfort Digisystem products are not to be used as a substi- tute to the hearing aids and should be used in accordance with the specifications and recommendations provided by your physician. NOTE! Max output > 130 dB SPL (Sound Pressure Level). Could be very dangerous for your hearing. It is recommended that customers keep the volume control in the lowest position, when turning on the device. If not, the sound could potentially cause harm to the customers’ hear- ing. Comfort Audio is not liable for damages arising from usage of the equipment not in accordance with the instructions pro- vided by Comfort Audio. Comfort Audio shall not be liable for performance problems and/or damages caused in any way by customer’s modification of any part of the equipment. Federal Communications Commission Statement, This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Programmer DT05 - FCC ID: UOJ-DG04T Industry Canada, This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including inter- ference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. ETL Conforms to UL Standard for Safety for Audio, Video and Similar electronic apparatus – Safety Requirements UL 60065, Issue:2003/06/30 Ed:7 Rev:2007/12/11 Certified to CSA Standard for Safety for Audio, Video and Similar electronic apparatus – Safety Requirements CAN/ CSA-C22.2 No. 60065:03, Issued 2003/04/01 Ed:1 Amendment 1:2006 Intertek ETL Control number: 4002355 WARNING! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. DANGER! DO NOT USE the COMFORT DIGISYSTEM products if you have a PACEMAKER or other implanted device. The Comfort Digisystem products could cause the pacemaker or other implanted device to malfunction and cause serious injury or death. Receiver DT10 4 3) Overview - Receiver DT10 Push-button For toggling between different listening modes and activating pairing mode. Europlug For connecting to the audio shoe on a hearing instrument or to the socket on the Programmer DT05. To be able to use the Receiver DT10, check if — and how — the hearing instrument supports the use of a mini receiver: 1. The hearing instrument must be equipped with an audio shoe with a powered Europlug socket made for mini receiver use. This connects the Receiver DT10 to the hearing instrument and also supplies the DT10 with power from the hearing instrument’s battery. The received audio signal will then be transferred from the Receiver DT10 to the hearing instrument through the audio shoe. 2a. If the hearing instrument is equipped with a Programmable DAI input (DPAI), programming of the hearing instrument might be necessary (check with audiologist or hearing instrument manufacturer). In this case the push-button on the Receiver DT10 cannot switch between the R and R+M modes. This is instead done by using different listening programs in the hear- ing instrument. Europlug TIP! The volume of the Receiver DT10’s R and R+M mode can be set individually by using the Programmer DT05. This makes it possible to use the push-button as a simple volume control in combination with a hearing instrument with Programmable DAI input (DPAI). 4) Check the hearing instruments input 2) Introduction to the Comfort Digisystem Thank you for choosing Comfort Digis…

Text truncated - open the document above for the full version.

Antenna F=904.05 MHz Crystal 26 .0 MHz uP Display 96x64 RGB, OLED LI - ION Charger LDO DC - jack for charging Battery +3V Slottsmöllan SE-302 31 Halmstad SWEDEN Tel. +46 35 260 16 50 www.comfortaudio.com Block Diagram Programmer DT05 Radio transmitter

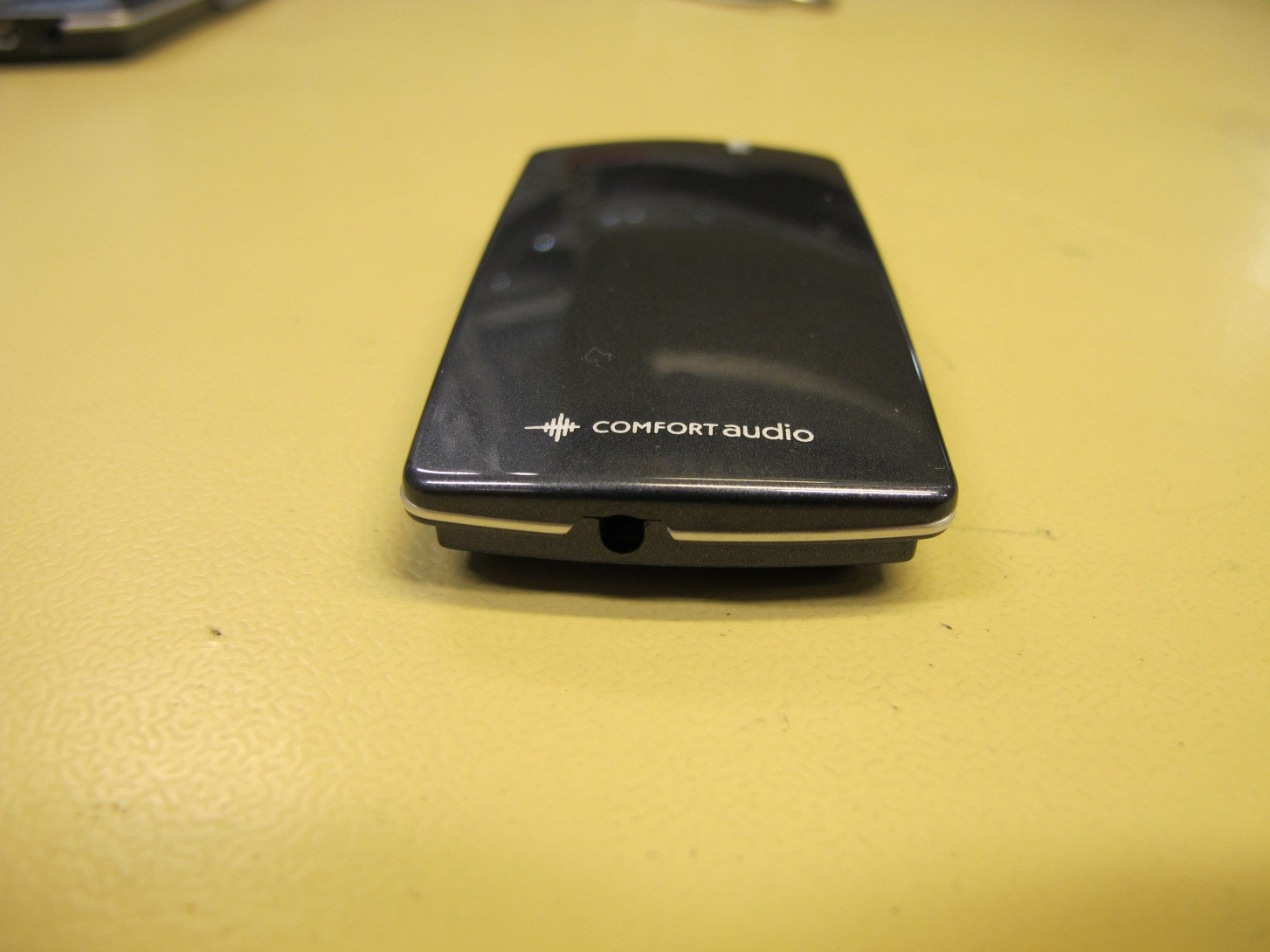

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com External photos: Receiver DT05 Front Rear Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Left side Right side Top Bottom

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Label information: Programmer DT05 f4 Below display window (label) is attached on the rear side of the product. Rear view of the product where the FCC ID and IC ID is located.

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Internal photos: Programmer DT05 Rear enclosure part removed showing the PCB. Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Top enclosure part removed Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Top PCB view

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Operational description of Programmer DT05 The transmitter, Programmer DT05, is used to remotely configure the receiver DT10. The DT05 use Binary (two-level) FSK modulation, operating at the fixed frequency of 904.05 MHz with a 6dB bandwidth greater than 500 KHz and use burst transmissions. The duty cycle of the transmissions is very low and can be compared to an ordinary RF-remote control where the duty cycle is depending on the operator. DT05 use an internal fixed antenna and the maximum output power (antenna gain included) is -25dBm. The system is used by professionals to configure the DT10 to meet customer’s specific requirements. The Programmer DT05 has an inbuilt Li-Ion polymer battery (nominal voltage of 3.7v). The battery is charged via a power supply, which is connected to the mains.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: DT05-US FCC ID: UOJ-DG04T IC Certification Number: 6769A-DG04T To: FCC Part 15.247: 2010 Subpart C, RSS-210 Issue 8 December 2010 & RSS-Gen Issue 3 December 2010 Test Report Serial No: RFI-RPT-RP81704JD01A Version 3.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 01 August 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 Page 2 of 26 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 RFI Global Services Ltd Page 3 of 26 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 6 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter AC Conducted Spurious Emissions 11 5.2.2. Transmitter 6 dB Bandwidth 14 5.2.3. Transmitter 20 dB Bandwidth 15 5.2.4. Transmitter Power Spectral Density 16 5.2.5. Transmitter Maximum Peak Output Power 17 5.2.6. Transmitter Radiated Emissions 19 5.2.7. Transmitter Band Edge Radiated Emissions 23 6. Measurement Uncertainty ........................................................................................................25 Appendix 1. Test Equipment Used ..............................................................................................26 TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 Page 4 of 26 RFI Global Services Ltd 1. Customer Information Company Name: Comfort Audio AB Address: Slottsmallan Halmstad 302 31 Sweden TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 RFI Global Services Ltd Page 5 of 26 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.207 and 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) - Sections 15.207 and 15.209 Specification Reference: RSS-Gen Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 31 May to 06 June 2011 TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 Page 6 of 26 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 15.207 RSS-Gen 7.2.2 Transmitter AC Conducted Emissions Part 15.247(a)(2) RSS-Gen 4.6.2 RSS-210 A8.2(a) Transmitter 6 dB Bandwidth Part 15.247(a)(1)(i) RSS-Gen 4.6.1/4.6.3 RSS-210 A8.1(c) Transmitter 20 dB Bandwidth Part 15.247(e) RSS-210 A8.2(b) Transmitter Power Spectral Density Part 15.247(b)(2) RSS-Gen 4.8 RSS-210 A8.4(4) Transmitter Maximum Peak Output Power Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Radiated Emissions Part 15.247(d) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01A VERSION 3.0 ISSUE DATE: 01 AUGUST 2011 RFI Global Services Ltd Page 7 of 26 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Comfort Audio Model Name or Number: Programmer DT05-US Serial Number: SN00017941 Hardware Version Number: I9 Software Version Number: 1.00 FCC ID: UOJ-DG04T IC Certification Number: 6769A-DG04T Description: AC adaptor Brand Name: Comfort Audio Model Name or Number: FW7600/05 Serial Number: 1108B 3.2. Description of…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: DT05-US FCC ID: UOJ-DG04T To: FCC Parts 15.107 & 15.109: 2010 Test Report Serial No: RFI-RPT-RP81704JD01C This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 26 August 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 Page 2 of 18 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 RFI Global Services Ltd Page 3 of 18 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 6 3.5. Support Equipment 7 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 4.1. Operating Modes 8 4.2. Configuration and Peripherals 8 5. Measurements, Examinations and Derived Results .................................................................. 9 5.1. General Comments 9 5.2. Test Results 10 5.2.1. Idle Mode AC Conducted Spurious Emissions 10 5.2.2. Idle Mode Radiated Spurious Emissions 13 6. Measurement Uncertainty .......................................................................................................... 17 Appendix 1. Test Equipment Used ................................................................................................ 18 TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 Page 4 of 18 RFI Global Services Ltd 1. Customer Information Company Name: Comfort Audio AB Address: Slottsmallan Halmstad 302 31 Sweden TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 RFI Global Services Ltd Page 5 of 18 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Date: 23 August 2011 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107 Idle Mode AC Conducted Emissions Part 15.109 Idle Mode Radiated Spurious Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 Page 6 of 18 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Comfort Audio Model Name or Number: Programmer DT05-US Serial Number: SN00017941 Hardware Version Number: I9 Software Version Number: 1.00 FCC ID: UOJ-DG04T 3.2. Description of EUT The equipment under test was a programmer for transmitting setup information to a receiver DT-10. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: Part 15 Low Power Communication Device Transmitter Power Supply Requirement: Nominal 3.7 V Type of Unit: Transmitter Modulation: FSK Maximum Conducted Output Power: -26.7 dBm Transmit Frequency Range: 904.05 MHz Transmit Channel Tested: Channel Frequency (MHz) 904.05 MHz TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 RFI Global Services Ltd Page 7 of 18 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Headphones Brand Name: Comfort Audio Model Name or Number: Not marked or stated Serial Number: Not marked or stated Description: Neck Loop Brand Name: Comfort Audio Model Name or Number: None stated Serial Number: None stated Description: AC adaptor Brand Name: Comfort Audio Model Name or Number: FW7600/05 Serial Number: 1108B TEST REPORT SERIAL NO: RFI-RPT-RP81704JD01C VERSION 1.0 ISSUE DATE: 26 AUGUST 2011 Page 8 of 18 RFI Global Services Ltd 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • Transmitter mode. The EUT was in idle mode, active but not transmitting. 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • Powered by an AC adaptor which was plugged into the Europlug socket on the C…

Text truncated - open the document above for the full version.
