UOXALLIANCE38591EASY TOUCH BUTTON- 433 MHZ TRANSMITTER

Customer Service Button Installation Instructions FOR USE BY THE INSTALLER ONLY! DRAFT Index: Introduction ........................................................................................................................ Receiver Installation ........................................................................................................ Transmitter DIP Chart........................................................................................................ Warranty & FCC ................................................................................................................. Installer Note: Please follow these instructions carefully! You can damage equipment being installed if wired incorrectly! If at any point you need help STOP and do the following: Go online to www.alliance-cvs.com and check for the most common installation questions. User: manager Password: razor If your question is not answered or resolved then, Call 1-866-594-7762 for assistance. 4 5 6 - 9 11 Introduction: The Alliance Customer Service Button kit includes the following: Customer Service Button, Shelf Mount, 3 x AAA Batteries and Screwdriver. Before you begin, unpack and verify you have all the correct parts. Step 1: Remove the battery door with the included screwdriver to expose the battery compartment. Step 2: Install the three AAA batteries as indicated in the battery compartment graphic. Step 3: Adjust the message to be trigger by selecting the correct message from the table in this manual and match- ing those settings on the DIP switch positions. Step 4: Replace battery cover and screw closed. Step 5: Depending upon the type of mount included with the kit attach the customer service button to the shelf or glass display case. Step 6: Push the button to verify operation. Button Line Drawings Message Select Chart: Use the chart below to set the message number to be triggered for an alert condition on the transmitter. Looking at the transmitter ON is to the LEFT, OFF is to the RIGHT. MessageABCDEFGH 1 ONOFFOFFOFFOFFOFFOFFOFF 2 OFFONOFFOFFOFFOFFOFFOFF 3 ONONOFFOFFOFFOFFOFFOFF 4 OFFOFFONOFFOFFOFFOFFOFF 5 ONOFFONOFFOFFOFFOFFOFF 6 OFFONONOFFOFFOFFOFFOFF 7 ONONONOFFOFFOFFOFFOFF 8 OFFOFFOFFONOFFOFFOFFOFF 9 ONOFFOFFONOFFOFFOFFOFF 10 OFFONOFFONOFFOFFOFFOFF 11 ONONOFFONOFFOFFOFFOFF 12 OFFOFFONONOFFOFFOFFOFF 13 ONOFFONONOFFOFFOFFOFF 14 OFFONONONOFFOFFOFFOFF 15 ONONONONOFFOFFOFFOFF 16 OFFOFFOFFOFFONOFFOFFOFF 17 ONOFFOFFOFFONOFFOFFOFF 18 OFFONOFFOFFONOFFOFFOFF 19 ONONOFFOFFONOFFOFFOFF 20 OFFOFFONOFFONOFFOFFOFF 21 ONOFFONOFFONOFFOFFOFF 22 OFFONONOFFONOFFOFFOFF 23 ONONONOFFONOFFOFFOFF 24 OFFOFFOFFONONOFFOFFOFF 25 ONOFFOFFONONOFFOFFOFF 26 OFFONOFFONONOFFOFFOFF 27 ONONOFFONONOFFOFFOFF 28 OFFOFFONONONOFFOFFOFF 29 ONOFFONONONOFFOFFOFF 30 OFFONONONONOFFOFFOFF 31 ONONONONONOFFOFFOFF 32 OFFOFFOFFOFFOFFONOFFOFF 33 ONOFFOFFOFFOFFONOFFOFF 34 OFFONOFFOFFOFFONOFFOFF 35 ONONOFFOFFOFFONOFFOFF 36 OFFOFFONOFFOFFONOFFOFF 37 ONOFFONOFFOFFONOFFOFF 38 OFFONONOFFOFFONOFFOFF 39 ONONONOFFOFFONOFFOFF 40 OFFOFFOFFONOFFONOFFOFF 41 ONOFFOFFONOFFONOFFOFF 42 OFFONOFFONOFFONOFFOFF 43 ONONOFFONOFFONOFFOFF 44 OFFOFFONONOFFONOFFOFF 45 ONOFFONONOFFONOFFOFF 46 OFFONONONOFFONOFFOFF 47 ONONONONOFFONOFFOFF 48 OFFOFFOFFOFFONONOFFOFF 49 ONOFFOFFOFFONONOFFOFF 50 OFFONOFFOFFONONOFFOFF 51 ONONOFFOFFONONOFFOFF 52 OFFOFFONOFFONONOFFOFF 53 ONOFFONOFFONONOFFOFF 54 OFFONONOFFONONOFFOFF 55 ONONONOFFONONOFFOFF 56 OFFOFFOFFONONONOFFOFF 57 ONOFFOFFONONONOFFOFF 58 OFFONOFFONONONOFFOFF 59 ONONOFFONONONOFFOFF 60 OFFOFFONONONONOFFOFF 61 ONOFFONONONONOFFOFF 62 OFFONONONONONOFFOFF 63 ONONONONONONOFFOFF 64 OFFOFFOFFOFFOFFOFFONOFF 65 ONOFFOFFOFFOFFOFFONOFF 66 OFFONOFFOFFOFFOFFONOFF 67 ONONOFFOFFOFFOFFONOFF 68 OFFOFFONOFFOFFOFFONOFF 69 ONOFFONOFFOFFOFFONOFF 70 OFFONONOFFOFFOFFONOFF 71 ONONONOFFOFFOFFONOFF 72 OFFOFFOFFONOFFOFFONOFF 73 ONOFFOFFONOFFOFFONOFF 74 OFFONOFFONOFFOFFONOFF 75 ONONOFFONOFFOFFONOFF 76 OFFOFFONONOFFOFFONOFF 77 ONOFFONONOFFOFFONOFF 78 OFFONONONOFFOFFONOFF 79 ONONONONOFFOFFONOFF 80 OFFOFFOFFOFFONOFFONOFF 81 ONOFFOFFOFFONOFFONOFF 82 OFFONOFFOFFONOFFONOFF 83 ONONOFFOFFONOFFONOFF 84 OFFOFFONOFFONOFFONOFF 85 ONOFFONOFFONOFFONOFF 86 OFFONONOFFONOFFONOFF 87 ONONONOFFONOFFONOFF 88 OFFOFFOFFONONOFFONOFF 89 ONOFFOFFONONOFFONOFF 90 OFFONOFFONONOFFONOFF 91 ONONOFFONONOFFONOFF 92 OFFOFFONONONOFFONOFF 93 ONOFFONONONOFFONOFF 94 OFFONONONONOFFONOFF 95 ONONONONONOFFONOFF 96 OFFOFFOFFOFFOFFONONOFF 97 ONOFFOFFOFFOFFONONOFF 98 OFFONOFFOFFOFFONONOFF 99 ONONOFFOFFOFFONONOFF 100 OFFOFFONOFFOFFONONOFF 101 ONOFFONOFFOFFONONOFF 102 OFFONONOFFOFFONONOFF 103 ONONONOFFOFFONONOFF 104 OFFOFFOFFONOFFONONOFF 105 ONOFFOFFONOFFONONOFF 106 OFFONOFFONOFFONONOFF 107 ONONOFFONOFFONONOFF 108 OFFOFFONONOFFONONOFF 109 ONOFFONONOFFONONOFF 110 OFFONONONOFFONONOFF 111 ONONONONOFFONONOFF 112 OFFOFFOFFOFFONONONOFF 113 ONOFFOFFOFFONONONOFF 114 OFFONOFFOFFONONONOFF 115 ONONOFFOFFONONONOFF 116 OFFOFFONOFFONONONOFF 117 ONOFFONOFFONONONOFF 118 OFFONONOFFONONONOFF 119 ONONONOFFONONONOFF 120 OFFOFFOFFONONONONOFF 121 ONOFFOFFONONONONOFF 122 OFFONOFFONONONONOFF 123 ONONOFFONONONONOFF 124 OFFOFFONONONONONOFF 125 ONOFFONONONONONOFF 126 OFFONONONONONONOFF 127 ONONONONONONONOFF 128 OFFOFFOFFOFFOFFOFFOFFON Limited Warranty TERMS: Alliance warrants to the original purchaser (“Buyer”) that the Product sold is free from defects in material and workmanship at the time of purchase. The warranty period begins at the time of Product’s original purchase by the first end-user. The warranty applies for one (1) year from the original date of purchase, or as long as the product is owned by the original purchaser, whichever comes first. Included in the warranty are parts and labor. Buyer must provide written notice to Alliance of any defective part or conditions within the warranty period. If the defect is not the result of improper use, service, maintenance or installation, and if the equipment has not been otherwise damaged or modified after shipment, Alliance or its authorized representative shall either replac…

Text truncated - open the document above for the full version.

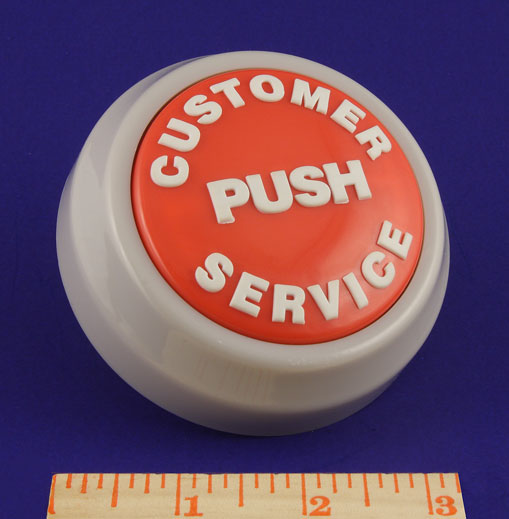

External Photos: Easy Touch Button Serial Number Placement CS Button Nel-Tech Labs, Inc.

Serial Number Placement CS Button Nel-Tech Labs, Inc.

Alliance Part #: 38591 Serial #: TX0208000001 FCC ID: UOXALLIANCE38591 IC: 3358A-TXTYPE2 Serial Number Example CS Button Nel-Tech Labs, Inc. Scale 1:1 Alliance Part #: 38591 Serial #: TX0208000001 FCC ID: UOXALLIANCE38591 IC: 3358A-TXTYPE2 Scale 4:1

Internal Photos: Easy Touch Button

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 109-08R1 In Accordance with the Requirements of Industry Canada RSS 210, Issue 7, Annex II Federal Communications Commission CFR Title 47 Part 15.231, Subpart C Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Nel-Tech Labs 4 Ash Street Extension Derry, NH 03038 for Easy Touch Transmitter FCC ID: UOXALLIANCE38591 IC: 3358A-TXTYPE2 Report Issued on February 8, 2008 Prepared by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 109-08R1 Issue Date: 02/08/2008 Page 2 of 12 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2. Product Details.................................................................................................................... 3 2.1. Manufacturer ..............................................................................................................3 2.2. Model Number............................................................................................................ 3 2.3. Serial Number ............................................................................................................ 3 2.4. Description ................................................................................................................. 3 2.5. Power Source............................................................................................................. 3 2.6. EMC Modifications ..................................................................................................... 3 3. Product Configuration ......................................................................................................... 3 3.1. Cables ........................................................................................................................ 3 3.2. Support Equipment .................................................................................................... 3 3.3. Operational Characteristics........................................................................................ 3 3.4. Block Diagram............................................................................................................ 4 4. Measurements Parameters................................................................................................. 4 4.1. Measurement Equipment Used to Perform Test ........................................................ 4 4.2. Measurement & Equipment Setup ............................................................................. 4 4.3. Test Procedure........................................................................................................... 5 5. Measurement Summary...................................................................................................... 5 6. Measurement Data.............................................................................................................. 6 6.1. Operational Requirement ........................................................................................... 6 6.2. Radiated Field Strength of Fundamental ................................................................... 6 6.3. Radiated Field Strength of Harmonics ....................................................................... 7 6.4. Occupied Bandwidth .................................................................................................. 8 6.5. Spurious Radiated Emissions .................................................................................... 8 6.6. Determination of Average Factor ............................................................................. 10 7. Test Site Description ......................................................................................................... 12 Test Number: 109-08R1 Issue Date: 02/08/2008 Page 3 of 12 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1. Scope This test report certifies that the Nel Tech Labs, Inc. CVS Easy Touch 433MHz transmitter, as tested, meets the RSS 210 Annex II Rules and FCC Part 15.231, Subpart C requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required 2. Product Details 2.1. Manufacturer: Nel Tech Labs, Inc. 2.2. Model Number: Alliance 38591 2.3. Serial Number: TX0208000001 2.4. Description: Easy Touch Transmitter - 433 MHz 2.5. Power Source: 4.5 Volts (3 AAA Batteries) 2.6. EMC Modifications: None 3. Product Configuration 3.1. Cables Cable Type Length Shield From To N/A 3.2. Support Equipment Device Manufacturer Model Serial No. None 3.3. Operational Characteristics Button was depressed and held in position. Test Number: 109-08R1 Issue Date: 02/08/2008 Page 4 of 12 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 3. Product Configuration (continued) 3.4. Block Diagram 4. Measurements Parameters 4.1 Measurement Equipment Used to Perform Test Device Manufacturer Model No. Serial No. Cal Due EMI Receiver Hewlett Packard 8546A 3650A00360 3/13/2008 Biconilog Antenna Com-Power AC220 25509 8/21/2008 Horn Antenna Electro-Metrics EM-6961 6337 8/23/2008 4.2 Measurement & Equipment Setup Test Date: 2/4/2008 Test Engineer: Brian F Breault Site Temperature (°C): 20.6 Relative Humidity (%RH): 30 Frequency Range: 30 MHz to 4.4 GHz Measurement Distance: 3 Meters EMI Receiver IF Ba…

Text truncated - open the document above for the full version.

Test Set Up Photos: Radiated Rear: Radiated Front:
