UQS-CZ-900SBLUETOOTH STEREO HEADSET

1 CZ-900S,CZ-910S Bluetooth stereo headset Operation Manual CZ-900S,CZ-910S / JTI 2 Thank you for purchasing the Bluetooth stereo headset CZ900S, we hope the headset will bring you a whole new delightful feeling of wireless technology. You can make a phone call or answering phone call while you are enjoy your favorite music through this stereo headset. Do remember, driving safely always is the first priority. Please read the instruction manual to get start and to make best use of the headset’s features. 3 Contents Use safely ········································································································· 4 Warning············································································································· 5 Introduction ······································································································· 6 Features ············································································································ 7 Before using your CZ900S ················································································ 9 Charging the CZ900S ····················································································· 11 Wearing ·········································································································· 14 “Pair” to your Bluetooth dongle/Notebook/Bluetooth phone ···························· 15 Basic operation ······························································································· 17 When connected to AV service········································································ 18 When connected with mobile phone ······························································· 19 4 Use Safely When using this headset with mobile phone or computer, please follow the general instruction posted for that particular location to avoid any possible disaster. These are some examples listed as following: 。 z Using the headset (connecting to mobile phone or computer) inside the aircraft may interfere with the aviation system and is prohibited. z Do not use the headset (with mobile phone or notebook) at gas station. z Do not use the headset (with mobile phone or notebook) near by flammable or explosive material. z Using the headset (with mobile phone or notebook) inside hospital might interfere with medical equipment and is prohibited in most hospitals. 5 Warning z Do not attempt to charge the headset with any devices other than the AC adaptor provided along with the headset. Using other AC adaptors may damage or destroy the headset. z Unless otherwise instructed in the User Guide, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on the unit. Whether during warranty period or over, it is suggested to return to the purchase point, factory or authorized service agency for all such works. z This headset is not waterproof; avoid using the headset in rain. z Avoid exploring the headset in extremely temperature conditions. z Store the headset in a dry and clean place. 6 Introduction CZ900S stereo headset specification: Bluetooth specification: CZ900S is compliant with Bluetooth version 1.2 Supported profiles: headset, hand-free and A2DP Operating range: Up to 10 meters (30 feet) typically. Operation time: Up to 8 hours for continuous operation, music playback or phone calls. Standby time: Up to 300 hours Battery: Lithium polymer rechargeable battery, nominal voltage 3.7V, capacity 400 mAh. Charging time: The headset can be fully charged in approximately 2 to 3 hours. 7 Features Your CZ900S stereo headset has features listed as follows: When connected to a mobile phone: Answer a call Terminate a call Reject a call Make a call using last number redial function Make a call using voice recognition function (if your mobile phone supports this function) When connected to a computer: VOIP services if connect through the headset profile (headset service). Multimedia services if connect through the A2DP profile (AV service). Functions supported including: Play/Pause 8 Stop Forward (select next) Backward (select previous) You can connect your CZ900S to computer and mobile phone at the same time (pairing the computer and the mobile phone separately). The CZ900S will switch to headset automatically on an incoming call while you are enjoying music via your media player. 9 Before using your CZ900S Be familiar with your CZ900S Figure 1: CZ900S Buttons 1. Multifunction Button (round) 2. Play/Pause Button (squared) 3. Volume Down/Backward Button (rectangular with – sign) 4. Volume Up/Forward Button (rectangular with + sign) 10 Figure 2: Fold your CZ900S 11 Charging the CZ900S When will charge CZ900S: First time use-- Fully charge the CZ900S before use. This will take about 2 to 3 hours. CZ900S low battery warning. Any time if you like to have a fully charged battery. Will not use the CZ900S for a long period of time (longer than two weeks). Charging steps: 1. Plug the mini-USB charging adaptor into the headset’s charging socket. 2. Plug the USB adaptor into the AC adaptor’s socket or computer’s USB socket. 3. Plug the AC adaptor into the mains outlet if AC adaptor is used. 4. Charge your headset until the red light turns off. 5. The stereo headset will be fully charged in approximately 2-3 hours. 6. Remove mini-USB charging adaptor from the headset. You are now ready to “pair” headset to your mobile phone. If the headset has already been paired to your phone, then you can use it now. 12 ！ WARNING: Do not attempt to charge the headset with any devices other than the AC adaptor provided along with the headset. Using other AC adaptors may damage or destroy the headset. ！ IMPORTANT: The red indicator will be turned on while charging and turned off when charging is complete. Removing the charger from the headset during charging will put the headset into standby mode and stop the charging sequence. ！ IMPORTANT: Headset cannot be used while charging 13 F…

Text truncated - open the document above for the full version.

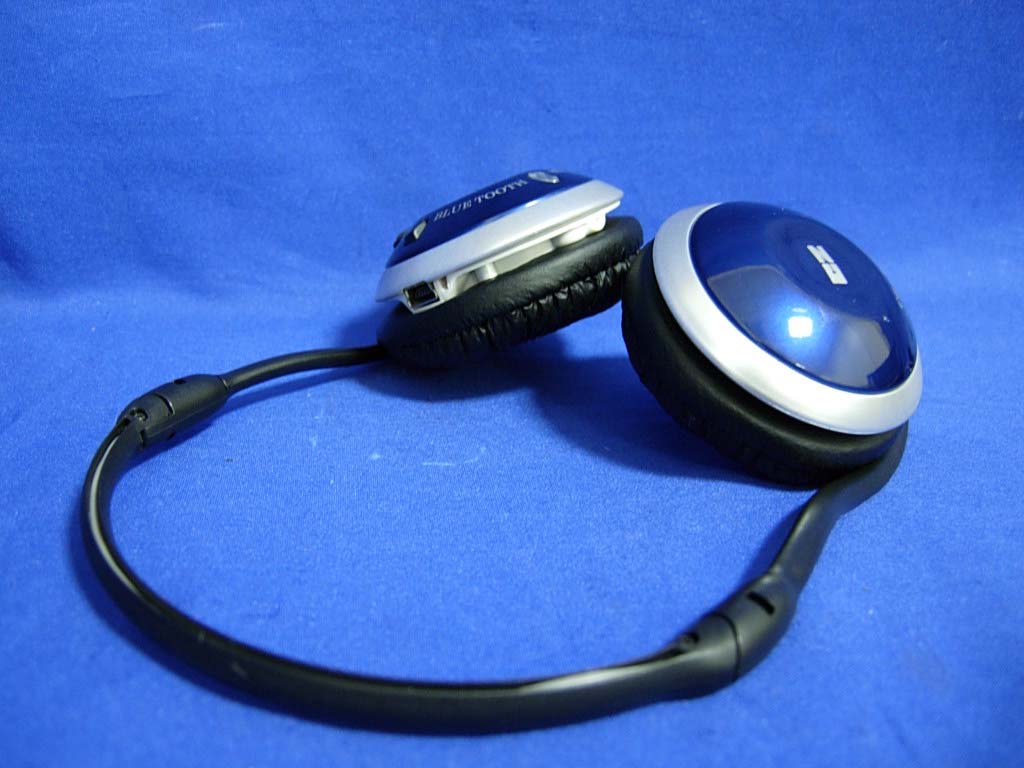

Report No.: 06CL110-RFUSP06V01 Page : 1 of 8 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 2 of 8 Version:1.0 (3) EUT Photo (4) EUT Photo

J-TEK INCORPORATION FCC ID.: UQS-CZ-900S 2F-1, No. 83, Sec. 2, Gongdaowu Rd., Hsinchu City 30070, Taiwan . Tel : 886-3-5738255 # 303 FCC ID Label The FCC ID will be placed on the equipment as shown in the photograph below. JTI Bluetooth Stereo Headset Model No: CZ-900S • FCC ID : UQS-CZ-900S CCXXxxYYyyyZzW Made in China

Report No.: 06CL110-RFUSP06V01 Page : 3 of 8 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 4 of 8 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 5 of 8 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 6 of 8 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 7 of 8 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 06CL110-RFUSP06V01 Page : 8 of 8 Version:1.0 (15) EUT Photo (16) EUT Photo

Report No. 06CL110-RFUSP06V01 Page: 8 of 50 Version:1.0 1.2. Operational Description The EUT is a Bluetooth Stereo Headset with a built-in 2.4GHz transceiver. It supports 79 channels in 2402-2480MHz and the data rate of 2Mbps. The signals are modulated by FHSS. The antenna is a chip antenna. The EUT provides wireless technology that revolutionizes personal connectivity. It is the solution for the seamless integration of Bluetooth technology into personal computer enabling short-range wireless connections between desktop/laptop computers, Bluetooth-enabled peripherals, and portable handheld devices.

Report No. 06CL110-RFUSP06V01 Page: 1 of 3 Version: 1.0 RF Exposure Evaluation Declaration Product Name : Bluetooth Stereo Headset Model No. : CZ-900S, CZ-910S FCC ID : UQS-CZ-900S Applicant : J-TEK INCORPORATION Address : 2F-1, No. 83, Sec. 2, Gongdaowu Rd., Hsinchu City 30070, Taiwan Date of Receipt : Dec. 19, 2006 Date of Declaration: Jan. 30, 2007 Report No. : 06CL110-RFUSP06V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 06CL110-RFUSP06V01 Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 06CL110-RFUSP06V01 Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation The maximum RF power of the EUT is 0.650 mW (-1.87dBm). It is below the limit 60mW/f(GHz) = 24mW at 2.45GHz and therefore no SAR evaluation is needed.

Report No. 06CL110-RFUSP06V01 Page: 1 of 50 Version:1.0 Test Report Product Name Bluetooth Stereo Headset Model No. CZ-900S, CZ-910S FCC ID. UQS-CZ-900S Applicant J-TEK INCORPORATION Address 2F-1, No. 83, Sec. 2, Gongdaowu Rd., Hsinchu City 30070, Taiwan Date of Receipt Dec. 19, 2006 Issued Date Jan. 30, 2007 Report No. 06CL110-RFUSP06V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 06CL110-RFUSP06V01 Page: 2 of 50 Version:1.0 Test Report Certification Issued Date: Jan. 30, 2007 Report No.: 06CL110-RFUSP06V01 Product Name Bluetooth Stereo Headset Applicant J-TEK INCORPORATION Address 2F-1, No. 83, Sec. 2, Gongdaowu Rd., Hsinchu City 30070, Taiwan Manufacturer ZhuHai ChangZhi Technologies Co., LTD. Model No. CZ-900S, CZ-910S FCC ID. UQS-CZ-900S Rated Voltage AC 120V/60Hz Working Voltage Battery 3.7V Trade Name JTI Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2005 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Rita Huang ) Tested By : ( Tom Hsieh ) Approved By : ( George Chen ) 0914 Report No. 06CL110-RFUSP06V01 Page: 3 of 50 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ...............................................................................................................5 1.1. EUT Description......................................................................................................................................5 1.2. Operational Description...........................................................................................................................7 1.3. Test System Details .................................................................................................................................8 1.4. Configuration of Test System ..................................................................................................................8 1.5. EUT Exercise Software .........................................................................................................................10 1.6. Test Facility ...........................................................................................................................................11 2. CONDUCTED EMISSION ................................................................................................................12 2.1. Test Equipment ......................................................................................................................................12 2.2. Test Setup ..............................................................................................................................................12 2.3. Limits.....................................................................................................................................................13 2.4. Test Procedure .......................................................................................................................................13 2.5. Uncertainty ............................................................................................................................................13 2.6. Test Result of Conducted Emission .......................................................................................................14 3. PEAK POWER OUTPUT ..................................................................................................................18 3.1. Test Equipment ......................................................................................................................................18 3.2. Test Setup ..............................................................................................................................................18 3.3. Limit.. ....................................................................................................................................................18 3.4. Uncertainty ............................................................................................................................................18 3.5. Test Result of Peak Power Output .........................................................................................................19 4. RADIATED EMISSION .....................................................................................................................20 4.1. Test Equipment ......................................................................................................................................20 4.2. Test Setup ..............................................................................................................................................21 4.3. Limits.....................................................................................................................................................21 4.4. Test Procedure .......................................................................................................................................22 4.5. Uncertainty ............................................................................................................................................22 4.6. Test Result of Radiated Emission ..........................................................................................................23 5. BAND EDGE .......................................................................................................................................29 5.1. Test Equipment .............................................................................…

Text truncated - open the document above for the full version.

Report No.: 06CL110-RFUSP06V01 Page : 1 of 6 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Mode 2: Transmitter (Charging with the AC adapter) Back View of Conducted Test Mode 2: Transmitter (Charging with the AC adapter) Report No.: 06CL110-RFUSP06V01 Page : 2 of 6 Version:1.0 Front View of Conducted Test Mode 3: Transmitter (Charging with the USB) Back View of Conducted Test Mode 3: Transmitter (Charging with the USB) Report No.: 06CL110-RFUSP06V01 Page : 3 of 6 Version:1.0 Front View of Radiated Test Mode 1: Transmitter Back View of Radiated Test Mode 1: Transmitter Report No.: 06CL110-RFUSP06V01 Page : 4 of 6 Version:1.0 Front View of Radiated Test Mode 2: Transmitter (Charging with the AC adapter) Back View of Radiated Test Mode 2: Transmitter (Charging with the AC adapter) Report No.: 06CL110-RFUSP06V01 Page : 5 of 6 Version:1.0 Front View of Radiated Test Mode 3: Transmitter (Charging with the USB) Back View of Radiated Test Mode 3: Transmitter (Charging with the USB) Report No.: 06CL110-RFUSP06V01 Page : 6 of 6 Version:1.0 Front View of Radiated Test (Horn) Mode 1: Transmitter Back View of Radiated Test (Horn) Mode 1: Transmitter
