UWJP25Bluetooth Printer

P25 Installation Guide http://www.bluebamboo.com 1 P25 Bluetooth Printer Quick Installation Guide P25 Installation Guide http://www.bluebamboo.com 2 FCC compliance statement “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Industry Canada Standard "This Class (B) digital apparatus complies with Canadian ICES-003." Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada. It is a registered trademark of BLUEBAMBOO All other trademark is the properties of their respective companies. Certification: The production has approved by FCC ID: UWJP25 Li-ion Battery has approved by UN.DOT and CE certification. Power charge has approved by CCC, TUV GS, cULus, CE and FCC certification Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipmen statement: P25 Installation Guide http://www.bluebamboo.com 3 1 Unpacking P25 Printer When opening the original shipping carton, carefully inspect the contents. It should include the following items listed below. If any items are damaged or missing, please contact your dealer. Figure 1: Unpacking P25 Printer P25 Installation Guide http://www.bluebamboo.com 4 2 Installation 2.1 Hardware features Figure 2: Hardware features 2.2 Inserting the paper roll To install the paper roll in the printer, follow these steps: 1. Open the paper cover by applying your finger pressure to both sides of the printer cover, squeeze to release the lock. 2. Rotate the paper cover up and back. Note that the cover is fixed. It is not necessary to remove it from the printer. P25 Installation Guide http://www.bluebamboo.com 5 Figure 3: Open the paper cover 3. Remove the paper roll and insert to a new roll, paper feeds from the bottom and allowing the free paper to extend outside the printer door. 4. Insert the paper roll in the printer as the picture shows: P25 Installation Guide http://www.bluebamboo.com 6 Figure 4: Install paper roll 5. Press the cover down until it snaps in place. Allow a small amount of paper to extend outside the cover. P25 Installation Guide http://www.bluebamboo.com 7 Figure 5: Pull out a small amount of paper 2.3 Battery supply 2.3.1 Installing/ Removing the battery pack Installing: The battery pack is located at the bottom of the printer. To install it please follow these steps: 1．Remove the isolation film on battery if the battery is a new one. 2．Place the battery pack as shown: P25 Installation Guide http://www.bluebamboo.com 8 Figure 6: Arrow to show the direction 3．Insert the battery pack, and press until it clicks into place. Removal: 1. Release the battery pack by pressing the lock tab. P25 Installation Guide http://www.bluebamboo.com 9 Figure 7: Remove battery 2. Remove the battery pack. 2.3.2 Battery and charge 1．Insert the DC plug of power adaptor into the power jack of printer; 2．Insert the AC plug of power adaptor into AC power supply; 3．Start battery charge, and red LED light continuously; 4．Finish charging, the red LED turn off. Figure 8: Battery recharge Warning: Notice: 1. If the red LED turns on for a short time and then turn off quickly when starting the battery charge procedure, there are two probable reason: first is you have completed battery charging, no need to charge again, second is this battery doesn’t work, please change it. 2. The red LED should turn on during charging and turn off after charging, please care for its status is right or not. P25 Installation Guide http://www.bluebamboo.com 10 3 Using the printer 3.1 Control panel Buttons z The POWER button switches the power on/off. In order to power off the power, you should press the POWER button for more than 1s. z The FEED button advances the paper roll. Paper is advanced continuously until the button is released. z The Mode button prints the self-test sample paper when pressed together with feed button. z The Feed button enter into boot loader mode when pressed together with power button LED There is a tricolor LED indicator only:blue, green, red Constantly lit Bluetooth module is available Blue Flashing data transaction via Bluetooth Constantly lit Power on, normal status Green Flashing data transaction via USB Constantly lit Charging Flashing intermittently with Blue LED An error has occurred Red Off Charging finished Error description Remedy Check Steps flashing type There is no more paper Add paper 1 The paper cover is open Close the paper cover 2 B,R,B,R.... An transmission error oc- curred Check the transmission status 3 B,R,R,B,R,R.... An overheat error occurred Wait until the print head cools down 4 B,R,R,R,B,R,R,R.... Battery voltage is too low Charge the battery 5 B,R,R,R,R,B,R,R,R,R.... P25 Installation Guide http://www.bluebamboo.com 11 Version History Version Author Date Description 1.0 Initial Version 1.1 Simon 2006-12-19 Modified 3.1, the part of LED

Klaus Knoerig Von: "Generic Office of Engineering Technology" <[email protected]> An: <[email protected]> Gesendet: Donnerstag, 8. März 2007 18:56 Betreff: Response to Inquiry to FCC (Tracking Number 608368) Seite 1 von 1 2007-03-09 Inquiry: We are a TCB and have received the attached justification letter for an alternative method of labeling. Please give approval. Response: The proposal is acceptable. Go ahead and grant and submit a copy of this inquiry into the filing. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

Name: Huian Gao Department: Compliance Engineer Telephone:+86-2153084181 Fax: +86-2153084187 Email: [email protected] Date: Feb 2,2007 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Certification Application FCC ID: UWJP25 Confidentiality Request Pursuant to Section 0.459 of the Commission’s Rule, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: - Block Diagram - Schematics - Operational Description - Part list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the prublic. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Thank you for your attention in this matter. Signatory On behalf of BLUE BAMBOO LIMITED (HK)

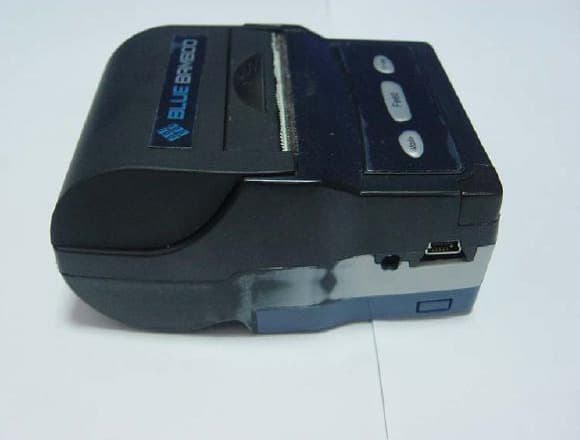

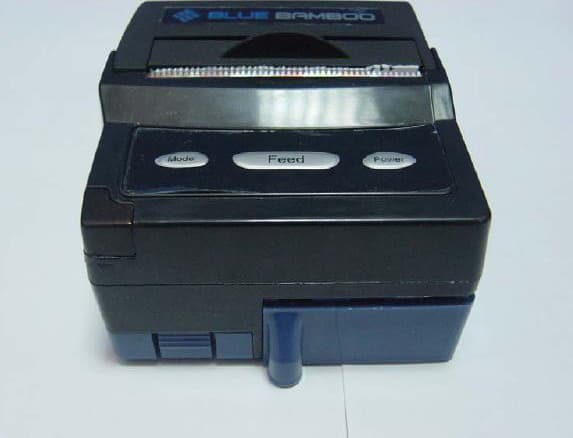

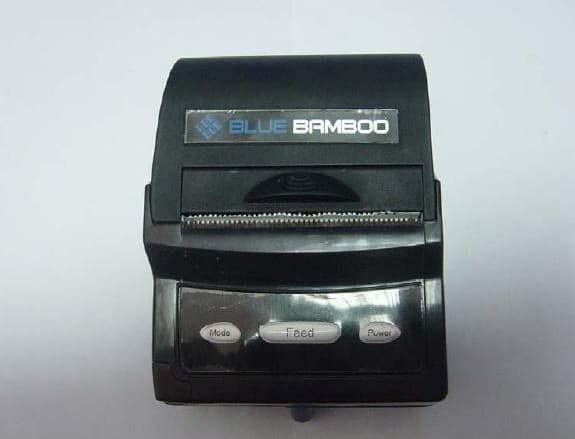

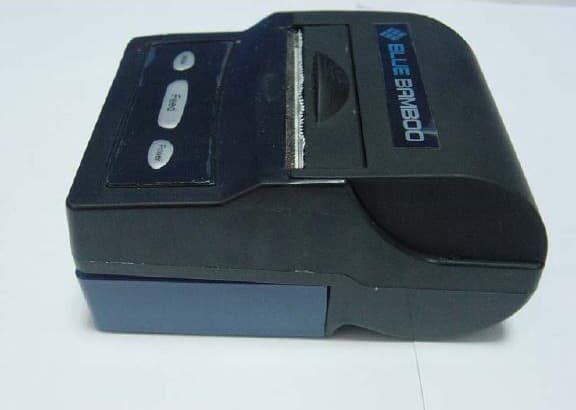

March 7, 2007 Equipment Authorization Division Office of Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ref: FCC ID: UWJP25 Dear Sirs: BLUE BAMBOO LIMIITED(HK) requests acceptance of the labeling proposal described below for Bluetooth Printer bearing FCC identifier UWJP25. The subject Bluetooth Printer are compact handheld models as shown in figure 1, authorized under 47CFR Part15C for Bluetooth Printer services. Figure 1. Because the majority of the Bluetooth Printer housing is composed of display, , operating controls,and a removable battery pack, there is extremely limited space available to attach the required label carrying the FCC identifier. Attaching the label to the battery pack is not acceptable because the battery pack is a removable item. For this reason, BLUE BAMBOO LIMIITED(HK) proposes placing the label carrying the FCC identifier inside the battery compartment as shown in figure 2. Figure 2. The consumer packaging for these models includes the battery pack as a separate item, NOT installed on the radio. As such, the FCC identifier will be readily visible to the user before the battery pack is installed and whenever the battery pack is removed or replaced. In this location, the label will also be protected from physical abuse and remain readable for the anticipated life of the device. The consumer packaging for these models is a "gift box" which does not allow the transceiver to be seen at time of purchase. In order to meet the requirements of 47CFR Part 2.925 (d), BLUE BAMBOO LIMIITED(HK) will add the FCC identifier " UWJP25" to the outside of the consumer "gift box" packaging. Thank you for your attention to this matter. Sincerely, Huian Gao March 7, 2007
