UY6-TFH256MCARRF TRANSCEIVER

REMOTE SIGNAL TORQUE WRENCH OPERATIONAL MANUAL RF Transceiver T-FH256MC -AR RF Terminal R-FH256 RF Setting Box SB-FH256 (Option) Federal Communication Commission Declaration of Conformity (DoC) Statement Model No: R-FH256, SB-FH256 Trade Name TOHNICHI Responsible Party Tohnichi America Corp. Address 677 Academy Drive, Northbrook, Illinois 60062 Telephone No 847-272-8480 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for product compliance could void the user's authority to operate the equipment. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada Regulatory Compliance Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada. For Customers in Canada This device complies with RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. L’ utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Exposure to radio frequency radiation The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb. 1. Outline This Remote Signal Type torque wrench sends the tightening completion signal to the Receiver far from the wrench through radio wave. The receiver can be connected to the Tohnichi CNA-4mk2 Count Checker to provide complete tightening assurance system to eliminate missed tightening. 2. Features ■ Antenna-less and Disconnection-less It is easy to replace the RF Transceiver. ■ Monitoring torque wrenches by ID It ensures traceability of Torque wrenches by ID (serial number: 7 alphanumeric digits). ■ Only one model both RF Transceiver and RF Terminal (Minimum spare) The group channel and torque wrench ID can be easily set and changed from the RF Setting Box (Option). ■ Efficient working The user with the torque wrench can know the communication status by an answerback method. ■ Mountable on Limit Switch(LS) Torque Wrench (T-FH256MC-AR) The T-FH256MC-AR RF Transceiver can be mounted on any LS Torque Wrench with a spacer for Limit Switch. ■ Easy replacement of the battery for RF Transceiver only by removing the battery cover. ■ Efficient Setting by wireless technology The group channel and torque wrench ID can be set and changed by Wireless technology. ■ Durable Light-weigh aluminum case The light-weight aluminum case is more durable than silicon case. ■ World wide 2.4GHz band It is compliant with FCC, IC and CE. 3. Specification RF Transceiver RF Terminal RF Setting Box Model Name T-FH256MC-AR R-FH256 SB-FH256 Frequency 2.402GHz – 2.479GHz Group Channel G000 - 255 ID 3 digits (numeric), 7 digits (alphanumeric) N/A Signal output N/A No-Voltage Contact Output(1a) RS232C RS232C Power Supply DC 1.5V (AAA Alkaline battery) AC 100V – 240V DC 9V (Alkaline dry cell) Antenna Chip antenna Dipole Antenna Operating Temperature range 0 – 45 o C Operating distance Approx. 10 – 20m (The operating distance may shorten depending the operation environment.) 4. Configuration RF Transceiver T-FH256MC -AR RF Terminal R-FH256 RF Setting Box SB-FH256 (Option) Count Checker CNA-4mk2 (Option) Radio wave Radio wave Radio wave RS232C RS232C No-Voltage Contact Output(1a) : Work Flow : Control Flow 5. Appearance and components 6. Operation 6-1 Precaution ① Handle the torque wrench with care. ② Read the Operation Manual before operation. ③ In case that the an adjustable screw of Preset/Pre-lock type wrench is changed, the switching mechanism may not work well. Please contact a Tohnichi authorized distributor or Tohnichi office for replacing a Stud of the torque wrench. 6-2 Replacing RF Transceiver ① Loosen two screws of the transceiver and remove it. ② Install the transceiver, and tighten the screws. (Tightening torque T=270cN・m) Note: Stud, which comes from wrench, should not be between place spring and the Battery case when installing the Transceiver. 6-3 Setting the Time to Avoid Double Counting ① The Timer is s…

Text truncated - open the document above for the full version.

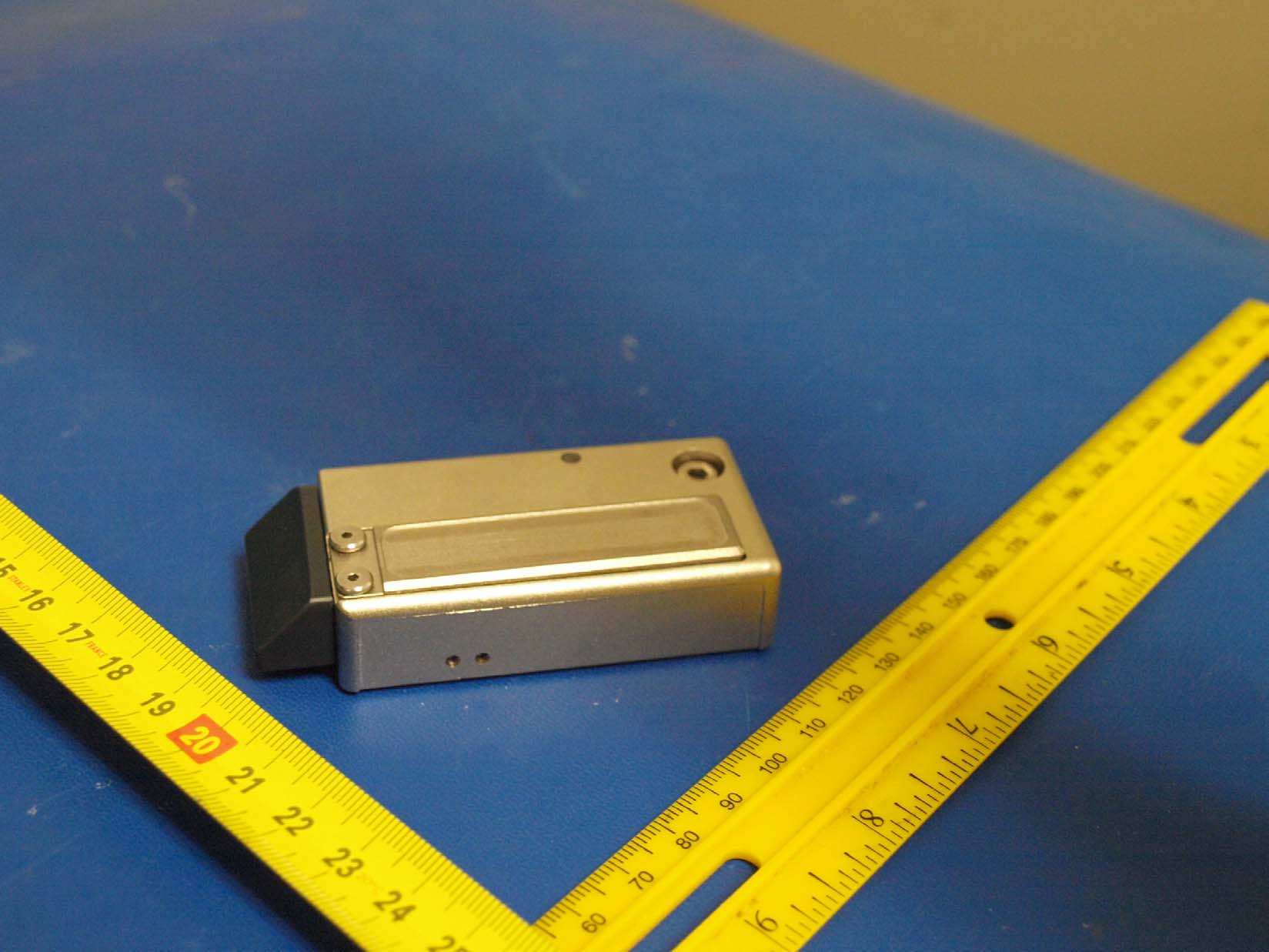

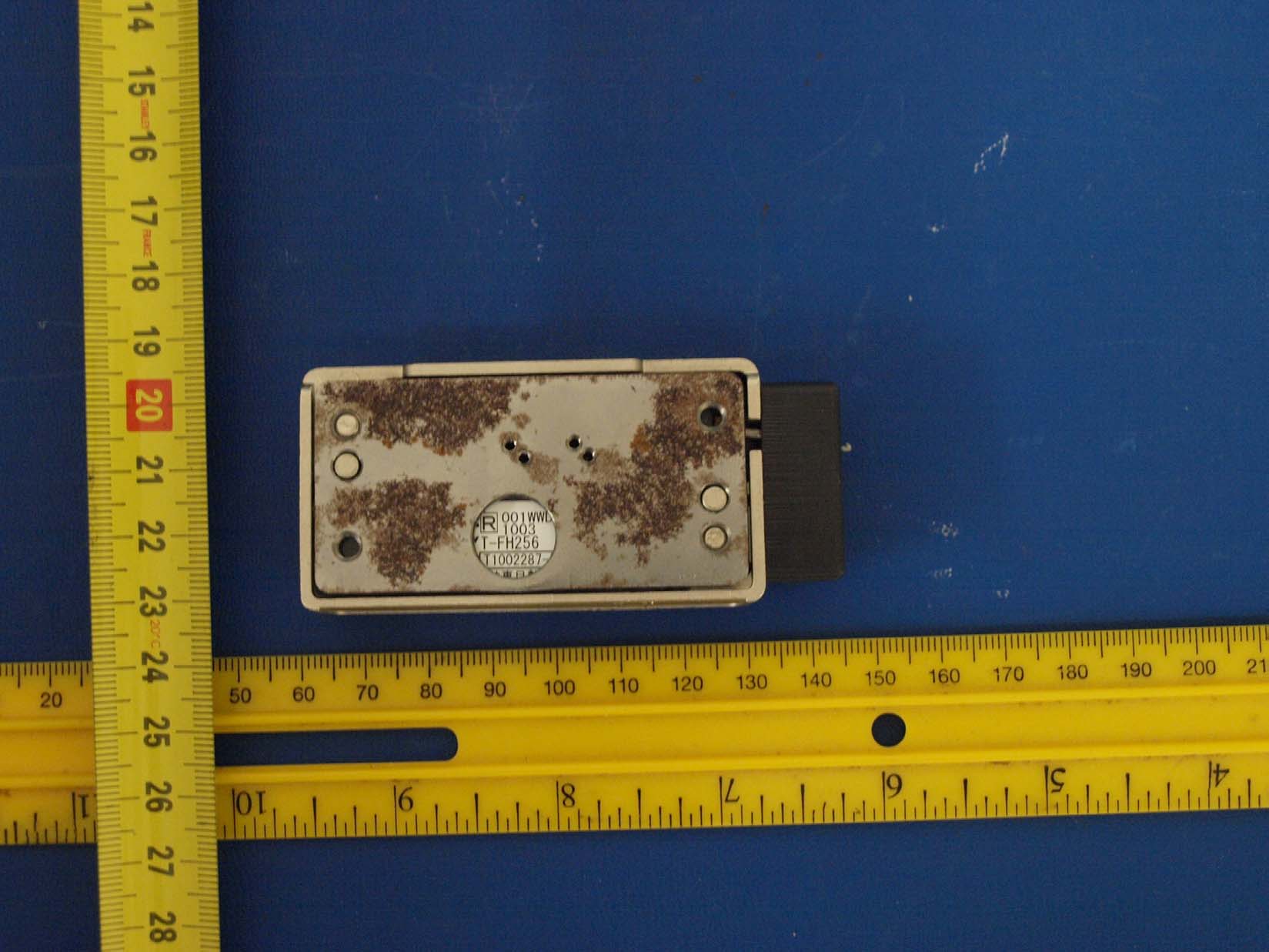

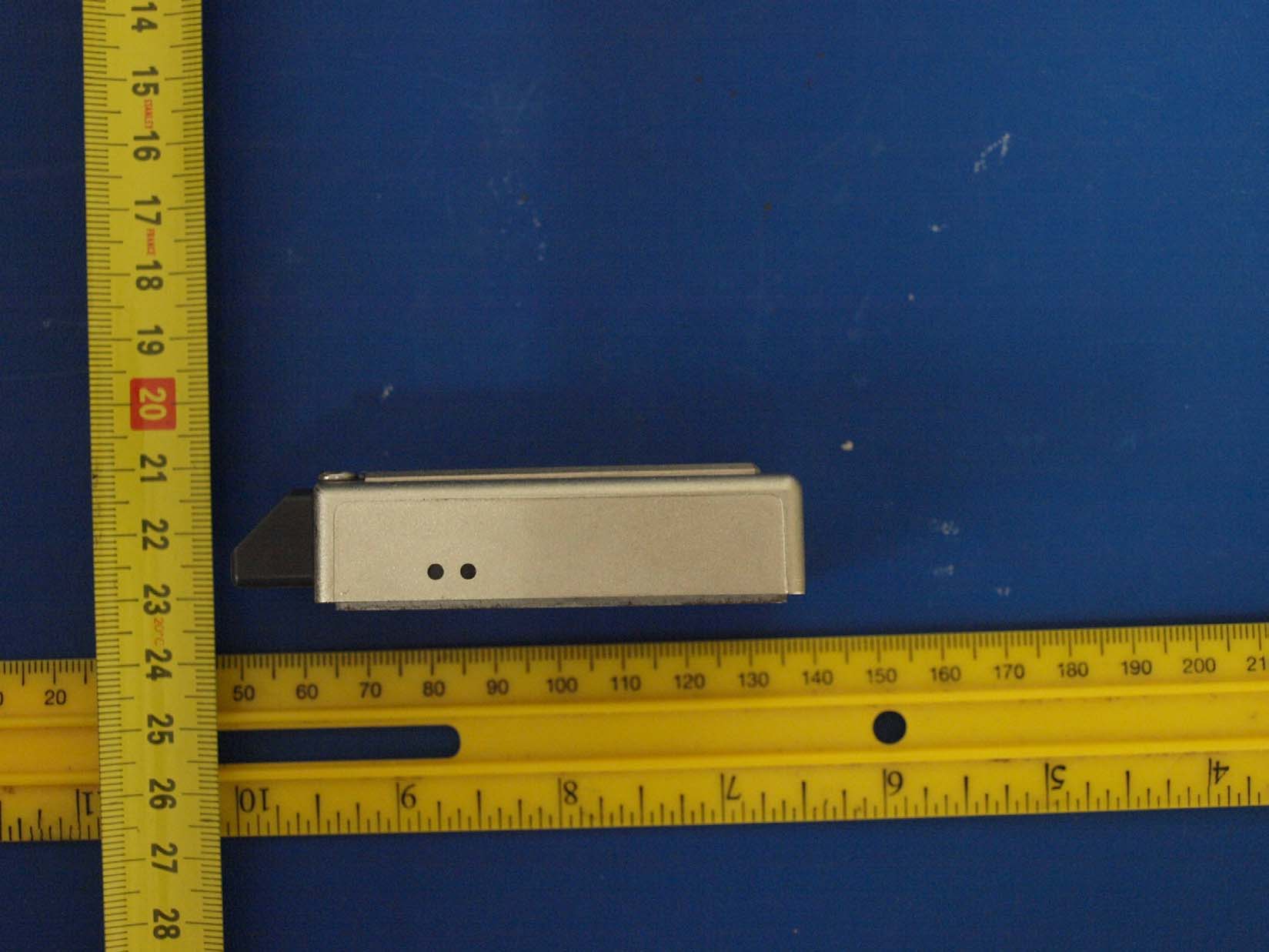

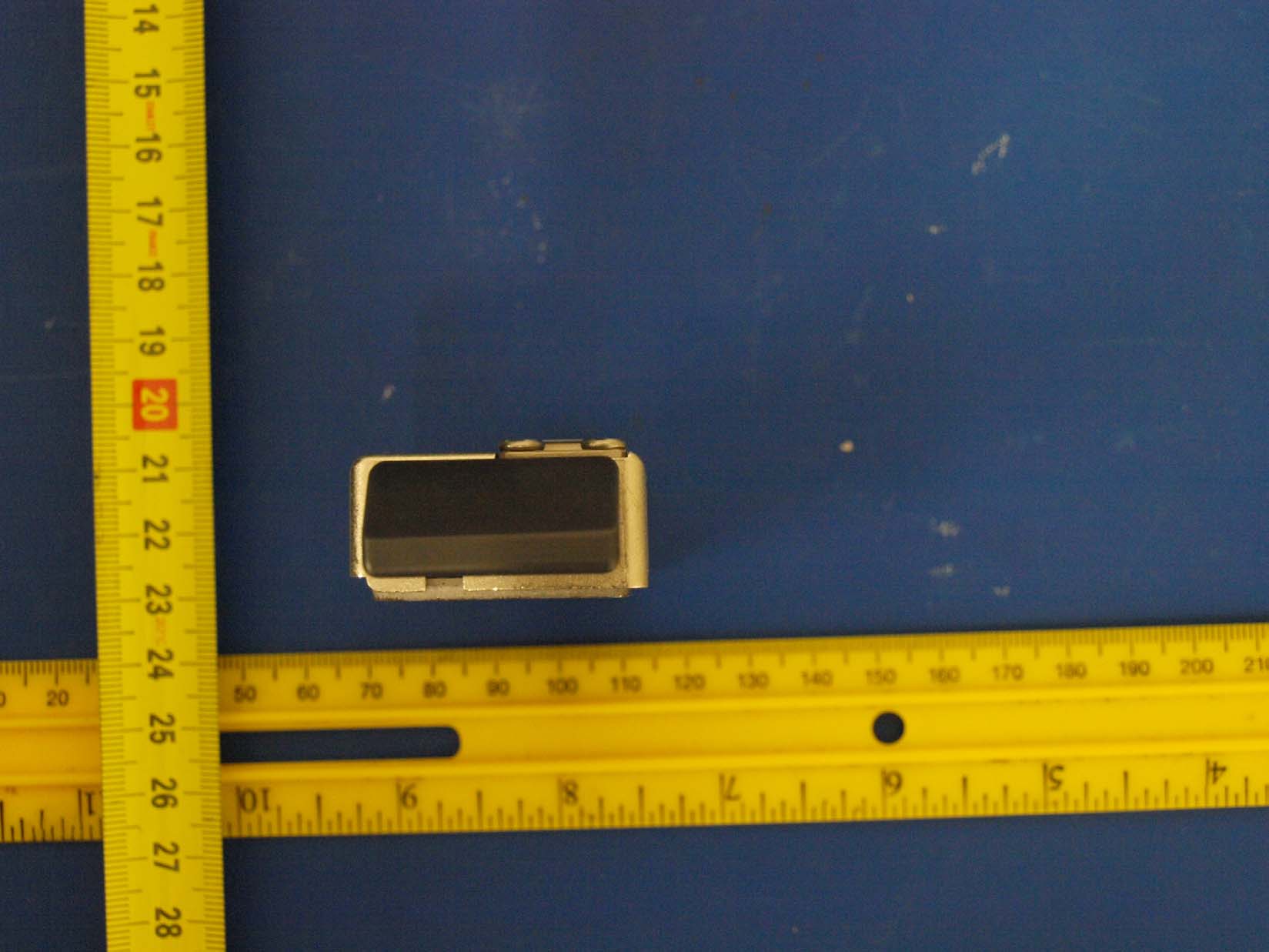

Product Name: RF TRANSCEIVER Model No: T-FH256MC-AR FCC ID: UY6-TFH256MCAR IC: 6561B-TFH256MCAR 2011/01/19 (株)東日製作所 T-FH256MC-AR 刻印 61.5mm 13mm 刻印位置

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR RF TRANSCEIVER MODEL NUMBER: T-FH256MC-AR FCC ID: UY6-TFH256MCAR IC: 6561B-TFH256MCAR REPORT NUMBER: 11J13611-1 ISSUE DATE: JANUARY 27, 2011 Prepared for TOHNICHI MFG CO., LTD 2-12, OMORI-KITA 2-CHOME, OTA-KU TOKYO 143-0016, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11J13611-1 DATE: JANUARY 27, 2011 FCC ID: UY6-TFH256MCAR IC: 6561B-TFH256MCAR Page 2 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 01/27/11 Initial Issue F. Ibrahim REPORT NO: 11J13611-1 DATE: JANUARY 27, 2011 FCC ID: UY6-TFH256MCAR IC: 6561B-TFH256MCAR Page 3 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT FUNDAMENTAL FIELD STRENGTH .................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 8 7. LIMITS AND RESULTS ................................................................................................................... 9 7.1. 99% BANDWIDTH ....................................................................................................................... 9 7.2. TRANSMITTER RADIATED EMISSIONS .................................................................................. 13 7.2.1. FUNDAMENTAL FREQUENCY RADIATED EMISSION ............................................ 15 7.2.2. TRANSMITTER RESTRICTED BAND EDGES ............................................................. 16 7.2.3. HARMONICS AND SPURIOUS EMISSIONS ABOVE 1GHz ....................................... 24 7.2.4. WORST-CASE BELOW 1 GHz ........................................................................................ 25 7.3. RECEIVER RADIATED EMISSION ........................................................................................... 29 8. SETUP PHOTOS .............................................................................................................................. 31 REPORT NO: 11J13611-1 DATE: JANUARY 27, 2011 FCC ID: UY6-TFH256MCAR IC: 6561B-TFH256MCAR Page 4 of 36 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: TOHNICHI MFG. CO., LTD 2-12, OMORI-KITA 2-CHOME OTA-KU, TOKYO, 143-0016, JAPAN EUT DESCRIPTION: RF TRANSCEIVER MODEL: T-FH256MC-AR SERIAL NUMBER: T1002301-5 DATE TESTED: JANUARY 21-27, 2011 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS INDUSTRY CANADA RSS-210 Issue 8 Annex 8 PASS INDUSTRY CANADA RSS-GEN Issue 3 PASS Compliance Certification Services (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of t…
