UY6-TFHSLSRemote Control Transmitter Module

User Manual TOHNICHI RF MODULE MODEL: T-FHSLS The purpose of this manual is to explain correct way how to integrate module T-FHSLS to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and end product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. The TOHNICHI RF MODULE, model T-FHSLS is installed in a portable device or in a fixed device. The usage is only for data transmission. And the T-FHSLS RF MODULE has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Regulatory Information USA-Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling TOHNICHI RF MODULE T-FHSLS is labeled as below. FCC ID: UY6-TFHSLS The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: UY6-TFHSLS” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. Operating by itself, the output power from this device is below the threshold where SAR measurements are required. Canada-Industry Canada (IC) This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. Labeling TOHNICHI RF MODULE T-FHSLS is labeled as below. IC: 6561B- TFHSLS The proposed with IC ID label format is to be placed on the module. If IC ID is not visible when the module is installed into the system, “Contains IC: 6561B-TFHSLS” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. Operating by itself, the output power from this device is below the threshold where SAR measurements are required. Attention: Exposition aux radiations de fréquences radio. Pour se conformer aux exigences de conformité d'exposition aux RF, cet appareil ne doit pas être colocalisé ni fonctionner en conjonction avec une autre antenne ou transmetteur. D'exploitation par elle-même, la puissance de sortie de cet appareil est en dessous du seuil où les mesures SAR sont nécessaires. Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC /IC RF Exposure guideline.

External Photo Top Side Bottom Side Model T-FHSLS FCC ID UY6-TFHSLS IC 6561B-TFHSLS

Label Location Label Diagram ModelT-FHSLS FCC ID UY6-TFHSLS IC 6561B-TFHSLS Unit:mm Label Located on the top of shield case

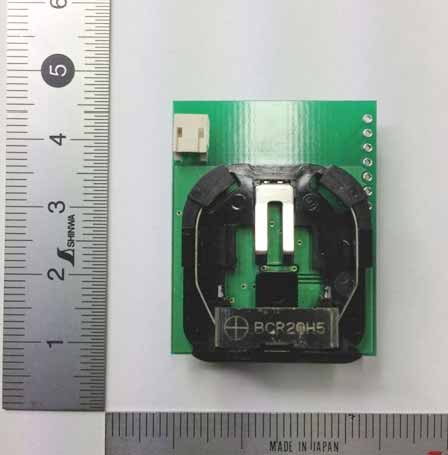

Internal Photo Top side RF board with shield plate Top side SUB board Model T-FHSLS FCC ID UY6-TFHSLS IC 6561B-TFHSLS Internal Photo Top Side of RF board without shield plate Bottom Side RF board Model T-FHSLS FCC ID UY6-TFHSLS IC 6561B-TFHSLS

Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 1 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT TEST REPORT For Remote Signal Torque Wrench Transmitter In conformity with FCC CFR 47 Part 15 Subpart C / IC RSS-Gen, RSS-210 Model: T-FHSLS FCC ID: UY6-TFHSLS IC ID: 6561B-TFHSLS Test Item: Remote Signal Torque Wrench Transmitter Report No: ERY1307Z31R1 Issue Date: 31 July, 2013 This report shall not be reproduced, except in full, without the written permission of RF Technologies Ltd. The test results in this report apply only to the sample tested. RF Technologies Ltd. is managed to ISO17025 and has the necessary knowledge and test facilities for testing according to the referenced standards. Prepared for Tohnichi Mfg. Co., Ltd. 2-12, Omori-Kita, 2-chome, Ota-Ku, Tokyo, 143-0016, Japan Prepared by RF Technologies Ltd. 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645 FAX: +81+(0)45- 534-0646 Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 2 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT Table of contents 1 General information ...................................................................................................................... 3 1.1 Product description ................................................................................................................................................ 3 1.2 Test(s) performed/ Summary of test result ............................................................................................................ 3 1.3 Test facility ............................................................................................................................................................ 4 1.4 Measurement uncertainty ....................................................................................................................................... 4 1.5 Summary of test results .......................................................................................................................................... 5 1.5.1 Table of test summary .................................................................................................................................... 5 1.6 Setup of equipment under test (EUT) .................................................................................................................... 5 1.6.1 Test configuration of EUT ............................................................................................................................. 5 1.6.2 Operating condition: ...................................................................................................................................... 5 1.6.3 Setup diagram of tested system:..................................................................................................................... 6 1.7 Equipment modifications ....................................................................................................................................... 6 1.8 Deviation from the standard .................................................................................................................................. 6 2 Test procedure and test data ........................................................................................................ 7 2.1 Occupied Bandwidth (20 dB/99%) ........................................................................................................................ 7 2.2 Transmitter Radiated spurious emissions .............................................................................................................. 8 2.2.1 Below 30 MHz ............................................................................................................................................. 11 2.2.2 Between 30 – 1000 MHz ............................................................................................................................. 12 2.2.3 Above 1000 MHz ......................................................................................................................................... 13 2.3 Receiver Radiated spurious emissions ................................................................................................................. 18 2.3.1 Between 30 – 1000 MHz ............................................................................................................................. 19 2.3.2 Above 1000 MHz ......................................................................................................................................... 20 3 Test setup photographs ............................................................................................................... 21 3.1 Radiated spurious emissions ................................................................................................................................ 21 3.2 Antenna Port Measurements ................................................................................................................................ 23 4 List of utilized test equipment/ calibration ............................................................................... 24 History Report No. Date Revisions Issued By ERY1307Z29R1 29 July, 2013 Initial Issue K. Ohnishi ERY1307Z31R1 31 July, 2013 Correction of typographical error (1.5.1, 2.1) K. Ohnishi Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 4 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 1.3 Test facility The Federal Communications Commission has reviewed the technical characteristics of the test facilities a…

Text truncated - open the document above for the full version.

Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 21 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3 Test setup photographs 3.1 Radiated spurious emissions Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 22 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT X-plane Y-plane Z-plane Issue Date: 31 July, 2013 Report No.: ERY1307Z31R1 Model: T-FHSLS RF Technologies Ltd. Page 23 of 24 472, Nippa-cho, Kohoku-ku, Yokohama, 223-0057, Japan Telephone: +81+(0)45- 534-0645, FAX: +81+(0)45- 534-0646, Web: http://www.rft.jp RFT 3.2 Antenna Port Measurements
