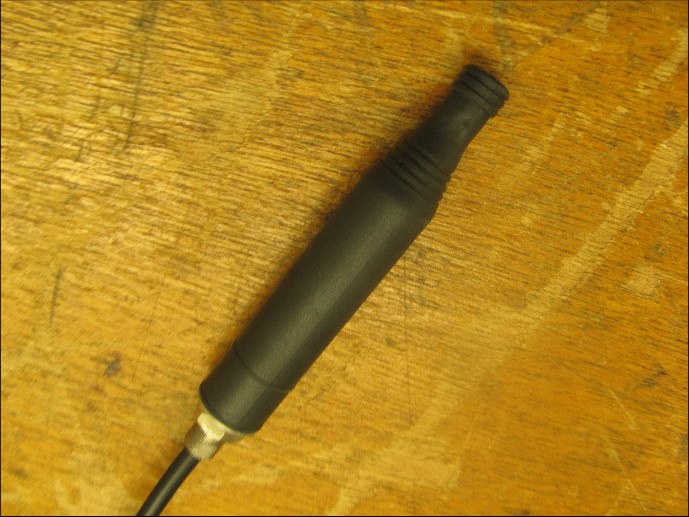

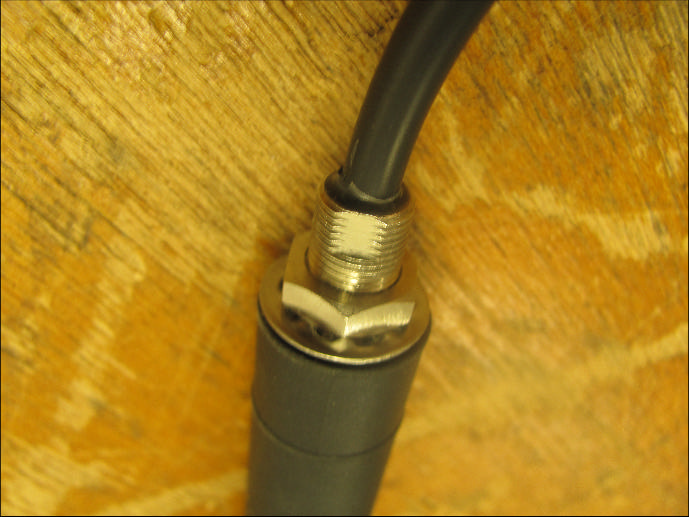

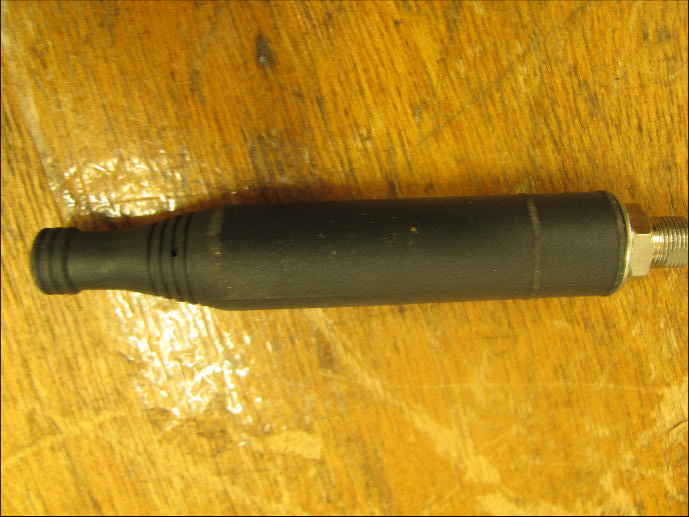

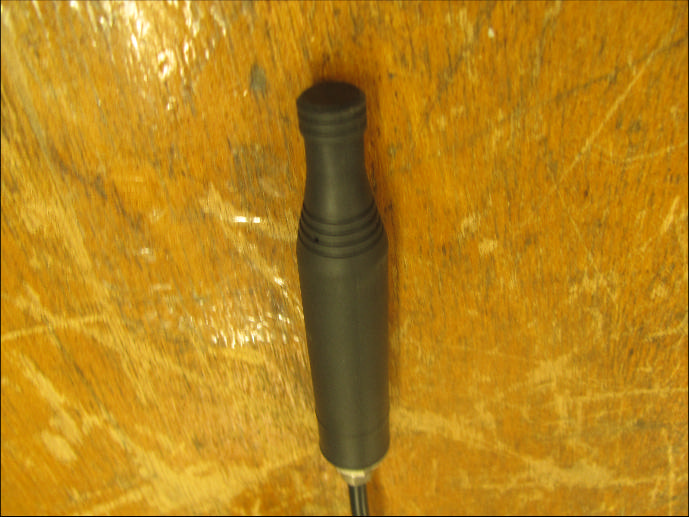

UYI-RFDANTRF Antenna Module

13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 1 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 Complete 2.4 GHz RF Transceiver Module with Built-In RFDP8 Application Protocol RFD21743 is a complete, READY-TO-USE wireless solution with it's built-in user application interface (RFDP8). Includes RFID, ESN, Logic Switch Transmitter / Receiver, 9600,N,8,1 Serial UART and many easy-to-use addressable network modes. No development required at all, no RF layout, no code writing, all features are built-in. Be up and running with a full wireless solution in minutes. Applications • Active RFID • Long Range RFID • Remote Control • Light Controls • Home Automation • Alarm Security • Keyless Entry • Perimeter Monitoring • PC Keyboard Security • Wireless Keyboard • Wireless Mouse • TV Remote • Home Stereo Remote • Asset Tracking • Wireless PTT • Remote Switches • Remote Terminals • Wireless RS232 DB9 • Wireless RS485 • Temperature Control • HV/AC • Meter Reading • Data Acquisition • Inventory Control • Keyfob Remotes • Industrial Controls • Vending Machines RFD21743 RFDANT FCC APPROVED 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 2 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 • Runs on a single coin cell for years. • WiFi interference tolerant. • Bluetooth interference tolerant. • Zigbee interference tolerant. • Very low cost. • No external parts required. • No RF layout required. • Easy and ready-to-use, hand-held, eval and application boards available. • Fully contained, truly a finished, ready to use module. • FCC Certified. • Typical range outdoor; 300 feet (100 meters), indoor 100 feet (33 meters). • Worldwide 2.4GHz ISM band operation. • User configurable without need for any programming. • 2uA Ultra low power modes. • Only 14mA current consumption at 0dbm RF power output. • Only 17mA current consumption at -94 dBm receive sensitivity. • 16 bit CRC data accuracy verification built-in. • 32 bit unique factory ESN in every module (4 billion combination security). • Flexible network modes, including broadcast and individual addressing. • Optional version available for use with external antenna (RFD21735). • Switch on/off, logic, remote-control without the need for an external controller. • Switch nodes individually addressable without the need for an external controller. • Wide supply range +1.9V to +3.6V. • Built-in, high performance internal antenna. • Peer to Peer (Ad-Hoc) networks and configurations. • Point to Multi-Point networks and configurations. • Multi-Point to Multi-Point networks and configurations. • Selective addressing of any module by using factory built-in ESN. • Fast-turn-around, minimal latency (20 millisecond). • Patent pending RFDP8 interference tolerant protocol. • Full application protocol runs transparent to the user. • Easy to use, simple to design in. • Stores up to 60 ESNs (Electronic Serial Numbers) for network modes. • Many to one data modes ideal for multi-point data acquisition. • Unlimited number of module nodes can communicate to each other. RFD21743 RFDANT Features RF Digital's RFDP8 application firmware loaded into the RFD21743 RFDANT module can be customized to fit application specific user requirements. RF Digital can design and manufacture fully custom modules to fit specific customer requirements. If you do not find what you're looking for, feel free to contact RF Digital with your requirements. Custom Modules RFDP8 Application Protocol • Mode Selector Chart See below for READY-TO-USE Eval boards. Eval Kits 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 3 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 RFD21743 Application Configuration Examples RFD21743 System Configuration Examples 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 4 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 RFD21743 Application Configuration Examples 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 5 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 RFD21743 Application Configuration Examples 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 6 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 All three eval boards can be powered from their on-board CR2032 3V battery or through the 12 pin 0.100 inch (2.54mm) pitch header, which can plug into directly into standard solderless breadboards or connect to mating a 0.100 inch (2.54mm) mating socket. The Eval Boards can work as stand-alone or can be wired to your application. Eval Board Top and Bottom Labeled Views 13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 7 © Copyright, RF Digital Corp. 9/2/2010 12:02 PM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 The 8 different modes of the RFDP8 Application Protocol are selected using the 3-position dip-switch S5 shown in the examples below. The 3 inputs have resistor pull-downs to ground, so when the switch is in its OFF (open) position, there is a low (0) on the input. When the switch is in its ON (closed) position, it connects the input to +V, which produces a high (1). The proper way to read binary is MSB on the left and LSB on the right. Swit…

Text truncated - open the document above for the full version.

13715 Alton Pkwy • Irvine • CA • 92618 Tel: 949.610.0008 • Fax: 949.610.0009 www.rfdigital.com • [email protected] 20 © Copyright, RF Digital Corp. 9/2/2010 12:43 AM Patents Pending RoHS FCC APPROVED RFDP8 RFDANT RFD21743 Eval Board RFD21773 FCC NOTICE Relating to Model Number RFDANT (RFD Stock Code: RFD21743) LABELING REQUIREMENT FOR USA FCC CERTIFICATION This device has a modular approval from the FCC. You must place the following label outside, on your product in an obvious location. Permanently attached label in a conspicuous location with the following statement: NOTES: 1. The FCC does not specify the size of the label or the lettering thereon. The only requirement is that the text be legible. 2. If the entire label can not be placed on the unit due to space constraint (e.g. Pacemaker), only “contains an FCC ID: UYI-RFDANT” may be displayed on the unit. In such cases, the compliance statement will have to be included in the "instruction to the user." ******* It is the users responsibility to determine if their device requires additional approvals ******* This device contains FCC ID: UYI-RFDANT RF module that complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Report Number: B00831D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Antenna Module Model: RFDANT Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for RF ANTENNA MODULE Model: RFDANT Prepared for RF DIGITAL CORPORATION 13715 ALTON PARKWAY IRVINE, CALIFORNIA 92618 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: SEPTEMBER 2, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 15 37 75 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B00831D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Antenna Module Model: RFDANT Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 RF Band Edges 16 8. CONCLUSIONS 17 Report Number: B00831D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Antenna Module Model: RFDANT Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B00831D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Antenna Module Model: RFDANT Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: RF Antenna Module Model: RFDANT S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: RF Digital Corporation 13715 Alton Parkway Irvine, California 92618 Test Date(s): August 31, 2010 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.207 Highest reading in relation to spec limit: 41.60 dBuV @ 0.995 MHz (*U = 1.00 dB) 2 Radiated RF Emissions 10 kHz – 25000 MHz (Transmitter Portion) Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249. Highest reading in relation to spec limit: 52.73 dBuV @ 4812 MHz (*U = 5.34 dB) 3 Radiated RF Emissions 10 kHz – 25000 MHz (Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B. *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B00831D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Antenna Module Model: RFDANT Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RF Antenna Module, Model: RFDANT. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performe…

Text truncated - open the document above for the full version.

RBW 1 MHz VBW 1 MHz A IN1 Unit dB
V TRG P0 TDS SWT 100 ms Ref Lvl 102 dB
V Ref Lvl 102 dB
V RF Att 10 dB Center 2.479 GHz10 ms/ 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] 0.97 dB 24.248497 ms 1 [T1] 33.27 dB
V 218.036072 ms 1 [T1] 0.97 dB 24.248497 ms D1 54 dB
V D2 74 dB
V Date: 31.AUG.2010 08:26:59 Time of One Pulse Train with Blanking Interval = 24.248497 mS RBW 1 MHz VBW 1 MHz A IN1 Unit dB
V TRG Ref Lvl 102 dB
V Ref Lvl 102 dB
V RF Att 10 dB SWT 50 ms Center 2.479 GHz5ms/ P0 TDS 1VIEW1AP 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -0.13 dB 24.248497 ms 1 [T1] 32.77 dB
V 211.222445 ms 1 [T1] -0.13 dB 24.248497 ms D1 54 dB
V D2 74 dB
V Date: 31.AUG.2010 08:27:38 Number of Pulses = 12 RBW 1 MHz VBW 1 MHz A IN1 Unit dB
V TRG Ref Lvl 102 dB
V Ref Lvl 102 dB
V RF Att 10 dB SWT 2 ms Center 2.479 GHz200
s/ P0 TDS 1VIEW1MA 10 20 30 40 50 60 70 80 90 2 102 1 1 Delta 1 [T1] -14.18 dB 805.611222
s 1 [T1] 41.03 dB
V 200.140281 ms 1 [T1] -14.18 dB 805.611222
s D1 54 dB
V D2 74 dB
V Date: 31.AUG.2010 08:28:45 Time of Each Pulse = 805.611222 uS Total Duty Cycle = (805.611222 uS *12) / 24.248497 mS = 39.87% Peak to Average Ratio = -7.98 dB

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE RF DIGITAL CORPORATION RF ANTENNA MODULE MODLE: RFDANT The fundamental was maximized on the Lab B test site using a normal test setup with the power supply for the EUT directly connected to the AC public mains (115 Vac). Next, the power supply for the EUT was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Wavetek Multimeter Model: DM25XT, Serial Number: 40209875, Calibration Due Date: June 9, 2011. The fundamental of the EUT was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
