UYIRFD10900 MHz RF Module

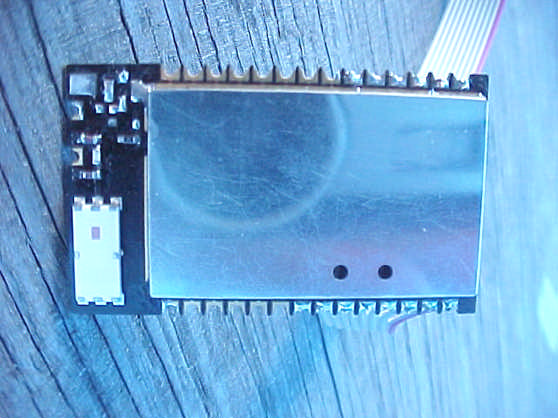

2029 Verdugo Blvd. Suite 750 • Montrose • CA • 91020 Tel: (818) 541-7622 • Fax: (818) 541-7644 www.rfdigital.com • [email protected] 1 UYIRFD10 900 MHz Transceiver Manual 03/08/07 Description: The (R210) UYIRFD10 is a 900 MHz GFSK transceiver module with an integrated microcontroller and antenna. Using the 5 digital general purpose IO lines a user can send or receive switch on-off commands or serial data between two similar modules. Frequency of operation: 902-928 MHz Module factory configured general purpose IOs for 5 switch inputs: (RFD21134) -Connect power to the +3V and GND pins. -Connect up to 5 logic outputs to the 5 inputs on the module, they are all internally pulled down to ground. -Any high on any of the 5 inputs causes the module to transmit that bit state to the receiver. Module factory configured general purpose IOs for 5 switch outputs: (RFD21138) -Connect power to the +3V and GND pins. -Connect up to 5 logic inputs to the 5 outputs, these are push-pull outputs and are at 3V logic. -Any high on the 5 inputs on the transmitter causes the associated output to go high on this receiver. Module factory configured general purpose IOs for 1 serial input and 1 serial output: (RFD21130) -Connect power to the +3V and GND pins. -To transmit, apply 3V logic, 9600, N, 8, 1 serial data into the TXD pin. -The module’s steady state is receive, so to receive simply do apply signal to the TXD pin and any data sent by a transmitter that is in range will be outputted by the RXD pin. The on air-communication and processing is the same for all the modules, the only thing that is different is how the user IOs handle based on factory configuration. All IO pins are connected to the same processor and are general purpose and run at 3V logic. 2029 Verdugo Blvd. Suite 750 • Montrose • CA • 91020 Tel: (818) 541-7622 • Fax: (818) 541-7644 www.rfdigital.com • [email protected] 2 LABELING REQUIREMENT FOR USA FCC CERTIFICATION This device has a modular approval from the FCC. When this module is used inside another product where the FCC ID number located on the module itself is not in an obvious place to be viewed by the user. Then you must place the following label outside, on your product in an obvious location. Permanently attached label in a conspicuous location with the following statement: This device contains an FCC ID: UYIRFD10 RF module that complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTES: 1. The FCC does not specify the size of the label or the lettering thereon. The only requirement is that the text be legible. 2. If the entire label can not be placed on the unit due to space constraint (e.g. Pacemaker), only “contains an FCC ID: UYIRFD10” may be displayed on the unit. In such cases, the compliance statement will have to be included in the "instruction to the user." ******* It is the users responsibility to determine if their device requires additional approvals ******* 2029 Verdugo Blvd. Suite 750 • Montrose • CA • 91020 Tel: (818) 541-7622 • Fax: (818) 541-7644 www.rfdigital.com • [email protected] 3 INSTRUCTION TO THE USER (if device contains a digital device) This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. This equipment has been verified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

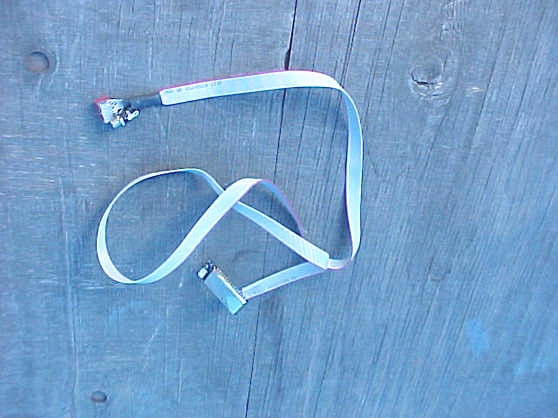

Report Number: B60620B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 900 MHz RF Module Model: R210 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for 900 MHz RF MODULE MODEL: R210 Prepared for RF DIGITAL CORPORATION 2029 VERDUGO BOLUEVARD, SUITE 750 MONTROSE, CALIFORNIA 91020 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 8, 2007 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 39 74 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B60620B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 900 MHz RF Module Model: R210 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Conducted Emissions Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.3 Radiated Emissions (Spurious and Harmonics) Test (continued) 15 8. CONCLUSIONS 16 Report Number: B60620B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 900 MHz RF Module Model: R210 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of 3 Meter Radiated Test Site Report Number: B60620B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 900 MHz RF Module Model: R210 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: 900 MHz RF Module Model: R210 S/N: N/A Product Description: See Expository Statement Modifications: No modifications were made during the testing. Manufacturer: RF Digital Corporation 2029 Verdugo Boulevard, Suite 750 Montrose, California 91020 Test Dates: June 15 and 16, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, section 15.207 Highest Reading in Relation to Spec Limit: 41.40 dBμV @ 1.577 MHz (*U c = 0.66 dB) 2 Radiated RF Emissions, 10 kHz – 9.3 GHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Highest Reading in Relation to Spec Limit: 45.14 dBμV @ 928.00 MHz (*U c = 1.91 dB) Report Number: B60620B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report 900 MHz RF Module Model: R210 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the 900 MHz RF Module, Model: R210 (EUT). The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are withi…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE RF DIGITAL CORPORATION 900 MHz RF MODULE MODEL: R210 The fundamental was maximized on the Lab B test site using a normal test setup with the AC Adapter for each printer connected directly to the AC public mains (115 Vac). Next, the AC Adapter for each printer was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC Adapter for each printer was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 956104240, Calibration Due Date: July 15, 2006. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
