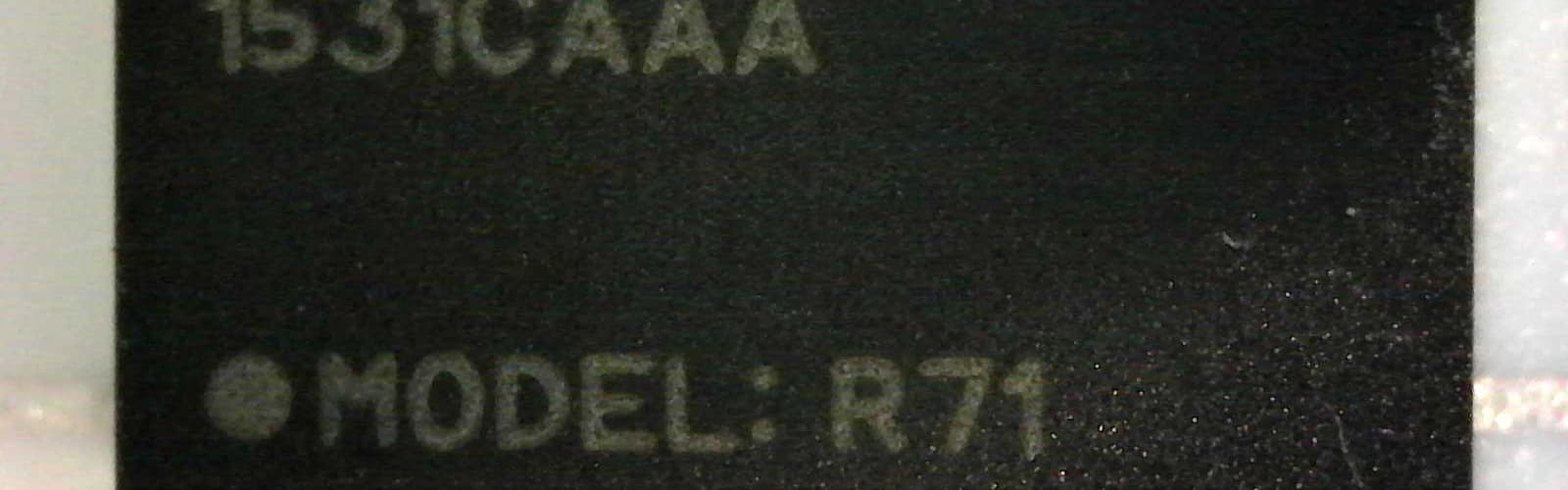

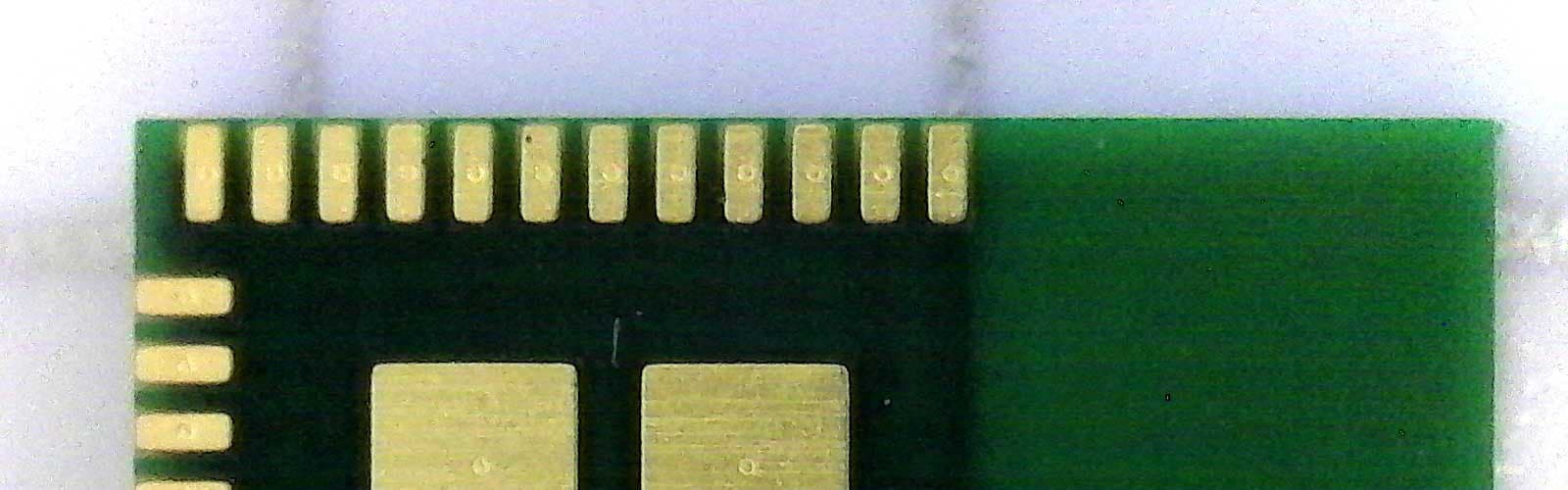

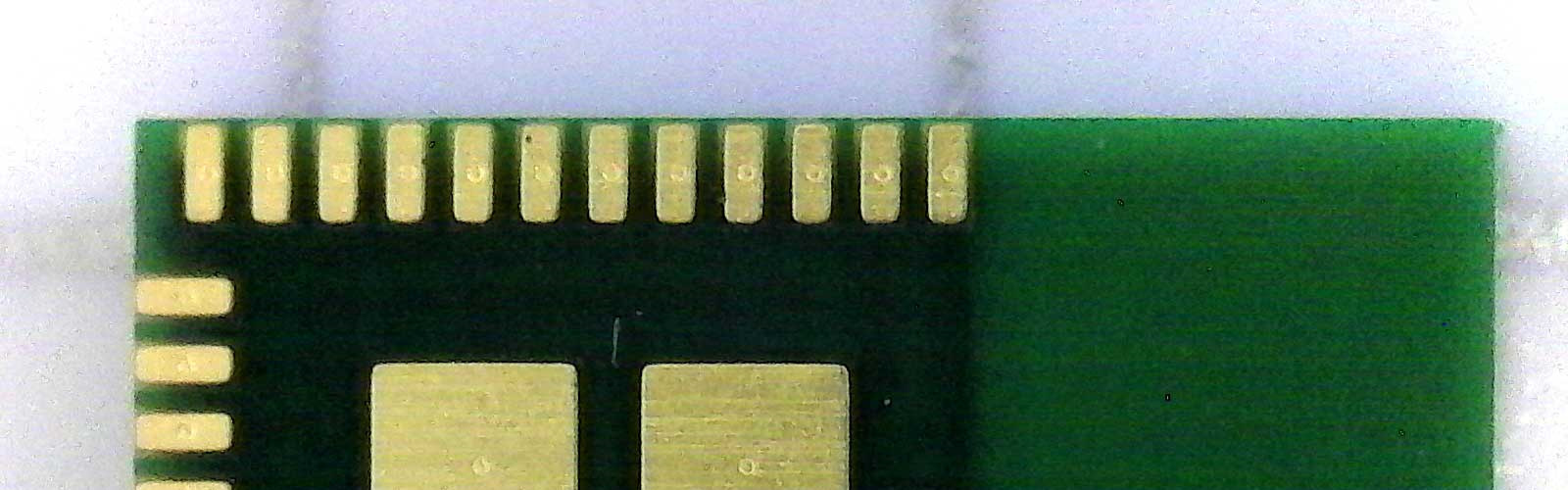

UYI71R71 Transceiver Module

1 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ Simblee™ RFD77101 IoT for connecting Everyone and Everything Simblee™ BLE Module RFD77101 PRELIMINARY DATASHEET Features  BLE Stack built-in  Fully encapsulated and hermetically sealed  Long range  Simblee™ interference immunity  3ms latency  10us accuracy (jitter)  Physical range adjustable from a few inches to hundreds of feet  Build iPhone and Android apps without Xcode or the Android SDK  Built in AES encryption engine  7mm x 10mm x 2.2mm  29 GPIOs (flexible pin configuration)  <4uA ULP with clock running (run for years on a coin cell)  600nA ULP Sleep mode  8mA TX @ 0dBm, 12mA TX @ +4dBm  10mA RX  -93dBm receiver sensitivity  -55dBm to +4dBm TX power  ARM Cortex M0 processor  Flash code space available for user application (no need for external controller)  6x ADC inputs, 4x PWM outputs, 2x SPI master/slave, 2x I2C, 1 x UART  Temperature sensor  Battery/Supply voltage monitoring  Onchip UART bootloader  OTA programming (optional)  Operating Voltage: 1.8 – 3.6V  Integrated 16 MHz crystal and 32KHz precision crystal  Integrated antenna  Integrated shield  FCC, IC, CE, TELEC compliance pending  Easy to pick and place  Patents Pending Only 7mm x 10mm 2 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 1. Overview of the Simblee™ RFD77101 1.1 Introduction The Simblee RFD77101 is a high performance, professional grade BLE radio transceiver with a built-in ARM Cortex M0 microcontroller that can be programmed using the simple-to-use Arduino IDE using Simblee extensions. Simblee is IoT for connecting Everyone and Everything (IoT4EE). It incorporates Mobile, BLE, Mesh, Cloud and other forms of wireless connectivity. Simblee is high-quality, cutting-edge and performance focused. Using the Simblee mobile browser on a phone or tablet, anyone can interact with Simblee enabled devices instantly without needing to download additional apps for each device. In just hours you can create functional IoT applications using the Simblee development environment. Developers can start developing mobile apps without having to first learn Xcode or Android SDKs. 1.2 Basic Operation Simblee is programmed using the Arduino IDE. Code is loaded using the onchip UART bootloader or via OTA (over the air) programming. 3 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 2. Pinout 2.1 45-pin LGA 0.5mm pitch 4 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 2.2 Pin Descriptions Name Pin Type Signal Comments 1 GND P Supply ground 2 GND P Supply ground 3 DNC X DO NOT CONNECT 4 GND P Supply ground 5 DNC X DO NOT CONNECT 6 GND P Supply ground 7 VDD P 1.8 – 3.6V Supply 8 RST/SWDIO I/O Reset / SWDIO 9 FACT/SWDCLK I Factory / SWDCLK 10 DNC X DO NOT CONNECT 11 P0.19 I/O GPIO 19 12 P0.17 I/O GPIO 17 13 P0.18 I/O GPIO 18 14 P0.16 I/O GPIO 16 15 P0.15 I/O GPIO 15 16 P0.12 I/O GPIO 12 17 P0.11 I/O GPIO 11 18 P0.09 I/O GPIO 9 19 GND P Supply ground 20 P0.08 I/O GPIO 8 21 P0.05 I/O GPIO 5 / ANALOG 6 22 P0.03 I/O GPIO 3 / ANALOG 4 23 P0.01 I/O GPIO 1 / ANALOG 2 24 P0.02 I/O GPIO 2 / ANALOG 3 25 P0.00 I/O GPIO 0 / AREF 0 26 P0.07 I/O GPIO 7 27 P0.10 I/O GPIO 10 28 P0.13 I/O GPIO 13 29 P0.14 I/O GPIO 14 30 GND P Supply ground 31 P0.06 I/O GPIO 6 / AREF 1 / ANALOG 7 32 P0.04 I/O GPIO 4 / ANALOG 5 33 P0.20 I/O GPIO 20 34 P0.23 I/O GPIO 23 35 P0.24 I/O GPIO 24 36 P0.21 I/O GPIO 21 37 P0.22 I/O GPIO 22 38 P0.25 I/O GPIO 25 39 P0.28 I/O GPIO 28 40 P0.29 I/O GPIO 29 41 P0.30 I/O GPIO 30 42 GND P Supply ground 43 GND P Supply ground 44 GND P Supply ground 45 GND P Supply ground I Input only O Output only, push-pull I/O Input/output X DO NOT CONNECT P Ground or power 5 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 3. Block Diagram Antenna Bluetooth Low Energy Stack Simblee COMM Stack ARM Cortex M0 DC/DC Converter 128K User Application Flash 24K User Application Ram 2.4GHz Radio 16MHz Crystal RFD77101 ULP 32kHz Precision Crystal 6 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 4. Example Circuit Diagrams 4.1 Basic Circuit with programming interface Note: A bypass capacitor C1 is recommended and should be placed close to pin 7. 7 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 5. Modes of Use Bluetooth Low Energy bi-directional communication with smart phone or tablet Simblee COMM ad-hoc bi-directional communication between any number of devices Simblee Module Phone / Tablet Simblee Module Simblee Module Simblee Module Simblee Module Phone / Tablet Optional 8 RFD77101 PRELIMINARY DATASHEET v0.2 © 2015 RF Digital Corporation PATENTS PENDING 09.09.2015 www.simblee.com Simblee ™ 6. Specifications 6.1 Absolute Maximum Specifications VDD 0 to +3.7 V Max continuous pin current, any control or drive pin ±5 mA CAUTION: Maximum ratings are the extreme limits the chip can be exposed to without causing permanent damage. Exposure to absolute maximum ratings for prolonged periods of time may affect the reliability of the chip. 6.2 Recommended Operating Conditions VDD +1.8 to 3.6 V Operating temperature –40°C to +85°C Power supply rise time (0V to VDD) 100ms maximum 6.3 Radio Specifications Parameter Description Min Typ Max Units Notes FOP Operating Frequency 2400 2481 MHz 1 MHz channel spacing BPSFSK On-Air data rate 250 2000 kbps TXpower TX Power -55 +4 dBm TXIDC+4dBm TX Current at +4dBm w/ DC/DC 12 mA TXI+4dBm TX Current at +4dBm w/o DC/DC 16 mA RXIDC RX Current w/ DC/DC 10 mA RXI RX Current w/o DC/DC 13 mA RXS250 Receiver sensitivity at 250kbps -96 dBm RXS1000 Receiver sensitivity at 1000kbps…

Text truncated - open the document above for the full version.

Document - Copyright 2015 RF Digital Corporation 1 1601 Pacific Coast Hwy • Suite 290 • Hermosa Beach • CA • 90254 www.rfdigital.com • Tel: 949.610.0008 • [email protected] September 9, 2015 Request for a modular approval Dear Application Examiner, The RF Digital Corporation module Model: R71 is seeking FCC authorization as a modular transmitter. The requirements of FCC 15.212 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See the attached photos. 2. The modular transmitter must have buffered modulation/data inputs There is a microprocessor on the board that collects the information from the digital data collection module and sends this stream to the RF transmitter. 3. The modular transmitter must have its own power supply regulation The board used in this module includes its own 1.8 volt regulator on the main processor for regulating the power to the transmitter so regulation is not a problem. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 The antenna is permanently soldered to the EUT. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in a stand-alone configuration. The controller board that it is connected to is for collection of data only. 6. The modular transmitter must be labeled with its own FCC ID number The EUT will be labeled with its own FCC ID number. If the module is installed inside of an end- product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Instructions are given in the installation manual for compliance to the RF exposure requirements.

SAR Exclusion Justification This device FCC ID:is excluded from SAR testing by the following justification The maximum power that the transmitter is capable of is2.51mW Using the following formula from section 4.3.1 of KDB 447498at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] Duty Cycle 100.00% Value1-g (mW)10-g (mW) 0.79(355)-212 "Value" is3, the SAR test exclusion threshold 1-g power limit10-g power limit 95238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission < 50mm power limits for above caclulation using specified frequency UYI71 Max Peak Power (dBm)Min Separation distance (mm)Frequency (Ghz) When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.4854 SAREXJUST-B-0-43REV A01/21/2014

Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15, SUBPART B and C TEST REPORT for RF MODULE MODEL: R71 Prepared for RF DIGITAL CORPORATION 1601 PACIFIC COAST HIGHWAY, SUITE 290 HERMOSA BEACH, CALIFORNIA 90254 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: SEPTEMBER 8, 2015 REPORTAPPENDICESTOTAL BODYA B C D E PAGES 18 2 2 2 16 58 98 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - Emissions 9 4.1.1 Cable Constructions and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Radiated Emissions (Spurious and Harmonics) Test – Lab B 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test – Lab D 15 7.1.3 Conducted Emissions Test 16 7.1.4 RF Emissions Test Results 17 8. CONCLUSIONS 18 Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams and Charts  Test Setup Diagrams  Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Site 3 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES FIGURE TITLE 1.0 Conducted Emissions Test Results 2.0 Radiated Emissions Test Results Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the federal government. Device Tested: RF Module Model: R71 S/N: N/A Product Description: The EUT is a transceiver module. Modifications: The EUT was not modified in order to meet the specifications. Customer: RF Digital Corporation 1601 Pacific Coast Highway, Suite 290 Hermosa Beach, California 90254 Test Dates: September 2, 3, 4, and 23, 2015 Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.249 Test Procedure: ANSI C63.4, ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Spurious Radiated RF Emissions, 10 kHz – 25,000 MHz (Transmitter and Digital portion) Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.205, 15.209 and 15.249 2 Conducted RF Emissions, 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and the limits of CFR Title 47, Part 15, Subpart C, section 15.207 Report Number: B50904D1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report RF Module Model: R71 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) …

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE RF DIGITAL CORPORATION RF MODULE MODEL: R71, FCC ID: UYI71 The fundamental was maximized on the Lab B test site using a normal test setup with the AC Adapter for the EUT connected to the AC public mains (115 Vac). Next, the power supply of the EUT was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC Adapter of the laptop was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: DM25XT, Serial Number: 40209875, Calibration Due Date: May 27, 2016. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
