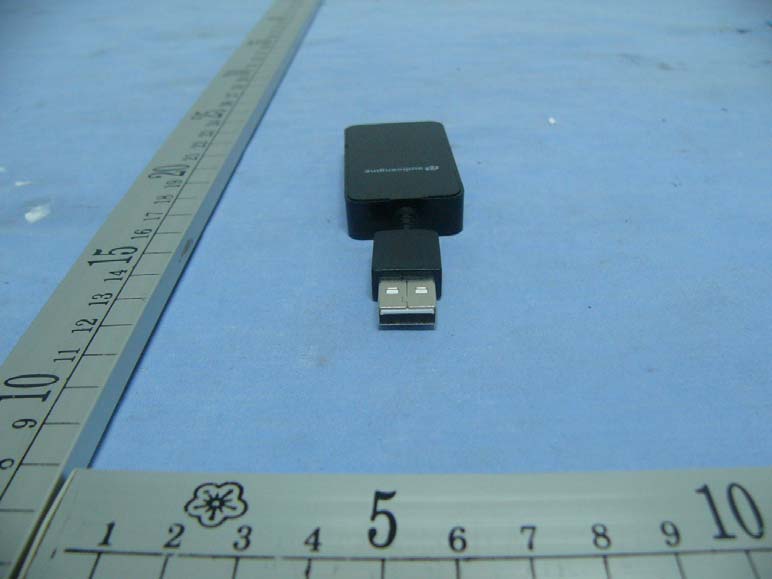

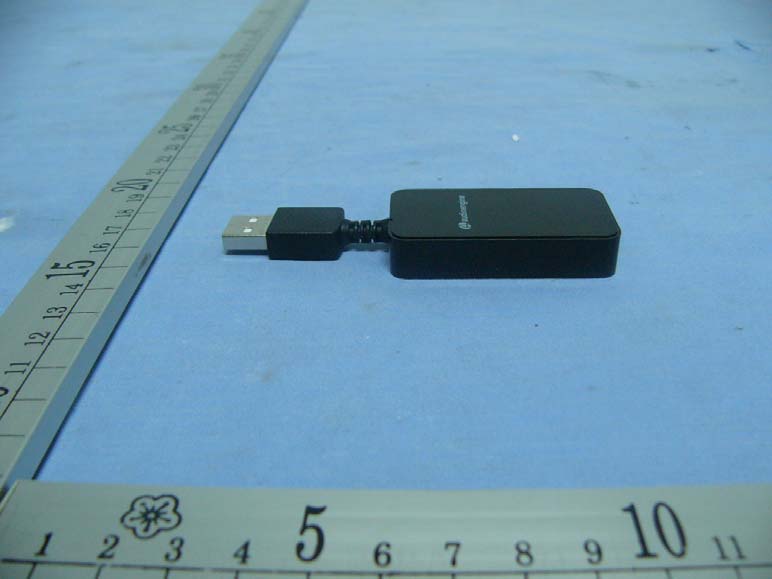

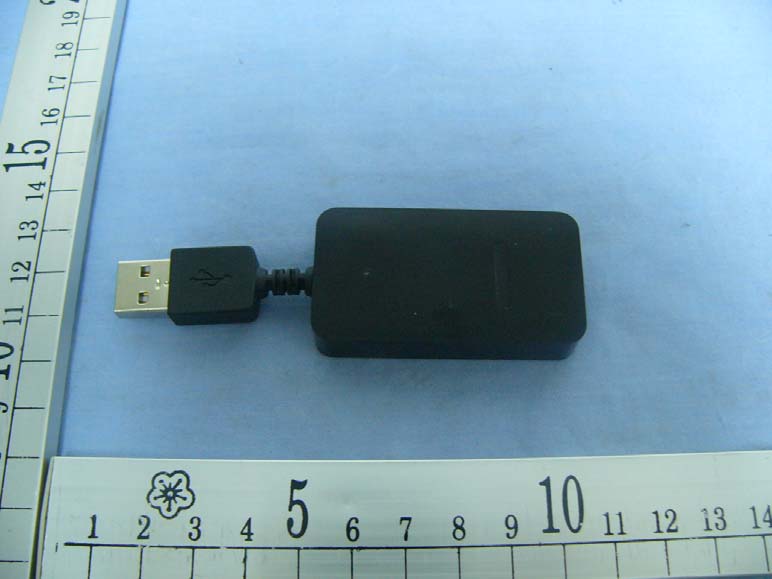

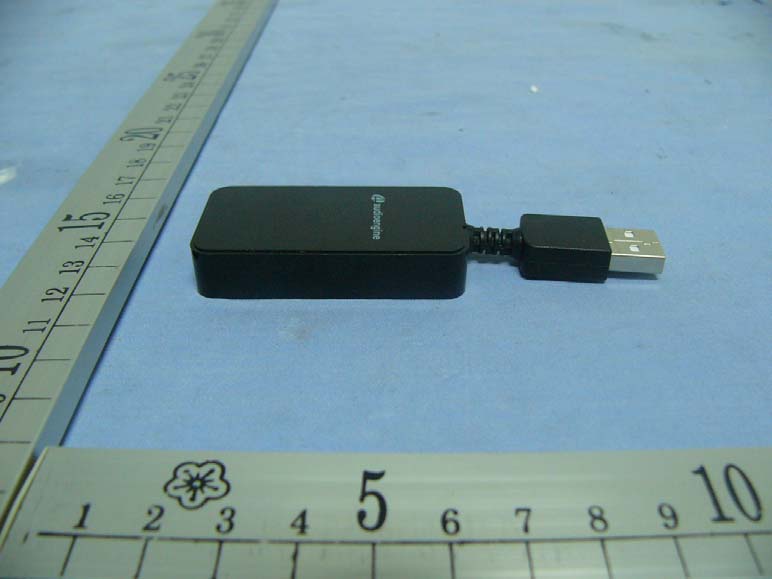

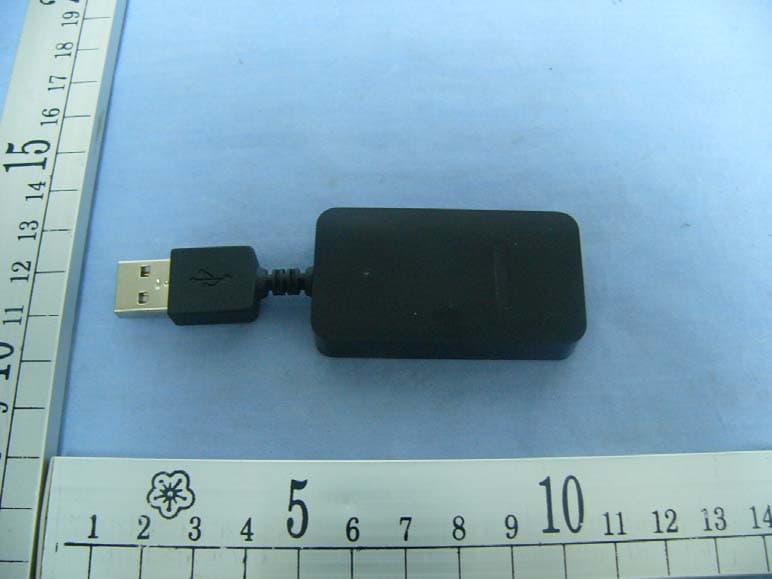

UZZAW1TRANSMITTERWireless Audio Transmitter

Safety Information Model No. : AW1 Wireless Audio USB Kit FCC This device complies with Part 15 of the FCC Rules Operation that is subject to following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Instruction Book Draft Introduction Packing Information for Users on Disposal of Old Equipment [European Union] This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling in accordance with your national legislation. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health that could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Attention: This symbol is only valid in the European Union. Technical Specifications Connection Using the Wireless Audio USB Kit Functional Overview The appearance of Sender and Receiver are the same except the audio jack symbol marked on the bottom. The symbol with an arrow "going in" represents that audio is transmitted from an audio player (such as computer, MP3 player, iPod, etc.) to the Sender. The symbol with an arrow "going out" represents that audio is transmitted from the Receiver to a speaker system. 1. USB Plug 2. LED Indicator 3. Connect Button 4. Audio Jack 1 2 3 4 Receiver (Bottom View)Sender (Bottom View) Caution:
Turn off your audio player and speaker system that you want to connect to before connection.
Do not connect the Sender to any audio system through the USB plug. Use the supplied stereo cable only.
Connect the switching power adapter only after all other connections are completed. [Connecting the Sender] A. Listening from your computer 1. Connect the USB plug of Sender to your computer.
The LED indicator blinks at a lower rate on the Sender. Caution: Keep far away from any obvious radio frequency interference sources when using the wireless Audio USB kit. [Establishing Communication between the Sender and Receiver] 1. Hold the CONNECT button on the Sender for 5 seconds.
The LED indicator blinks at a faster rate on the Sender. 2. Hold the CONNECT button on the Receiver for 1 second.
The LED indicator blinks at a faster rate on the Receiver. Note:
During the period of "pair mode", the LED indicators blink at a faster rate on the Sender and Receiver.
When an active link is established bewteen the Sender and Receiver, the LED indicators are solid on.
The maximum operation distance between the Sender and Receiver can be up to 30m (No obstacle). Supplied switching Power Adapter Receiver Receiver Receiver 2. Connect the USB plug of Receiver to the supplied switching power adapter. 3. Plug the switching power adapter into a AC power outlet.
The LED indicator blinks at a lower rate on the Receiver. [Other Countries outside the European Union] If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment. Examine the contents of the box for your Wireless Audio USB Kit. The box should contain:
A Sender
A Receiver
Two 3.5mm stereo cables
A switching power adapter
A user manual Press this button for 5 seconds Blinking LED Thank you for purchasing an AW1 Wireless Audio USB Kit from Audioengine. Your AW1 uses a proprietary 2.4GHz wireless communication system that enables you to securely establish connection between your personal computer and speaker system, through which you can enjoy listening to music files stored remotely. Compact in size and easy to setup, the system also allows connectivity with up to eight receivers, which you can share and listen to music from different locations. B. Listening from your audio player 1. Connect the USB plug of Sender to a computer. 2. Connect the other end of Sender to your audio player with the supplied stereo cable.
The LED indicator blinks at a lower rate on the Sender. [Connecting the Receiver] 1. Connect the audio output jack of Receiver to your speaker system with the supplied cable. Blinking LED To computer Sender Sender Sender Sender To speaker system To AC power outlet Supplied cable Blinking LED Press this button for 1 second Item Output level Frequency Reapones (1 kHz = 0 dB) THD Signal - Noise Ratio Channel Separation Effective Distance Condition mV dB dB % dB dB dB m Specifications 550 0 0 0.1 85 60 60 >30 100 Hz 10 kHz L > R R > L . 1 .. 2 . . 3 .. 4 . To audio player Supplied cable To computer [Listening to the System] A. If the sound source is from your computer, Caution: The system cannot play music files at your computer if an audio player is connected to the Sender. 1. Launch "Windows Media Player" or another media player program. 2. Select your favorite music to play. 3. Adjust volume on either your computer or speaker system. B. If the sound source is from your audio player, 1. Turn on your audio player. 2. Select the desired music and press "Play" button. 3. Adjust volume on either your audio player or speaker system. [Breaking up the Link] 1. After you finish using the system, unplug the Sender and Receiver. The pair is disconnected. [When Connecting to More Receivers] The system allows you to connect up to Eight Receivers at th…

Text truncated - open the document above for the full version.

Chris Harvey From: Elise.tang [[email protected]] Sent: Wednesday, September 19, 2007 4:20 AM To: [email protected] Cc: [email protected]; 'Elise.tang' Subject: FW: Beautiful Enterprise Co., Ltd , FCC ID: UZZAW1TRANSMITTER, Assessment NO.: AN07T7195, Notice#1 Attachments: ConfiReq_0914.pdf; Product Specification.pdf; SZ070827B03-RP TX 0914.pdf 9/20/2007 Dear charvey, Please see the reply below. -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Thursday, September 13, 2007 11:07 PM To: [email protected]; [email protected] Cc: [email protected] Subject: Beautiful Enterprise Co., Ltd , FCC ID: UZZAW1TRANSMITTER, Assessment NO.: AN07T7195, Notice#1 Dear Miro and Elise, You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: 1. The Confidentiality Request Letter submitted for this application requests that the Tune-Up Procedure be held confidential. There is no exhibit for Tune-Up Procedure. Please change the Confidentiality Request Letter exhibit to remove the reference to the Tune-Up Procedure exhibit. Please see the updated Confidentiality Letter. 2. The Application Form indicated that this device was being filed for Equipment Class DXC, but the test report shows that this is a 15.247 Digital Modulation device which is equipment Class DTS. Please confirm that it is OK for me to change this Equipment Class on the application form to be DTS. It is OK. Please change this equipment class on the application form to be DTS. 3. Please provide more technical information about the operation of this device. The manual indicates that there is a linking process, and can communicate with up to 8 receiver units. The Test report indicates that this device uses DQPSK modulation. Please provide a better technical description which better describes the modulation scheme, communication with multiple receivers, linking process, how to change channels, number of channels, etc. Please see the product specification. (HOP Mode : The sender unit able to connector with same model receiver by one to one , the number of connection up to 8 unit in sequence . device connection change by press < Hop > Switch one time .) 4. The table on page 11 of the test report indicates that the 6dB bandwidth of this device is 11300 kHz, where the test plots on pages 12 and 13 show 1130 kHz bandwidth. Please correct this test table. Also, please include the AC Conducted Emissions plot in the report. Please see P11 and P36-37 in the updated report. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey 9/20/2007 [email protected] 9/20/2007

Page 1 Page 2 Page 3

Transmitter Label location Receiver Label location

Page 1 Page 2 Page 3 Page 4 Page 5

Walsin Technology Corporation Introduction of RFANT7635110A1T June. 2005



                                                              L L T T C C C C M M u u l l t t i i L L a a y y e e r r C C h h i i p p A A n n t t e e n n n n a a – – B B r r o o a a d d B B a a n n d d T T y y p p e e F F o o r r I I S S M M B B a a n n d d 2 2 . . 4 4 G G H H z z A A p p p p l l i i c c a a t t i i o o n n




Surface Mounted Devices with a small dimension of 7.6 x 3.5 x 1.1 mm 3 future meet miniaturization trend.
380MHz broad bandwidth design makes less influence, less frequency shifting due to outside environmental deviation, enlarge your manufacturing process window.
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
High Stability in Temperature / Humidity Change
 Suitable for ISM band 2.4 GHz Working Frequency Operation



Item Specification Central frequency 2.450 GHz (*Note 1) Bandwidth 380 MHz (Typical value) Gain 0 ~ 2 dBi VSWR 2 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50W *Note 1. Central Frequency should be defined after customers’ application approval.





Bluetooth
Wireless LAN
HormRF
ISM band 2.4GHz applications.



   Outline of 2.4GHz Chip Antenna



   Symbol Dimension Port Definition L 7.60 ± 0.30 mm - W 3.50 ± 0.20 mm - T 1.10 ± 0.10 mm - F 0.50 ± 0.20 mm Feed termination G 0.80 ± 0.20 mm Ground termination C 0.50 ± 0.20 mm D 0.50 ± 0.20 mm P1 0.80 ± 0.20 mm Solder termination P2 0.80 ± 0.20 mm Solder termination P3 0.50 ± 0.10 mm Solder termination Patent Pending Walsin Technology Corporation Introduction of RFANT7635110A1T June. 2005


  Symbol Dimension L 8.10 ± 0.10 mm Lp 1.00 ± 0.10 mm Wp 1.20 ± 0.10 mm Lf 1.50 ± 0.10 mm Wf 0.80 ± 0.10 mm Lg 1.50 ± 0.10 mm Wg 1.50 ± 0.10 mm   Upon customer requested, max. 5-digit code is allowed.

Radiation Pattern and Gain were dependent on measurement board design. Walsin’s LTCC chip antenna is an electrically small antenna (size smaller than 1/10 l ). The specification of RFANT7635110A1T series chip antenna was measured based on the PCB size and installation position as shown in the figure at table-1. Test Board-2 Return Loss (S11)


 50 W


 50 W    E-Plane H-Plane The typical tuning range of Walsin’s chip antenna is about ±150MHz. The performance of embedded ceramic antenna is sensitive influenced by customer's ground area, PC board size, thickness, material, mechanical design and the material of housing for end product, actually, we need customer below information so that we could provide optimal layout design services for the customer’s antenna installation reference: 1. Dimension of PC board includes thickness and material. 2. The dimension of area where will be reserved for antenna mounting. (Please note, this area should not have ground on the back-side) 3. Grounding size dimension 4. Mechanism design, included housing 5. Housing material 6. Any metal shielding existed on PCB or mechanism. WTC engineers have significant expertise on embedded antenna designs and applications. We can work closely with you to ensure the requirements are met, and optimise the WTC’s antenna performance when installing on your application. CONTACT INFORMATION For more information, please contact with Walsin Technology Corporation. Tel : 886-3-475-8711 Fax : 886-3-475-5197 E mail : [email protected] Web Site : http://www.passivecomponent.com Specification subject to change without prior notice.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Page 1 of 1 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Audio Transmitter Model: AW1 Trade Name: Audioengine Prepared for BEAUTIFUL ENTERPRISE CO., LTD. 26TH FLOOR, BEAUTIFUL GROUP TOWER, 77 CONNAUGHT ROAD CENTRAL, HONG KONG Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. (aka COMPLIANCE ENGINEERING SERVICE (CHINA)) NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION............................................................................................................... 5 3.2 EUT EXERCISE.......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES...............................................................................................................................8 5.2 EQUIPMENT.............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING........................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT............................................................................................... 9 6.2 SUPPORT EQUIPMENT ..................................................................................................... 9 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 10 7.1 6DB BANDWIDTH................................................................................................................... 10 7.2 PEAK POWER.......................................................................................................................... 14 7.3 PEAK POWER SPECTRAL DENSITY.......................................................................................... 15 7.4 BAND EDGES MEASUREMENT ...................................................................................... 18 7.5 SPURIOUS EMISSIONS....................................................................................................... 23 7.6 POWERLINE CONDUCTED EMISSIONS..................................................................................... 34 APPENDIX 1 PHOTOGRPHS OF TEST SETUP.......................................................................... 38 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Page 3 1. TEST RESULT CERTIFICATION Applicant: BEAUTIFUL ENTERPRISE CO., LTD. 26TH FLOOR, BEAUTIFUL GROUP TOWER, 77 CONNAUGHT ROAD CENTRAL, HONG KONG Equipment Under Test: Wireless Audio Transmitter Trade Name: Audioengine Model: AW1 Date of Test: Au gust 27~28, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Maya You Reviewed by: Clinton Kao/ Manager COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. Eric Wong / Assistant manager COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Page 4 2. EUT DESCRIPTION Product Wireless Audio Transmitter Trade Name Audioengine Model Number AW1 Model Discrepancy N/A Power Supply TX: DC 5V Powered by PC Frequency Range 2405 ~ 2477 MHz Transmit Power 3.47 dBm Modulation Technique DQPSK Number of Channels 37 Channels Antenna Specification Chip Antenna Gain: 2 dBi (max) Temperature Range 0 ~ +55°C Note: This submittal(s) (test report) is intended for FCC ID: UZZAW1TRANSMITTER filing to comply with Section 15.207, 15.209 and 15.247 of…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Page 36 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: SZ070827B03-RP FCC ID: UZZAW1TRANSMITTER Date of Issue: August 29, 2007 Page 37 Conducted Emission Set Up Photos
