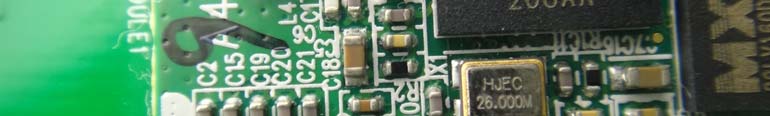

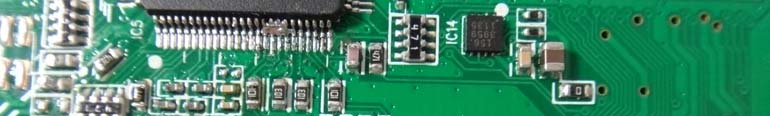

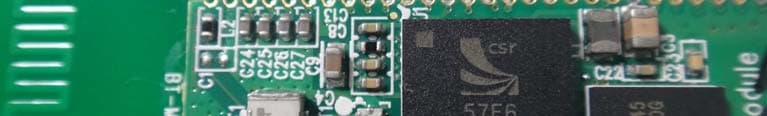

UZZBC05Bluetooth module

BC05 Module Spec. Shenzhen Synchron Electronics Co.,Ltd. 2010.11 1.General Description and Spcification 1.1 General Description This product is a Class 2 SMT Bluetooth Module used CSR BC5-MultiMedia External. It provides data and voice communications. It interfaces with a host through USB or UART and support data rate up to 12M/3Mbps. General Fetures: ■ Class 2 Bluetooth Module ■ Bluetooth Spec. V2.1+EDR Compliant ■ Support Firmware Upgrade ■ USB 2.0 and UART Host Interface ■ Multi-Configurable I2S, PCM or SPDIF Interface ■ Integrated 1.5V and 1.8V Linear Regulators ■ Integrated Switched-mode Regulator ■ Integrated Battery Charger ■ Integrated Microphone bias& LED Driver ■ 64MIPS Kalimba DSP Co-processor ■ Built in 16-bit Stereo Codec- 95dB SNR for DAC ■ Enhanced Audibility and Noise Cancellation ■ Support for 802.11 Co-existence ■ Green (RoHS Compliant) 1.2 Device Details Radio ■ Common TX/RX terminal simplifies external matching; eliminates external antenna switch ■ BIST minimises production test time ■ Bluetooth v2.1 + EDR specification compliant Transmitter ■ 4dBm RF transmit power with level control from onchip 6-bit DAC over a dynamic range >30dB ■ Class 2 and Class 3 support without the need for an external power amplifier or TX/RX switch Receiver ■ Receiver sensitivity of -70dBm ■ Integrated channel filters ■ Digital demodulator for improved sensitivity and cochannel rejection ■ Real-time digitised RSSI available on HCI interface ■ Fast AGC for enhanced dynamic range Baseband and Software ■ 16Mbit external Flash ■ 48Kbyte internal RAM, allows full-speed data transfer, mixed voice/data and full piconet support ■ Logic for forward error correction, header error control, access code correlation, CRC, demodulation, encryption bit stream generation, whitening and transmit pulse shaping ■ Transcoders for A-law, μ-law and linear voice from host and A-law, μ-law and CVSD voice over air Physical Interfaces ■ SPI with clock speeds up to 64MHz in Master mode and 32MHz in Slave mode ■ I2C master compatible interface ■ UART interface with programmable data rate up to 3Mbits/s with an optional bypass mode ■ USB v2.0 interface ■ Bi-directional serial programmable audio interface supporting PCM, I2S and SPDIF formats ■ Two LED drivers with faders Kalimba DSP ■ Very low power Kalimba DSP co-processor, 64MIPS, 24-bit fixed point core ■ SBC decode takes approximately 4mW power consumption while streaming music ■ Single-cycle MAC; 24 x 24-bit multiply and 56-bit accumulator ■ 32-bit instruction word, dual 24-bit data memory ■ 6K x 32-bit program RAM, 16K x 24-bit + 12K x 24- bit data RAM ■ 64-word x 32-bit program memory cache when executing from Flash Stereo Audio Codec ■ 16-bit internal stereo codec ■ Dual ADC and DAC for stereo audio ■ Integrated amplifiers for driving 16Ω speakers; no need for external components ■ Support for single-ended speaker termination and line output ■ Integrated low-noise microphone bias ■ ADC sample rates are 8, 11.025, 16, 22.05, 32 and 44.1kHz ■ DAC sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1 and 48kHz Auxiliary Features ■ Power management includes digital shutdown and wake-up commands with an integrated low-power oscillator for ultra-low power Park/Sniff/Hold mode ■ On-chip regulators: 1.5V output from 1.8V to 2.7V input and 1.8V output from 2.7V to 4.5V input ■ On-chip high-efficiency switched-mode regulator; 1.8V output from 2.7V to 4.4V input ■ Power-on-reset cell detects low supply voltage ■ 10-bit ADC and 8-bit DAC available to applications ■ On-chip charger for lithium ion/polymer batteries 1.3 Specification Chipset CSR BC05 Multimedia Specification Version Bluetooth V2.1+EDR Power Class Class 2 Frequency Band 2400~2483.5MHz Max. Tx Power -6~+4dBm RX Sensitivity ＜-70dBm Distance >10m(No obstacle) Flash Size 16M Power Voltage 3.3V Supply Current <40mA Operation Temperature -10 ~ +45 °C Dimension 32mm(L)x 13.5 mm(W) x 1.2mm(H) 2.Package Information 2.1 Pinout Diagram Figure 1: BC05 Module Pinout(Top View) 2.2 Terminal Functions Pin Name Pin Number Description GND 1 Ground PIO4 2 PIO5 3 PIO6 4 PIO7 5 PIO8 6 Programmable input/output line AIO1 7 AIO0 8 Analogue programmable input/output RESET 9 System Reset(Low Active) GND 10 Ground GND 11 Ground PIO10 12 PIO11 13 PIO12 14 PIO13 15 Programmable input/output line GND 16 Ground VDD 17 Positive supply for SPI/PCM ports and PIO[15:4] and BC05 MM Flash Pads, Connect to 3.3V GND 18 Ground VDD_Flash 19 Positive supply for Flash Memory ,Connect to 3.3V VDD_USB 20 Positive supply for UART/USB ports +1.8V 21 Switch-mode power regulator output GND 22 Ground USB_DP 23 USB data plus with selectable internal 1.5kΩ pull-up resistor USB_DN 24 USB data minus WP# 25 Flash write protect(Low Active) GND 26 Ground UART_RX 27 UART data input UART_TX 28 UART data output PCM_IN 29 Synchronous data input PCM_SYNC 30 Synchronous data sync PCM_CLK 31 Synchronous data clock PCM_OUT 32 Synchronous data output SPI_CSB 33 Chip select for SPI, active low SPI_MOSO 34 SPI data output SPI_CLK 35 SPI clock SPI_MOSI 36 SPI data intput VRE_IN 37 Take high to enable high-voltage linear regulator and switch-mode regulator VDD_BAT 38 Lithium ion/polymer battery positive terminal. Battery charger output and input to switch-mode regulator GND 39 Ground VDD_CHG 40 Battery charge LED1 41 LED0 42 LED Driver GND 43 Ground SPK_L_N 44 Speaker output negative, left SPK_L_P 45 Speaker output positive, left SPK_R_N 46 Speaker output negative, right SPK_R_P 47 Speaker output positive, right GND_S 48 Signal Ground MIC_BIAS 49 Microphone bias MIC_B_P 50 Microphone input positive, right MIC_B_N 51 Microphone input negative, right MIC_A_P 52 Microphone input positive, left MIC_A_N 53 Microphone input negative, left GND 54 Ground PIO0 55 PIO1 56 PIO2 57 PIO3 58 Programmable input/output line GND 59 Ground RF 60 Transmitter output/switched receiver input 2.3 Package Dimensions Figure 2: BC05 Module package Dimensions 3.Hardware Description 3.1 Block Diagram Fi…

Text truncated - open the document above for the full version.

Beautiful Enterprise Co., Ltd. 26 th Floor, Beautiful Group Tower, Tel: 852-23270195 77 Connaught Road Central, Hong Kong Fax: 852-23523380 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Beautiful Enterprise Co., Ltd would like the following documents regarding this submission for FCC ID: UZZBC05 to be kept confidential. 1. Schematic 2. Block diagram 3. Circuit description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Name: John Liao Title: Product Approbation Supervisor July 16, 2012

Beautiful Enterprise Co., Ltd. 26 th Floor, Beautiful Group Tower, Tel: 852-23270195 77 Connaught Road Central, Hong Kong Fax: 852-23523380 Jul 16, 2012 To whom it may concern: We the undersigned, hereby authorize EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by EMCCert DR. RAŠEK GmbH and Neutron Engineering, Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Beautiful Enterprise Co., Ltd. Sincerely, Signature: Name: John Liao Title: Product Approbation Supervisor

Neutron Engineering Inc. Project No.: 1206C199 Page 7 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 7 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 8 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 8 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 9 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 9 of 9 1206C199 1206C199

Neutron Engineering Inc. Project No.: 1206C199 Page 7 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 7 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 8 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 8 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 9 of 9 1206C199 1206C199 Neutron Engineering Inc. Project No.: 1206C199 Page 9 of 9 1206C199 1206C199

Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 1 of 133 FCC/IC Radio Test Report FCC ID: UZZBC05 IC: 7633A-BC05 This report concerns (check one) : Original Grant Class II Change Issued Date : Jul. 20, 2012 Project No. : 1206C199 Equipment : Bluetooth module Model Name : BC05 Applicant : Beautiful Enterprise Co., Ltd. Address : 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 26, 2012 Date of Test: Jun. 26, 2012 ~ Jul. 19, 2012 Testing Engineer : (David Mao) Technical Manager : (Leo Heng) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 2 of 133 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 3 of 133 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 14 4.1.3 TEST PROCEDURE 15 4.1.4 DEVIATION FROM TEST STANDARD 15 4.1.5 TEST SETUP 15 4.1.6 EUT OPERATING CONDITIONS 15 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 48 5 . NUMBER OF HOPPING CHANNEL 84 5.1 APPLIED PROCEDURES / LIMIT 84 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 84 5.1.2 TEST PROCEDURE 84 5.1.3 DEVIATION FROM STANDARD 84 5.1.4 TEST SETUP 84 5.1.5 EUT OPERATION CONDITIONS 84 5.1.6 TEST RESULTS 85 Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 4 of 133 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 87 6.1 APPLIED PROCEDURES / LIMIT 87 6.1.1 MEASUREMENT INSTRUMENTS LIST 87 6.1.2 TEST PROCEDURE 87 6.1.3 DEVIATION FROM STANDARD 87 6.1.4 TEST SETUP 88 6.1.5 EUT OPERATION CONDITIONS 88 6.1.6 TEST RESULTS 89 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 101 7.1 APPLIED PROCEDURES / LIMIT 101 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 101 7.1.2 TEST PROCEDURE 101 7.1.3 DEVIATION FROM STANDARD 101 7.1.4 TEST SETUP 101 7.1.5 EUT OPERATION CONDITIONS 101 7.1.6 TEST RESULTS 102 8 . BANDWIDTH TEST 106 8.1 APPLIED PROCEDURES / LIMIT 106 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 106 8.1.2 TEST PROCEDURE 106 8.1.3 DEVIATION FROM STANDARD 106 8.1.4 TEST SETUP 106 8.1.5 EUT OPERATION CONDITIONS 106 8.1.6 TEST RESULTS 107 9 . PEAK OUTPUT POWER TEST 112 9.1 APPLIED PROCEDURES / LIMIT 112 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 112 9.1.2 TEST PROCEDURE 112 9.1.3 DEVIATION FROM STANDARD 112 9.1.4 TEST SETUP 112 9.1.5 EUT OPERATION CONDITIONS 112 9.1.6 TEST RESULTS 113 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 117 10.1 APPLIED PROCEDURES / LIMIT 117 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 117 10.1.2 TEST PROCEDURE 117 10.1.3 DEVIATION FROM STANDARD 117 10.1.4 TEST SETUP 117 10.1.5 EUT OPERATION CONDITIONS 117 10.1.6 TEST RESULTS 118 Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 5 of 133 Table of Contents Page 11 . EUT TEST PHOTO 130 Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 6 of 133 1.. CERTIFICATION Equipment : Bluetooth module Brand Name : N/A Model Name : BC05 Applicant : Beautiful Enterprise Co., Ltd. Factory : Shenzhen Synchron Electronics Co., Ltd. Address : No. 9 Mei Li Road, Xia Mei Lin, Fu Tian Area, Shenzhen, Guangdong, China Date of Test : Jun. 26, 2012 ~ Jul. 19, 2012 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210:2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1206C199) were obtained utilizing the test proce…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 129 of 132 11. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 129 of 132 11. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 130 of 132 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 130 of 132 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 131 of 132 Radiated Measurement Photos 30M~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 131 of 132 Radiated Measurement Photos 30M~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 132 of 132 Radiated Measurement Photos Above 1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1206C199 Page 132 of 132 Radiated Measurement Photos Above 1000MHz
