Rocketboost™ Wireless Stereo Headphones RF-RBWHP01 User Guide RF-RBWHP01_10-0652_MAN_V1.fm Page 1 Thursday, July 29, 2010 8:26 AM 2 RF-RBWHP01_10-0652_MAN_V1.fm Page 2 Thursday, July 29, 2010 8:26 AM 3 RF-RBWHP01 Rocketfish RF-RBWHP01 Rocketboost™ Wireless Stereo Headphones Contents Introduction ...................................................................... 3 Safety information .......................................................... 4 Features .............................................................................. 7 Setting up your system ............................................... 13 Using your system......................................................... 16 Maintaining your system ............................................ 22 Troubleshooting............................................................ 23 Specifications.................................................................. 23 Legal notices ................................................................... 24 One-year limited warranty ......................................... 27 Introduction Congratulations on your purchase of high-quality Rocketfish Rocketboost™ Wireless Stereo Headphones. This system represents the state of the art in 2.4GHz wireless headphone design, and gives you complete freedom while enjoying your music or movie without the limitations of cables. The system has a maximum transmission range of up to 115 feet (35 m), as well as a strong immunity to external interference and static. You can use the docking station to recharge the headphones when they are not in use. RF-RBWHP01_10-0652_MAN_V1.fm Page 3 Thursday, July 29, 2010 8:26 AM 4 The system can be used with your television or other audio components, like your CD/DVD player, home theater system, or even audio output from a computer or mp3 player. By using other Rocketboost™ wireless audio products, you can also configure multiple audio streams and listen in multiple rooms. This User Guide explains how to correctly install, operate, and get the best performance from your Rocketboost Wireless Stereo Headphones. Read this guide carefully before installing your system, and then keep it handy for quick reference. Safety information Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Caution: To reduce the risk of electric shock, do not remove screws, covers, or the cabinet. There are no user-serviceable parts inside. Refer servicing to qualified service personnel. • Read these instructions. • Keep these instructions. •Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RF-RBWHP01_10-0652_MAN_V1.fm Page 4 Thursday, July 29, 2010 8:26 AM 5 RF-RBWHP01 • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments or accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. • The shock hazard marking and associated graphical symbol are provided on the supplied AC adapter. • The apparatus shall not be exposed to dripping or splashing and objects filled with liquids should not be placed on the apparatus. • The AC plug or an appliance coupler is used as the disconnect device. The disconnect device shall remain readily operable. • Excessive sound pressure from headphones can cause hearing loss. • Batteries (battery pack and batteries installed) should not be exposed to excessive heat such as sunshine or fire. • Do not place any conductive material in the cradle to avoid short circuits involving the charging pins. What is Rocketboost™? Rocketboost™ is expandable wireless digital audio. • Products with Rocketboost™ technology let you easily expand your listening experience throughout your home. • Rocketboost™ does not interfere with other wireless products in your home. RF-RBWHP01_10-0652_MAN_V1.fm Page 5 Thursday, July 29, 2010 8:26 AM 6 • Rocketboost™ is uncompressed digital audio compatible with all audio formats such as Dolby TrueHD, and DTS-HD Master Audio used with Blu-ray. When you see the Rocketboost™ logo on any product, it has been designed to work with other Rocketboost™ products, no matter who manufactures them. How does Rocketboost™ work? Rocketboost technology can connect all audio devices throughout your home to form a home audio network. Rocketboost products include “Senders,” which send or transmit audio streams, and “Receivers…

Text truncated - open the document above for the full version.

Beautiful Enterprise Co., Ltd. 26 th Floor, Beautiful Group Tower, Tel: 852-23270195 77 Connaught Road Central, Hong Kong Fax: 852-23523380 Date: 2010/08/09 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Attestation Letter for FCC ID: UZZRBWHP01TX, UZZRBWHP01RX To whom it May Concern: Beautiful Enterprise Co., Ltd., certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). Sincerely, Company: Beautiful Enterprise Co., Ltd. Address: 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong

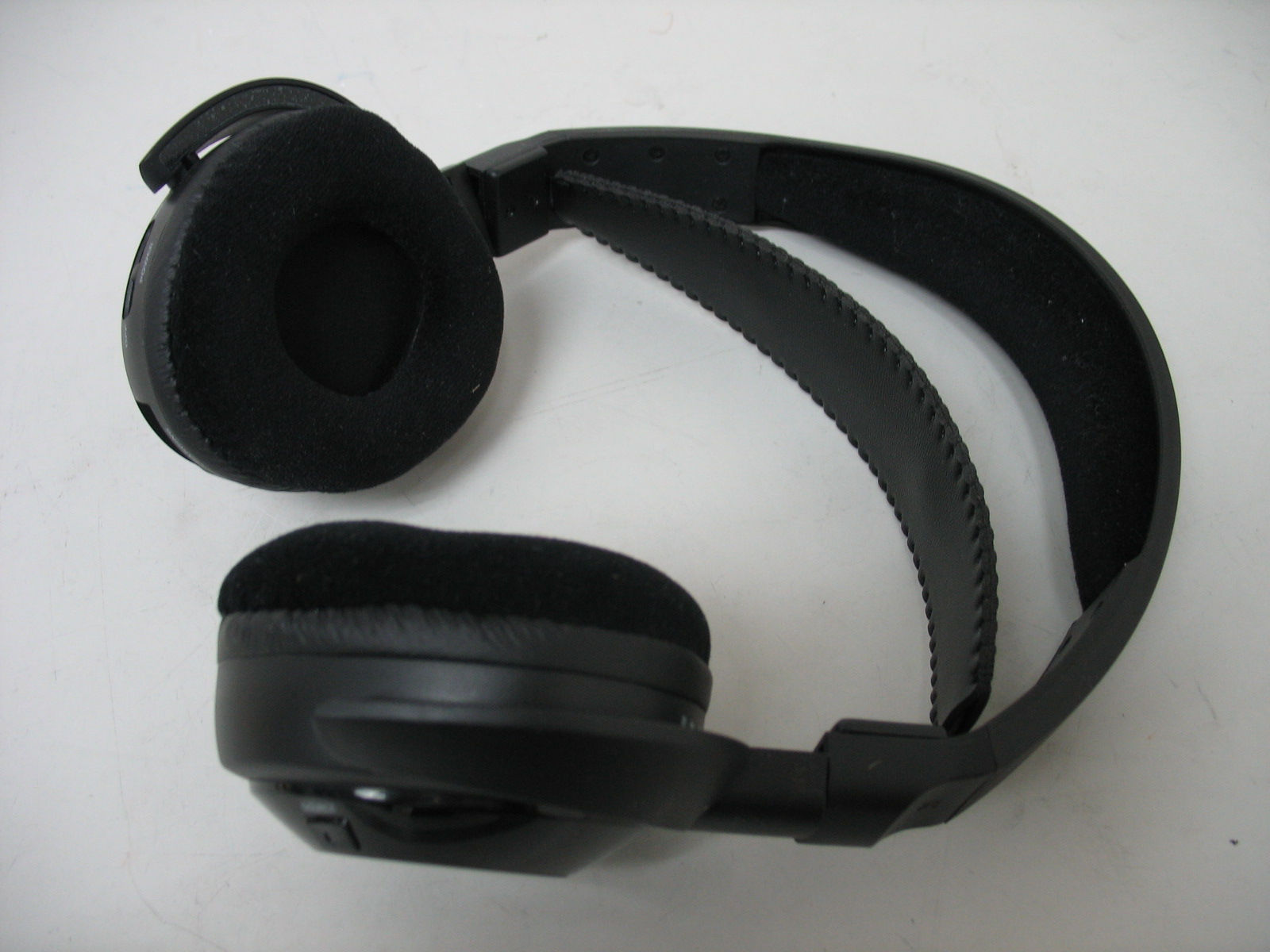

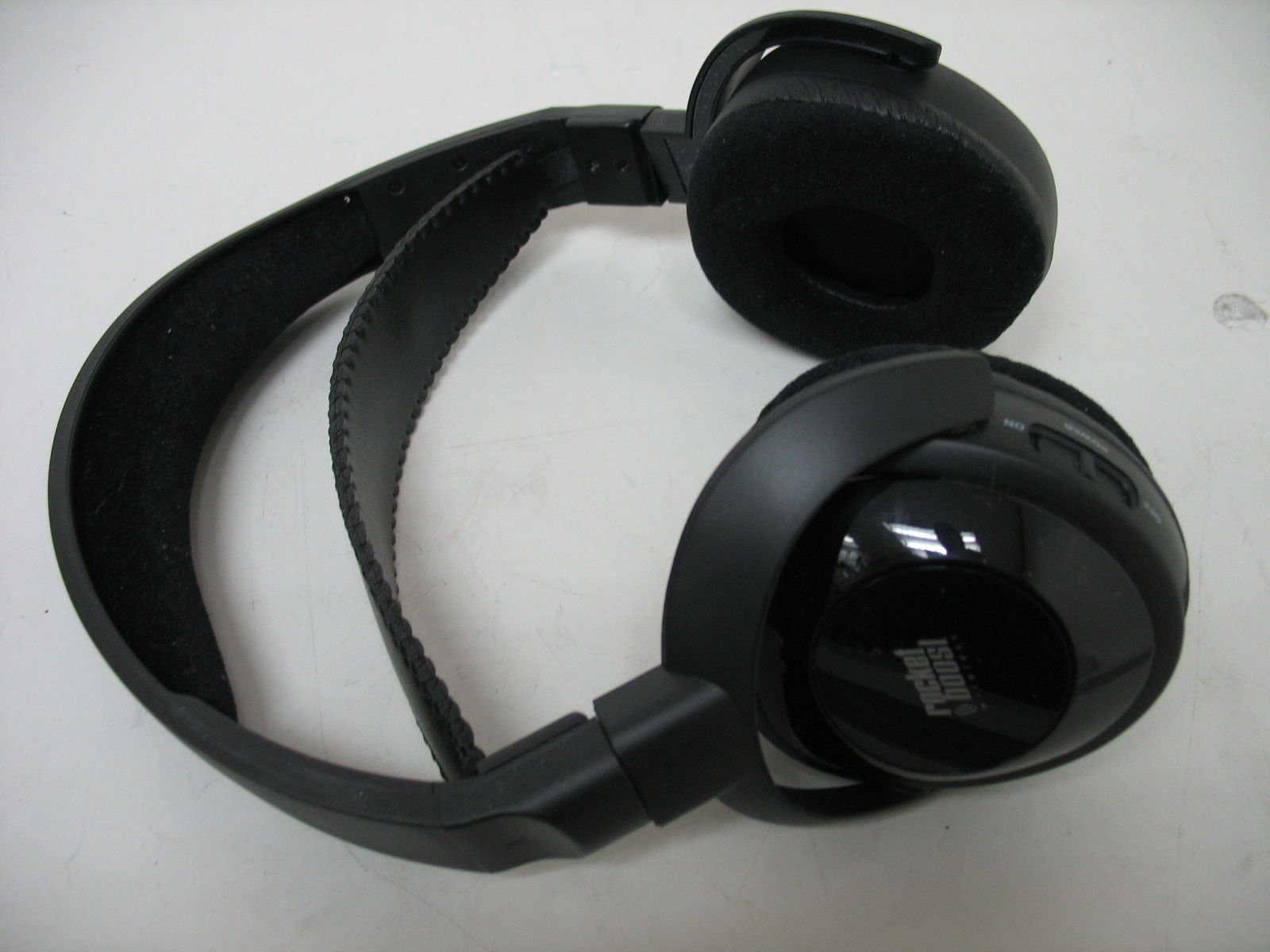

Page 1 of 2 Type Designation: RF-RBWHP01a External Photo Report Number: 17017067 002 Page 2 of 2 Type Designation: RF-RBWHP01a External Photo Report Number: 17017067 002
