UZZSFQ04ABluetooth Module

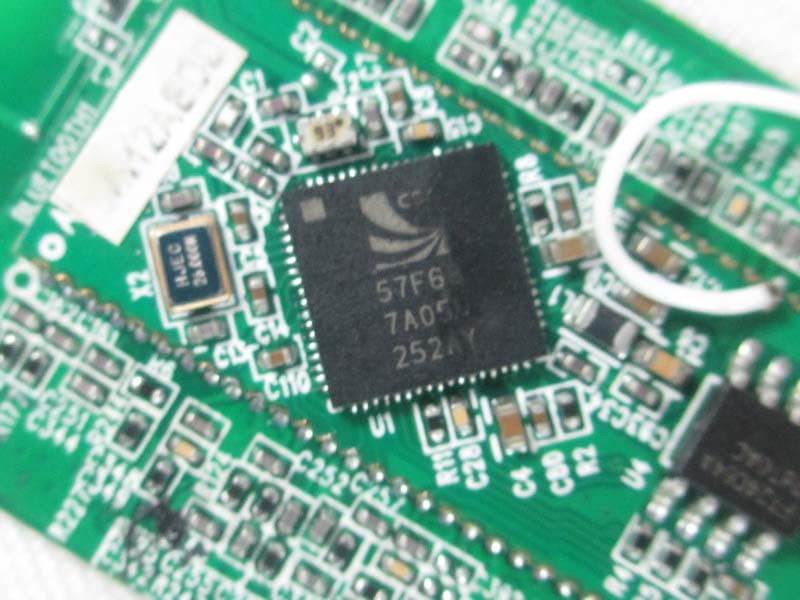

BC05 ROM Module Spec. Shenzhen Synchron Electronics Co., Ltd. 2012.08 1. General Description and Specification 1.1 General Description This product is a Class 2 SMT Bluetooth Module used CSR BC5-BlueTunes ROM. It provides data and voice communications. Support data rate up to 3Mbps. General Features: ■ Class 2 Bluetooth Module ■ Bluetooth Spec. V2.1+EDR Compliant ■ Support Firmware Upgrade ■ High-quality audio 95dB SNR on DAC playback ■ Integrated linear regulator with 1.5V output from 1.8V to 2.7V input ■ Integrated Switched-mode Regulator ■ Integrated 150mA lithium Battery Charger ■ Integrated Microphone bias& LED Driver ■ 64MIPS Kalimba DSP Co-processor ■ cVc support for echo and noise reduction ■ Green (RoHS Compliant) 1.2 Device Details Radio  Common TX/RX terminal simplifies external matching; eliminates external antenna switch  BIST minimises production test time  Bluetooth v2.1 + EDR specification compliant Transmitter  4dBm RF transmit power with level control from onchip 6-bit DAC over a dynamic range >30dB  Class 2 and Class 3 support without the need for an external power amplifier or TX/RX switch Receiver  Receiver sensitivity of -70dBm  Integrated channel filters  Digital demodulator for improved sensitivity and cochannel rejection  Real-time digitised RSSI available on HCI interface  Fast AGC for enhanced dynamic range Baseband and Software  Internal ROM  48KB of internal RAM, allows full-speed data transfer, mixed voice/data and full piconet support  Logic for FEC, HEC, access code correlation, CRC, demodulation, encryption bit stream generation, whitening and transmit pulse shaping  Transcoders for A-law, μ-law and linear voice from host and A-law, μ-law and CVSD voice over air  FastStream, CSR low latency codec significantly, reduces the latency of the audio link, from source to, sink, avoiding lip-sync issues when simultaneously listening to audio and watching video images  Bluetooth v2.1 + EDR specification Secure Simple Pairing support  DSP based single-microphone cVc echo and noise reduction is included in the BlueTunes ROM QFN  A new high-performance dual-microphone noise reduction is available in BlueTunes ROM QFN as a licensed option for an extra 20dB of noise suppression, order code BCSWCVCHS2MR3 Physical Interfaces  Synchronous serial interface for system debugging  I 2 C compatible interface to external EEPROM containing device configuration data (PS Keys)  UART interface  Two LED drivers with faders Kalimba DSP  Very low power Kalimba DSP co-processor, 64MIPS, 24-bit fixed point core  Support for SBC and MP3 (1) codec for improved audio quality  Single-cycle MAC; 24 x 24-bit multiply and 56-bit accumulator  32-bit instruction word, dual 24-bit data memory  6K x 32-bit program RAM,8K x 24-bit +8K x 24- bit data RAM  64 x 32-bit program memory cache when executing from ROM Stereo Audio Codec  16-bit internal codec  DAC for stereo audio  ADC dual channel mono voice band audio  Integrated amplifiers for driving 16Ω speakers; no need for external components  Support for single-ended speaker termination and line output  Integrated low-noise microphone bias Auxiliary Features  Power management includes digital shutdown and wake-up commands with an integrated low-power oscillator for ultra-low power Park/Sniff/Hold mode  On-chip regulators: 1.5V output from 1.8V to 2.7V input  On-chip high-efficiency switched-mode regulator; 1.8V output from 2.7V to 4.4V input  Power-on-reset cell detects low supply voltage  10-bit ADC available to applications  On-chip 150mA charger for lithium ion/polymer batteries 1.3 Specification Chipset CSR BlueTunes ROM QFN Specification Version Bluetooth V2.1+EDR Power Class Class 2 Frequency Band 2400~2483.5MHz Max. Tx Power -6~+4dBm RX Sensitivity ＜-70dBm Distance >10m(No obstacle) ROM Size 64K Power Voltage 3.3V Supply Current <40mA Operation Temperature -10 ~ +45 °C Dimension 32mm(L)x 13.5 mm(W) x 1.2mm(H) 2. Package Information 2.1 Pinout Diagram Figure 1: BC05 ROM Module Pinout (Top View) 2.2 Terminal Functions Pin Name Pin Number Description GND 1 Ground PIO4 2 PIO5 3 Programmable input/output line NC 4 NC GND 5 Ground GND 6 Ground AIO1 7 AIO0 8 Analogue programmable input/output line RESET 9 System Reset(Low Active) GND 10 Ground GND 11 Ground PIO10 12 PIO11 13 PIO12 14 PIO13 15 Programmable input/output line NC 16 NC VDD 17 Positive supply for SPI/UART ports and PIO[13:10] &PIO[5:0] and EEPROM, Connect to 3.3V GND 18 Ground NC 19 NC NC 20 NC GND 21 Ground GND 22 Ground NC 23 NC NC 24 NC GND 25 Ground GND 26 Ground UART_RX 27 UART data input, active high UART_TX 28 UART data output, active high GND 29 Ground GND 30 Ground GND 31 Ground GND 32 Ground SPI_CSB 33 Chip select for SPI, active low SPI_MISO 34 SPI data output SPI_CLK 35 SPI clock SPI_MOSI 36 SPI data input VRE_IN 37 Take high to enable high-voltage linear regulator and switch-mode regulator VDD_BAT 38 Lithium ion/polymer battery positive terminal. Battery charger output and input to switch-mode regulator GND 39 Ground VDD_CHG 40 Battery charge input LED1 41 LED0 42 LED Driver GND 43 Ground SPK_L_N 44 Speaker output negative, left SPK_L_P 45 Speaker output positive, left SPK_R_N 46 Speaker output negative, right SPK_R_P 47 Speaker output positive, right GND_S 48 Signal Ground MIC_BIAS 49 Microphone bias MIC_B_P 50 Microphone input positive, right MIC_B_N 51 Microphone input negative, right MIC_A_P 52 Microphone input positive, left MIC_A_N 53 Microphone input negative, left GND 54 Ground PIO0 55 PIO1 56 PIO2 57 PIO3 58 Programmable input/output line GND 59 Ground RF 60 Transmitter output/switched receiver input 2.3 Package Dimensions Figure 2: BC05 ROM Module package Dimensions Ø0.45mm X 60 3. Hardware Description 3.1 Block Diagram Figure 3: BC05 ROM M odule Block Diagram 3.2 RF Ports Figure 4: RF Ports Diagram RF_N and RF_P form a complementary balanced pair and are available for both transmit and receive. On transmit their outputs…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Beautiful Enterprise Co., Ltd. Address: 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong. Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification of the following product(s): Product description: Bluetooth Module Model: BC05 ROM Trademark: N/A on our behalf. Date: 2013-6-18 City: Hong Kong Name: John Liao Function: Product Approbation Supervisor Signature:  .

FCC, Request for non-disclosure Date: 10-AUG-09 RF_501, Issue 5 Page 1 of 1 Company Name: Beautiful Enterprise Co., Ltd. Address: 26th Floor, Beautiful Group Tower City: 77 Connaught Road Centra Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: UZZSFQ04A Reference number: Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2013-6-18 Name and signature of applicant: John Liao Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Modular Approval Request FCC (per DA 00-1407) FCC ID：UZZSFQ04A Company name: Beautiful Enterprise Co., Ltd. Address: 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong. Request for Limited Modular Approval Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. NO, The radio portion of this module has not been shielded, please refer to exhibition Product Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, The EUT has buffered data inputs, it is integrated in chip BC57E687C 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, it is integral PCB antenna. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. NO, The EUT is tested in a Sound Kick Audio System as the test photo show 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: UZZSFQ04A” or “Contains FCC ID: UZZSFQ04A.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes, please refer to the exhibition label sample for this module 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, RF exposure is address in the test report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): John Liao Date: 2013-06-17 Signature:

Neutron Engineering Inc. Project No.: 1201C016A Page 1 of 5 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1201C016A Page 2 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 3 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 4 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 5 of 5

Neutron Engineering Inc. Project No.: 1201C016A Page 1 of 5 ATTACHMENT PHOTOGRAPHS OF EUT Neutron Engineering Inc. Project No.: 1201C016A Page 2 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 3 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 4 of 5 Neutron Engineering Inc. Project No.: 1201C016A Page 5 of 5

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: UZZSFQ04A Project No. : 1201C016A Equipment : Bluetooth Module Model : BC05 ROM Applicant : Beautiful Enterprise Co., Ltd. Address : 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. GENERAL CONCULUSION: Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Printed N/A -1.72 Maximum measured transmitter power: Output Power (dBm) Out Power (mW) Limit (mW) 1.24 1.33 10 According to FCC KDB447498, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The transmitter Output power is 1.33mW, less than 10mW at 15mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Neutron Engineering Inc. Report No.: NEI-FICP-1-1201C016A Page 1 of 109 FCC/IC Radio Test Report FCC ID: UZZSFQ04A IC: 7633A-SFQ04A This report concerns (check one): Original Grant Class II Change Issued Date : Jun. 18, 2013 Project No. : 1201C016A Equipment : Bluetooth Module Model Name BC05 ROM Applicant : Beautiful Enterprise Co., Ltd. Address : 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Manufacturer : Beautiful Enterprise Co., Ltd. Address : 26th Floor, Beautiful Group Tower, 77 Connaught Road Central, Hong Kong Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 13, 2013 Date of Test: Jun. 13, 2013 ~ Jun. 17, 2013 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1201C016A Page 2 of 109 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1201C016A Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 10 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 DESCRIPTION OF SUPPORT UNITS 12 4 . EMC EMISSION TEST 13 4.1 CONDUCTED EMISSION MEASUREMENT 13 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 13 4.1.3 TEST PROCEDURE 14 4.1.4 DEVIATION FROM TEST STANDARD 14 4.1.5 TEST SETUP 14 4.1.6 EUT OPERATING CONDITIONS 14 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 20 4.2.4 DEVIATION FROM TEST STANDARD 20 4.2.5 TEST SETUP 21 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 37 5 . NUMBER OF HOPPING CHANNEL 61 5.1 APPLIED PROCEDURES / LIMIT 61 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 61 5.1.2 TEST PROCEDURE 61 5.1.3 DEVIATION FROM STANDARD 61 5.1.4 TEST SETUP 61 5.1.5 EUT OPERATION CONDITIONS 61 5.1.6 TEST RESULTS 62 6 . AVERAGE TIME OF OCCUPANCY 64 Neutron Engineering Inc. Report No.: NEI-FICP-1-1201C016A Page 4 of 109 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 64 6.1.1 MEASUREMENT INSTRUMENTS LIST 64 6.1.2 TEST PROCEDURE 64 6.1.3 DEVIATION FROM STANDARD 64 6.1.4 TEST SETUP 65 6.1.5 EUT OPERATION CONDITIONS 65 6.1.6 TEST RESULTS 66 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 78 7.1 APPLIED PROCEDURES / LIMIT 78 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 78 7.1.2 TEST PROCEDURE 78 7.1.3 DEVIATION FROM STANDARD 78 7.1.4 TEST SETUP 78 7.1.5 EUT OPERATION CONDITIONS 78 7.1.6 TEST RESULTS 79 8 . BANDWIDTH TEST 83 8.1 APPLIED PROCEDURES / LIMIT 83 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 83 8.1.2 TEST PROCEDURE 83 8.1.3 DEVIATION FROM STANDARD 83 8.1.4 TEST SETUP 83 8.1.5 EUT OPERATION CONDITIONS 83 8.1.6 TEST RESULTS 84 9 . PEAK OUTPUT POWER TEST 88 9.1 APPLIED PROCEDURES / LIMIT 88 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 88 9.1.2 TEST PROCEDURE 88 9.1.3 DEVIATION FROM STANDARD 88 9.1.4 TEST SETUP 88 9.1.5 EUT OPERATION CONDITIONS 88 9.1.6 TEST RESULTS 89 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 93 10.1 APPLIED PROCEDURES / LIMIT 93 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 93 10.1.2 TEST PROCEDURE 93 10.1.3 DEVIATION FROM STANDARD 93 10.1.4 TEST SETUP 93 10.1.5 EUT OPERATION CONDITIONS 93 10.1.6 TEST RESULTS 94 11 . EUT TEST PHOTO 106 Neutron Engineering Inc. Report No.: NEI-FICP-1-1201C016A Page 5 of 109 1. CERTIFICATION Equipment : Bluetooth Module Brand Name : N/A Model Name BC05 ROM Applicant : Beautiful Enterprise Co., Ltd. Factory : Shenzhen Synchron Electronics Co., Ltd. Address : No. 9 Mei Li Road, Xia Mei Lin, Fu Tian Area, Shenzhen, Guangdong, China Date of Test : Jun. 13, 2013 ~ Jun. 17, 2013 Test Item : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2009 FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210:2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FICP-1-1201C016…
