USER GUIDE WLAN Module WMG623A USER GUIDE WMG623A WLAN Module WMG623A E042010-CS-R01 XXXXXXXXXXXXX – 3 – COMPLIANCES FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ◆Reorient or relocate the receiving antenna ◆Increase the separation between the equipment and receiver ◆Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ◆Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC R ADIATION EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. COMPLIANCES – 4 – THIS DEVICE IS INTENDED ONLY FOR OEM INTEGRATORS UNDER THE FOLLOWING CONDITIONS: 1.The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2.The transmitter module may not be co-located with any other transmitter or antenna. 3.For all products marketed in the US, OEM has to limit the operation channels in CH1 to CH11 for 2.4 GHz band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as the three conditions above are met, further transmitter tests will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. END PRODUCT LABELING This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: V8YFIXHI623A000W”. MANUAL INFORMATION TO THE END USER The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The end user manual shall include all required regulatory information/ warning as show in this manual. – 5 – ABOUT THIS GUIDE PURPOSEThis guide details the hardware features of the WMG623A WLAN Module, including its physical and performance-related characteristics, and how to install the device and use its configuration software. AUDIENCEThis guide is for PC users with a working knowledge of computers. You should be familiar with Windows operating system concepts. CONVENTIONSThe following conventions are used throughout this guide to show information: NOTE: Emphasizes important information or calls your attention to related features or instructions. CAUTION: Alerts you to a potential hazard that could cause loss of data, or damage the system or equipment. WARNING: Alerts you to a potential hazard that could cause personal injury. RELATED PUBLICATIONSThe following publication gives basic information on how to install and use the WMG623A WLAN Module. Quick Installation Guide REVISION HISTORYThis section summarizes the changes in each revision of this guide. APRIL 2010 REVISION This is the first revision of this guide. – 6 – CONTENTS COMPLIANCES 3 A BOUT THIS GUIDE 5 C ONTENTS 6 1I NTRODUCTION 7 WMG623A Hardware Description 7 AHARDWARE SPECIFICATIONS 8 Physical Specifications 8 Wi-Fi Specifications 8 Compliances 9 GLOSSARY 10 – 7 – 1INTRODUCTION The WMG623A is a Wi-Fi PCI Express Card that allows simple design-in 802.11b/g/n Wi-Fi functionality for various products, such as notebooks and home gateways. The WMG623A includes a built-in high-performance CPU that off-loads Wi- Fi packet processing tasks from the main processor. The hardware form factor follows the PCI Express standard, but the data path conforms to an RGMII interface. The result is a card that delivers a higher data transmit rate than conventional mini-PCI modules. The WMG623A is compliant with IEEE802.11n standard and operates in the 2.4 G…

Text truncated - open the document above for the full version.

FCC ID: V8YFIXHI623A000W Report No.: RF990407E04 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch April 20, 2010 Dear Application Examiner, Accton Wireless Broadband Corp., It’s a WLAN Module, FCC ID: V8YFIXHI623A000W would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3662. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is RT3662. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via an data cable extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: V8YFIXHI623A000W Report No.: RF990407E04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

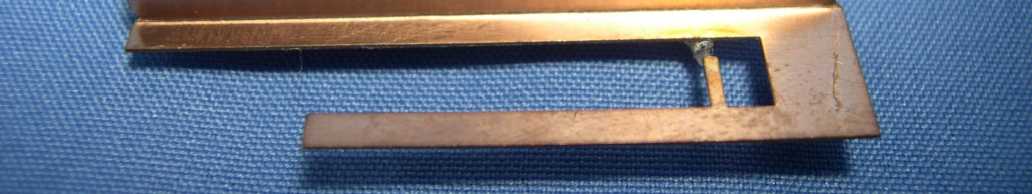

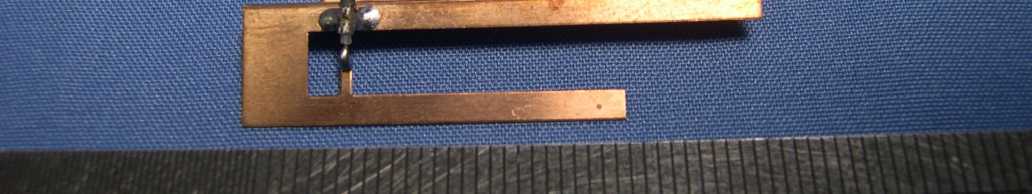

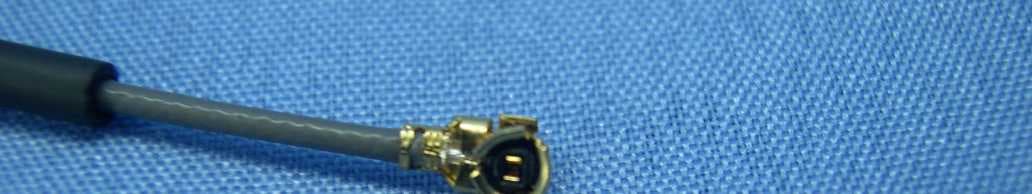

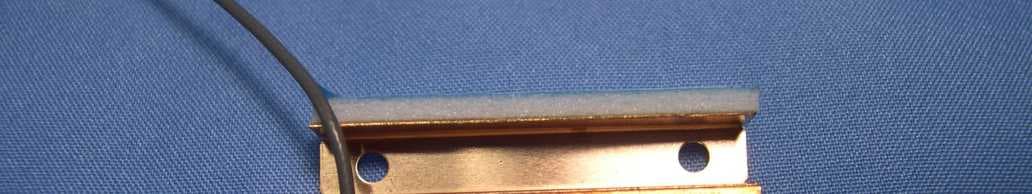

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Alyssa 2010-04-08 1 2 Vendor ID (Arial Narrow, Point 12) MFG Factory FCC ID no. AWB P/N, Version (Arial Narrow, Point 12) (Arial Narrow, Point 12) (Arial Narrow, Point 12) MFG Country (Arial Narrow, Point 12) Model Name: WMG623A Product Name: WLAN Module 14600000000XW R01 MADE IN XXXXX FCC ID: V8YFIXHI623A000W XXXX 14600000000XW UL label 01 AWB 0.1

(Fig.1) FCC ID: V8YFIXHI623A000W FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 4 Page 5

Report No.: SA990407E04 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990407E04 MODEL NO.: WMG623A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA990407E04 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990407E04 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA990407E04 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 4dBi or 2.511886 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 138.0 0.069 1.0 6 2437 162.2 0.081 1.0 11 2462 162.2 0.081 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 245.5 0.123 1.0 6 2437 234.4 0.117 1.0 11 2462 229.1 0.114 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 394.7 0.197 1.0 6 2437 408.3 0.204 1.0 11 2462 422.7 0.211 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 413.1 0.206 1.0 4 2437 408.5 0.204 1.0 7 2452 413.1 0.206 1.0 --- END ---
