V8YFW181RG25011WWiMAX 802.16e Indoor Gateway

USER GUIDE WiMAX 802.16e Indoor Gateway RG231 USER GUIDE RG231 Indoor IEEE 802.16e-2005 Mobile WiMAX Gateway, with 2.3/2.5/3.5 GHz Frequency Band Support, Four LAN (RJ-45) Ports, Two VoIP (RJ-11) Ports, and 802.11n Wi-Fi RG231 E022010-CS-R01 XXXXXXXXXXXXX – 3 – COMPLIANCES FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ◆Reorient or relocate the receiving antenna ◆Increase the separation between the equipment and receiver ◆Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ◆Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC R ADIATION EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Due to the essential high output power nature of WiMAX devices, use of this device with other transmitters at the same time may exceed the FCC RF exposure limit and such usage must be prohibited (unless such co- transmission has been approved by FCC in the future). COMPLIANCES – 4 – EC CONFORMANCE DECLARATION Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: ◆EN 60950-1 (IEC 60950-1) - Product Safety ◆EN 301 489-1, EN 301 489-4, EN 302 326-2 (V1.2.2), EN 302 326-3 (V1.2.2) - EMC requirements for radio equipment This device is intended for use in all European Community countries. NCC 警語 Wi-Fi: 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅 自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象 時,應立即停用,並改善至無干擾時方得繼續使用。前項合法通信,指依電信 法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫 療用電波輻射性電機設備之干擾。 「本產品內含射頻模組: CCAI09LP1650T1」 WiMAX: 減少電磁波影響,請妥適使用。 0560 – 5 – ABOUT THIS GUIDE PURPOSEThis guide details the hardware features of the RG231 WiMAX CPE, including its physical and performance-related characteristics, and how to install the device and use its configuration software. AUDIENCEThis guide is for PC users with a working knowledge of computers. You should be familiar with Windows operating system concepts. CONVENTIONSThe following conventions are used throughout this guide to show information: NOTE: Emphasizes important information or calls your attention to related features or instructions. CAUTION: Alerts you to a potential hazard that could cause loss of data, or damage the system or equipment. WARNING: Alerts you to a potential hazard that could cause personal injury. RELATED PUBLICATIONSThe following publication gives basic information on how to install and use the WiMAX CPE. Quick Installation Guide Also, as part of the CPE’s configuration software, there is online help that describes all management features. REVISION HISTORYThis section summarizes the changes in each revision of this guide. FEBRUARY 2010 REVISION This is the first revision of this guide. This guide is valid for software version 0.0.2.10. – 6 – CONTENTS COMPLIANCES 3 A BOUT THIS GUIDE 5 C ONTENTS 6 F IGURES 9 T ABLES 11 SECTION IGETTINGSTARTED 12 1INTRODUCTION 13 RG231 Hardware Description 14 Wi-Fi Option 14 WPS/Scan Button 14 Power Status LED 15 Wi-Fi Status LED 15 WPS Status LED 16 WiMAX Signal LEDs 16 10BASE-T/100BASE-TX LAN Ports 17 VoIP Phone Ports 17 USB Port 17 Power Adapter Socket 17 WPS/Scan Button 18 Reset Button 18 2INSTALLING THE RG231 19 Package Checklist 19 Installation Overview 19 Select a Location 19 Cable Connections 20 3INITIAL CONFIGURATION 22 CONTENTS – 7 – Accessing the Web Management Interface 22 Home Page 23 Using the Basic Setup Wizard 24 The Advanced Setup Menu 26 SECTION IIWEBCONFIGURATION 27 4SYSTEM SETTINGS 28 System Status 29 Administrator Settings 30 Firmware Upgrade 31 Configuration Tools 31 System Time 32 Reset 33 5GATEWAY CONFIGURATION 34 WAN Settings 35 Dynamic IP Address 35 Static IP Settings 36 L2TP Settings 36 DNS 37 NAT 37 Port Mapping 37 DMZ 39 Route 40 SECTION IIIAPPENDICES 41 ATROUBLESHOOTING 42 Diagnosing LED Indicators 42 Cannot Connect to the Internet 42 Cannot Access Web Management 43 Forgot or Lost the Password 43 Resetting the Unit 43 BHARDWARE SPECIFICATIONS 44 Physical Specifications 44 CONTENTS – 8 – WiMAX Specifications 45 VoIP Specifications 45 Wi-Fi Specifications 46 Compliances 47 CCABLES AND PINOUTS 48 Twisted-Pair Cable Assignments 48 10/100BASE-TX Pin Assignments 48 Straight-Through Wiring 49 Crossover Wiring 50 RJ-11 Ports 51 GLOSSARY 52 I NDEX 57 – 9 – FIGURES Figure 1: Front of the RG23114 Figure 2: RG231 LED Indicators15 Figure 3: Back of the RG23116 Figure 4: Top of the RG23118 Figure…

Text truncated - open the document above for the full version.

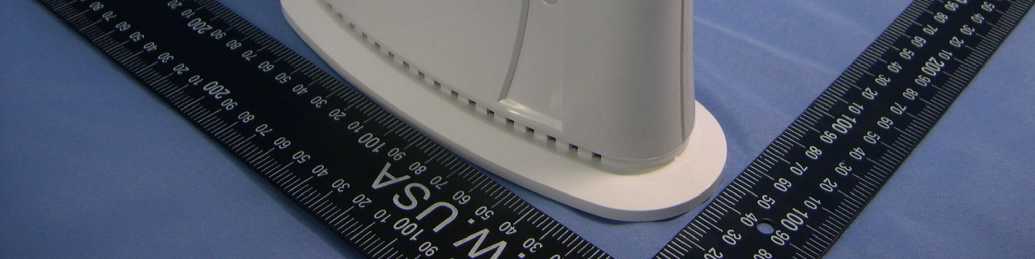

Page 1 CONSTRUCTION PHOTOS OF EUT For Model No.: RG231-2.5-1D2V1W Page 2 For Model No.: RG231-2.5-4D2V1W and RG231

(Fig.1) FCC ID: V8YFW181RG25011W FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 1 CONSTRUCTION PHOTOS OF EUT For Model No.: RG231-2.5-1D2V1W Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 For Model No.: RG231-2.5-4D2V1W and RG231 Page 9 Page 10 Page 11 Page 12 For Module Model No.: RG231-W1T1R Page 13 Page 14 For antenna 1 Page 15 For antenna 2 Page 16 Page 17 For adapter Model No.: WA-18G12U Page 18 For adapter Model No.: WA-24E12 Page 19

Report No.: SA981110H01 Report Format Version 3.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA981110H01 MODEL NO.: RG231, RG231-2.5-4D2V1W, RG231-2.5-1D2V1W ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA981110H01 Report Format Version 3.0.0 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981110H01 Report Format Version 3.0.0 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Temporary fix user station Report No.: SA981110H01 Report Format Version 3.0.0 4 6. Test Results 6.1 Antenna Gain For WLAN The maximum Gain is Printed PCB antenna: 2.65dBi or 1.84077 (numeric) For WiMAX No. Antenna Type Antenna Connector Antenna Gain (dBi) Cable loss(dB) Net Gain (dBi) Cable Length (cm) Frequency range (MHz) 1 Printed Dipole IPEX 6.15 0.5 5.65 6.2 2500~2700 2 PCB Dipole Mini connector 6.76 0.5 6.26 6.2 2500~2700 Report No.: SA981110H01 Report Format Version 3.0.0 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For WLAN Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2 ) Limit of Power Density (mW/cm 2 ) 1 2412 120.2 0.044 1.0 6 2437 134.9 0.049 1.0 11 2462 125.9 0.046 1.0 Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 195.0 0.071 1.0 6 2437 257.0 0.094 1.0 11 2462 234.4 0.086 1.0 802.11n (20MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 182.0 0.067 1.0 6 2437 186.2 0.068 1.0 11 2462 169.8 0.062 1.0 802.11n (40MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 63.1 0.023 1.0 4 2437 245.5 0.090 1.0 7 2452 128.8 0.047 1.0 Report No.: SA981110H01 Report Format Version 3.0.0 6 For WiMAX CHANNEL BANDWIDTH: 5MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2502.5 524.8 0.441 1.0 Middle 2600 537.0 0.452 1.0 High 2687.5 467.7 0.393 1.0 CHANNEL BANDWIDTH: 10MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2505 524.8 0.441 1.0 Middle 2590 512.9 0.431 1.0 High 2685 501.2 0.421 1.0 CONCULSION: Both of the WLAN and WiMAX can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.094 / 1 + 0.452 / 1 = 0.5455, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.
