V8YFW181RG25020WWiMAX 802.16e Indoor CPE

USER GUIDE WIMAX 802.16E INDOOR CPE RG211-2.3/2.5/3.5/3.8G USER GUIDE RG211-2.3/2.5/3.5/3.8G WiMAX IEEE 802.16e Indoor CPE RG211-81 E122009-DT-R01 149100000033W – 3 – COMPLIANCES FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ◆Reorient or relocate the receiving antenna. ◆Increase the separation between the equipment and receiver. ◆Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ◆Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC R ADIATION EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Due to the essential high output power natural of WiMAX device, use of this device with other transmitter at the same time may exceed the FCC RF exposure limit and such usage must be prohibited (unless such co- transmission has been approved by FCC in the future). COMPLIANCES – 4 – EC CONFORMANCE DECLARATION Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: EN 60950-1 (IEC 60950-1) - Product Safety EN 301 489-1, EN 301 489-4 - EMC requirements for radio equipment EN 302 326-1-2-3 EN 50385 - Country specific SAR requirements This device is intended for use in all European Community countries. – 5 – ABOUT THIS GUIDE PURPOSEThis guide gives specific information on how to install the WiMAX Indoor CPE (Consumer Premise Equipment, from herein CPE) and its physical and performance related characteristics. It also gives information on how to operate and use the management functions of the CPE. AUDIENCEThis guide is intended for use by network administrators who are responsible for installing, operating, and maintaining network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks), the Internet Protocol (IP), and Simple Network Management Protocol (SNMP). CONVENTIONSThe following conventions are used throughout this guide to show information: NOTE: Emphasizes important information or calls your attention to related features or instructions. CAUTION: Alerts you to a potential hazard that could cause loss of data, or damage the system or equipment. WARNING: Alerts you to a potential hazard that could cause personal injury. RELATED PUBLICATIONSAs part of the CPE’s software, there is an online web-based help that describes all management related features. REVISION HISTORYThis section summarizes the changes in each revision of this guide. SEPTEMBER 2009 REVISION This is the first revision of this guide. It is valid for software version 0.06.01. – 6 – CONTENTS COMPLIANCES 3 IMPORTANT NOTE: FCC Radiation Exposure Statement 3 EC Conformance Declaration 4 ABOUT THIS GUIDE 5 C ONTENTS 6 F IGURES 9 T ABLES 11 SECTION IGETTINGSTARTED 12 1INTRODUCTION 13 Key Hardware Features 13 Package Contents 14 Hardware Description 15 Antennas 17 LED Indicators 18 Ethernet Ports 19 VoIP Phone Ports 19 Power Connector 19 Reset Button 19 Cable Connections 19 2INSTALLING THE RG211 22 Location Selection 22 Mounting on a Horizontal Surface 23 Mounting on a Wall 24 Connecting and Powering On 25 3INITIAL CONFIGURATION 26 Connecting to the Login Page 26 CONTENTS – 7 – Home Page and Main Menu 27 SECTION IIWEBCONFIGURATION 28 4SYSTEM SETTINGS 29 System Settings 29 WAN Settings 29 LAN Settings 31 SNTP 32 Ethernet Mode 33 5WIMAX SETTINGS 34 Best BST/AU 34 Frequency Scanning 37 Frequency Scanning Parameters 37 Scanning Table 38 Link Quality Counters 39 Ethernet On-Line Counters 40 Integration Time 42 6SECURITY SETTINGS 44 User Registration 44 CA File 45 7 NAT SETTINGS 46 Network Address Translation 46 Virtual Server 47 Demilitarized Zone (DMZ) 48 8FIREWALL SETTINGS 50 Firewall Settings 50 9MANAGEMENT SETTINGS 52 Resetting the Unit 52 Changing the Access Password 53 Software Versions Control 54 Configuration Control 55 TM and PM Upload Control 56 TR Parameters 57 CONTENTS – 8 – 10 STATUS 60 System Status 60 Show All 60 Licence Type 62 Show Best BS ID 63 Show Radio Parameters 63 Show Registration 64 11 LOGOUT 66 Logging Out 66 SECTION IIIAPPENDICES 68 ATROUBLESHOOTING 69 Diagnosing LED Indicators 69 Before Contacting Technical Support 69 BHARDWARE SPECIFICATIONS 71 CC ABLES AND PINOUTS 75 Twisted-Pair Cable Assignments 75 10/100BASE-TX Pin Assignments 75 Straight-Through Wiring 76 Crossover Wiring 77 GLOSSARY 78 I NDEX 81 – 9 – FIGURES Figure 1: Top Panel15 Figure 2: Rear Panel - RG211 3G16 Fi…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: RG211-2.5 Page 6 Model No.: RG211-2.5-1D

FCC ID：V8YFW181RG25020W LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

2.5-81

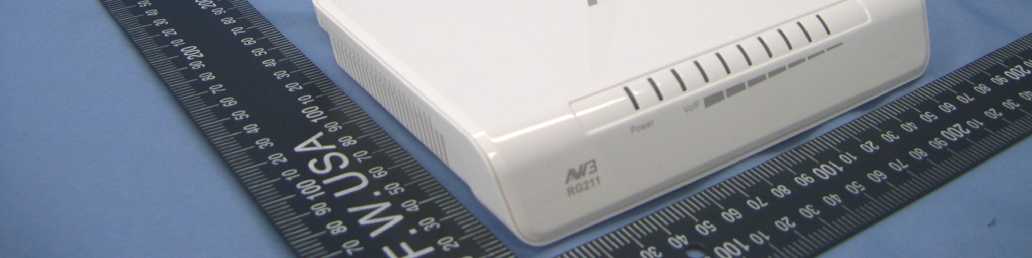

Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: RG211-2.5 Page 2 Page 3 Page 4 Page 5 Page 6 Model No.: RG211-2.5-1D Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Model No.: PA1015-2HU Page 13 Model No.: WA-18G12U Page 14

Report No.: SA981104H02 Report Format Version 3.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA981104H02 MODEL NO.: RG211-2.5, RG211-2.5-1D1V, RG211-2.5-1D ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA981104H02 Report Format Version 3.0.0 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981104H02 Report Format Version 3.0.0 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Temporary Fixed Device Report No.: SA981104H02 Report Format Version 3.0.0 4 6. Test Results 6.1 Antenna Gain There are two sets of antennas provided to this EUT, please refer to the following table: Chain Antenna Type Antenna Connector Net Gain (dBi) Cable Length (mm) Cable loss (dB) Frequency range (MHz) 0 195 1 External Omni-dipole SMA 4.7 90 0.3 2500~2700 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: CHANNEL BANDWIDTH: 5MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2502.5 347.7 0.204 1.0 Middle 2600 355.8 0.209 1.0 High 2687.5 324.4 0.190 1.0 CHANNEL BANDWIDTH: 10MHz Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Low 2505 339.7 0.199 1.0 Middle 2600 328.3 0.193 1.0 High 2685 328.3 0.193 1.0 --- END ---

Report No.: RF981104H02 1 Report Format Version 3.0.0 FCC TEST REPORT (PART 27) REPORT NO.: RF981104H02 MODEL NO.: RG211-2.5, RG211-2.5-1D1V, RG211-2.5-1D RECEIVED: Nov. 04, 2009 TESTED: Nov. 13 to 25, 2009 ISSUED: Dec. 17, 2009 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 93 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981104H02 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1 CERTIFICATION..............................................................................................4 2 SUMMARY OF TEST RESULTS......................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3 GENERAL INFORMATION...............................................................................7 3.1 GENERAL DESCRIPTION OF EUT.....................................................................7 3.2 DESCRIPTION OF TEST MODES.....................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL......................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................15 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................16 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST................................................17 4 TEST TYPES AND RESULTS........................................................................18 4.1 OUTPUT POWER MEASUREMENT.................................................................18 4.1.1 LIMITS OF OUTPUT POWER MEASUREMENT...............................................18 4.1.2 TEST INSTRUMENTS.......................................................................................18 4.1.3 TEST PROCEDURES........................................................................................18 4.1.4 TEST SETUP.....................................................................................................18 4.1.5 EUT OPERATING CONDITIONS.......................................................................19 4.1.6 TEST RESULTS.................................................................................................20 4.2 FREQUENCY STABILITY MEASUREMENT......................................................22 4.2.1 LIMITS OF FREQUENCY STABILIITY MEASUREMENT..................................22 4.2.2 TEST INSTRUMENTS.......................................................................................22 4.2.3 TEST PROCEDURE..........................................................................................23 4.2.4 TEST SETUP.....................................................................................................23 4.2.5 TEST RESULTS.................................................................................................24 4.3 EMISSION BANDWIDTH MEASUREMENT.......................................................25 4.3.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT....................................25 4.3.2 TEST INSTRUMENTS.......................................................................................25 4.3.3 TEST SETUP.....................................................................................................25 4.3.4 TEST PROCEDURES........................................................................................26 4.3.5 TEST RESULTS.................................................................................................27 4.4 CHANNEL EDGE MEASUREMENT..................................................................31 4.4.1 LIMITS OF CHANNEL EDGE MEASUREMENT................................................31 4.4.2 TEST INSTRUMENTS.......................................................................................31 4.4.3 TEST SETUP.....................................................................................................31 4.4.4 TEST PROCEDURES........................................................................................32 4.4.5 EUT OPERATING CONDITION.........................................................................32 4.4.6 TEST RESULTS.................................................................................................33 4.5 CONDUCTED SPURIOUS EMISSIONS............................................................51 4.5.1 LIMITS OF CONDUCTED SPURIOUS EMISSIONS MEASUREMENT.............51 Report No.: RF981104H02 3 Report Format Version 3.0.0 4.5.2 TEST INSTRUMENTS.......................................................................................51 4.5.3 TEST PROCEDURE..........................................................................................52 4.5.4 TEST SETUP.....................................................................................................52 4.5.5 EUT OPERATING CONDITIONS.......................................................................52 4.5.6 TEST RESULTS.................................................................................................53 4.6 RADIATED EMISSION MEASUREMENT (BELOW 1GHz)................................77 4.6.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................77 4.6.2 TEST INSTRUMENTS.......................................................................................77 4.6.3 TEST PROCEDURES........................................................…
