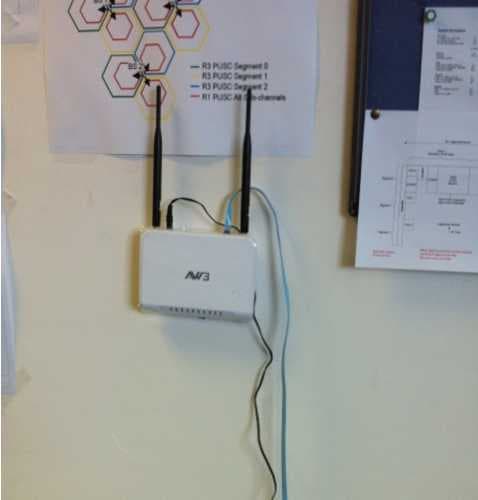

V8YFW181RG38002WWiMAX CPE Device

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 18 th August 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Modification to User Manual for FCCID:V8YFW181RG38002W In order to operate effectively the RG211 WiMAX Indoor CPE requires installation and configuration by trained personnel. Correct installation also optimises receive signal strength and system performance. The User manual modifiedas follows: The following additional paragraph will be added to page 3: RG211-3.8 CPE compliance with FCC 47CFR90Z: RG211-3.8 (FCC ID:V8YFW181RG38002W) is certified by the FCC as Fixed Equipment and may only be installed by suitably trained personnel acting on behalf of the FCC license holder. “Location selection” sectionon page 20 will be removed. “Mounting on Horizontal Surface” sectionon page 21 will be removed. Yours Sincerely Charlie Blackham Director

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 20 th July 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Dear Sir FCC ID: V8YFW181RG38002W Contention Based Protocol Operation in the 3650-3675 MHz band 47CFR90z The apparatus is question is Accton Wireless Broadband Corp’s RG211-3.8Customer Premise Equipment WiMAX station, known herein as “CPE” The CPE has been tested as a “fixed” device because it designed to be used at a single location and is not designed to used as a “mobile” or “portable” device. For the purpose of testing, the CPE was put into a test mode which required custom settings of certain parameters and for the CPE to be controlled via its serial port which is accessed via a header on the PCB once the cover is removed. No information on these parameters, nor the correct wiring of the serial port, nor the commands required to enable test mode transmissions are available to the end user. The CPE is fixed, but only operates only under the authorisation of its associated WiMAX basestation. As WiMAX uses a scheduled air-interface protocol,a CPErequires Media Access Protocol information from the Base Station in order to schedule uplink transmissions for each frame it transmits. In the case the Base Station ceases transmission; the Subscriber Station will receive no MAP information, and therefore will not transmit any signals. The Subscriber Station contention based protocol compliance requirements are therefore met by the correct use of an appropriate, FCC certified, WiMAX basestation. In order for this to hold true, this fixed CPE acts like mobile and portable stations in that 90.1333 applies and it will operate only if it can positively receive and decode an enabling signal transmitted by a base station. Yours Faithfully Charlie Blackham

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 26 th August2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCCID:V8YFW181RG38002W To whom it may concern Pursuant to sections 0.457 and 0.459 and CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: Schematics:rg211-3g8-1d1v-81-2t2r_r0a_2010.pdf Parts List:RG211-3.8G-BoM.pdf Block Diagram:rg211_3g8_Block_diagram.pdf Tune Up ProcedureRG211_3G8_1D1V_Tune_up_procedure.pdf Operational descriptionRG211-3.8 Operational Description updated.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors Yours Sincerely Charlie Blackham Director

FCC ID:V8YFW181RG38002W FCC ID:V8YFW181RG38002W

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com AWB RG211-3.8CPE(FCC ID:V8YFW181RG38002W) Maximum Permitted Exposure Calculation V8YFW181RG38002W_MPE_calc The equation for the MPE calculation is given in OET bulletin 65, page 19 as S = EIRP/4πr 2 WhereS = Power density (W/m 2 ) EIRP= Effective Isotropically Radiated Power = P x G (W) r = Perpendicular distance from antenna The CPEis a mobile station as defined in 47CFR2.1091 and shall be operated with a minimum recommended safe distance of 20 cm. ValuesEIRP = 29.53dBm = 897mW (from SC_TR09B) R= 20cm LimitMaximum permitted value of S is given in table 1(a) – Limits for General Population/ uncontrolled Exposureis 1.0mW/ cm 2 CalculationS = 897/ (4 * 3.14159 * 20 2 ) S = 0.18mW/cm 2 ConclusionThe RG211-3.8complies withthe MPE requirements forGeneral Population / uncontrolled Exposureat 20cm.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com RFTest Report: Accton Wireless Broadband Corp RG211-3.8CPE 47CFR Part 90Z (in part) SC_TR09_B Prepared for: Airspan Communications Ltd Cambridge House Oxford Road Uxbridge UB8 1UN Circulation:Airspan Communications Ltd AWB Sulis Consultants Ltd SC_TR09_BPage 2 of 29 Contents 1Revision History4 2Purpose4 3Reference Documents4 4Product Description5 5Tests performed6 6Test Configuration7 6.1Test sample and Operating mode7 6.2Support equipment7 6.3Test equipment7 6.4Equipment set-up8 7Occupied Bandwidth: 47CFR2.1049 / 90.2099 8Transmit Peak Power density 90.132114 9Transmit Carrier Output Power 90.1321 / 2.104619 10Spectrum Mask – 47CFR90.201(n)24 11Test Plan SC_AIR_TP02_A29 Tables Table 1: Summary of tests performed...........................................................................6 Table 2: Equipment under test.....................................................................................7 Table 3: Support Equipment.........................................................................................7 Table 4: Test Equipment..............................................................................................7 Table 5: Occupied Bandwidth test results.......................................................................9 Table 6: Transmit Power Density test results................................................................14 Table 7: Transmit Power Density test results................................................................19 Table 8: Spectrum Mask............................................................................................24 Table 9: Summary of tests to be performed at RFI........................................................29 SC_TR09_BPage 3 of 29 Figures Figure 1: LI Probe test configuration: Emissions.............................................................8 Figure 2: Occupied Bandwidth, 5MHz, 3652.5 MHz, QPSK ¾ ..........................................10 Figure 3: Occupied Bandwidth, 5MHz, 3652.5 MHz, 16QAM ¾ .......................................10 Figure 4: Occupied Bandwidth, 5MHz, 3652.5MHz, 64 QAM ¾ .......................................11 Figure 5: Occupied Bandwidth, 5MHz, 3672.5 MHz,.......................................................11 Figure 6: Occupied Bandwidth, 10MHz, 3655.0 MHz, QPSK ¾.........................................12 Figure 7: Occupied Bandwidth, 10MHz, 3655.0 MHz, 16 QAM ¾ .....................................12 Figure 8: Occupied Bandwidth, 10MHz, 3655.0 MHz, 64 QAM ¾ .....................................13 Figure 9: Occupied Bandwidth, 10MHz, 3670 MHz,........................................................13 Figure 10: TX power density, 5MHz, 3652.5 MHz, QPSK ¾.............................................15 Figure 11: TX power density, 5MHz, 3652.5 MHz, 16 QAM ¾..........................................15 Figure 12: TX power density, 5MHz, 3652.5 MHz, 64 QAM ¾..........................................16 Figure 13: TX power density, 5MHz, 3672.5 MHz,.........................................................16 Figure 14: TX power density, 10MHz, 3655.0 MHz, QPSK ¾ ...........................................17 Figure 15: TX power density, 10MHz, 3655.0 MHz, 16 QAM ¾........................................17 Figure 16: TX power density, 10MHz, 3655.0 MHz, 64 QAM ¾........................................18 Figure 17: TX power density, 10MHz, 3670.0 MHz,........................................................18 Figure 18: TX Burst Power, 5MHz, 3652.5 MHz, QPSK ¾................................................20 Figure 19: TX Burst Power, 5MHz, 3652.5 MHz,16QAM ¾ ............................................20 Figure 20: TX Burst Power, 5MHz, 3652.5 MHz, 64 QAM ¾ ............................................21 Figure 21: TX Burst Power, 5MHz, 3672.5 MHz, QPSK ¾................................................21 Figure 22: TX Burst Power, 10MHz, 3655.0 MHz, QPSK ¾..............................................22 Figure 23: TX Burst Power, 10MHz, 3655.0 MHz, 16 QAM ¾...........................................22 Figure 24: TX Burst Power, 10MHz, 3655.0 MHz, 64 QAM ¾...........................................23 Figure 25: TX Burst Power, 10MHz, 3670.0 MHz, 64 QAM ¾...........................................23 Figure 26: Spectrum Mask, 5MHz, 3652.5 MHz, QPSK ¾ ...............................................25 Figure 27: Spectrum Mask, 5MHz, 3652.5 MHz, 64 QAM ¾ ............................................25 Figure 28: Spectrum Mask, 5MHz, 3672.5 MHz, QPSK ¾ ...............................................26 Figure 29: Spectrum Mask, 5MHz, 3672.5 MHz, 64 QAM ¾ ............................................26 Figure 30: Spectrum Mask, 10MHz, 3655.0 MHz, QPSK ¾..............................................27 Figure 31: Spectrum Mask, 10MHz, 3655.0 MHz, 64 QAM ¾ ..........................................27 Figure 32: Spectrum Mask, 10MHz, 3670.0 MHz, QPSK ¾..............................................28 Figure 33: Spectrum Mask, 10MHz, 3670.0 MHz, 64 QAM ¾ ..........................................28 SC_TR09_BPage 4 of 29 1RevisionHistory RevisionOriginatorDateComment ASulis Consultants16 July 2010Issued as 1 st release BSulis Consultants30 July 2010CPE Antenna gain changed from 7dBi to correct value of 6dBi Test Plan SC_AIR_TP02_Amodified – freq stability only on one channel 2Purpose This document details the preliminary RF tests performed on the AWB 3.5 GHz CPE. The tests were used to determine worst-case frequency/modulation combinations to be tested by RFI Global services under proposal 78529JD01. These were included in Test Plan SC_AIR_TP02_A, which is included at the end of this document. 3Reference Documents [Ref 1]47CFR2 Electromagnetic compatibility and Radio spectrum Matters (ERM); Telecommunications network equipment, ElectroMagnetic Compa…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: AWB RG211-3.8 To: FCC Part 90: 2009 Subpart Z, in accordance with FCC test plan AWB 3650-3675 MHz CPE FCC Test Plan Document Reference SC_AIR_TP02_A Dated 14 July 2010 Test Report Serial No: RFI-RPT-RP78529JD01A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 09 August 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 Page 2 of 40 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 RFI Global Services Ltd Page 3 of 40 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 8 5. Measurements, Examinations and Derived Results .................................................................. 9 6. Measurement Uncertainty .......................................................................................................... 39 Appendix 1. Test Equipment Used................................................................................................40 TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 Page 4 of 40 RFI Global Services Ltd 1. Customer Information Company Name: Accton Wireless Broadband Corp Address: No.1 Creation Rd. III Science-based Industrial Park Hsinchu 30077 Taiwan R.O.C. TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 RFI Global Services Ltd Page 5 of 40 2. Summary of Testing 2.1. General Information Specification Reference: FCC Part 90: 2009 Specification Title: Code of Federal Regulations, Part 90 (47CFR290) Private Land Mobile Radio Services. Specification Reference: FCC Test Plan Document Reference: SC_AIR_TP02_A Specification Title: AWB 3650-3675 MHz CPE Test Plan – 14 July 2010 Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 14 July 2010 to 10 August 2010 2.2. Summary of Test Results FCC Part Reference (47CFR) Measurement Result 90.1321 / 2.1046 Transmitter Carrier Output Power (EIRP) 90.1321 / 2.1046 Transmitter Power Output Density 90.209 / 2.1049 Transmitter Occupied Bandwidth 90.210(b) / 90.210(n ) / 2.1051 Transmitter Conducted Emissions Mask 90.1323 / 2.1051 Transmitter Conducted Emissions 90.1323 / 2.1053 Transmitter Radiated Emissions 90.213 / 2.1055 Transmitter Frequency Stability (Temperature & Voltage Extremes) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile FM or PM – Communications Equipment – Measurement and Performance Standards. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 Page 6 of 40 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: WiMAX 802.16e indoor CPE Brand Name: AWB Model Name or Number: RG211-3.8 Serial Number(s): W023000022 (5MHz channel) W023000015 (5MHz channel) W023000028 (10MHz channel) Hardware Version Number: 02 FCC ID Number: V8YFW181RG38002W 3.2. Description of EUT The equipment under test was a WiMAX 802.16e indoor Customer Premises Equipment (CPE). 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Tested Technology: WiMAX Type of Equipment Transceiver Highest Internally Generated Clock or Oscillator Frequency: 3700 MHz Duty Cycle 38% Declared Antenna Type: Omni-directional Declared Antenna Gain: 6dBi Nominal 120V Minimum 108V Power Supply Requirement: Maximum 132V Minimum -30°C Tested Temperature Range: Maximum 50°C Transmit Frequency Range: 3650 to 3700 MHz Channel ID 5MHz Channel 10MHz Channel Bottom 3652.5 3655.0 Transmit Channels Tested: Top 3672.5 3670.0 Receive Frequency Range: 3650 to 3700 MHz TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 RFI Global Services Ltd Page 7 of 40 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Laptop Brand Name: Dell Model Name or Number: Vostro 1000 Serial Number: User 17 Description: Mains-dc PSU Brand Name: Asian Power Deivces Inc Model Name or Number: WA1212FG Serial Number: Y550209D17007281600 Description: Analogue Telephone Brand Name: Binatone Model Name or Number: 0119 Serial Number: Not stated Description: Router Brand Name: Linksys Model Name or Number: WRT54G2 V1 Serial Number: CSV00H447523 TEST REPORT SERIAL NO: RFI-RPT-RP78529JD01A V2.0 VERSION 2.0 ISSUE DATE: 10 AUGUST 2010 Page 8 of 40 RFI Global Services Ltd 4. Operation and Monitoring…

Text truncated - open the document above for the full version.

Sulis Consultants Limited Mead House, Longwater Road, Eversley, Hampshire, RG27 0NW, UK Registered in England & Wales, number 05466247 http://www.sulisconsultants.com 26 th August 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 EIRP Test report statementfor FCCID:V8YFW181RG38002W The test reports “SC_TR09_B.pdf” and “RFI-RPT-RP78529JD01A V2.0.pdf” contain EIRP calculation based on an external antenna with gain of 6dBi. The antenna specification “Ant_120300000039W_19-AN3700- 1901RS.Spec.09.09.10.pdf” states that the antenna gain is 5dBi nominal with permitted variation of ‚0.7dB. The stated value of antenna gain in the test report of 6dBi is the maximum possible antenna gainvalue of 5.7 dBi rounded up to the nearest whole dB. Yours Sincerely Charlie Blackham Director
