FCC ID: V8YNW181RG25021W Report No. : RF981110H02 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Dec. 10, 2009 Dear Application Examiner, Accton Wireless Broadband Corp.’s 802.11bgn 1T1R Module, FCC ID: V8YNW181RG25021W, would like to have your authorization as a modular approval. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RT3070L. 3. “The modular transmitter must have its own power supply regulation.” The modular transmitter has its own power supply regulation built in RT3070L. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: V8YNW181RG25021W Report No. : RF981110H02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

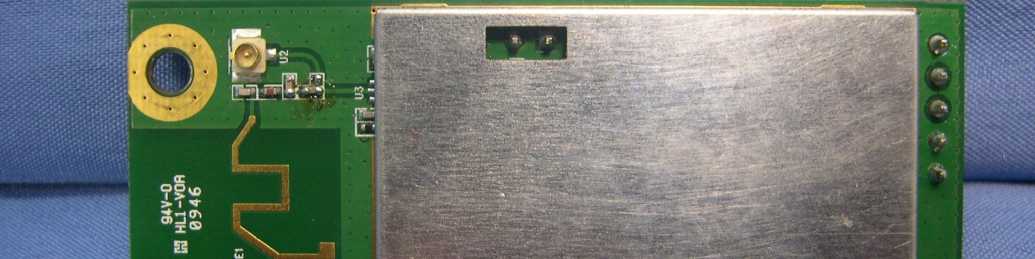

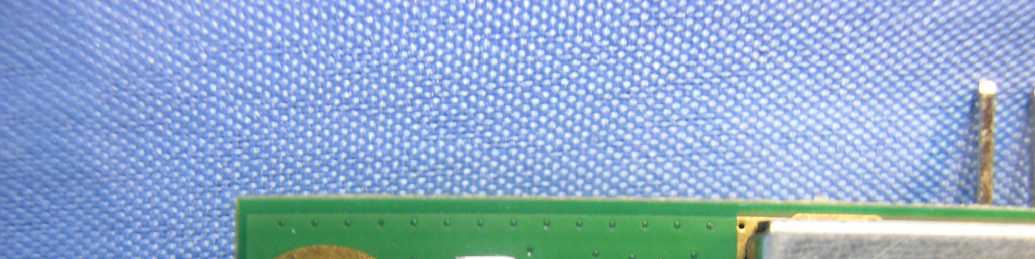

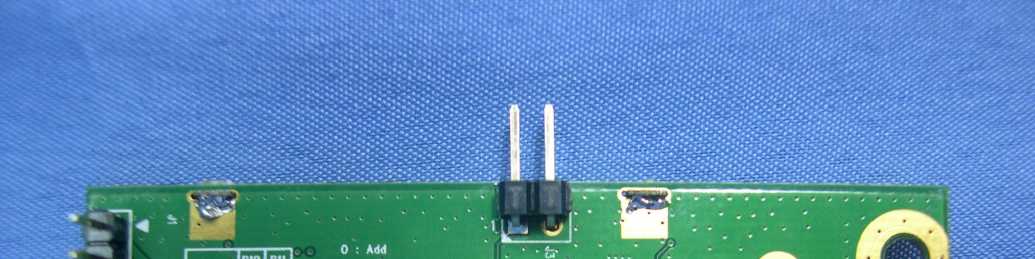

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig.1) FCC ID: V8YNW181RG25021W FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 3

Report No.: SA981110H02 1 Report Format Version 3.0.0 RF EXPOSURE REPORT REPORT NO.: SA981110H02 MODEL NO.: RG231-W1T1R Module ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA981110H02 2 Report Format Version 3.0.0 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA981110H02 3 Report Format Version 3.0.0 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA981110H02 4 Report Format Version 3.0.0 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.65dBi or 1.840772 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 120.2 0.044 1.0 6 2437 134.9 0.049 1.0 11 2462 125.9 0.046 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 195.0 0.071 1.0 6 2437 257.0 0.094 1.0 11 2462 234.4 0.086 1.0 802.11n (20MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 182.0 0.067 1.0 6 2437 186.2 0.068 1.0 11 2462 169.8 0.062 1.0 802.11n (40MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 63.1 0.023 1.0 4 2437 245.5 0.090 1.0 7 2452 128.8 0.047 1.0

Report No.: RF981110H02 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF981110H02 MODEL NO.: RG231-W1T1R Module RECEIVED: Nov. 10, 2009 TESTED: Nov. 20 to 25, 2009 ISSUED: Dec. 10, 2009 APPLICANT: Accton Wireless Broadband Corp. ADDRESS: 3F, No. 1 Creation Rd. III, Science-based Industrial Park Hsinchu 30077, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF981110H02 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION..................................................................................................4 2. SUMMARY OF TEST RESULTS..........................................................................5 2.1 MEASUREMENT UNCERTAINTY.........................................................................6 3. GENERAL INFORMATION...................................................................................7 3.1 GENERAL DESCRIPTION OF EUT......................................................................7 3.2 DESCRIPTION OF TEST MODES........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS......................................12 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST..................................................13 4. TEST TYPES AND RESULTS............................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT.......................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................14 4.1.2 TEST INSTRUMENTS...........................................................................................14 4.1.3 TEST PROCEDURES...........................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD..................................................................15 4.1.5 TEST SETUP........................................................................................................16 4.1.6 EUT OPERATING CONDITIONS..........................................................................16 4.1.7 TEST RESULTS....................................................................................................17 4.2 RADIATED EMISSION MEASUREMENT............................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................19 4.2.2 TEST INSTRUMENTS...........................................................................................20 4.2.3 TEST PROCEDURES...........................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD..................................................................21 4.2.5 TEST SETUP........................................................................................................22 4.2.6 EUT OPERATING CONDITIONS..........................................................................22 4.2.7 TEST RESULTS....................................................................................................23 4.3 6dB BANDWIDTH MEASUREMENT...................................................................52 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................................52 4.3.2 TEST INSTRUMENTS...........................................................................................52 4.3.3 TEST PROCEDURE..............................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD..................................................................53 4.3.5 TEST SETUP........................................................................................................53 4.3.6 EUT OPERATING CONDITIONS..........................................................................53 4.3.7 TEST RESULTS....................................................................................................54 4.4 MAXIMUM PEAK OUTPUT POWER...................................................................58 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................58 Report No.: RF981110H02 3 Report Format Version 3.0.0 4.4.2 INSTRUMENTS.....................................................................................................58 4.4.3 TEST PROCEDURES...........................................................................................58 4.4.4 DEVIATION FROM TEST STANDARD..................................................................58 4.4.5 TEST SETUP........................................................................................................58 4.4.6 EUT OPERATING CONDITIONS..........................................................................59 4.4.7 TEST RESULTS....................................................................................................60 4.5 POWER SPECTRAL DENSITY MEASUREMENT...............................................62 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................62 4.5.2 TEST INSTRUMENTS...........................................................................................62 4.5.3 TEST PROCEDURE................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
