OG_LMD-401_v10e OPERATION GUIDE UHF Narrow band multi channel transceiver LMD-401 Operation Guide Version 1.0 (May. 2020) CIRCUIT DESIGN, INC., 7557-1 Hotaka, Azumino Nagano 399-8303 JAPAN Tel: + +81-(0)263-82-1024 Fax: + +81-(0)263-82-1016 e-mail: [email protected] http://www.circuitdesign.jp OG_LMD-401_v10e Circuit Design, Inc. 2 OPERATION GUIDE CONTENTS GENERAL DESCRIPTION & FEATURES ........................... 3 SPECIFICATIONS ............................................................... 4 PIN DESCRIPTION ............................................................. 6 BLOCK DIAGRAM ............................................................... 8 DIMENSIONS ...................................................................... 9 PLL IC CONTROL ............................................................. 10 PLL IC control .................................................................. 10 How to calculate the setting values for the PLL register ........ 11 Method of serial data input to the PLL ................................ 12 TIMING CHART ................................................................. 13 PLL FREQUENCY SETTING REFERENCE ..................... 15 REGULATORY COMPLIANCE INFORMATION ................ 17 CAUTIONS & WARNINGS ................................................ 20 OG_LMD-401_v10e Circuit Design, Inc. 3 OPERATION GUIDE GENERAL DESCRIPTION & FEATURES General Description The LMD-401 is a synthesized multi-channel transceiver module for use under the Land Mobile Radio services (FCC Part 90, ISED RSS-119). This simple, compact and low power transceiver is designed for embedding in user's portable or fixed equipment and suitable for various low power industrial telecontrol and telemetry applications requiring high performance and reliability. All high frequency circuits are enclosed inside a robust housing to provide superior resistance against shock and vibration. Using a TCXO as the reference oscillator circuit of the radio component ensures high frequency stability in the temperature range from -20 to +65 °C. The LMD-401 is the same size and pin-compatible with Circuit Design’s EN 300 220 compliant license-exempt transceiver model STD-302Z that has been widely used as a standard transceiver for remote control in industrial radio applications. Features  Programmable RF channel with 12.5 kHz channel space  10 mW, GFSK, 4800 bps  Low power operation 3 - 5.5 V, 46 mA/TX, 36 mA/RX  High receiver selectivity & blocking  Small size 50 x 30 x 9 mm  Excellent mechanical durability, high vibration & shock resistance  Wide operation range - 20 to +65 °C  FCC part 90 and ISED RSS-119 certified Applications  Industrial remote control  Telemetry  Remote monitoring / Security  Data acquisition/ SCADA OG_LMD-401_v10e Circuit Design, Inc. 4 OPERATION GUIDE SPECIFICATIONS LMD-401 All ratings at 25 +/-10 °C unless otherwise noted General characteristics Item Units MIN TYP MAX Remarks Applicable standard FCC Part 90.217, ISED RSS-119 Communication method Simplex, Half-duplex Emission class F1D Modulation type GFSK Operating frequency range MHz 458.000 462.500 Operation temperature range °C -20 65 No dew condensation Storage temperature range °C -30 75 No dew condensation Aging rate ppm -1 1 TX freq., RX Lo freq. Initial frequency tolerance ppm -1 1 TX freq., RX Lo freq. Dimensions mm 30 x 50 x 9 mm Not including antenna Weight g 25 g Electrical specification <Common> Item MIN TYP MAX Remarks Oscillation type PLL controlled VCO Frequency stability (-20 to 65°C) ppm -2.5 2.5 Reference frequency at 25 °C TX/RX switching time ms 15 20 DI/DO Channel step kHz 12.5 Data rate bps 2400 4800 DO/DI Max. pulse width ms 15 20 DO/DI Min. pulse width us 200 DO/DI Data polarity Positive DO/DI PLL reference frequency MHz 21.25 TCXO PLL response ms 30 60 from PLL setting to LD out Antenna impedance Ω 50 Nominal Operating voltage V 3.0 5.5 TX consumption current mA 46 50 Vcc = 3.0 V RX consumption current mA 36 40 Vcc = 3.0 V Transmitter part Item MIN TYP MAX Remarks RF output power* mW 10 Conducted 50 Ω Deviation kHz +/-2.0 +/-2.4 +/-2.8 PN9 4800 bps DI input level V 0 5.5 L= GND, H = 3 V- Vcc Residual FM noise kHz 0.12 DI=L, LPF=20 kHz Spurious emission dBm -37 < 1000 MHz, conducted 50 Ω -31 > 1000 MHz, conducted 50 Ω Adjacent CH power dBm -20 +/-12.5 kHz, PN9 4800 Alternate adjacent CH power dBm -20 +/-25 kHz, PN9 4800 Occupied bandwidth kHz 8.5 PN9 4800 * The RF output power cannot be changed or adjusted. OG_LMD-401_v10e Circuit Design, Inc. 5 OPERATION GUIDE Receiver part Item MIN TYP MAX Remarks Receiver type Double superheterodyne 1st IF frequency MHz 21.7 2nd IF frequency kHz 450 Maximum input level dBm 10 BER (0 error/2556 bits) *1 dBm -113 PN 9 4800bps BER (1 % error) *2 dBm -116 PN 9 4800bps Sensitivity 12dB/ SINAD dBm -116 fm1 k/ dev 2.4 kHz CCITT Co-channel rejection dB -7 D/U ratio Spurious response rejection dBm -44 1 st Mix, 2 nd Mix, 2 signal method Adjacent CH selectivity dBm -50 +/- 12.5 kHz, 2 signal method Adjacent CH saturation dBm -20 +/- 12.5 kHz, 2 signal method Blocking dBm -20 +/-2 MHz, +/-10MHz, +/-5% 2 signal method DO output level V 2.8 L = GND H = 2.8 V RSSI rising time ms 30 50 CH shift of 25 kHz (from PLL setup) 50 70 When power ON (from PLL setup) Time until valid Data-out *3 ms 50 100 CH shift of 25 kHz (from PLL setup) 70 120 When power ON (from PLL setup) Spurious radiation (1 st Lo) dBm -60 -57 Conducted 50 Ω RSSI mV 260 310 360 With –100 dBm 190 240 290 With –110 dBm Specifications are subject to change without prior notice Notice  The time required until a stable DO is established may get longer due to the possible frequency drift caused by operation environment changes, especially when switching from TX to RX, from RX to TX and changing channels. Please make sure to optimize the timing. The recommended preamble is more than 20 ms.  Antenna connection is designed as pin connection.  RF output power, sensitivity, spurious emission and spu…

Text truncated - open the document above for the full version.

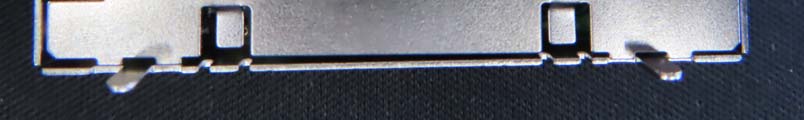

External Photo External Photo External Photo External Photo

AB C E G D 42 AC D E F 1 2345 F G 15 B SCA L E MA T E R I A L F I NISH ED DR A W N DE SI G N CH EC K A PPRO V . NA ME CO D E N O . DA T E DR A W I N G N O . 3 H SPE C. 部 品 名=NA M E （図面名）+ SP EC .（仕様） xxx MEM O CH . A P. DA T E MA R K C O M M ER CIA L TOL ERA NCE ±±± ～～～ △△△ ～ ± △ x WR. P D F 外観図 L MD- 401 2:1 S.Tanaka S.Tanaka 2 020. 03.2 3 U 091 B01A 01 SER I A L N O : 00000000 FREQUENCY : 458－ 462.5M H z LMD-401 LD DI DO R SSI LE DAT A AF O U T S Y NT H E SIZED T R AN SCEIVER MADE I N J A PAN CL K R XSE L TXS E L VCCGN D RF FCC ID:V9X-LMD401 Mo d e l ： IC：6079A-LMD401 50 0. 5 30 0.5 9.3 0.5 36 2 2 2.7

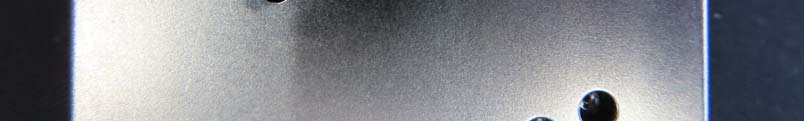

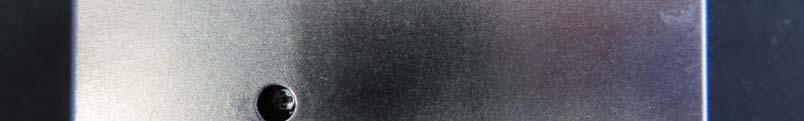

Internal Photo

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 2020/5/13 FCC ID: V9X-LMD401 To whom it may concern, We, UL Japan, Inc., hereby declare that UHF Narrow band multi channel transceiver, model : LMD-401 (FCC ID: V9X-LMD401) of Circuit Design Inc. is exempt from RF exposure SAR evaluation with RF Exposure Compliance requirements of the KDB 447498 D01 General RF Exposure Guidance. (It is necessary to comply of FCC section 2.1093 in reality, however, it is exempted by KDB 447498 D01.) KDB 447498D01 has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz a t test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separatio n distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g ext remity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 0.4625 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power was 10 mW So for this device: 10 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 0.4625) = 1.4 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Toyokazu Imamura Leader Consumer Technology Division

Test report No. : 13299139S-A-R2 Page : 1 of 42 Issued date : May 26, 2020 FCC ID : V9X-LMD401 UL Japan, Inc . Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN T e l e p h o ne : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 16.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13299139S-A-R2 Applicant : Circuit Design Inc. Type of EUT : UHF Narrow band multi channel transceiver Model Number of EUT : LMD-401 FCC ID : V9X-LMD401 Test regulation : FCC Part 90 Subpart I: 2020 Test Result : Complied (Refer to SECTION 3.2) 1.This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2.The results in this report apply only to the sample tested. 3.This sample tested is in compliance with the limits of the above regulation. 4.The test results in this test report are traceable to the national or international standards. 5.This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6.This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7.The all test items in this test report are conducted by UL Japan, Inc. Shonan EMC Lab. 8.The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9.The information provided from the customer for this report is identified in SECTION 1. 10.This report is a revised version of 13299139S-A-R1. 13299139S-A-R1 is replaced with this report. Date of test: April 1 to 14, 2020 Representative test engineer: Kenichi Adachi Engineer Consumer Technology Division Appr oved by: Toyokazu Imamura Leader Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13299139S-A-R2 Page : 2 of 42 Issued date : May 26, 2020 FCC ID : V9X-LMD401 U L Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY O riginal Test Report No.: 13299139S-A Revision Test report No. Date Page revised Contents -(Original)13299139S-A May 11, 2020 - - 1 13299139S-A-R1 May20, 2020 1-13Correction of FCC ID “V9X LMD401” to “V9X-LMD401” 2 13299139S-A-R2 May 26, 2020 6 Correction of error ("*2)" and "*3)", "...the power level off EUT..." to "...the power level of EUT...".) 42 Correction of error. ("cconducted" to "conducted") Test report No. : 13299139S-A-R2 Page : 3 of 42 Issued date : May 26, 2020 FCC ID : V9X-LMD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13299139S-A-R2 Page : 4 of 42 Issued date : May 26, 2020 FCC ID : V9X-LMD401 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information....................................................................................................... 5 SECTION 2: Equipment un…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Front Below 30 MHz 30 MHz – 1 GHz Above 1 GHz Test Report No. 13299139S-A-R2 page 40 of 42 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of Worst Case Position X-axis Y-axis Z-axis Test Report No. 13299139S-A-R2 page 41 of 42 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Antenna terminal conducted tests End of Report Test Report No. 13299139S-A-R2 page 42 of 42
