V9X-STD502R2.4 GHz DSSS low power radio transceiver

OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 1 Operation Guide Version 0.9 (Feb. 2013) CIRCUIT DESIGN, INC. 7557-1 Hotaka, Azumino Nagano 399-8303 JAPAN Tel: 0263-82-1024 Fax: 0263-82-1016 e-mail: [email protected] http://www.circuitdesign.jp OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 2 1. Outline The STD-502-R operates in the 2.4 GHz band available worldwide. Designed to be embedded in equipment, this radio transceiver module was developed for industrial applications that require stable and reliable operation. With battery operation, it achieves line of sight radio communication beyond 300 m. Besides using highly noise-resistant direct-sequence spread spectrum (DSSS) modulation, the module has a true diversity receiver function for preventing signal dropout due to multipath fading. This ensures highly stable and reliable radio communication in the congested 2.4. GHz ISM band. The transceiver uses a transparent input/output interface, enabling users to use their own protocols. In addition, the transceiver can transmit data that includes long consecutive identical bits that cannot be transmitted with conventional radio modules. 2. Features and applications Features Direct sequence spectrum (DSSS) True diversity receiving Communication range 300 m (LOS) Low power operation 10 mW, 3.3 V, 68 mA Data rate 19.2 kbps Built-in data frame coincidence detection function Operating temperature range -20 to +65°C Compliance with European EN300 440, American FCC Part 15.247, and Japan ARIBSTD-T-66 regulations Applications Remote control of industrial equipment Industrial telemetry and monitoring systems OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 3 3. Specifications General specifications * All values are taken with the antenna ports terminated with 50 ohm and at 25 degree C +/- 5 degree C unless otherwise noted ItemSpecificationUnitRemarks Applicable standard EN300 440-1, FCC part 15.247, ARIB STD-T66 Communication methodSimplex Emission typeDirect sequence spread spectrum Modulation methodFSK Number of channels77ch (Ch 0 to Ch 76) Antenna connectionRP-SMAJ Dimensions50 × 30 × 9 ( W x D x H )mm RP-SMAJ and power & signal connector pins excluded Weight24g Interface specifications ItemSpecificationUnitRemarks Baud rate: 19.2 kbps (typ.), No parity Character: 8 bits, Stop bit : 2 bits Baud rate 19.2 / 38.4 / 57.6 kbps Input TXD L = 0 to 0.25 H = Vref - 0.4 to Vref VUART *1 Interface for module setting Output RX D L = 0 to 0.25 H = Vref - 0.4 to Vref VUART *1 RX data output DO L = 0 to 0.25 H = Vref - 0.4 to Vref V RX data out using a transparent method *1 CLK for data input/output CLK L = 0 to 0.25 H = Vref - 0.4 to Vref V *1 TX data input DI L = 0 to 0.25 H = Vref - 0.4 to Vref V TX data out using a transparent method *1 Diversity receiving antenna DIV L = 0 to 0.25 H = Vref - 0.4 to Vref V Shows on which antenna data is received. *1 TX/RX switching terminal TXRXSEL L = 0 to 0.3 H = Vcc - 0.4 to Vcc VH: RX / L: TX RF standby terminal STBY L = 0 to 0.3 H = Vcc - 0.4 to Vcc VH: Standby / L: RF operation Reset terminal RST L = 0 to 0.25 H = Vcc - 0.4 to Vcc VReset with L for more than 100 us Communication level reference terminal VREF 3.1 - 5.5V Vref (a terminal for applying a reference voltage consistent with the external communication level) *1 " H" level depends on the voltage level applied to the communication level reference terminal. OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 4 Electrical specification (Common) ItemSpecificationMINTYPMAXUnitRemarks Operating voltage3.35.5V TX currentVcc = 3.3 V66mAat 10 mW RX currentVcc = 3.3 V75mA TX/RX frequency range 2.4 GHz band2402.52478.5 MHｚ Refer to the frequency table Operating temperature range -20°C to + 65°C-2065°CNo dew condensation Storage temperature range -30°C to +90°C-3090°CNo dew condensation Aging rate< +/- 1 ppm / year-11ppmTX / RX Lo frequency Initial frequency tolerance +/- 10 ppm within one year from shipment -1010ppmTransmission frequency Oscillation type Fractional N PLL controlled VCO Frequency stability+/- 10 ppm (-20 to +65°C)-1010ppmReference temp. = 25 C Channel spacing1 MHz1MHz Data bit rate19.2 kbps19.2kbps can be changed with the command Chip rate288 kcps288kcps can be changed with the command Number of chips M-sequence (111101010001100) 15bit PLL reference frequency 2626 MHｚ TCXO : NT2520SA Electrical specification (Transmitter) ItemSpecificationMINTYPMAXUnitRemarks -10 to +55°C /all channels 10mW Output power -20 to +65°C /all channels 2TBD Spurious emissionTBDdBm EN300 440-1 compliant Adjacent channel powerTBDdBc EN300 440-1 compliant Occupied frequency bandwidth TBDkHz EN300 440-1 compliant Power on -> command reception42ms Power on in the TX mode Command reception -> TX5ms Country code reception -> stable RF output Frequency change3ms Command transmission -> Stable RF output RX to TX2ms Terminal input -> Stable operation Actuation time Recovery from standby1.2ms Standby->stableRF output OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 5 Electrical specification (Receiver) ItemSpecificationMINTYPMAXUnitRemarks Reception methodLow IF Maximum input level-13dBm Receiver sensitivity (BER, 9.6 kbps) -20 to + 65°C /all channels -93dBmerror rate = < 1 % Receiver sensitivity (BER, 19.2 kbps) -20 to + 65°C /all channels -93dBmerror rate = < 1 % BlockingEN300 440-1 compliant-45dBm 2 signal test, 1% error Spurious radiation (1st Lo) dBm Power on -> County code reception42ms Power on in the RX mode Command reception -> RX5ms Frequency change3ms Command reception -> RX start TX to RX2ms Terminal input -> Stable operation Actuation time Recovery from standby1.2 Standby -> RX start OPERATION GUIDE. OG_STD-502-R_v09eCircuit Design, Inc. 6 4. Terminal specifications TerminalTerminalInput/Input/Output level (V) No.nameOutputLowHi Internal equivalent circuit Output0 to 0.25Vref -0.4 to Vref 1CLK TX: Synchronous CLK for TX data input RX: Synchronous CLK for RX data output Output0 to 0…

Text truncated - open the document above for the full version.

Applicant/Grantee Circuit Design, Inc. FCC ID: V9X-STD502R Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to External Photos. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the device are buffered through logic U6inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 3.0V and 3.1V regulator. Refer to Block Diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The device is equipped with a unique antenna (SMA Reverse). Refer to Antenna specification. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). The device was tested in a stand- alone configuration with test-jig DC supply connected directly for full modular approval. Refer to setup photos. Y 6 The modular transmitter must be equipped with either a permanently affixed label or must be The proposed FCC ID label format is to be placed on the module. If Y capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. FCC ID is not visible when the module is installed into the system, “Contains FCC ID: V9X- STD502R” shall be placed on the outside of final host system. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

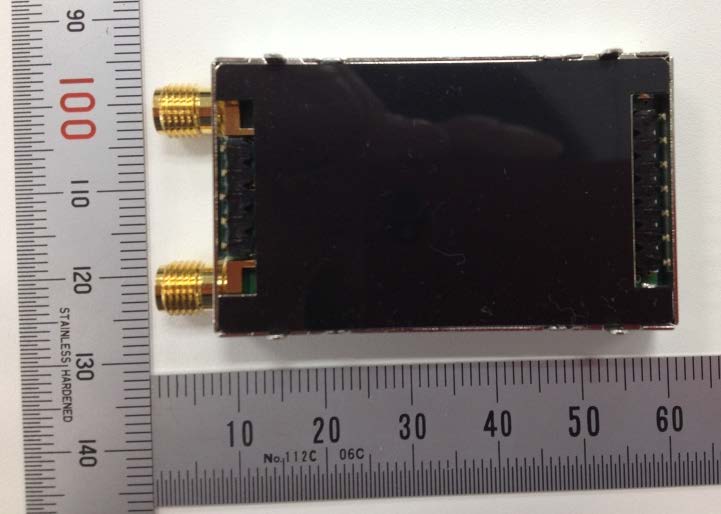

STD-502-R External Photo

STD-502-R Label 3.5mm Label Location Label on top of shield case.

STD-502-R Internal Photo ( Top Si de ) (Bottom Side)

Page : 1 of 62 FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 2.4 GHz DSSS low power radio transceiver MODEL NUMBER: STD-502-R FCC ID: V9X-STD502R REPORT NUMBER: 33IE0022-SH-A ISSUE DATE: May 22, 2013 Prepared for CIRCUIT DESIGN, INC. 7557-1 HOTAKA, AZUMINO, NAGANO, 399-8303, JAPAN Prepared by UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 JAB Accreditation No. : RTL02610 RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 2 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Revision History Rev. Issue Date Revisions Revised By -- 05/22/13 Initial Issue K. Adachi REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 3 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .............................................................................. 4 2. TEST METHODOLOGY .................................................................................................. 5 3. FACILITIES AND ACCREDITATION .............................................................................. 5 4. CALIBRATION AND UNCERTAINTY ............................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .......................................................... 5 4.2. SAMPLE CALCULATION ......................................................................................... 5 4.3. MEASUREMENT UNCERTAINTY ........................................................................... 5 5. EQUIPMENT UNDER TEST ........................................................................................... 6 5.1. DESCRIPTION OF EUT ........................................................................................... 6 5.2. MAXIMUM OUTPUT POWER .................................................................................. 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .......................................................... 6 5.4. SOFTWARE AND FIRMWARE ................................................................................ 6 5.5. WORST-CASE CONFIGURATION AND MODE ...................................................... 7 5.6. DESCRIPTION OF TEST SETUP ............................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT ................................................................... 9 7. ANTENNA PORT TEST RESULTS .............................................................................. 11 7.1. 6 dB BANDWIDTH ................................................................................................. 11 7.2. 99% BANDWIDTH .................................................................................................. 14 7.3. OUTPUT POWER .................................................................................................. 17 7.4. AVERAGE POWER ................................................................................................ 18 7.5. POWER SPECTRAL DENSITY ............................................................................. 19 7.6. CONDUCTED SPURIOUS EMISSIONS ................................................................ 22 8. RADIATED TEST RESULTS ........................................................................................ 26 8.1. LIMITS AND PROCEDURE ................................................................................... 26 8.2. TRANSMITTER ...................................................................................................... 27 8.2.1. Sleeve antenna ............................................................................................... 27 8.2.2. Loop PCB antenna .......................................................................................... 34 8.2.3. Coaxial antenna .............................................................................................. 41 8.3. AC POWER LINE CONDUCTED EMISSIONS ...................................................... 48 9. MAXIMUM PERMISSIBLE EXPOSURE ....................................................................... 55 10. SETUP PHOTOS ....................................................................................................... 57 REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 4 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: CIRCUIT DESIGN, INC. 7557-1, HOTAKA, AZUMINO, NAGANO, 399-8303, JAPAN EUT DESCRIPTION: 2.4 GHz DSSS low power radio transceiver MODEL: STD-502-R SERIAL NUMBER: S0000003 (for Conducted emissions and Radiated test), S0000002 (for Bandwidth and Power spectral density) S0000001 (for Output power, Average power and Conducted Spurious emissions), DATE TESTED: April 17 to May 13, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C Pass UL Japan Inc. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL Japan, Inc. based on interpretations and/or observations of test results. Measurement Uncertainties were …

Text truncated - open the document above for the full version.

REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 57 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. 10. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 58 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT DEFINITION OF THE AXIS (Module) (Module)X-AXIS PHOTO (Module)Y-AXIS PHOTO (Module)Z-AXIS PHOTO REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 59 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. RADIATED RF MEASUREMENT DEFINITION OF THE AXIS (Antenna) Sleeve antenna Loop PCB antenna Coaxial antenna Y-AXIS PHOTO X-AXIS PHOTO Y-AXIS PHOTO X-AXIS PHOTO Y-AXIS PHOTO X-AXIS PHOTO REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 60 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. AC POWER LINE CONDUCTED EMISSIONS SETUP Sleeve antenna CONDUCTED FRONT PHOTO CONDUCTED SIDE PHOTO REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 61 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Loop PCB antenna CONDUCTED FRONT PHOTO CONDUCTED SIDE PHOTO REPORT NO: 33IE0022-SH-A DATE: May 22, 2013 FCC ID: V9X-STD502R Page 62 of 62 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN TEL: +81 463 50 6400 FAX: +81 463 50 6401 This report shall not be reproduced except in full, without the written approval of UL Japan, Inc. Coaxial antenna END OF REPORT CONDUCTED FRONT PHOTO CONDUCTED SIDE PHOTO
