V9X-STD5032.4 GHz DSSS low power radio transceiver

User Manual Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: V9X-STD503 or Contains FCC ID: V9X-STD503 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. [for IC] Contains Transmitter Module IC: 6079A-STD503 or Contains IC: 6079A-STD503 The following statements or equivalent must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. [for IC] This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

7557-1 Hotaka, Azumino, Nagano, 399-8303, Japan Letter of Authorization Date: February 19, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : V9X-STD503 Applicant: Circuit Design, Inc To whom it may concern: Please be advised weauthorize Yoshihisa Maeda ofConsumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Yukinaga Koike Circuit Design, Inc

7557-1 Hotaka, Azumino, Nagano, 399-8303, Japan Request for Confidentiality Date: February 19, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : V9X-STD503 Applicant: Circuit Design, Inc To whom it may concern: Please be advised that the following information is to be held confidential on behalf ofus, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Yukinaga Koike Circuit Design, Inc

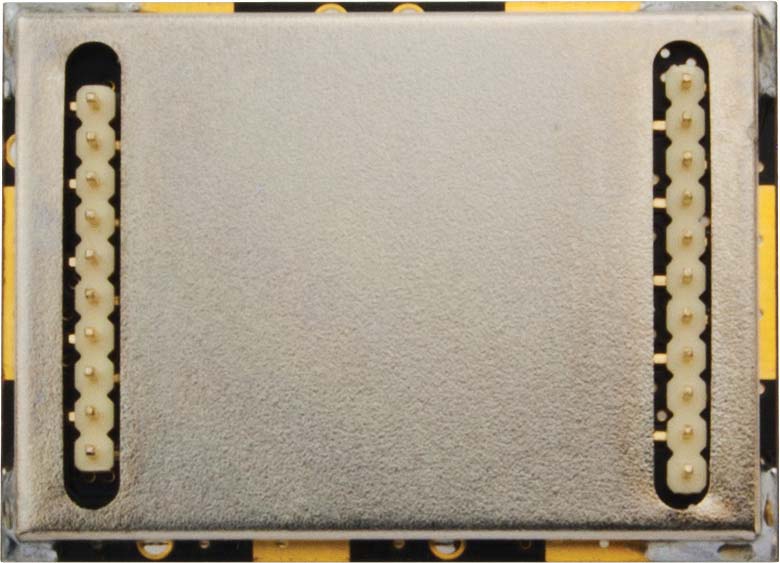

Photo Circuit Design, Inc. STD-503 Top Bottom Label Location Photo Circuit Design, Inc. STD-503 Right Left Front Right Photo Circuit Design, Inc. STD-503 W/Sleeve antenna (Standard) W/Sleeve antenna (water proof) Photo Circuit Design, Inc. STD-503 W/Sleeve antenna with MHF W/Loop PCB antenna

1 2 3 4 5 x x x A B C 5 4 3 2 1 ABC MARK DATEMEMO CH. AP. COMMERCIAL TOLERANCE SCALE MATERIAL FINISHEDCHECK DRAWN DESIGN APPROV. NAME CODE NO. DATE DRAWING NO. ± ± ± ～ ～ ～ △ △ △ D SPEC. 部品名=NAME（図面名）+SPEC.（仕様） ～ ± △ x WR. P D F 1:1 S.Tanaka 2014.07.14 外観図 U074B01A01 STD-503 M.Tsunoda 40 0.2 40 29 1 1 1 30 5.5 0.4 4 1 1 1 1 30 2 2 2P*10=182P*11=20 007-****** MADE IN JAPAN R IC： 6079A-STD503 FCC ID: V9X-STD503 SERIAL NO: 00000000 STD-503 Model：

STD-503 Label drawing

Photo Circuit Design, Inc. STD-503

UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 2015/2/26 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: V9X-STD503 To whom it ma y concern, We, UL Japan, Inc., hereb y declare that 2.4 GHz DSSS low power radio transceiver, model : STD-503 (FCC ID: V9X-STD503) of Circuit Design, Inc. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01 (v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined b y: [ (measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable onl y when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power was 5 mW So for this device: 5 mW [measured maximum avera ge output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 1.6 *This is less than 3.0, so no SAR is required. Even takin g into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Go Ishiwata Site Mana ger EMC/Wireless Group, Kashima EMC Lab. Consumer Technolo gy Division UL Japan, Inc.

Test report No. : 10666354M-B-R2 Page : 1 of 42 Issued date : February 26, 2015 FCC ID : V9X-STD503 Revised date : March 6, 2015 UL Japan, Inc. Kashima EMC Lab . 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 TESTING CERTIFICATE 1266.01 RADIO TEST REPORT Test Report No. : 10666354M-B-R2 Applicant : Circuit Design, Inc. Type of Equipment : 2.4 GHz DSSS low power radio transceiver Model No. : STD-503 FCC ID : V9X-STD503 Test regulation: FCC Part 15 Subpart C: 2014 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. This report is a revised version of 10666354M-B-R1. 10666354M-B-R1 is replaced with this report. Date of test: February 3, 4, 6 - 10, 2015 Representative test engineer: Kazuhiro Ando EMC/Wireless Group, Consumer Technology Division Approved by: Go Ishiwata Site Manager EMC/Wireless Group, Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10666354M-B-R2 Page : 2 of 42 Issued date : February 26, 2015 FCC ID : V9X-STD503 Revised date : March 6, 2015 UL Japan, Inc. Kashima EMC Lab . 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted emission ............................................................................................................ 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) .............................................................. 10 SECTION 7: Maximum peak conducted output power ....................................................................... 10 SECTION 8: Maximum power spectral density ................................................................................... 10 SECTION 9: Out of band emissions (Antenna port conducted) .......................................................... 10 SECTION 10: Radiated emission .......................................................................................................... 11 Contents of APPENDIXES .......................................................................................................... 14 APPENDIX 1: Data of Radio test ........................................................................................................... 15 APPENDIX 2: Test instruments ............................................................................................................. 38 APPENDIX 3: Photographs of test setup ............................................................................................... 39 REVISION HISTORY Original Test Report No. 10666354M-B Revision Test Report No. Date Page revisedRevision Description 00 10666354M-B February 26, 2015 - Original 01 10666354M-B-R1 March 4, 2015 P.3 P.4 P.7 Correction of description of FCC 15.31 (e) Change of description of Worst Margin in 3.2 Procedures and results Change Change of description in 4.1 Operating Modes 02 10666354M-B-R2 March 6, 2015 P.4 Correction of description of Worst Margin in 3.2 Procedures and results Change Test report No. : 10666354M-B-R2 Page : 3 of 42 Issued date : February 26, 2015 FCC ID : V9X-STD503 Revised date : March 6, 2015 UL Japan, Inc. Kashima EMC Lab . 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 SECTION 1: Customer information Company Name : Circuit Design, Inc. Address : 7557-1, Hotaka, Azumino, Nagano 399-8303 Japan Telephone Number : +81-263-82-1011 Facsimile Number : +81-263-82-1012 Contact Person : Yukinaga Koike SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : 2.4 GHz DSSS low power radio transceiver Model No. : STD-503 Serial No. : Refer to Section 4, Clause 4.3 Rating : DC 3.3 - 5.0 V (Absolute max voltage 5.5V) Receipt Date of Sample : January 26, 2015 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model: STD-503 (referred to as the EUT in this report) is a 2.4 GHz DSSS low power radio transceiver. Clock frequency(ies) in the system : 16 MHz, 26MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2402.5-2478.5MHz Channel spacing : 1MHz Type of modulation : FSK Antenna type / Antenna gain : Sleeve antenna (standard) / 2.0 dBi Sleeve antenna (waterproof) / 2.0 dBi *1 Loop PCB antenna / 1.89dBi Sleeve antenna with MHF / 1.5dBi Antenna connector type : MHF ITU code : F1D Operation temperature range : -20 to +65 deg.C *1) The only difference between the standard type and the waterproof type of sleeve antenna is how the resinous material covers the antenna. The tests wer…

Text truncated - open the document above for the full version.

UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 APPENDIX 3: Photographs of test setup Conducted Emission (Sleeve antenna (standard)) Conducted Emission (Loop PCB antenna) Conducted Emission (Sleeve antenna with MHF) UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Radiated Spurious Emission (Front) Radiated Spurious Emission (Below 1 GHz) Radiated Spurious Emission (Above 1 GHz) UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Pre-check of the worst position (Module) X-axis Y-axis Z-axis UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-82-0963 Facsimile: +81-478-82-3373 Pre-check of the worst position (Antenna) Sleeve antenna (standard) X-axis Y-axis Loop PCB antenna X-axis Y-axis Sleeve antenna with MHF X-axis Y-axis End of Report
