VA8-WSC43BAWiFi Thermostat

W415-4094 / 06.10.22 INSTALLATION GUIDE WSC43BA Thermostat Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleon.com • [email protected] W415-4094 / 06.10.22 2 safety handling EN ! WARNING • Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the thermostat and other property. Read all the safety notices below before using the thermostat. • Avoid high humidity or extreme temperatures. • Avoid long exposure to direct sunlight or strong ultraviolet light. • Do not drop or expose the unit to intense vibration. • Do not disassemble or try to repair the unit on your own. • Do not expose the unit or its accessories to flammable liquids, gases, or other explosives. Product Name Model Number FCC IDIC ID Touchscreen Thermostat WSC43BA VA8-WSC43BA 7114A- WSC43BA Indoor PIR Temperature Sensor WSC-IS VA8-WSC-IS 7114A- WSCIS Outdoor Temperature Sensor with Probe WSC-OS Thermostat Power Module (not included) WSC- PWRM N/A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) The device may not cause harmful interference; and 2) the device must accept any interference received, including interference that may cause undesired operation. W415-4094 / 06.10.22 3 table of contents EN NOTE: The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves the right to change or modify any information within this manual at any time without notice. Changes, other than editorial, are denoted by a vertical line in the margin. 1.0 welcome 4 2.0 in the box 4 3.0 wiring diagrams 5 4.0 installation guide 8 4.1 removing your old thermostat 8 4.2 connecting the wires 11 4.2.1 install the thermostat with a C-wire 12 4.2.2 install the thermostat without a C-wire (optional) 16 5.0 FAQs 25 6.0 technical specifications 28 7.0 home app 31 8.0 meet your thermostat 35 8.1 device overview 35 9.0 app overview 49 W415-4094 / 06.10.22 4 EN 1.0 welcome The thermostat makes it easier and smarter to control your household temperature. You can control and switch easily between dual fuel sources using custom hybrid heating modes. With the help of indoor and outdoor sensors, you can balance hot or cold spots throughout the home to achieve best comfort or select specific sensors for target temperatures. You can also set schedules for your thermostat, so it operates automatically based on the selected time periods and settings. 2.0 in the box Label 1. Label 2. Thermostat If you have a C wire, you will not need the label 2 below. Control board CC RC RC RC RC RH RH RR CC SS GG RR RCRC RHRHY2Y2 Y/Y1Y/Y1 Y/Y1Y/Y1 W/W1W/W1 W/W1W/W1 W2W2 O/BO/B ** GG WSC43BA ThermostatIndoor Sensor (WSC-IS) Outdoor Sensor Installation & User Guide 6 x Screws6 x Drywall Plugs Wire Tags W415-4094 / 06.10.22 5 EN 3.0 wiring diagrams Below are the wiring diagrams for common HVAC equipment. Remove the jumper between Rh, Rc, or R terminals. Adjust the DIP switch on the back of the thermostat to “Disconnect” if you have connected both RC-wire and RH-wire to the wall-plate. Otherwise, switch it to the “Connect” side. G S Y1 Y2 M1 M2 C RC RH O/B W1 W2 Y1Y2C Y1Y2W1W2RCG Air conditionerFurnace For dual heat and cooling system, if applicable. Humidifier/Dehumidifier (optional) Conventional Heating and Cooling System W415-4094 / 06.10.22 6 wiring diagrams EN Heat Pump (Air or Geothermal) with Auxiliary Heat Remove the jumper between Rh, Rc, or R terminals. Adjust the DIP switch on the back of the thermostat to “Disconnect” if you have connected both RC-wire and RH-wire to the wall-plate. Otherwise, switch it to the “Connect” side. For dual heat and cooling system, if applicable. RO/BW1W2 O/B Heat pump Air handler G S Y1 Y2 M1 M2 C RC RH O/B W1 W2 Y1Y2C Y1Y2W1W2RCG Humidifier/ Dehumidifier (optional) W415-4094 / 06.10.22 7 wiring diagrams EN Boiler or Radiant System with Air Handler and Conventional Cooling or Heat Pump Remove the jumper between Rh, Rc, or R terminals. Adjust the DIP switch on the back of the thermostat to “Disconnect” if you have connected both RC-wire and RH-wire to the wall-plate. Otherwise, switch it to the “Connect” side. G S Y1 Y2 M1 M2 C RC RH O/B W1 W2 Y1Y2C Y1Y2 W1W2 RCG O/B 1 R Air conditioner or Heat pumpBoiler Air handler For dual heat and cooling system, if applicable. 1 For heat pump only. Humidifier/ Dehumidifier (optional) W415-4094 / 06.10.22 8 EN 4.0 installation guide 4.1 removing your old thermostat Step 1: Switch off your HVAC system Before you start, please switch off your HVAC system to protect you and to avoid blowing a fuse. Wait a few minutes, then try to adjust the temperature of your old thermostat to verify that the system is off. fifl fi fl                  Breaker boxSwitch Step 2: Remove the old thermostat Remove the old thermostat from the wall. Keep the wall-plate with wires. W415-4094 / 06.10.22 9 installation guide EN RC RHG C Y1Y2 W1 W2O/B OR 120V or higher Step 3: Compatibility check If you find a thick wire with wire nuts on the backplate of the old thermostat, or if the voltage of your old system is 120V or higher, it will not be compatible with WSC43BA. If none of the above is true, please proceed to the next step. Step 4: Take a photo Take a photo of the wires connected to the terminal of your old thermostat. You may need to reference this photo later. W415-4094 / 06.10.22 10 installation guide EN Step 5: Label the wires with tags Label each wire on the wall-plate with the tags (label 1) provided, then carefully disconnect the wires. RC RHG C Y1Y2 W1 W2O/B C RC G W1 Y1 RC RHG C Y1Y2 W1 W2O/B C RC G W1 Y1 Remove NOTE: If there are any jumper wires between Rh, Rc, or R terminals, do not label them. WSC43BA does not need jumpers. Remove and save them, along with your old thermostat. NOTE: For unique wiring situations, see “…

Text truncated - open the document above for the full version.

Wolf Steel Ltd. Agent Authorization Company: Wolf Steel Ltd. Address: 24 Napoleon Road Barrie, Ontario, L4M 4Y8 Canada Product Name: WiFi Thermostat Model Number(s): WSC43BA Product Description: Tochscreen Thermostat We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jun. 16, 2022 Name: Paul Hodges Title: Innovation and Engineering Systems Manager Company: Wolf Steel Ltd.

Wolf Steel Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jun. 16, 2022 Subject; Request for Confidentiality FCC ID: VA8-WSC43BA To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Paul Hodges Title: Innovation and Engineering Systems Manager

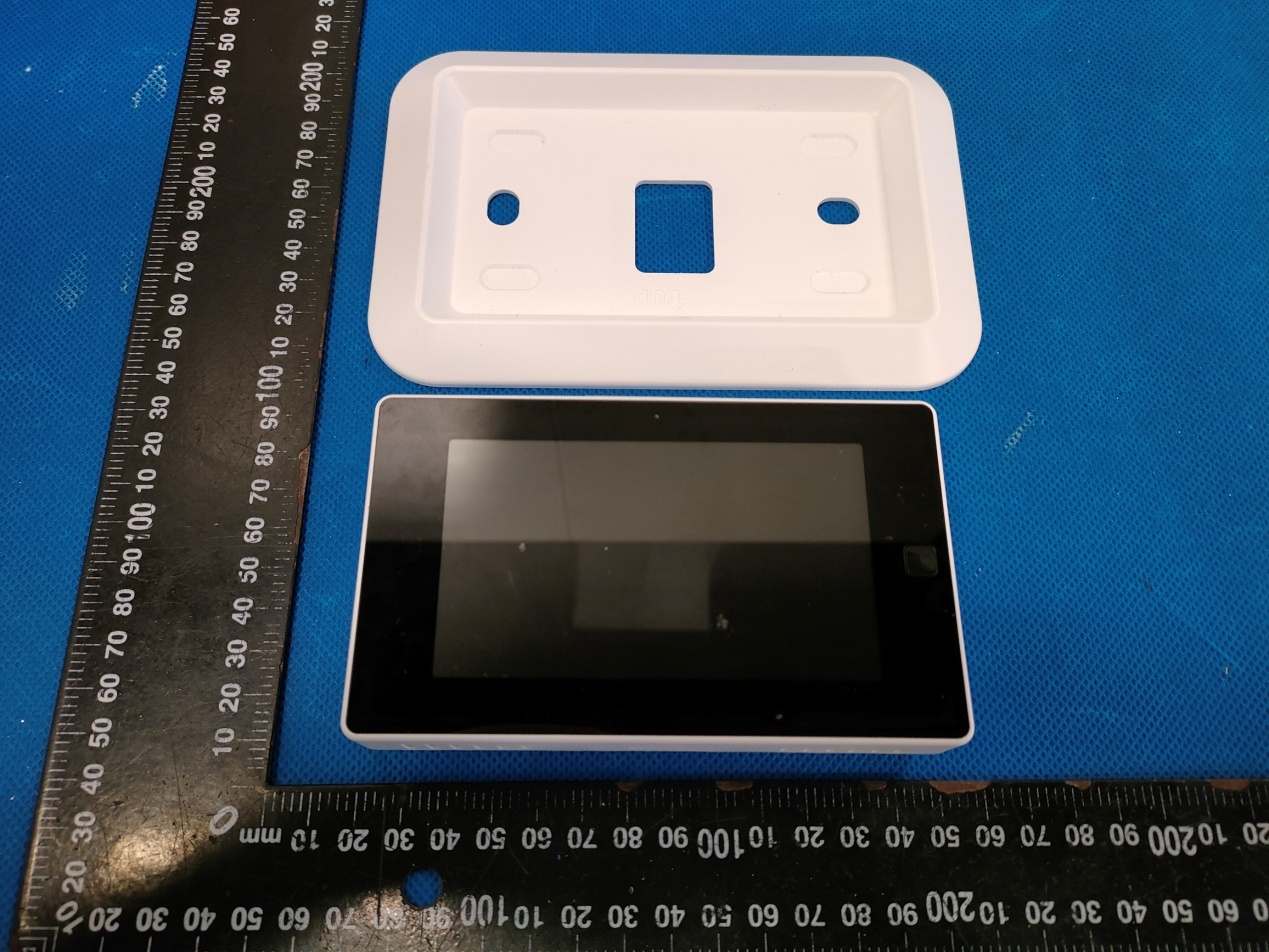

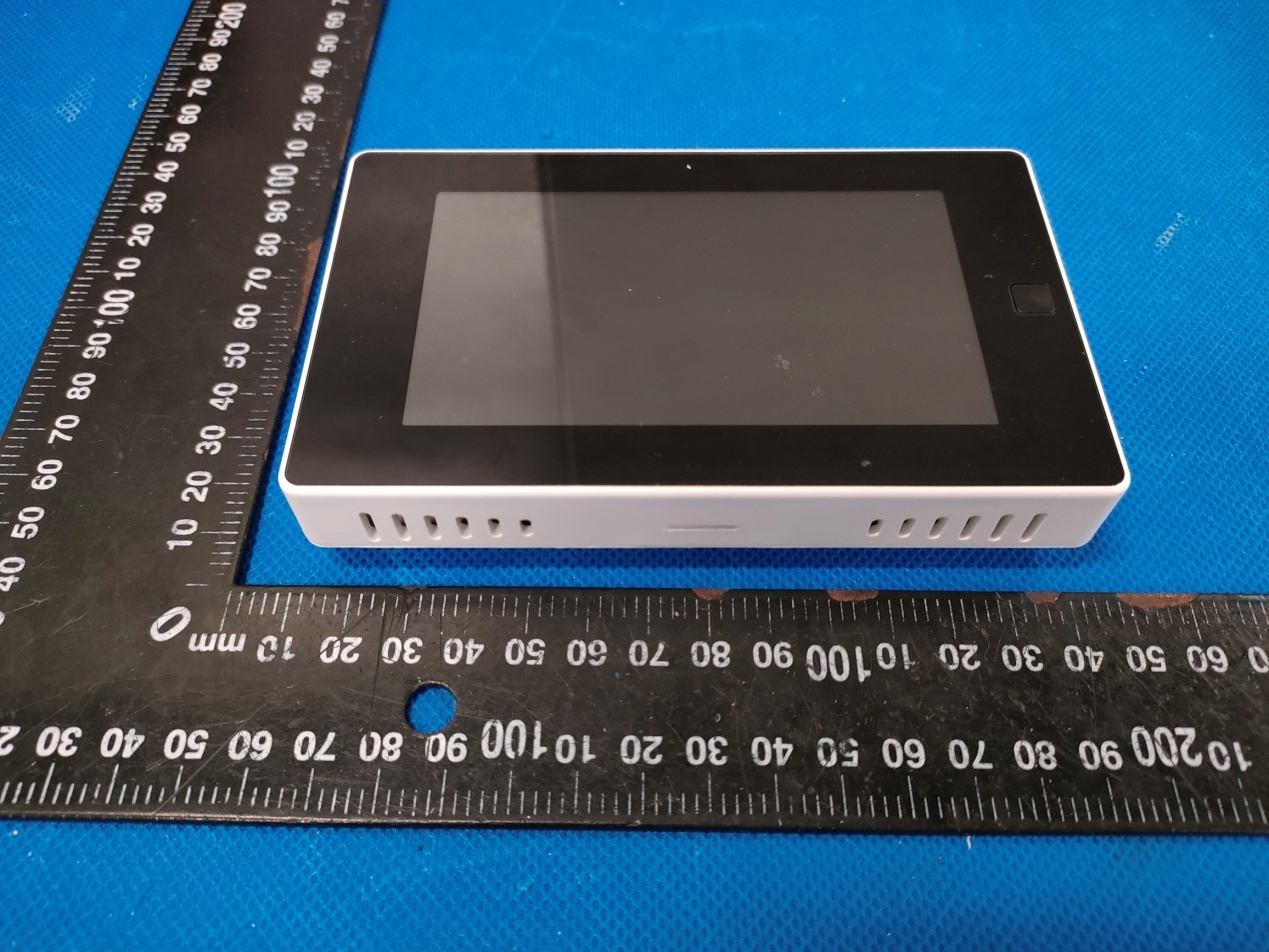

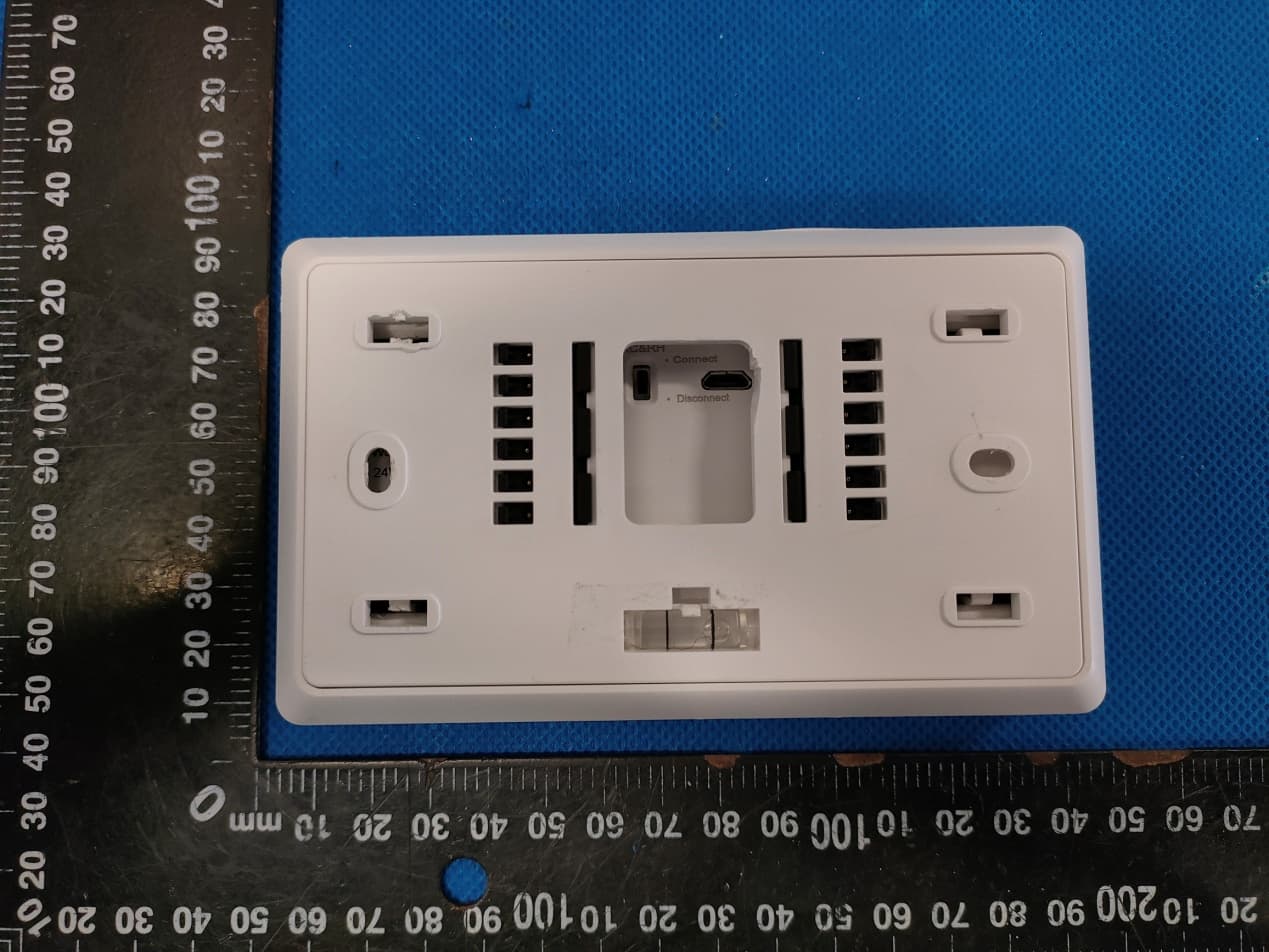

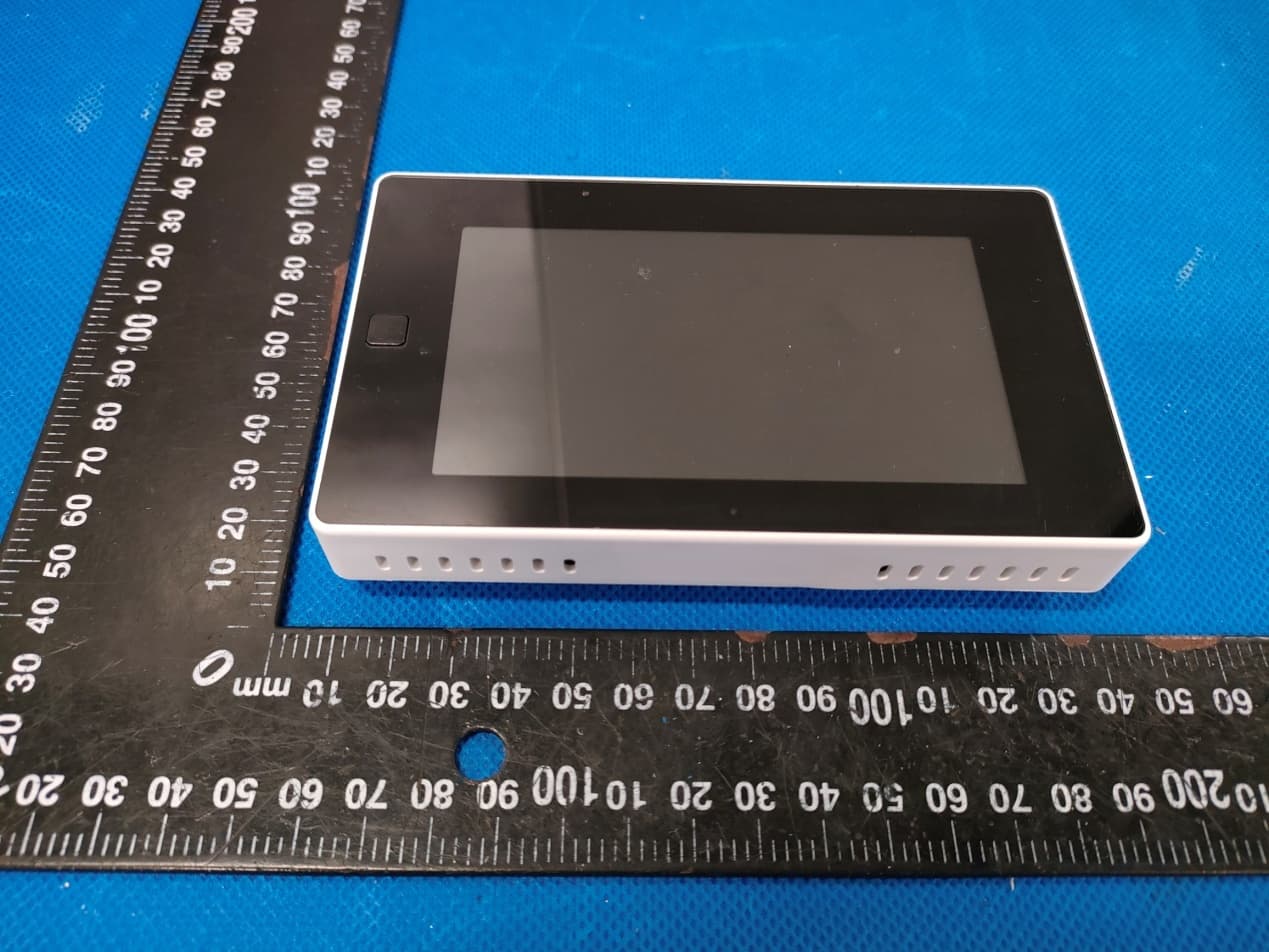

Annex A External Photos Test Model No.: WSC43BA Page 1 of 4 Test Model No.: WSC43BA Page 2 of 4 Test Model No.: WSC43BA Page 3 of 4 Test Model No.: WSC43BA Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: VA8-WSC43BA

Annex B Internal Photo Test Model No.: WSC43BA Page 1 of 4 Antenna Test Model No.: WSC43BA Page 2 of 4 Antenna Test Model No.: WSC43BA Page 3 of 4 Test Model No.: WSC43BA Page 4 of 4

MPE ESTIMATION FCC ID: VA8-WSC43BA 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For BT/2.4G WIFI: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI 19.63 18.8±1(19.8)95.50 3.4 2.19 0.04159 EDR 10.2 10±1(11) 12.59 3.4 2.19 0.00548 BLE 9.98 9±1(10) 10 3.4 2.19 0.00435 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2205242167-1E/2E/3E, antenna gain=3.4dBi. WiFi and BT Simultaneous evaluation: 0.04159 mW/cm²+0.00548 mW/cm²=0.04707 mW/cm²<1. when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.04707 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 52 Report No.: HK2205242167-2E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Wolf Steel Ltd. For WiFi Thermostat Model No.: WSC43BA FCC ID: VA8-WSC43BA Prepared For : Wolf Steel Ltd. 24 Napoleon Road Barrie, Ontario, L4M 4Y8 Canada Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: May. 24, 2022 ~ Jun. 14, 2022 Date of Report: Jun. 14, 2022 Report Number: HK2205242167-2E Page 2 of 52 Report No.: HK2205242167-2E TEST RESULT CERTIFICATION Applicant’s name ....... Wolf Steel Ltd. Address ....................... . 24 Napoleon Road Barrie, Ontario, L4M 4Y8 Canada Manufacture's Name . . Xiamen OWON Technology Co., Ltd. Address ........................ Rm501, Tower C07, Softpark Phase 3, Jimei, Xiamen, Fujian, China Product description Trade Mark: N/A Product name ................ WiFi Thermostat Model and/or type reference ................... . WSC43BA Standards ................... . 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ................................. . Date (s) of performance of tests ... . May. 24, 2022 ~ Jun. 14, 2022 Date of Issue ................................. Jun. 14, 2022 Test Result ..................................... Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 52 Report No.: HK2205242167-2E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ................................................................................................................................................... 5 1.3. INFORMATION OF THE TEST LABORATORY ............................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ............................................................................................................................... 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY ............................................................................................ 8 2.4. EQUIPMENTS USED DURING THE TEST .................................................................................................................... 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................................ 9 2.6. MODIFICATIONS ...................................................................................................................................................... 9 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ............................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ................................................................................................................ 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................................................... 25 3.4. 20DB BANDWIDTH ................................................................................................................................................ 26 3.5. FREQUENCY SEPARATION ...................................................................................................................................... 30 3.6. NUMBER OF HOPPING FREQUENCY ...................................................................................................................... 32 3.7. TIME OF OCCUPANCY (DWELL TIME) ..................................................................................................................... 34 3.8. OUT‐OF‐BAND EMISSIONS ..................................................................................................................................... 38 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ........................................................................................... 48 3.10. ANTENNA REQUIREMENT...................................................................................................................................... 49 4. TEST SETUP PHOTOS OF THE EUT ........................................................................................................................ 50 5. PHOTOS OF THE EUT .......................................................................................…

Text truncated - open the document above for the full version.

Page 34 of 52 Report No.: HK2205242167-2E 3.7. TIME OF OCCUPANCY (DWELL TIME) Limit The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. Test Procedure The transmitter output was connected to the spectrum analyzer through an attenuator. Set center frequency of spectrum analyzer=operating frequency with 1MHz RBW and 3MHz VBW, Span 0Hz. Test Configuration EUT SPECTRUM ANALYZER Test Results Modulation Packet Pulse time (ms) Dwell time (second) Limit (second) Result GFSK DH1 0.38 0.122 0.40 PASS DH3 1.63 0.261 DH5 2.88 0.307 π/4DQPSK 2-DH1 0.39 0.125 0.40 PASS 2-DH3 1.64 0.262 2-DH5 2.89 0.308 8DPSK 3-DH1 0.39 0.125 0.40 PASS 3-DH3 1.64 0.262 3-DH5 2.89 0.308 Note: 1. We have tested all mode at high, middle and low channel, and recoreded worst case at middle channel. 2. Dwell time=Pulse time (ms) × (1600 ÷ 2 ÷ 79) ×31.6 Second for DH1, 2-DH1, 3-DH1 Dwell time=Pulse time (ms) × (1600 ÷ 4 ÷ 79) ×31.6 Second for DH3, 2-DH3, 3-DH3 Dwell time=Pulse time (ms) × (1600 ÷ 6 ÷ 79) ×31.6 Second for DH5, 2-DH5, 3-DH5 Test plot as follows: Page 35 of 52 Report No.: HK2205242167-2E GFSK Modulation DH1 DH3 DH5 Page 36 of 52 Report No.: HK2205242167-2E π/4DQPSK Modulation 2-DH1 2-DH3 2-DH5 Page 37 of 52 Report No.: HK2205242167-2E 8DPSK Modulation 3-DH1 3-DH3 3-DH5 Page 38 of 52 Report No.: HK2205242167-2E 3.8. OUT-OF-BAND EMISSIONS Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF con-ducted or a radiated measurement, pro-vided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter com-plies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated device is operating, the RF power that is produced shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided that the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of root-mean-square averaging over a time interval, as permitted under Section 5.4(4), the attenuation required shall be 30 dB instead of 20 dB. Attenuation below the general field strength limits specified in RSS-Gen is not required. Test Procedure Connect the transmitter output to spectrum analyzer using a low loss RF cable, and set the spectrum analyzer to RBW=100 kHz, VBW= 300 kHz, peak detector , and max hold. Measurements utilizing these setting are made of the in-band reference level, band edge and out-of-band emissions. Test Configuration EUT SPECTRUM ANALYZER Test Results Remark: The measurement frequency range is from 30MHz to the 10th harmonic of the fundamental frequency. The lowest, middle and highest channels are tested to verify the spurious emissions and bandage measurement data. We measured all conditions (DH1, DH3, DH5) and recorded worst case at DH5, 2DH5 and 3DH5. Test plot as follows: Page 39 of 52 Report No.: HK2205242167-2E GFSK CH00 CH39 Page 40 of 52 Report No.: HK2205242167-2E CH78 Page 41 of 52 Report No.: HK2205242167-2E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 42 of 52 Report No.: HK2205242167-2E π/4DQPSK CH00 CH39 Page 43 of 52 Report No.: HK2205242167-2E CH78 Page 44 of 52 Report No.: HK2205242167-2E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 45 of 52 Report No.: HK2205242167-2E 8DPSK CH00 CH39 Page 46 of 52 Report No.: HK2205242167-2E CH78 Page 47 of 52 Report No.: HK2205242167-2E Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Page 48 of 52 Report No.: HK2205242167-2E 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1): Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29…

Text truncated - open the document above for the full version.

Radiated Emissions Conducted Emission
