VA8LB020Remote Control Transmitter

The F-40 and the F-50 transmitter units have been approved for use with most Wolf Steel gas fi replaces using a millivolt system. The Receiver (W660-0076) can be installed in either the fi replace or be wall mounted depending on the application. The F-40 provides on/off status, and the current room temperature as well as having a low battery indicator. It allows you to switch the fi replace on or off from anywhere in the room. The F-50 is a thermostatically controlled transmitter that provides on/off status, displays room/set temperature as well as having a low battery indicator. These transmitter kits are tested and safe when installed in accordance with these instructions. Modifi cation of any part of this kit will void any warranty claims and could create a fi re hazard. RECEIVER INSTALLATION: Turn off the electrical power and the gas supply to the fi replace. (Gas supply may need to be disconnected from the gas control valve.) Make sure the slide switch on the receiver is set to the OFF position. 1. Either disconnect or connect in parallel* with any other transmitter wiring from the valve. Attach the wires from terminal 1 (TPTH) and terminal 3 (TH) of the gas valve to the output terminals on the receiver. *INSTALLER: It may be advisable to connect a switch with short lengths of wire to minimize the resistance. This will allow the homeowner to continue to control the burner in the event of battery failure. For all millivolt switch wiring, hook up the switch leads on terminals 1 and 3 of the gas valve. WALL MOUNT: 2. Press the battery compartment slightly into the receiver and release enabling the battery compartment to pop out. Pull off the slide switch. Slide the receiver out of the fi replace mounting plate. 3. Using the screws provided secure the receiver and the face plate to an existing junction box. 4. Replace the slide switch. Place 4 AA batteries into the battery compartment and slide the compartment back into the receiver. 5. If the gas supply was disconnected at the valve, leak test using a soap and water solution. Turn electricity back on. FIREPLACE MOUNT: For stove and insert models: do not install the receiver in the gas control valve compartment as this area becomes too hot. On stoves, it may be installed in or behind the pedestal; on inserts, it may be installed behind the fl ashings or a similar convenient location. In a zero clearance model: the receiver may be installed in the gas control compartment. 2. Ensuring that the mounting location will allow for the battery compartment to slide out, secure the receiver to an appropriate location depending on the fi replace model using the screws provided and/or the adhesive pad. 3. If the gas supply was disconnected at the valve, leak test using a soap and water solution. Turn electricity back on. W415-0628 / 11.20.07 FIREPL ACE REM OT E OFF O N RE M OT E BA T.LOW JUNCTION BOX RECEIVER SLIDE SWITCH FACEPLATE WALL MOUNT EXPLODED VIEW FIR EPLA C E R EM O TE PRE SS T O OPE N OF F ON R E M O T E BA T . L O W BATTERY COMPARTMENT WALL MOUNT UN-EXPLODED VIEW B A T. LO W OFF REMO TE O N FIREPLACE MOUNTING PLATE FIREPLACE MOUNT EXPLODED VIEW RECEIVER SLIDE SWITCH FIREPLACE MOUNT UN-EXPLODED VIEW B A T .LO W O FF REMO TE O N PRE SS T O OPEN BATTERY COMPARTMENT F-40 AND F-50 TRANSMITTER UNIT INSTALLATION AND OPERATION INSTRUCTIONS F-40 Includes: F-50 Includes: W660-0066 Transmitter W660-0067 Transmitter W660-0076 Receiver W660-0076 Receiver TRANSMITTER WALL MOUNT: Secure to the desired wall location using screws, and anchors if required. RECEIVER OPERATION: The receiver switch must be in the TRANSMITTER position for the transmitter to function. F-50 THERMOSTATIC FUNCTION: Thermostatic control automatically cycles the fi replace on and off to maintain the desired room temperature. To turn the fi replace burner on, press the (ON/OFF) button. The LCD will display the word “ON” and the fl ame indicator will be shaded in. The (ON/OFF) button is used to turn the fi replace on or off only. It does not set temperature. The (THERMOSTAT) button is used to control room temperature. Once pushed, “ON” lights up next to the thermostat bulb located in the top left corner of the LCD screen. Set desired room temperature using the (UP) and (DOWN) buttons. If the temperature of the room exceeds the desired room temperature, the thermostat will automatically turn the fi replace “OFF”. CAUTION: In the event that the transmitter fails to send a signal to the receiver for a period of twenty-four hours, the receiver will automatically turn OFF the fi replace. This may occur if the set temperature is not reached, if the transmitter is out of range (25 feet), or if the transmitter batteries fail. The twenty-four hour safety timer allows the receiver to assume control of the fi replace after two hours of uninterrupted operation. After two hours of continuous operation by the fi replace the receiver will cycle OFF for 30 minutes and ON for 20 minutes for the next four hours. If a signal has not been received after twenty-four hours the receiver will shut OFF the fi replace. Press the AUTO ON/OFF button on the transmitter to reset the transmitter, then press the AUTO ON/OFF button again to resume operation. The six hour safety timer may be disengaged by moving the toggle switch on the back of the receiver. Factory setting is ON. Changing the switch will allow the fi replace to run continuously if required. WARNING: In the event of prolonged absences, the F-50 should not be left in thermostat mode. If the transmitter batteries fail while the fi replace is operating the receiver will assume control and shut OFF the fi replace after twenty-four hours. If the transmitter batteries fail while the fi replace is not operating the fi replace will remain OFF. TEMPERATURE FUNCTION: Remove the battery cover on the back of the transmitter to expose the °C/°F dip switch. Move the dip switch to your desired temperature mode. Selected mode will appear in the right corner beside …

Text truncated - open the document above for the full version.

___________________________________________________ Canada: WOLF STEEL LTD., 24 Napoleon Road, Barrie, Ontario, L4M 4Y8 U.S.A.: WOLF STEEL USA INC., 103 Miller Drive, Crittenden, Kentucky, 41030 Tel: (705) 721-1212 Fax: (705) 735-4925 e-mail: [email protected] December 5, 2007 Nemko Canada 303 River Rd., RR#3 Ottawa, Ontario K2B 6P1 ATTN: Joanna Olszanowska RE: Wolf Steel Ltd. Transmitters W660-0066 & W660-0067 and Receiver W660-0076 Dear Joanna, As requested please accept this letter explaining the differences between our proposed transmitters W660-0066 and W660-0067 for certification with IC and FCC. Please note that both of these transmitters will use the same receiver W660-0076. I have drawn up a table below for comparison sake to show the difference between the two transmitters, which is also explained in our user guide in greater detail. FUNCTION W660-0066 W660-0067 ON/OFF (w/ status display) X X Room Temperature Display X X Low Battery Indicator X X Set Room Temperature (Thermostatically Controlled) X Should you require any further information please do not hesitate to contact me anytime. Thanks again for your help with this project. Kind regards, Tiffany Osmond Administrative Assistant Wolf Steel Ltd. 705-721-1212 ext. 309 [email protected] / web: www.napoleonfireplaces.com  (W660-0066 & W660-0067) Letter explaining differences between transmitters.doc

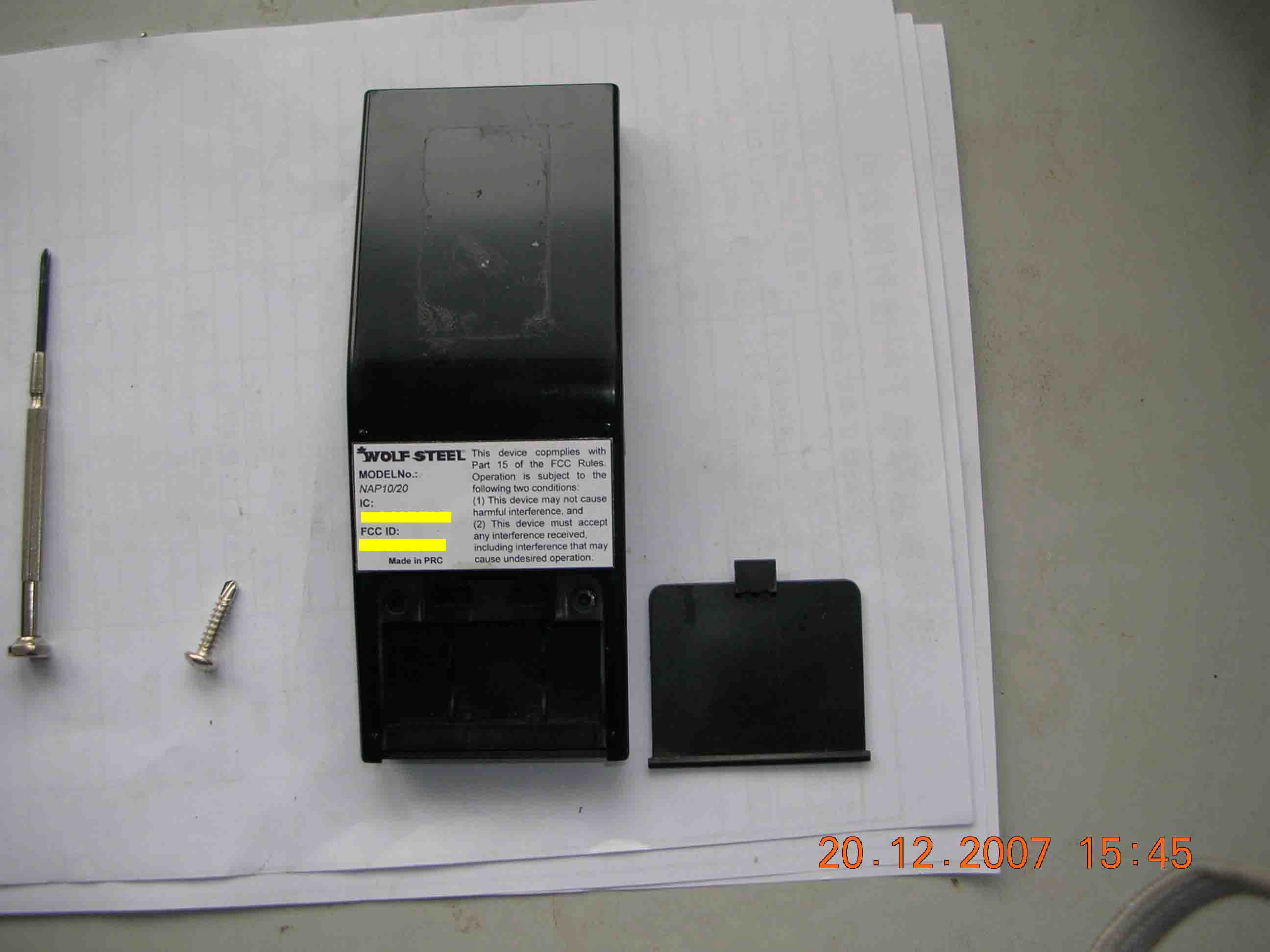

LABEL FORMAT This device copmplies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in PRC MODELNo.: W660-0066 IC: 7114A-LB020 FCC ID: VA8LB020 52 mm 26 mm W660-0066 & W660-0067 LABEL INFORMATION LABEL LOCATION REAR VIEW 48 mm This device copmplies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in PRC MODELNo.: W660-0066 IC: 7114A-LB020 FCC ID: VA8LB020 52 mm 6.5 mm 6.5 mm 26 mm BATTERY COMPARTMENT LABEL LOCATION This device copmplies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in PRC MODELNo.: W660-0067 IC: 7114A-LB020 FCC ID: VA8LB020 52 mm 26 mm W660-0066 W660-0067

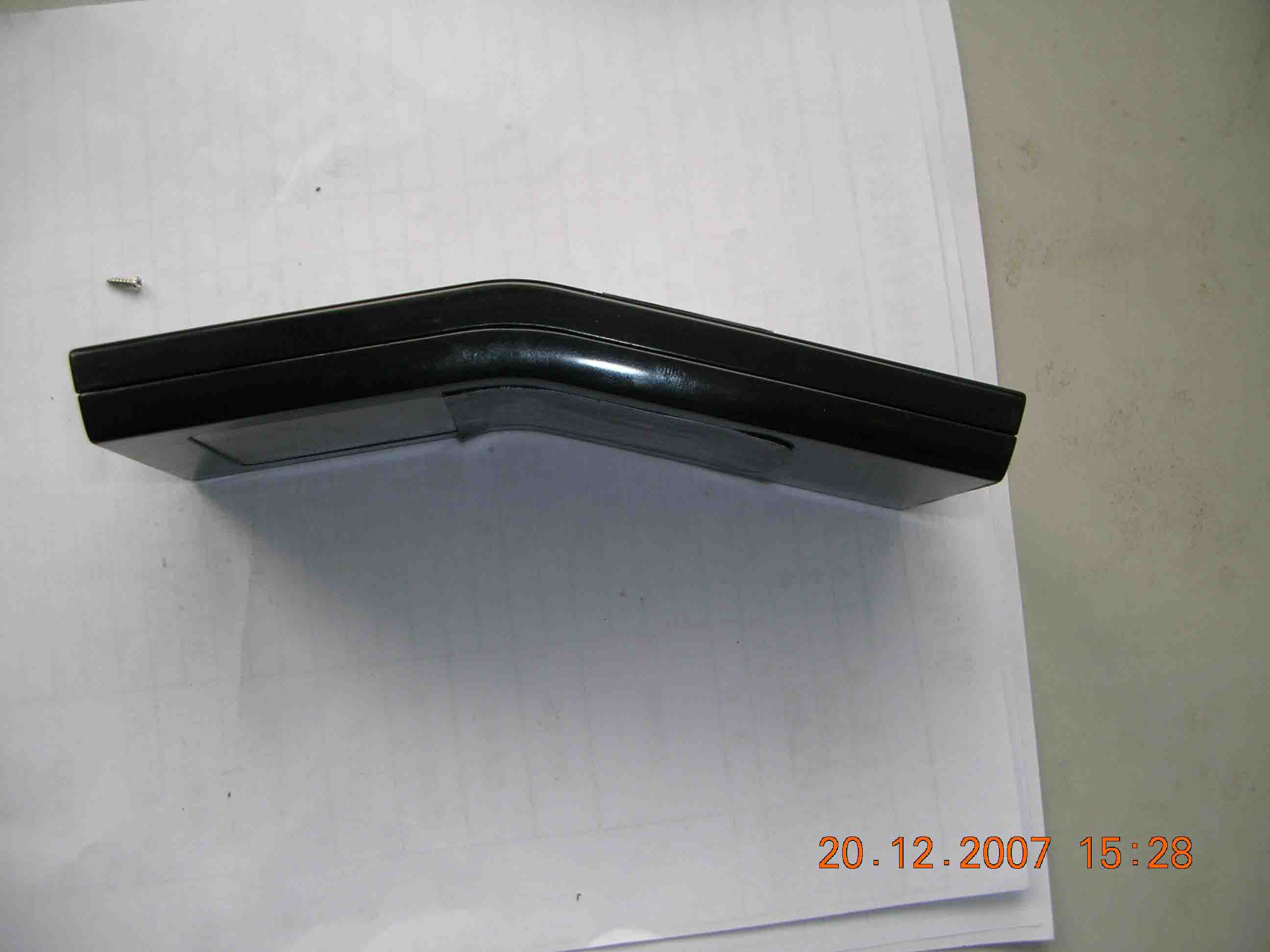

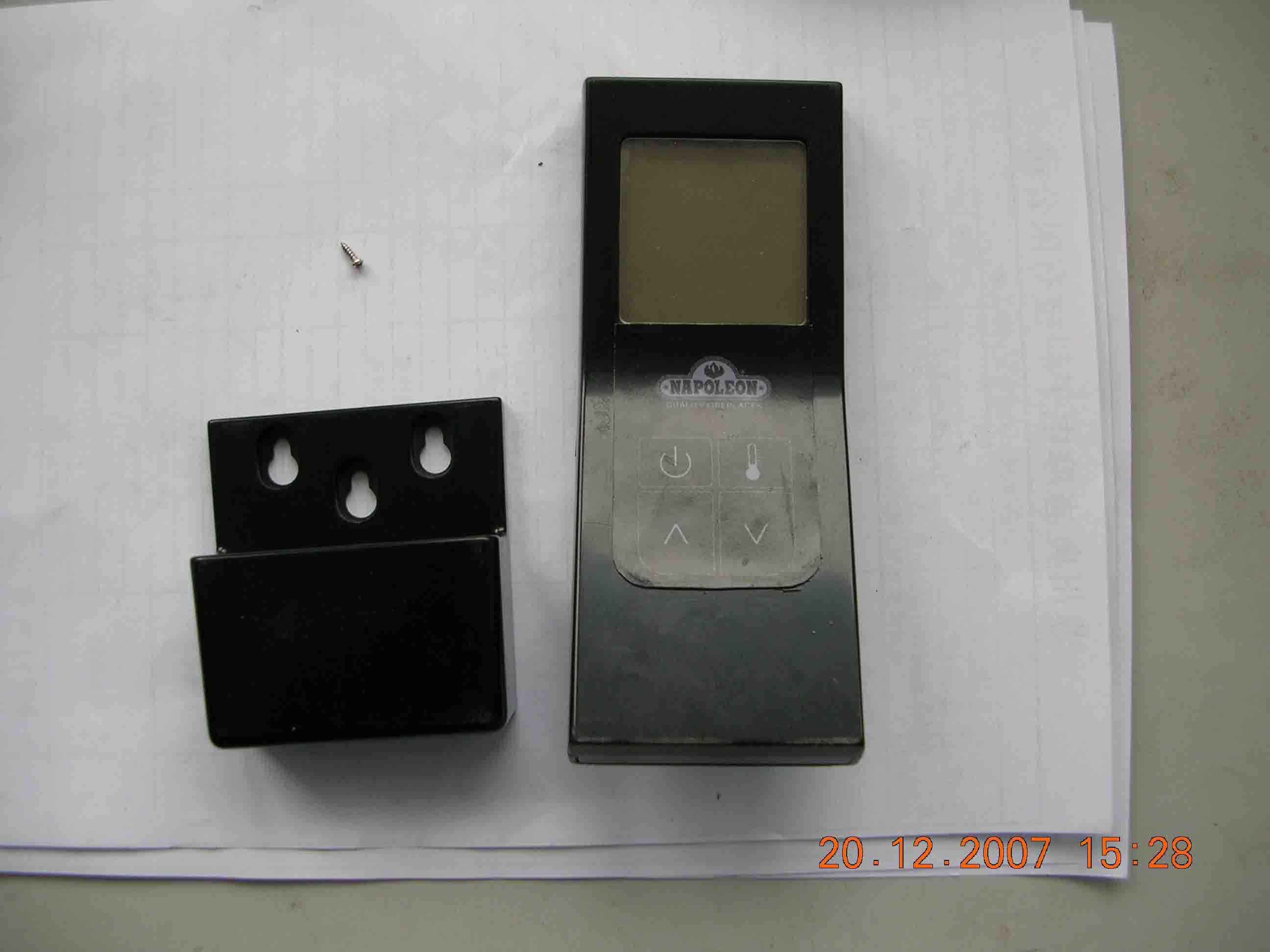

TRANSMITTER W660-0066 - EXTERIOR VIEWS FRONT VIEW REAR VIEW TRANSMITTER W660-0066 - INTERIOR VIEWS BOARDS - REAR BOARDS - FRONT TRANSMITTER W660-0066 - BOARD VIEWS TOP BOARD, FRONT VIEW TOP BOARD, REAR VIEW BOTTOM BOARD, FRONT VIEW BOTTOM BOARD, REAR VIEW

TRANSMITTER W660-0067 - EXTERIOR VIEWS FRONT VIEW REAR VIEW TRANSMITTER W660-0067 - INTERIOR VIEWS BOARDS - REAR BOARDS - FRONT TRANSMITTER W660-0067 - BOARD VIEWS TOP BOARD, FRONT VIEW TOP BOARD, REAR VIEW BOTTOM BOARD, FRONT VIEW BOTTOM BOARD, REAR VIEW

W660-0066 & W660-0067 TRANSMITTER PARTS LIST Used Part Type Designator 1 0.1uF C2 Chip Capacitor ±10% X7R, 50V 1 1K R9 Chip Resistor ±10% 1/8W 1 1pF C8 Chip Capacitor ±0.1pF NPO, High Q ， Low ESR 1 1uF C1 Chip Capacitor ±10% X7R, 50V 2 1uH L1 L2 Chip Inductor ± 10% 1 2.2pF C13 Chip Capacitor ±0.1pF NPO, High Q ， Low ESR 1 2SC3356 Q1 NPN Transistor 1 3pF C5 Chip Capacitor ±0.1pF NPO, High Q ， Low ESR 4 5K R1 R2 R3 R4 Chip Resistor ± 10% 1/8W 1 5pF C12 Chip Capacitor ±0.1pF NPO, High Q， Low ESR 1 6.8pF C6 Chip Capacitor ±0.1pF NPO, High Q ， Low ESR 1 8.2pF C11 Chip Capacitor ±0.1pF NPO, High Q，Low ESR 2 10pF C9 C10 Chip Capacitor ±0.1pF NPO, High Q， Low ESR 2 15pF C3 C4 Chip Capacitor ±10% X7R, 50V 1 35K R7 Chip Resistor ± 10% 1/8W 1 47K R10 Chip Resistor ±10% 1/8W 1 76.8K Y1 Crystal 100ppm Load 10pF, ESR <100 2 100 R8 R11 Chip Resistor ± 10% 1/8W 2 100K R5 R6 Chip Resistor ± 10% 1/8W 1 100pF C7 Chip Capacitor ±0.1pF NPO, High Q ， Low ESR 1 BATTERY BT1 Battery 1 EM78P260 U1 MCU 2 KEY K1 K2 push Key 1 LCD MODEL LCD1 LCD Model 4 LED LED1 LED2 LED3 LED4 LED 1 SAW Y2 SAW ± 100KHz

FCC Part 15 Subpart C, 15.231 : June 2006 Test Report: 80288-1R1TRFWL Applicant: WOLF STEEL LTD 9 NAPOLEON RD, BARRIE, ONTARIO L4M 4Y8 Apparatus: 303.8MHz Remote Controller System – Transmitter, Models: W660-0066 and W660-0067 FCC ID: VA8LB020 In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Wireless Specialist Date: February 25, 2008 Total Number of Pages: 20 Nemko Canada Inc. REPORT SUMMARY Report Number: 80288-1R1TRFWL FCC ID: VA8LB020 Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 20 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: 303.8MHz Remote Controller System – Transmitter, Models: W660-0066 and W660-0067 Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Release 1 Radiated emission was re-assessed with the final enclosure. Author: Heng Lin, EMC/Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 80288-1R1TRFWL FCC ID: VA8LB020 Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 20 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 1.5 Block Diagram of the EUT.........................................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional Observations .............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart B : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................10 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ..................................13 Clause 15.231(b) Radiated Emissions .................................................................................................................16 Clause 15.231(c) 20dB Bandwidth .........................................................................................................…
