VAV1000102WavIt MC Handset

55 44 33 22 11 D D C C B B A A VIDEO CAMERASENSOR MAXQ2000 IMAGEPROCESSINGTIMING CONTROL ZIGBEE MOTEATmega128 UP CC2420 Radio(2.4 GHz - 2.483 GHz) POWER MANAGEMENT INDICATORS & CONTROLS DEBUG LOGIC BATTERY PACK REVISION HISTORY08FEB05 mm created06apr05 mm maxq 6310-0103- 02 A BLOCK DIAGRAM A 15 Monday, October 17, 2005 Titl e S i z e Document Number Rev Date: Sheet of

ThinkOptics Inc. 5568 Del Oro Dr. San Jose, CA 95124 Tel: 408 402 9646 Fax: 661 457 4378 AGENCY AUTHORIZATION LETTER FCC ID: VAV1000102 FCC ID: VAV1000103 Date: Apr. 23,2007 To whom it may concern: We,the undersigned,hereby authorize NS Technology Co.,Ltd (NS) of Dongguan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by NS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Anders Grunnet-Jepsen ThinkOptics, Inc E-mail: [email protected]

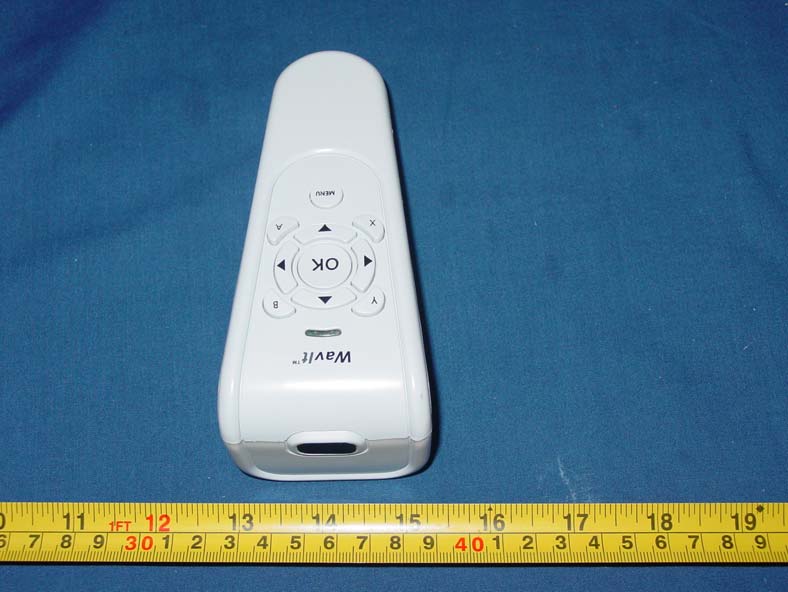

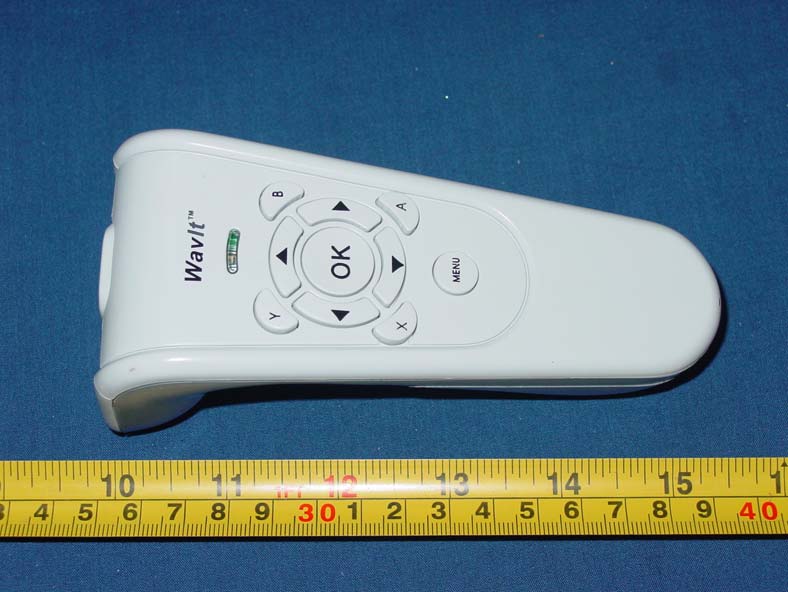

FCC ID:VAV1000102 External photo 1 External photo 2 External photo 3

FCC ID:VAV1000102 Label location Label: Label location FCC ID: VAV1000102 3mm 15mm

FCC ID:VAV1000102 Internal photo 1 Internal photo 2 Internal photo 3 Internal photo 4 Internal photo 5

ThinkOptics, Inc. How it all works: The operation of the WavIt is conceptually very simple. 1. The POD emits (invisible) IR beams: These serve as beacons for the controller to lock onto. 2. The WavIt Controller tracks: The “smarts” are in the Controller. An on-board camera and image system filters the image, analyses it in real time and sends its own coordinates via 2.4GHz radio to the POD. 3. The POD communications with the PC: It passes information between the POD and the PC.

55 44 33 22 11 D D C C B B A A STATUS SELECT ALTRIGHT UP DOWN LEFT UART_TX0 UART_RX0 BATTERY PACK 3 4 1 25 SWxx FOOT PRINT TOP VIEW 6310-0104-03 A Dashboard B 11 Tuesday, October 04, 2005 ThinkOptics, Inc. (c)2005 All Rights Reserved TitleSize Document Number Rev Date: Sheet of LED1 P64 P41 TDI TX0RX0P40 TCK P43 TDO P42 TMS P62NRSTP00P02P05 P01 COL1 P06 P05 ROW1 P01 ROW3ROW2 P0[0..7] P04 P04 ROW0 P00 COL0 P02 COL2 P06P07 P03P07 P03 REF2P5V VCC_BATT VCC_BATT REF2P5V VCC_BATT VCC_BATT VCC_BATT VCC_BATT VCC_BATTVCC_BATT VCC_BATT VCC_BATT VCC_BATT VCC_BATT GERBER PART NUMBER Z1 6330-0104-03 SW5 MJPT1122 12 34 5 12 34 GND SW3 MJPT1122 12 34 5 12 34 GND SW1 MJPT1122 12 34 5 12 34 GND SW6 MJPT1122 12 34 5 12 34 GND SW4 MJPT1122 12 34 5 12 34 GND SW2 MJPT1122 12 34 5 12 34 GND SCHEMATIC PART NUMBER Z2 6310-0104-03 PCB PART N UMBER Z3 7200-0104-03 Q1 MMBT4401LT1 1 23 D1 RED R2100 OHM 5% R7 1K5% A -+ MG1 6SH1-0671B 12 R441K5% R60 OHM 5% TP2 TP3 R4110K 5% R451M5% R4210K 5% TP1 + C210uF Q5ZXM61P03FTA 1 3 2 Q3 MMBT6427 23 1 SW9 MJPT1122 12 34 5 12 34 GND BAT+ BT3BATTERYCLIP 637 123 V+1V+2V+3 BAT- BT4BATTERYCLIP 629 123 V-1V-2V-3 J152745 1234567891011121314151617181920 D2 BAV70 R9 1K 5% R43 1K5% SW10 MJPT1122 12 34 5 12 34 GND SW8 MJPT1122 12 34 5 12 34 GND SW7 MJPT1122 12 34 5 12 34 GND R41M 5% + C1100uF6.3V20% J2 JTAG 1 2 3 4 5 6 7 8 9 10 R30 OHM5% R80 OHM 5% R10 OHM 5% R40 0 OHM 5% BAT+ BT1BATTERYCLIP 637 123 V+1V+2V+3 R180 OHM 5% R170 OHM 5% R3710K 5% R3510K 5% R3910K 5% R3610K 5% R3810K 5% BAT- BT2BATTERYCLIP 629 123 V-1V-2V-3 55 44 33 22 11 D D C C B B A A POWER DISTRI BUTION MAXQ: Vmax=2.75V Vmin= 2.2V or lower CC2420:Vmax=3.6V Vmin=2.0V ( alt:Direct 1.8V) OV6130:Vmax=5.0V Vmin=3.0V <Doc> ? POWER MANAGEMENT B 25 Monday, October 17, 2005 TitleSize Document Number Rev Date: Sheet of VBAT VCC3p3VCC2p5 U8MCP1700 3 1 2 VIN GND VOUT + C44100uF6.3V20% R33 0 OHM 5% C461.0uF 16V10% R39 0 OHM 5% C40 1.0uF 16V10% C451.0uF 16V10% TP25 SCHEMATIC PART NUMBER Z2SCHEMATICPCB PART N UMBER Z3PCBGERBER PART NUMBER Z1GERBER + C4210uF + C4710uF 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 18-Aug-2006 Sheet of File: C:\Documents and Settings\wng\ \MyDesign.ddb Drawn By: PWDN A1 AGND A2 SIO-D A3 Y0 A4 Y2 A5 VERF2 B1 AVDD B2 SIO-C B3 Y1 B4 Y3 B5 DVDD C1 Y4 C5 VSYNC D1 PCLK D2 RESET D3 Y7 D4 Y5 D5 HERF E1 DOVDD E2 XCLK1 E3 DGND E4 Y6 E5 U1OV6550 C2 10NF 10% 16V C30.1UF Y[1:7] R400 OHM 5% R1033 OHM 5% SGND R3100 ohm 5% R2100K 5% V-PWDNV-RESETV-I2C-DATV-I2C-CLK VCC2.5 V-HREFV-VSYNC V-CPLK R433 OHM 5% DVDD AVDD V-MASTERCLK C14 0.1UF 10% 25v R92.4 ohm 5% L10 ohm L20 ohm VCC2.5 AVDD SVDD DVDD 55 44 33 22 11 D D C C B B A A JTAG PORT new new 6310-0103-02 A Image Processor B 45 Monday, October 17, 2005 ThinkOptics, Inc. (c)2005 All Rights Reserved TitleSize Document Number Rev Date: Sheet of Y6Y1Y3Y5Y7Y2Y4 Y[1..7] V_PWDN V_I2C_EN V_I2C_DAT V_I2C_CLK V_RESET V_HREFV_CHSYNCV_VSYNC P06 P01P03 P05 P00 MOTOR P03P00P02P07P01 P0[0..7] LED1 P05 P04 P04P02P06P07 CLKRADIO SPI_SCKSPI_MOSI CC_FIFOP CC_CS SPI_MISOCC_CCA V_MASTERCLK V_HREFV_CHSYNCV_PCLKV_PWDNV_I2C_ENV_I2C_DATV_I2C_CLKV_RESETY[1..7]V_VSYNC CC_FIFO CC_SFD VBAT CC_VREN CC_RSTN VCC2p5 VCC3p3 VCC3p3 VCC3p3 TP30 JT3 JT4 JT5 666768 123456789 1011121314151617181920212223242526 27 28 29303132 33 34 35 363738394041 42 434445464748 49 50 51 5253 54 55 56 57 5859606162636465 P10P11P12P13P14P15P16P17P20P21P22P23P24P25P26P27P30P31P32P33P34/INT4P35/INT5P36/INT6P37/INT7SEG32SEG33/COM3SEG34/COM2SEG35/COM1COM0 VDDIO GND P40/TCK/INT8 P41/TDI/INT9 P42/TMS P43/TDO nRESET X32KIN X32KOUT P52/RX1/INT10 P53/TX1/INT11 P54/nSS P55/MOSI P56/SCLK P57/MISO GND P60/T1B/INT12 P61/T1/INT13 P62/T2B/OW_OUT P63/T2/OW_IN P64/T0B/WKOUT0 P65/T0/WKOUT1 VDD HFXOUT HFXIN P70/TX0/INT14 P71/RX0/INT15 VLCD VLCD1 VLCD2 VADJ P00P01P02P03P04P05P06P07 JT9 R41 1K 5% JT6 C1810pF 25V5% TP17 TP19 TP18 TP20 TP35 TP36 TP34 TP33 TP27 TP26 R1833 OHM5% R16 10K 5% J2FH10A 123456789 1011121314151617181920 R17 33 OHM 5% TP9 TP10TP11 R15 0 OHM 5% C15 0.1uF C17 0.1uF C35 10pF 25V 5% C480.1uF C1922pF X116.000MHZ 2 1 C2022pF JT1 JT2 55 44 33 22 11 D D C C B B A A LINE 2 LINE3 LINE 1 LINE 4 LINE 1 AND LINE 2 50 OHM EQUAL LENGTHS WITH 7.5 NH COIL SPACED BETWEEN THEM 7.5 NH COIL PADS PLACED DIRECTLY ON LINE 1 AND LINE 2 5.6 NH COIL AND 0.5 PF CAPACITOR SPACED AT RIGHT ANGLES TO LINE 1 AND LINE 2. PLACE AT EQUAL DISTANCES FROM 7.5 NH COIL 0.5 PF CAPACITOR AND 7.5 NH INDUCTOR PLACED AT EQUAL DIS TANCES ALONG LINES 1 AND 2 5.6 PF CAPACITOR PLACED AT MIDPOINT BETWEEN 0.5 PF CAPACITOR AND 7.5 NH INDUCTOR LINES WITH DOTTED RECTAN GLES ARE 50 OHM LINE 1 AND LINE 2 RUN PARALLEL WITH MINIMUM LENGTHS 6310-0101-01 A Radio B 55 Monday, October 17, 2005 ThinkOptics, Inc. (c)2005 All Rights Reserved San Jose,CA<OrgAddr3><OrgAddr4>TitleSize Document Number Rev Date: Sheet of SPI_SCKCC_SFDCC_CS CC_FIFOCC_VRENCC_RSTNCC_FIFOP CC_CCA SPI_MOSISPI_MISO CLKRadio AVCC AVCC VCC2p5 VCC3p3 VCC3p3 VCC_1P8 R300 OHM 5% R290 OHM 5% C27.1uF C32.1uF A1ANTENNA,F,PCB,2400MHZ 123 RFRFGNDRFGND C280.1uF R22 1M R20 1M C291000pF C245.6pF L6 BEAD-0805 C250.5pF TP21 TP22 TP23 TP24 C39100pF C38100pF C21 10uF C37100pF C220.5pF R3133 OHM5% TP39 TP37 TP38 C30.1uF L47.5NH L57.5NH L35.6NH R28 43.2K C33.1uF R2710K U5 CC2420 9 23 5 19 22 4 43 42 1 2 78 37 45 39 38 2930333234312821 6 3 48 44 35 26 25 41 24 49 18 17 15 14 10 27 11 12 13 16 36 46 47 40 20 GND GND GND GND GND AVCC4 VREGIN VREGOUT AVCC1 AVCC2 TXRX RF_N AVCCOSC R_BIAS XOSC1 XOSC2 FIFOPFIFOSISCKSOCSCCARSTN RF_P AVCC3 AVCC5 AVCC6 AVCC7 AVCC8 VCC3P3 VREGEN GND GND AVCC9 AVCC10 AVCC11 AVCC12 AVCC13 SFD NC1 NC2 NC3 NC4 NC5 NC6 NC7 NC8 DGUARD R21 1M C3110nF TP28 C341000pF C2610uF C36100pF C235.6pF R24 3.3 OHM

FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07051116 Page 1 of 18 FCC CERTIFICATION TEST REPORT for ThinkOptics, Inc WavIt MC Handset Model Number :100-01-02 Prepared for : ThinkOptics, Inc Address : 5568 Del Oro Dr., San Jose, CA 94124, USA Prepared By : NS Technology Co., Ltd. Address : Chenwu Industrial Zone, Houjie Town, Dongguan City, Guangdong, China Tel : 86-769-85935656 Fax: 86-769-85991080 Report Number : NSE-F07051116 Date of Test : Apr. 21, 2007 Date of Report : Apr. 21, 2007 FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07051116 Page 2 of 18 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION ................................................................... 4 1.1. Product Function ........................................................................................................................ 4 1.2. Description of Device (EUT) ..................................................................................................... 4 1.3. Difference Between Model Numbers ......................................................................................... 4 1.4. Independent Operation Modes ................................................................................................... 4 1.5. Test support system...............................................................................5 2. TEST SITES...................................................................................................................... 6 2.1. Test Facilities ............................................................................................................................. 6 2.2. List of Test and Measurement Instruments ................................................................................ 7 3. TEST SET-UP AND OPERATION MODES ................................................................ 8 3.1. Principle of Configuration Selection ......................................................................................... 8 3.2. Block Diagram of Test Set-up ................................................................................................... 8 3.3. Test Operation Mode and Test Software ................................................................................... 8 3.4. Special Accessories and Auxiliary Equipment .......................................................................... 8 3.5. Countermeasures to Achieve EMC Compliance........................................................................ 8 4. EMISSION TEST RESULTS ........................................................................................ 9 4.1. Conducted Emission Test .......................................................................................................... 9 4.2. Radiated Emission Test ........................................................................................................... 10 4.3. Band edge Test ........................................................................................................................ 16 FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07051116 Page 3 of 18 NS Technology Co., Ltd. Applicant: Address: ThinkOptics, Inc 5568 Del Oro Dr., San Jose, CA 94124, USA Manufacturer: Address: Unlsen Industrial Limited 128 Industrial Zone, Banfu, Huangjiang Town,Dongguan City, Guangdong,China E.U.T: WavIt MC Handset Model Number: 100-01-02 Trade Name: ------ Serial No.: ------ Date of Receipt: Apr. 21, 2005 Date of Test: May 15, 2006 Test Specification: FCC Part 15: February, 2006 ANSI C63.4: 2003 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: May 21, 2006 Tested by: Reviewed by: Approved by: Kelly / Engineer Chris Du / Supervisor Steven Lee / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products, It is not permitted to be duplicated in extracts without written approval of NS Electromagnetic Technology Co., Ltd.. FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07051116 Page 4 of 18 1. GENERAL PRODUCT INFORMATION 1.1. Product Function Refer to Technical Construction Form and User Manual. 1.2. Description of Device (EUT) E.U.T. : WavIt MC Handset Model No. : 100-01-02 System Input Voltage : DC 3V(Battery supply) Operating Frequency : 2.405GHz-2.480GHz Antenna Type : Internal Antenna Modulation method : Direct sequence spread spectrum Temperature Range(Operating) : +15 ~+ 35°C 1.3. Difference between Model Numbers N/A 1.4. Independent Operation Modes The basic operation modes are: Channel Operation Frequency(GHz) Channel Operation frequency(GHz) CH0 2.405 CH9 2.450 CH1 2.410 CH10 2.455 CH2 2.415 CH11 2.460 CH3 2.420 CH12 2.465 CH4 2.425 CH13 2.470 CH5 2.430 CH14 2.475 CH6 2.435 CH15 2.480 CH7 2.440 CH8 2.445 The tested mode are: 1.4.1.CH0 (2.405GHz), 1.4.2. CH7 (2.440GHz) 1.4.3. CH15 (2.480GHz) FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07051116 Page 5 of 18 1.5. Test Supporting System 1.5.1.PC Model Number ： 8179 Serial Number ： 99PZTL5 Manufacturer ： IBM 1.5.2.Monitor Model Number ： vs17e Serial Number ： CND6270KVM Manufacturer ： HP Data Cable ： Shielded, Undetachable, 1.5m 1.5.3.Keyboard(PS II) Model Number ： MU29J Serial Number ： 23-039797 Manufacturer ： IBM Data Cable ： Shielded, Undetachable, 1.8m 1.5.4.Printer Model Number ： B161A Serial Number ： C48220005L73317358 Manufacturer ： EPSON Data Cable ： Shielded, Detachable, 1.5m 1.5.5.Mouse(PSII) Model Number ： PR-R6764 Manufacturer ： Primax Data Cable ： Shielded, Detachable, 1.5m 1.5.6.Mouse(USB) Model Number ： 800DP1 Manufacturer ： STONE Data Cable ： Shielded, Undetachable, 1.8m 1.5.7. Modem Model Number ： DB-R6764 Manufacturer ： Qiao shu Data Cable ： Shielded, Undetachable, 1.5m FCC ID: VAV1000102 NS Technology Co.,Ltd.. Report No. NSE-F07…

Text truncated - open the document above for the full version.

FCC ID:VAV1000102 Test setup photo
