VEPGL-AHACTIVATORRemote Feeder Activator

V1 Remote Activator Operation Step 1: Connect Receiver to SunSlinger or XD-Pro kit as seen below. Step 2: After receiver is connected, stand away from feeder and press activation button on Transmitter. NOTE: Transmitter remote as a range of 300 ft. (transmitter comes pre-installed with long-lasting battery) SunSlinger Kit Step 1: Open solar panel compartment. Step 2: Place receiver in designated slot on solar panel door as seen in fig. 1 Step 3: Run Remote Activator Wire through Wire Path Hooks to ensure wire is not damaged. Step 4: Place Remote Activator Connector into matching connection on the body of SunSlinger Kit as seen in fig. 1. XD-Pro Kit Step 1: Undo plastic nut on bottom of XD-Pro. Step 2: Place receiver in designated slot on XD-Pro as seen in diagram. Step 3: Run Remote Activator Wire through Wire Path as seen in diagram to ensure wire is not damaged. Step 4: Place Remote Activator Connector into matching connection on the body of XD-Pro Kit. V1 LIMITED WARRANTY GSM Outdoors warrants this product to the original purchaser to be free from defects in materials and workmanship, under normal use and conditions for a period of One Year from the date of the original purchase. Under this warranty, this unit will be replaced or repaired at our option, without charge for parts or labor, excluding batteries, for this period This warranty is void if any of the following occur: 1. The warranty card was not sent in at the time or purchase 2. The unit is not owned by the original purchaser at the time of the warranty claim 3. The unit has been tampered with, opened or punctured 4. The unit has been physically abused This shall be the exclusive written warranty of the original purchaser and neither this warranty or any other warranty, expressed or implied, shall extend beyond the 12-month period listed above. In no event shall HME’s be liable for consequential damages, consequential property damage, or consequential personal injury. (Some states do not allow limitations on implied warranties or exclusions of consequential damages, so that these restrictions may not apply to you). This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. TOLL-FREE CUSTOMER SUPPORT (877) 269-8490 Remote Activator AH - 190506 FCC ID: VEPGL-AHACTIVATOR IC: 11708A-AHACTIVATOR Input: 6V/ Output: 3.3V FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement ISED Statement This device complies with license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS standard(s).Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesir ed operation of the device.The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B). L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produirede brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, même si le brouillageest susceptible d'encompromettre le fonctionnement. Contact Us Phone: 1.877.269.8490 Website: www.gsmoutdoors.com GSM, LLC P.O. Box 535189 Grand Prairie, TX 75053-9504

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2019/12/30> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID ：VEPGL-AHACTIVATOR Model name：AH-RMT For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists or Tune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Richard Tam Applicant: K-Mark Industrial Limited. Address: Flat A,7/F.,Mai On lnd.Bldg.,17-21,Kung Yip St.,Kwai Chung,Hong Kong Phone: 852 2741 3165 Email: [email protected]

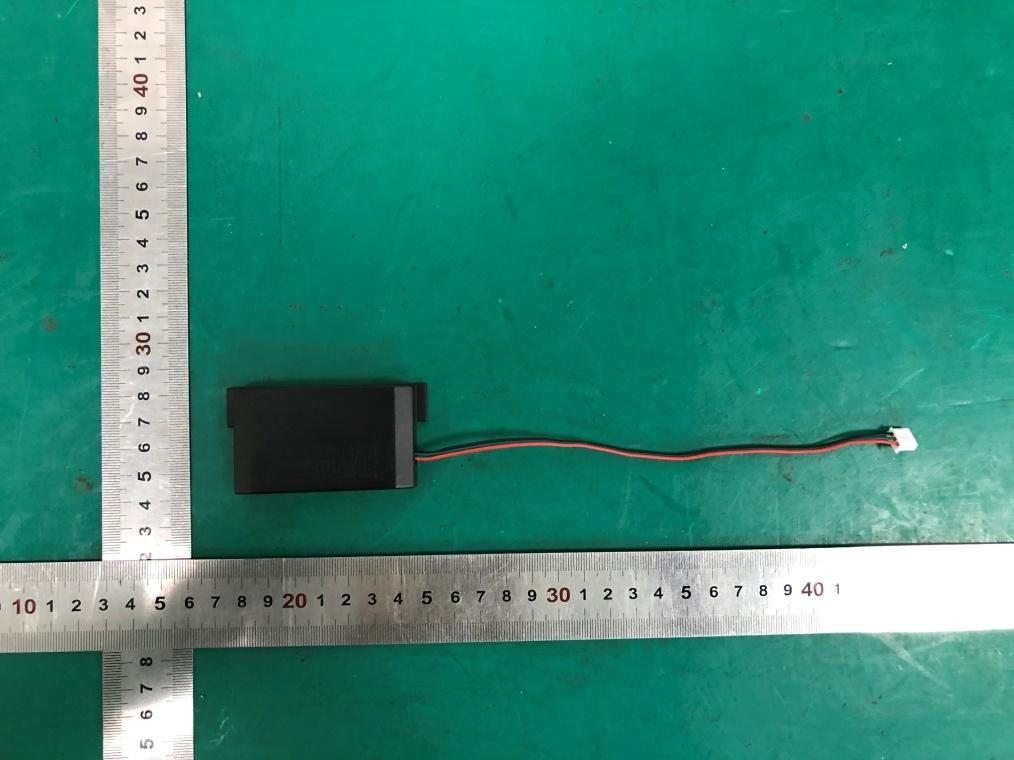

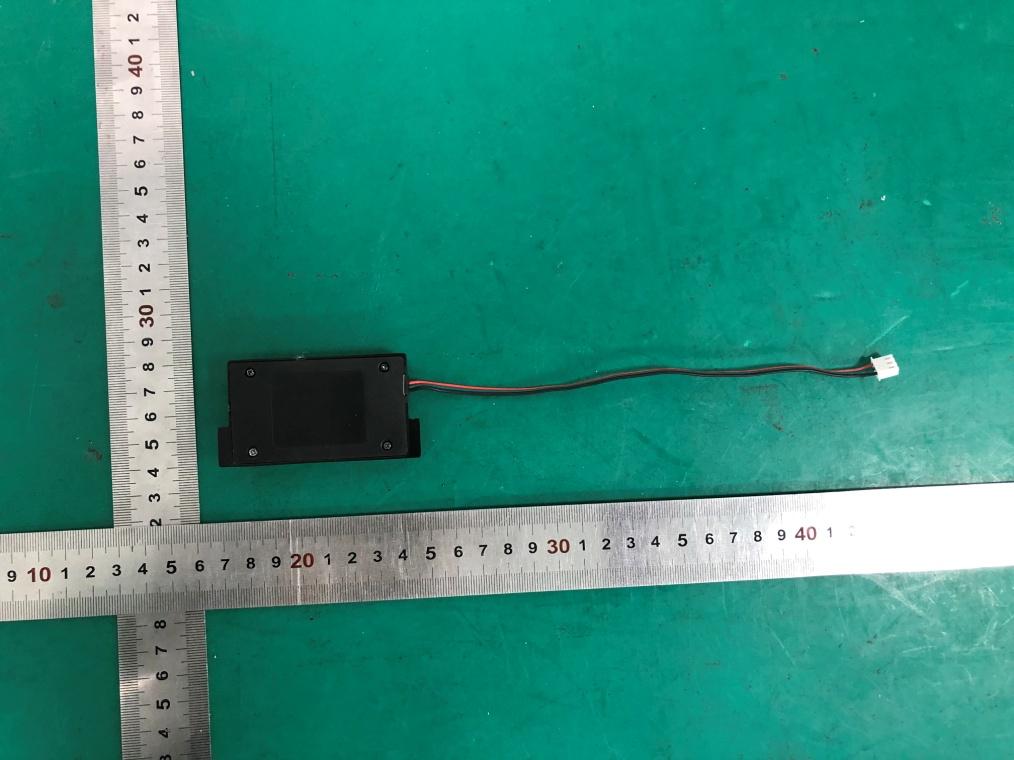

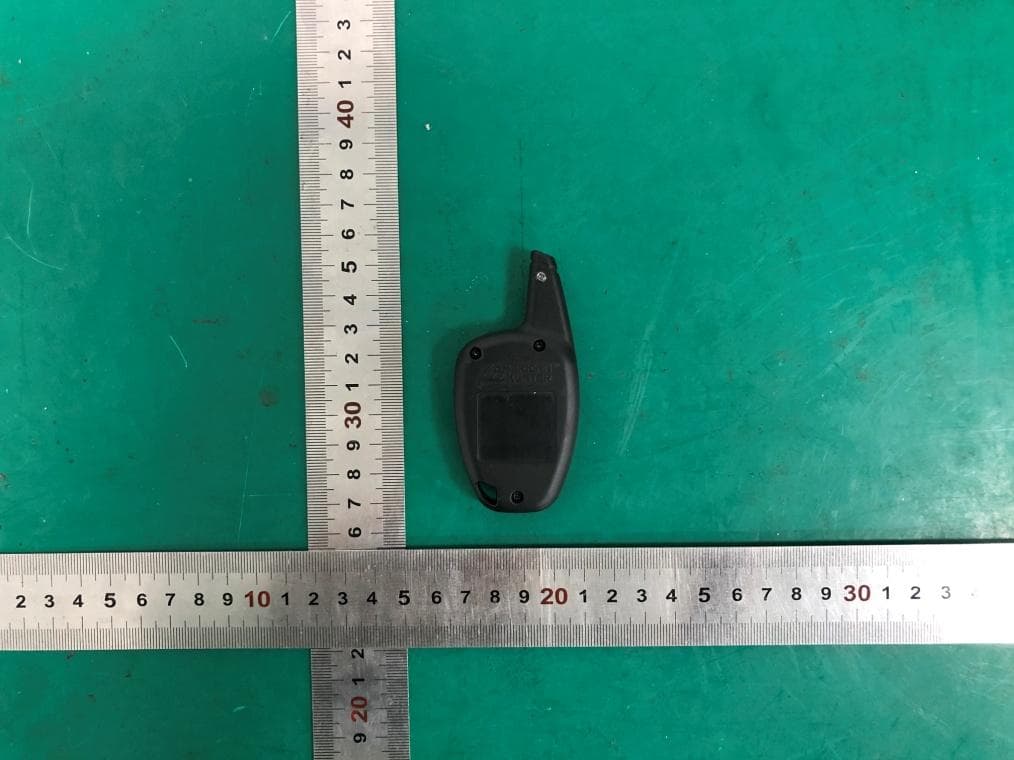

Application No.: E20191108785501 Page 1/7 External Photos of EUT TX EUT-1 EUT-2 Application No.: E20191108785501 Page 2/7 . EUT-3 EUT-4 Application No.: E20191108785501 Page 3/7 . RX Auxiliary-1 Auxiliary-2

Remote Feeder Activator Model: AH-RMT FCC ID: VEPGL-AHACTIVATOR IC: 11708A-AHACTIVATOR Made in China IC: Input:3V 50mA(CR2025 1pcs) 黑線為膠件刀模線 紅線為貼紙刀模線 25mm R=1.5mm 22.7mm 24.6mmR=1.3mm 22.3mm 公差： +0.0 -0.1 K-MARK INDUSTRIAL LTD. BY : DATE : 2019.12.09 TITLE: DRAWN FINISH: MATERIAL: CHECKED DRAFT ANGLE: UNIT: BY : ITEM CODE: APPROVED SCALE: mm MODEL DUC406 OF PROJ: SHEET 1/4° TOLERANCES: REVISE : 0.1 0.1 - + - + + - QTY./SET parts indicated surface All angular parts All holes and round specied Unless otherwise OLD VALUELOCNEW VALUEREMARKDAT EISSUE Label location

Application No.: E20191108785501 Page 4/7 . Internal Photos of EUT TX EUT-5 EUT-6 Application No.: E20191108785501 Page 5/7 . EUT-7 EUT-8 433.92MHZ RF Transmitting module Application No.: E20191108785501 Page 6/7 . EUT-9 EUT-10 Application No.: E20191108785501 Page 7/7 . EUT-11 433.92MHZ RF Transmit Antenna

TEST REPORT Verified code: 551831 Report No.: E20191108785501-5 Application No.: E20191108785501 Client: K-Mark Industrial LTD Address: Flat A,7/F.,Mai On lnd.Bldg.,17-21,Kung Yip St.,Kwai Chung,Hong Kong Sample Description: Remote Feeder Activator Model: AH-RMT FCC ID VEPGL-AHACTIVATOR Test Location: GRG METROLOGY & TEST (SHENZHEN) CO., LTD Test Specification: FCC 47 CFR Part 15 Subpart C Test Date: 2019/12/14 to 2019/12/16 Issue Date: 2019/12/29 Test Result: PASS Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note:/ Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. Report No.: E20191108785501-5 Application No.: E20191108785501 Page 1 of 19 DIRECTIONS OF TEST 1. This company carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: E20191108785501-5 Application No.: E20191108785501 Page 2 of 19 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ............................................................................................................................ 4 2. GENERAL DESCRIPTION OF EUT .............................................................................................................. 5 2.1. APPLICANT .............................................................................................................................................. 5 2.2. MANUFACTURER ................................................................................................................................... 5 2.3. FACTORY ................................................................................................................................................. 5 2.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ...................................................................... 5 3. LABORATORY AND ACCREDITATIONS .................................................................................................. 6 3.1. LABORATORY ......................................................................................................................................... 6 3.2. ACCREDITATIONS.................................................................................................................................. 6 3.3. MEASUREMENT UNCERTAINTY ........................................................................................................ 6 4. LIST OF USED TEST EQUIPMENT AT GRGT........................................................................................... 7 5. RADIATED SPURIOUS EMISSIONS ............................................................................................................ 8 5.1. LIMITS ....................................................................................................................................................... 8 5.2. TEST PROCEDURES ................................................................................................................................ 8 5.3. TEST SETUP ............................................................................................................................................. 9 5.4. DATA SAMPLE ...................................................................................................................................... 10 5.5. TEST RESULTS ...................................................................................................................................... 11 6. 20DB BANDWIDTH ....................................................................................................................................... 15 6.1. LIMITS ..................................................................................................................................................... 15 6.2. TEST PROCEDURES .............................................................................................................................. 15 6.3. TEST SETUP ........................................................................................................................................... 15 6.4. TEST RESULTS ...................................................................................................................................... 15 7. TRANSMISSION TIME ................................................................................................................................. 16 7.1. LIMITS ..................................................................................................................................................... 16 7.2. TEST PROCEDURES .............................................................................................................................. 16 7.3. TEST SETUP ........................................................................................................................................... 16 7.4. TEST RESULTS ...................................................................................................................................... 16 APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT .................................................................. 20 Report No.: E20191108785501-5 Application No.: E20191108785501 Page 3 of 19 1. TEST RESULT SUMMARY Section B of FCC Part 15.231 Standard Item Limit / Severity Result Part 15,Subpart C (15.231) Conducted Emissions §15.203 N/A 1) Transmission Time §15.231 §15.231(a) (3) PASS 20DB Bandwidth §15.231 (…

Text truncated - open the document above for the full version.

Report No.: E20191108785501-5 Application No.: E20191108785501 Page 19 of 19 APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT RSE（Below 1GHz） RSE（Above 1GHz） --------------------This is the last page of the report. -----------------------
