VEPGL-AHFMTRFeeder Meter

Feeder Meter Feeder Meter Sensors TIPS: • Feeder Meter has a dust cover that needs to be regularly cleaned for device to produce accurate measurements. We recommend cleaning dust cover with a damp cloth once every six months, or when you refill your feeder, whichever is sooner. • The Feeder Meter Sensors must face the center or the bottom of the feeder for accurate measurement. • Feeder Meter does not work inside a metal feeder. If you have a metal feeder, you must use the Feeder Meter with Antenna, and the antenna must be placed on the outside of the feeder. • Feeder unit needs to be level, otherwise Feeder Meter will produce inaccurate results. Initial Setup Step 1: Download “American Hunter Feeder Meter” app from Google Play Store or iOS App Store. Step 2: Place 2 matching Alkaline AA batteries into unit. Step 3: Use adhesive pad to place Feeder Meter in the center of the roof in your feeder. Step 4: Follow in-app instructions to add and configure your Feeder Meter. Double-Sided Adhesive Foam Pivot Mount Dust Covers Contact Us Phone: 1.877.269.8490 Website: www.gsmoutdoors.com GSM, LLC P.O. Box 535189 Grand Prairie, TX 75053-9504 Feeder Meter AH - FMTR Input: 3V / Output: 5V LOGO BQB: Bluetooth FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help important announcement Important Note: Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. LIMITED WARRANTY GSM Outdoors warrants this product to the original purchaser to be free from defects in materials and workmanship, under normal use and conditions for a period of One Year from the date of the original purchase. Under this warranty, this unit will be replaced or repaired at our option, without charge for parts or labor, excluding batteries, for this period This warranty is void if any of the following occur: 1. The warranty card was not sent in at the time or purchase 2. The unit is not owned by the original purchaser at the time of the warranty claim 3. The unit has been tampered with, opened or punctured 4. The unit has been physically abused This shall be the exclusive written warranty of the original purchaser and neither this warranty or any other warranty, expressed or implied, shall extend beyond the 12-month period listed above. In no event shall HME’s be liable for consequential damages, consequential property damage, or consequential personal injury. (Some states do not allow limitations on implied warranties or exclusions of consequential damages, so that these restrictions may not apply to you). This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. TOLL-FREE CUSTOMER SUPPORT (877) 269-8490 FCC Compliance GSM, LLC AH-FMTR

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020/03/19> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b) (4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name VEPGL-AHFMTR AH-FMTR For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Richard Tam / Project Manager Company: K-Mark Industrial Limited. Address: Flat A, 7/F., Mai On Ind. Bldg 17-21 Kung Yip St., Kwai Chung, Hong Kong, China Phone: 852 2741 3165 Fax: 852 2785 1237 E-Mail: [email protected]

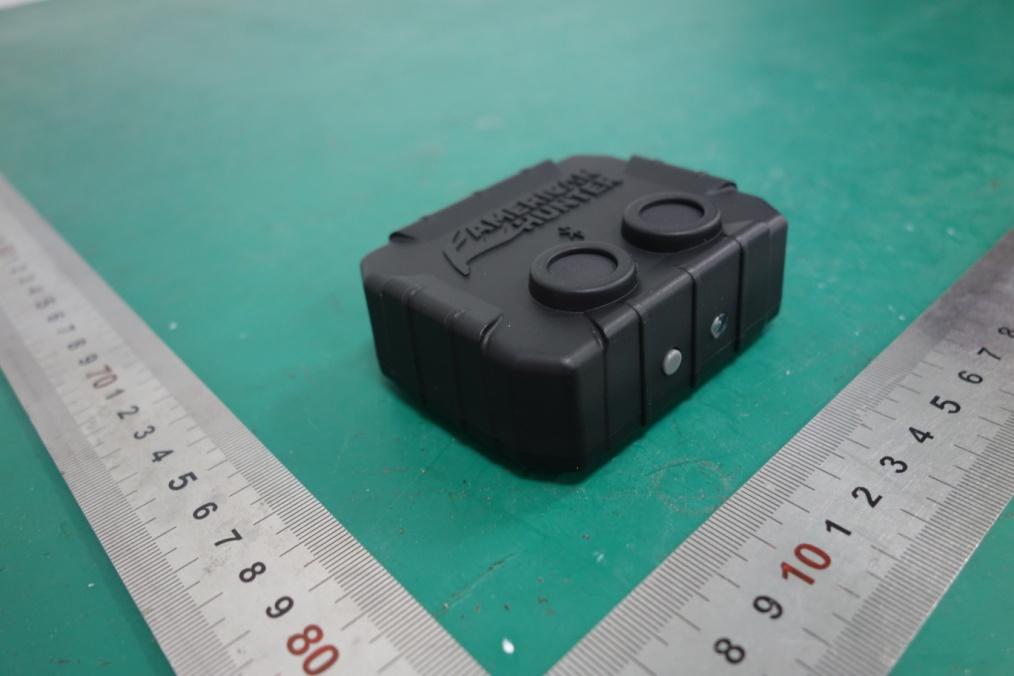

Application No.: E20191108475901 Page 1/5 External Photos of EUT EUT-1 EUT-2

Label and label location Label location

Application No.: E20191108475901 Page 2/5 . Internal Photos of EUT EUT-3 EUT-4 Application No.: E20191108475901 Page 3/5 . EUT-5 EUT-6 Application No.: E20191108475901 Page 4/5 . EUT-7 EUT-8 BLE Module BLE Antenna Application No.: E20191108475901 Page 5/5 . EUT-9 Ultrasonic Module

GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com TEST REPORT Verified code: Report No.: E20191108475901-6 Application No.: E20191108475901 Client: K-Mark Industrial LTD Address: Flat A,7/F.,Mai On Ind.Bldg., 17-21, Kung Yip St.,Kwai Chung, Hongkong Sample Description: Feeder meter Model: AH-FMTR FCC ID: VEPGL-AHFMTR Test Location: Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: KDB 447498 D01 General RF Exposure Guidance v06 FCC Part 2 §2.1091 Issue Date: Test Result: PASS Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note:/ Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. 637040 2020/04/14 Report No.： Application No.： Page 1 of 6 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. E20191108475901E20191108475901-6 Report No.： Application No.： Page 2 of 6 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ............................................................................................................................. 3 1.1. APPLICANT ......................................................................................................................................... 3 1.2. MANUFACTURER .............................................................................................................................. 3 1.3. FACTORY ............................................................................................................................................ 3 1.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST .................................................................. 3 2. LABORATORY AND ACCREDITATIONS ......................................................................................................... 4 2.1. LABORATORY ............................................................................................................ 4 2.2. ACCREDITATIONS .................................................................................................... 4 3. EVALUATION METHOD ............................................................................................................................... 5 3.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE ............ 5 4.1 CALCULATION METHOD ........................................................................................ 6 5.1 ESTIMATION RESULT .............................................................................................. 6 5.1.1 CONDUCTED POWER RESULTS ...................................................................................................... 6 5.1.2 MANUFACTURING TOLERANCE .................................................................................................... 6 5.1.3 MEASUREMENT RESULTS ............................................................................................................... 6 7.3.1. STANDALONE MPE ............................................................................................................................. 6 E20191108475901E20191108475901-6 Report No.： Application No.： Page 3 of 6 1. TEST RESULT SUMMARY 1.1. APPLICANT Name: K-Mark Industrial LTD Address: Flat A,7/F.,Mai On lnd.Bldg.,17-21,Kung Yip St.,Kwai Chung,Hong Kong 1.2. MANUFACTURER Name: K-Mark Industrial LTD Address: Flat A,7/F.,Mai On lnd.Bldg.,17-21,Kung Yip St.,Kwai Chung,Hong Kong 1.3. FACTORY Factory 1 Name : K-Mark Industrial (Shenzhen) LTD Address : 43 Jinshi Road, niuhu Guangpei community, Guanlan street, Longhua District, Shenzhen 1.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment: Feeder meter Model No.: AH-FMTR Adding Model: / Model Discrepancy: / Trade Name: GSM LLC Power Supply: DC3V power from the battery Frequency Range: 2402 ~ 2480 MHz Transmit Power: 1.40dBm Type of Modulation: GFSK for 1Mbps Antenna Specification: PCB Antenna with 2dBi gain(Max) Temperature Range: -20°C~+60°C Hardware Version: V2.0 Software Version: V5.0 E20191108475901E20191108475901-6 Report No.： Application No.： Page 4 of 6 2. LABORATORY AND ACCREDITATIONS 2.1. LABORATORY The tests and measurements refer to this report were performed by Shenzhen EMC Laboratory of Guangzhou GRG Metrology and Test Co,. Ltd. Add. : No.1301 Guanguang Road Xinlan Community, Guanlan Street, Longhua District Shenzhen, 518110, People’s Republic of China Telephone : +86-755-61180008 Fax : / 2.2. ACCREDITATIONS A2LA Certificate Number 2861.01 E20191108475901E20191108475901-6 Report No.： Application No.： Page 5 of 6 3. Evaluation method Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas …

Text truncated - open the document above for the full version.

GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com TEST REPORT Verified code: Report No.: E20191108475901-2 Application No.: E20191108475901 Client: K-Mark Industrial LTD Address: Flat A,7/F.,Mai On Ind.Bldg., 17-21, Kung Yip St.,Kwai Chung, Hongkong Sample Description: Feeder meter Model: AH-FMTR FCC ID: VEPGL-AHFMTR Test Location: Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: CFR 47, FCC Parts 15 C Test Date: 2020/02/17 to 2020/03/11 Issue Date: Test Result: PASS Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note:/ Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. 161703 2020/04/14 Report No.: Application No.: Page 1 of 38 DIRECTIONS OF TEST 1. This company carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. E20191108475901E20191108475901-2 Report No.: Application No.: Page 2 of 38 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ............................................................................................................................ 4 2. GENERAL DESCRIPTION OF EUT .............................................................................................................. 5 2.1. APPLICANT .............................................................................................................................................. 5 2.2. MANUFACTURER ................................................................................................................................... 5 2.3. FACTORY ................................................................................................................................................. 5 2.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ...................................................................... 5 2.5. TEST OPERATION MODE ...................................................................................................................... 6 2.6. LOCAL SUPPORTIVE .............................................................................................................................. 6 3. LABORATORY AND ACCREDITATIONS .................................................................................................. 7 3.1. LABORATORY ......................................................................................................................................... 7 3.2. ACCREDITATIONS ................................................................................................................................. 7 3.3. MEASUREMENT UNCERTAINTY ........................................................................................................ 7 4. LIST OF USED TEST EQUIPMENT AT GRGT........................................................................................... 8 5. ANTENNA REQUIREMENT .......................................................................................................................... 9 6. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 10 6.1. LIMITS ..................................................................................................................................................... 10 6.2. TEST PROCEDURES(PLEASE REFER TO MEASUREMENT STANDARD) ..................................................... 10 6.3. TEST SETUP ........................................................................................................................................... 14 6.4. DATA SAMPLE ...................................................................................................................................... 15 6.5. TEST RESULTS ...................................................................................................................................... 16 7. 6DB BANDWIDTH .......................................................................................................................................... 22 7.1 LIMITS ......................................................................................................................................................... 22 7.2 TEST PROCEDURES .................................................................................................................................. 22 7.3 TEST SETUP ................................................................................................................................................ 22 7.4 TEST RESULTS ........................................................................................................................................... 22 8. MAXIMUM PEAK OUTPUT POWER......................................................................................................... 25 8.1 LIMITS ......................................................................................................................................................... 25 8.2 TEST PROCEDURES .................................................................................................................................. 25 8.3 TEST SETUP ................................................................................................................................................ 25 8…

Text truncated - open the document above for the full version.

Report No.: E20191108475901-2 Application No.: E20191108475901 Page 38 of 38 APPENDIX A: PHOTOGRAPH OF THE TEST ARRANGEMENT RSE（Below 1GHz） RSE（Above 1GHz） --------------------This is the last page of the report. -----------------------
