VF6KINYOBT1322.0 Portable Bluetooth Stereo Speaker

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio / TV technician for help . FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Kinyo Co.,Ltd No. 287, Nioupu Rd., Hsinchu Taiwan FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Kinyo Co.,Ltd Addresss No. 287, Nioupu Rd., City Hsin Chu, Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: VF6 KINYOBT132 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical in formation, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosur e or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for co mpetitors. We underst and that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hsin Chu, Ta i w a n 2012-07-16 Yuchi Yao Electric Engineer

Kinyo Co.,Ltd No. 287, Nioupu Rd., Hsinchu Taiwan FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Kinyo Co.,Ltd Address No. 287, Nioupu Rd., City Hsin Chu Country Taiwan declare that the following representative (agent): Name (person) Aven Zhou Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Hua nguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.0 Portable Bluetooth Stereo Speaker Type or Model(s) BT-132 Tradename or Brand(s) KINYO We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietv en 31, 7534NH Enschede, the Netherlands) to apply and sign this applic ation for certification, registration or filing on our behalf (as representative agen t or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hsin Chu Ta i w a n 2012-07-16 Yuchi Yao Electric Engineer

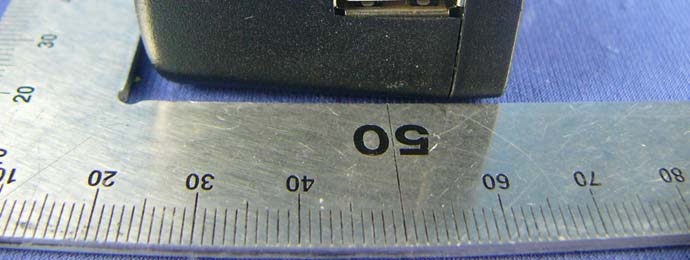

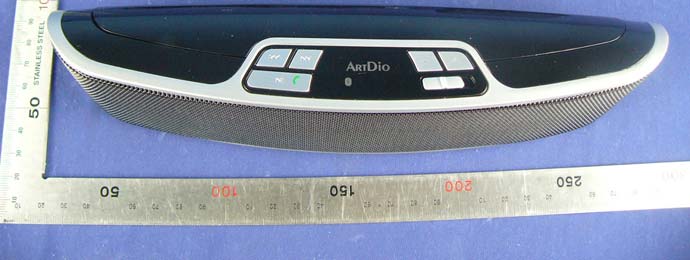

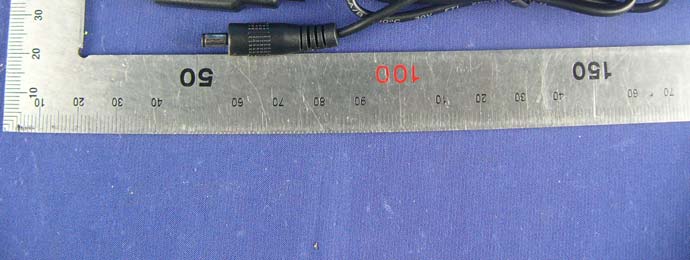

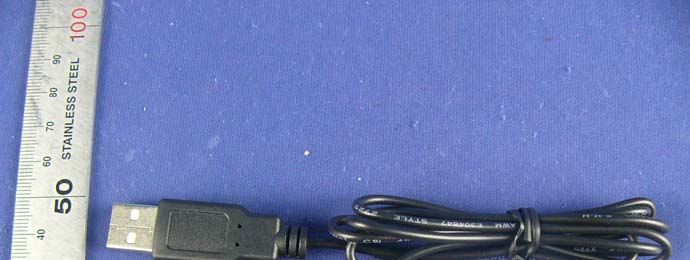

Report No: C120713Z04-RP1 Page 1 / 6 External Photos of EUT Report No: C120713Z04-RP1 Page 2 / 6 Report No: C120713Z04-RP1 Page 3 / 6 Report No: C120713Z04-RP1 Page 4 / 6 Report No: C120713Z04-RP1 Page 5 / 6 Report No: C120713Z04-RP1 Page 6 / 6

Label and Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Report No: C120713Z04-RP1 Page 1 / 4 Internal Photos of EUT Report No: C120713Z04-RP1 Page 2 / 4 Report No: C120713Z04-RP1 Page 3 / 4 Report No: C120713Z04-RP1 Page 4 / 4

FCC MPE Calculation FCC ID: VF6KINYOBT132 Frequency: 2402-2480 MHz (79 channels) Modulation: FHSS (GFSK,π/4-DQPSK, 8DPSK) Mid-Channel: 2.441 GHz (channel 39) Mid-Channel Peak Power, Conducted: -1.30 dBm == 0.74 mW Antenna Gain: G = 2.0 dBi Calculation: Limit = 60/2.441 = 24.58 mW Pradiated, max = Pconducted, dBm + GdBi = -1.30 dBm + 2.0 dBi == 0.7 dBm = 1.17 mW Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Report No: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 1 of 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.0 Portable Bluetooth Stereo Speaker Model: BT-132 Brand: KINYO Test Report Number: C120713Z04-RP1 Prepared for KINYO CO., LTD No. 287, Nioupu Rd., Hsinchu City 30091, Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: August 3, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. Report No: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C120713Z04-RP1 Initial Issue ALL Sunny Wang Report No: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20DB BANDWIDTH .......................................................................................................9 6.2 PEAK POWER.............................................................................................................14 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................16 6.4 BAND EDGES MEASUREMENT ................................................................................17 6.5 FREQUENCY SEPARATION ......................................................................................27 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................30 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................33 6.8 SPURIOUS EMISSIONS .............................................................................................40 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................59 Report No: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product 2.0 Portable Bluetooth Stereo Speaker Model BT-132 Brand KINYO Tested July 12~August 3, 2012 Applicant KINYO CO., LTD No. 287, Nioupu Rd., Hsinchu City 30091, Taiwan Manufacturer Chwen Ho Chung Elec.(sz) Co., Ltd. No. 5, Tianwan Road, Tianliao Village, Gongming Town, Guangming New District, Shenzhen City, Guangdong Province, 518132, China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product 2.0 Portable Bluetooth Stereo Speaker Model Number BT-132 Brand KINYO Model Discrepancy N/A Identify Number C120713Z04-RP1 Power Supply DC6V supplied by the battery or DC5V supplied by the adapter Adapter Manufacturer / Model No. Dongguan Yinli Electronics Co., Ltd / YLS0068B-T050100 I/P: AC100-240V 50/60Hz 0.3A O/P: DC5V 1.0A DC Output Cable: Unshielded, 1.12m Received Date July 12, 2012 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : -1.30dBm 8DPSK : -3.26dBm Modulation Technique FHSS (GFSK for…

Text truncated - open the document above for the full version.

Report No.: C120713Z04-RP1 FCC ID: VF6KINYOBT132 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C120713Z04-RP FCC ID: VF6KINYOBT132 Page 2 / 2 . RADIATED EMISSION TEST Below 1GHz Above 1GHz
