VF6KINYOBT1502.0 Universal Bluetooth Speaker

董文君20120705 11 12 13 14 12 English English IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Pay attention to all warnings. • Follow all instructions. • Do not use this apparatus near water or moisture. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not push objects into apparatus vents or slots because fire or electric shock hazards could result. • Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloth, curtains, etc. • Do not install near any heat sources as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Place apparatus in a stable location so it will not fall causing product damage or bodily harm. • Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wider blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Operate the apparatus only from the audio line output jack of the computer or of an audio device. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Unplug this apparatus during lightning storms or when unused for long periods of time. • The apparatus shall be disconnected from the mains by placing the power/ standby switch in the standby position and unplugging the power cord of the apparatus from the AC mains receptacle. • The socket-outlet shall be installed near the equipment and shall be easily accessible. • To prevent risk of fire or electric shock, avoid overloading wall outlets, extension cords or integral convenience receptacles. • Use the proper power source as described in the instructions or as marked on the product. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged; liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. THE UNIT SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON UNIT. ENVIRONMENTAL PROTECTION RECOMMENDATION At the end of its working life, this product should not be disposed of with standard household Waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. This is confirmed by the symbol found on the product, user manual or packaging. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. TROUBLESHOOTING PROBLEM POSSIBLE PROBLEM SOLUTION PROBLEM POSSIBLE PROBLEM SOLUTION English English 34 No sound from speakers Power isn’t turned on Volume is set too low Cracking sound from speakers Sound is distorted Bad connection Problem with audio source Volume level on the speaker system is set too high Volume level on the audio source (e.g. laptop computer, MP3 player or portable CD player) is set too high Audio source is distorted Speaker will not turn ON Power is not connected No audio from the AUX source Bad connection Volume is set too low • When using the power adapter, make sure your system is connected to a working AC (mains) outlet, all connections are correct and properly plugged in. • When…

Text truncated - open the document above for the full version.

Kinyo Co.,Ltd No. 287, Nioupu Rd., Hsinchu Taiwan FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Kinyo Co.,Ltd Addresss No. 287, Nioupu Rd., City Hsin Chu, Country Taiwan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: VF6 KINYOBT150 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical in formation, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosur e or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for co mpetitors. We underst and that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hsin Chu, Ta i w a n 2012-08-01 Yuchi Yao Electric Engineer

Kinyo Co.,Ltd No. 287, Nioupu Rd., Hsinchu Taiwan FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Kinyo Co.,Ltd Address No. 287, Nioupu Rd., City Hsin Chu, Country Taiwan declare that the following representative (agent): Name (person) Aven Zhou Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Hua nguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.0 Universal Bluetooth Speaker Type or Model(s) BT-150 Tradename or Brand(s) KINYO We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietv en 31, 7534NH Enschede, the Netherlands) to apply and sign this applic ation for certification, registration or filing on our behalf (as representative agen t or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hsin Chu, Ta i w a n 2012-08-01 Yuchi Yao Electric Engineer

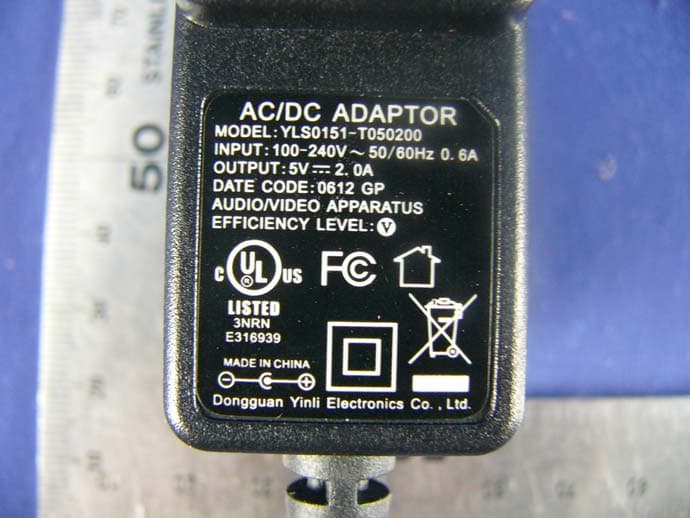

Report No: C120717Z05-RP1 Page 1 / 6 External Photos of EUT Report No: C120717Z05-RP1 Page 2 / 6 Adapter 1: YLS0151-T050200 Report No: C120717Z05-RP1 Page 3 / 6 Adapter 2: BI12-050200-AdU Report No: C120717Z05-RP1 Page 4 / 6 Report No: C120717Z05-RP1 Page 5 / 6 Report No: C120717Z05-RP1 Page 6 / 6

Label and Location KINYO BT-150 2.0 Universal Bluetooth Speaker Power Source: DC 5V==2A –(o-+ FCC ID: VF6KINYOBT150 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

Report No: C120717Z05-RP1 Page 1 / 4 Internal Photos of EUT Report No: C120717Z05-RP1 Page 2 / 4 Report No: C120717Z05-RP1 Page 3 / 4 Report No: C120717Z05-RP1 Page 4 / 4

FCC MPE Calculation FCC ID: VF6KINYOBT150 Frequency: 2402-2480 MHz (79 channels) Modulation: FHSS (GFSK,π/4-DQPSK, 8DPSK) Mid-Channel: 2.441 GHz (channel 39) Mid-Channel Peak Power, Conducted: -1.27 dBm == 0.75 mW Antenna Gain: G = 2.0 dBi Calculation: Limit = 60/2.441 = 24.58 mW Pradiated, max = Pconducted, dBm + GdBi = -1.27 dBm + 2.0 dBi == 0.73 dBm = 1.18 mW Conclusion: The emitted power appears to be (far) below the required limit, so PASS.

Report No: C120717Z05-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: VF6KINYOBT150 Page 1 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For 2.0 Universal Bluetooth Speaker Model: BT-150 Brand: KINYO Test Report Number: C120717Z05-RP1 Prepared for KINYO CO., LTD No. 287, Nioupu Rd., Hsinchu City 30091, Taiwan Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: August 17, 2012 Report No: C120717Z05-RP1 FCC ID: VF6KINYOBT150 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C120717Z05-RP1 Initial Issue ALL Ruby Zhang Report No: C120717Z05-RP1 FCC ID: VF6KINYOBT150 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................6 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20DB BANDWIDTH .......................................................................................................9 6.2 PEAK POWER.............................................................................................................14 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................16 6.4 BAND EDGES MEASUREMENT ................................................................................17 6.5 FREQUENCY SEPARATION ......................................................................................27 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................30 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................33 6.8 SPURIOUS EMISSIONS .............................................................................................40 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................59 Report No: C120717Z05-RP1 FCC ID: VF6KINYOBT150 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: 2.0 Universal Bluetooth Speaker Model: BT-150 Brand: KINYO Tested: July 17~August 16, 2012 Applicant: KINYO CO., LTD. No. 287, Nioupu Rd., Hsinchu City 30091, Taiwan Manufacturer: Chwen Ho Chung Elec.(sz) Co., Ltd. No.5, Tianwan Road, Tianliao Village, Gongming Town, Guangming New District, Shenzhen City, Guangdong Province, 518132, China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No: C120717Z05-RP1 FCC ID: VF6KINYOBT150 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product 2.0 Universal Bluetooth Speaker Model Number BT-150 Brand KINYO Model Discrepancy N/A Identify Number C120717Z05-RP1 Power Supply DC5V supplied by the adapter Adapter Manufacturer / Model No. 1). Dongguan Yinli Electronics Co., Ltd / YLS0151-T050200 I/P: AC100-240V~ 50/60Hz, 0.6A O/P: DC5V, 2A DC Output Cable: Unshielded 1.50m 2). BI / BI12-050200-AdU I/P: AC100-240V~ 50/60Hz, 0.5A O/P: DC…
