VFK-REV-1111Custom Memory Remote Control

Operating Function Operating Manual: 1. The Head Motor Up and Down . 2. The Foot Motor Up and Down 3. Flat Key . 4. Pre-Memory Function 5. Zero Gravity Memory Functions WASHINGTON ELECTRONICS CO., LTD TEL: 886-4-22541988. FAX: 886-4-22548987. E-MAIL: [email protected] WEBSITE: www.washington-electronics.com ADDRESS: No.38-3, Chaoma 1st St., Situn District, Taichung City 407, Taiwan (R.O.C.). 407 1. Head Wave Function. 2. Full Body Function. 3. Wave All Stopping Key. 4. Wave Memory Function ( Memory 1/ Memory 2/ Memory 3 Washington Electronics Co., Ltd No.38-3, Chaoma 1st St., Situn District, Taichung City 407, Taiwan (R.O.C.). 407 TEL: 886-4-22541988 Ext: 168 FAX: 886-4-22548987 E-Mail: [email protected] Internet: http://www.washington-electronics.com Confidential The contents of this email and any attachments may be confidential. It is intended for the named recipient(s). If you are not the named recipient please notify the sender immediately and do not disclose the contents to any other person or make any copies.

910805 1 Date: Feb. 22, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; 910805 2 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Martin Rawls-Meehan / Managing Member Ascion, LLC

910805 3 Federal Communications Commission FCC ID:VFK-REV-1111 Product Name: Custom Memory Remote Control Model Name: RC-WM-102 Trade Name: Reverie Dear Sir: In accordance with 47 C.F.R. Section 0.459, we would like to request confidentiality on some exhibits we submitted for above application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Block Diagram and Schematic, theory of operation. By: By: Martin Rawls-Meehan (Signature) (Printed) Title : Managing Member Applicant : Ascion, LLC Address : 7 Craigie Circle Cambridge, Ma 02138 Tel : 617-4976941 Fax: 617-497-6949 Date : Feb. 20, 2008

1 Chris Harvey From: Iris Lin [[email protected]] Sent: Monday, February 25, 2008 8:23 PM To: [email protected] Cc: R00/ Subject: Fw: [?? Probable Spam] Ascion, LLC, FCC ID: VFK-REV-1111, Assessment NO.: AN08T7587, Notice#1 Attachments: Exhibit-J-Conf_Letter_rev.pdf; Exhibit-C-Test_Report _rev.pdf; Exhibit-D-ID Label_rev.pdf; Exhibit-G-Schematics_rev.pdf; Exhibit-I-Authorization Letter_rev.pdf; Exhibit-A- Block_Diagram_rev.pdf Exhibit-J-Conf_Lett er_rev.pdf ... Exhibit-C-Test_Rep ort _rev.pdf... Exhibit-D-ID Label_rev.pdf (90... Exhibit-G-Schematic s_rev.pdf (... Exhibit-I-Authorizati on Letter... Exhibit-A-Block_Dia gram_rev.pd... Dear Chris, 1. We have updated the authorization and confidential letter for the correct contact person. 2. We have updated the ID label without FCC logo. 3. We have updated for the correct frequency for the test report, block, and schematics. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN TEL: 886-2-26023052 ext.10 FAX: 886-2-26010910 > ----- Original Message ----- > From: <[email protected]> > To: <[email protected]> > Cc: <[email protected]> > Sent: Thursday, February 07, 2008 9:22 PM > Subject: [?? Probable Spam] Ascion, LLC, FCC ID: VFK-REV-1111, > Assessment > NO.: AN08T7587, Notice#1 > > > > Dear SS Liou, > > > > You are listed as the Technical Contact for the above referenced TCB > application. The following item(s) need(s) to be resolved before the review > can be continued: > > > > 1. The Letter of Authorization and Confidentiality Letter are signed > > by a > Woodward Huang (with no title), who is not the Contact of record in > the FCC > Database. The FCC Contact of record for grantee code VFK is Martin > Rawls-Meehan. Please provide a letter of authorization from Martin > Rawls-Meehan of Ascion to Woodward Huang to authorize him to sign the other > letters. Also, please update the address for CCS to the Fremont, California > location. > > 2. The Label contains the FCC logo, which is only for Declaration of > Conformity approval. According to FCC 15.101, this device should not > be subject to DoC approval, and therefore should not contain the FCC 2 > logo on the label. Please revise the label. > > 3. The application form indicates that the frequency of operation is > 433.856MHz, where the schematics, block diagram and most of the test report > indicates operation at 433.92MHz. A deviation of 64kHz seems large. Please > confirm the Crystal Frequency and the frequency of operation. > > > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please > note that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be > directed to > the e-mail address listed below the name of the sender. > > > > Best regards, > > > > Chris Harvey > > [email protected] > > > > >

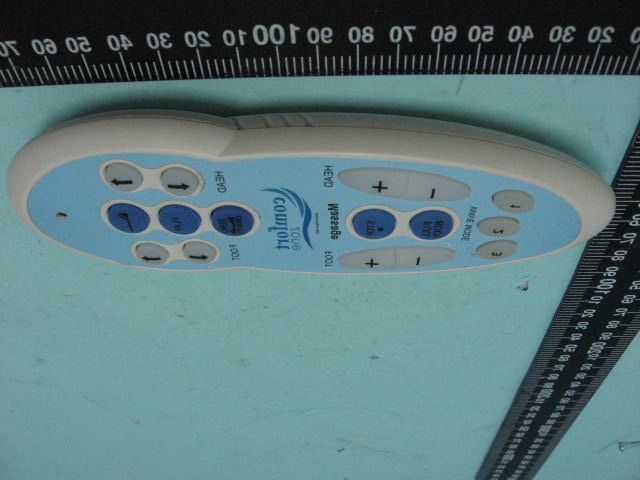

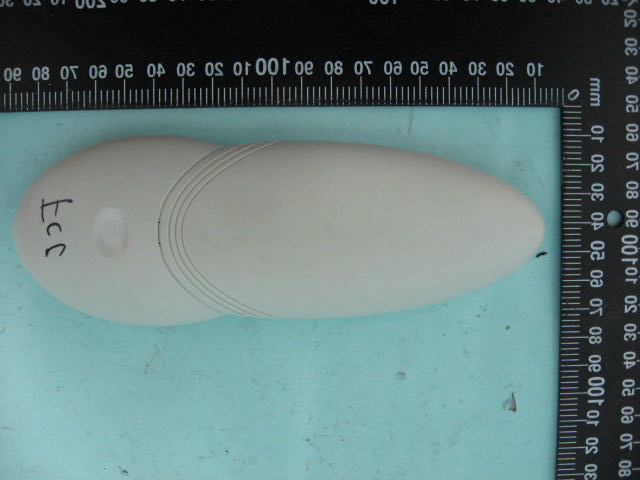

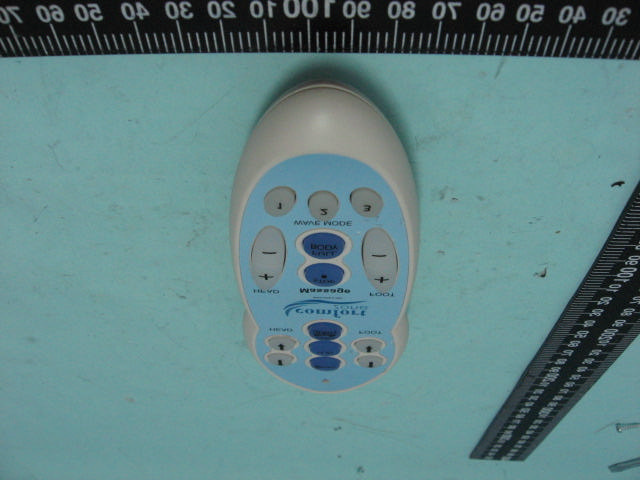

ETC Report No.:07-12-RBF-073 Sheet 1 of 5 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Side View of EUT ETC Report No.:07-12-RBF-073 Sheet 2 of 5 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Rear View of EUT 4. Side View of EUT ETC Report No.:07-12-RBF-073 Sheet 3 of 5 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Front View of EUT 6. Bottom View of EUT

910805 1 LABEL FCC ID: VFK-REV-1111 Model: RC-WM-102 29mm 20mm

ETC Report No.:07-12-RBF-073 Sheet 4 of 5 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT ETC Report No.:07-12-RBF-073 Sheet 5 of 5 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 8. Component View of PCB 9. Solder View of PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Custom Memory Remote Control FCC ID. : VFK-REV-1111 Model : RC-WM-102 Working Frequency : 433.856MHz for APPLICANT : Ascion, LLC ADDRESS : 7 Craigie Circle Cambridge, Ma 02138 Test Performed by ELECTRONICS TESTING CENTER (ETC) , TAIWAN NO. 34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX : (02)26010910 http:// www.etc.org.tw ; e-mail:[email protected] Report Number : 07-12-RBF-073 ETC Report No.:07-12-RBF-073 FCC ID.: VFK-REV-1111 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Ascion, LLC 7 Craigie Circle Cambridge, Ma 02138 Manufacture : Washington Electronics CO., LTD No.38-3, Chaoma 1st Street, Situn District Taichung City 407, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Custom Memory Remote Control b) Trade Name : Reverie c) Model No. : RC-WM-102 d) FCC ID : VFK-REV-1111 e) Working Frequency : 433.856 MHz f) Power Supply : DC 1.5V Battery *2 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2007) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Date Test Item Received : Dec. 19, 2007 Date Test Campaign Completed : Dec. 27, 2007 Date of Issue : Feb. 18, 2008 Test Engineer (Vincent Chang) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-12-RBF-073 FCC ID.: VFK-REV-1111 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME......................................................................................................................................................................10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................................10 4.7 RADIATED TEST EQUIPMENT...............................................................................................................................................16 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................................16 4.9 RADIATED MEASUREMENT PHOTOS........................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:07-12-RBF-073 Sheet 18 of 22 Sheets FCC ID.: VFK-REV-1111 Rev. No 1.0 4.9 Radiated Measurement Photos
