VFKRC-WM-101Custom Memory Remote Control

RC-WM-101 Controller Model: RC-WM-101 FCC ID. : THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFEERENCE THAT MAY CAUSE UNDESRIED OPERATION Power supply: Use 4 X AAA 1.5V Battery (6V) Description: The hand control will have an RF transmission, with a range of 9 feet (3 meters). The RF transmission will have a “key code” to give each remote a unique transmission signal. It will have raised rubber buttons that will have the ability to be backlit when pressed. The hand control will have an ergonomic design and will use 4 AAA batteries. There will be approximately 21 buttons; the circuit board should have Functional Remote Description: Head Lift motor Button “+” When pressed, it will initiate the Head lift motor to move the head of the bed up. LED lights up when pressed. Backlight initiates and it lights up all button. When pressed during the “Flat” function it will interrupt the Flat cycle and stop the bed motion. Head Lift motor Button “-” When pressed, it will initiate the Head lift motor to move the head of the bed down. LED lights up when pressed. Backlight initiates and it lights up all button. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion. Foot Lift Motor Button “+” When pressed, it will initiate the Foot lift motor to move the foot of the bed up. LED lights up when pressed. Backlight initiates and it lights up all buttons. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion. Foot Lift Motor Button “-” When pressed, it will initiate the Foot lift motor to move the foot of the bed up. LED lights up when pressed. Backlight initiates and it lights up all buttons. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion. Flat Button “FLAT” When pressed, it will initiate the Head and Foot lift motors to return to the fully lowered position from any lifted position. Must be held for 3 seconds to initiate. LED lights up when pressed and blinks while the bed is lowered. Backlight initiates and it lights up all buttons. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion. 1 2 Custom Memory Recall Button “CUSTOM #1” When pressed, it will recall the memory position #1 of the head and foot lift motor positions from the memory. When held for 3 seconds it sets the custom position at the beds current position to memory position #1. LED lights up when initiated. Backlight initiates and it lights up all buttons. Upper Backlight LEDs and RF LED indicator h 3 times when memory is saved. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion Custom Memory Recall Button “CUSTOM #2” When pressed, it will recall the memory position #2 of the head and foot lift motor positions from the memory. When held for 3 seconds it sets the custom position at the beds current position to memory position #2. LED lights up when initiated. Backlight initiates and it lights up all buttons. Upper Backlight LEDs and RF LED Flash 3 times when memory is saved. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion. Custom Memory Recall Button “CUSTOM #3” When pressed, it will recall the memory position #3 of the head and foot lift motor positions from the memory. When held for 3 seconds it sets the custom position at the beds current position to memory position #3. LED lights up when initiated. Backlight initiates and it lights up all buttons. Upper Backlight LEDs and RF LED Flash 3 times when memory is saved. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion Custom Memory Recall Button “CUSTOM #4” When pressed, it will recall the memory position #4 of the head and foot lift motor positions from the memory. When held for 3 seconds it sets the custom position at the beds current position to memory position #4. LED lights up when initiated. Backlight initiates and it lights up all buttons. Upper Backlight LEDs and RF LED Flash 3 times when memory is saved. When pressed during the Flat function it will interrupt the Flat cycle and stop the bed motion Wave Vibration Motor Stop Button “STOP” When pressed, it will stop the Head and Foot vibration motors. For all Wave types, the Stop button MUST be pressed before you are allowed to choose another massage type/intensity. LED lights up when initiated. Backlight initiates and it lights up all buttons. Foot Vibration Motor Button “+” When pressed, it will initiate the Foot vibration motor and when pressed again it will increase the intensity. It should have a total of 10 intensities. It will start at the 50% intensity level of a standard vibration. MUST press vibration STOP before changing wave intensity/mode. LED lights up when initiated. Backlight initiates and it lights up all buttons. 3 4 Foot Vibration Motor Button “-” When pressed, it will initiate the Foot vibration motor and when pressed again it will decrease the intensity. It will start at the 50% intensity level of a standard vibration. It should have a total of 10 intensities. MUST press vibration STOP before changing wave intensity/mode. LED lights up when initiated. Backlight initiates and it lights up all buttons. Head Vibration Motor Button “+” When pressed, it will initiate the Head vibration motor and when pressed again it will increase the intensity. It will start at the 50% intensity level of a standard vibration. It should have a total of 10 intensities. MUST press vibration STOP before changing wave intensity/mode. LED lights up when initiated. Backlight initiates and it lights up all buttons. Head Vibration Motor Button “-“ When pressed, it will initiate the Head vibration motor and when pressed again it will decrease the intensity. It will…

Text truncated - open the document above for the full version.

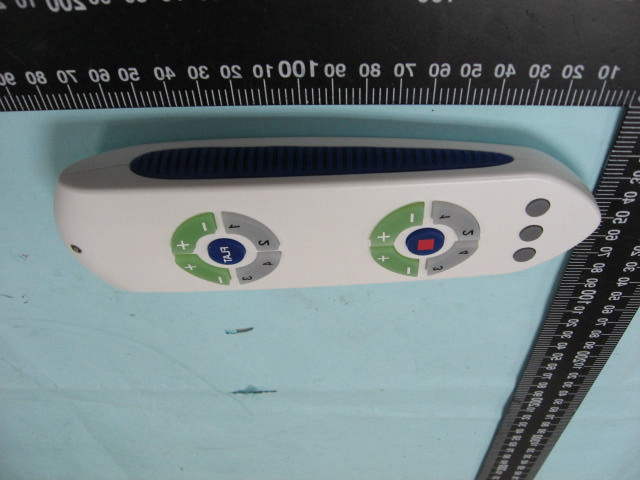

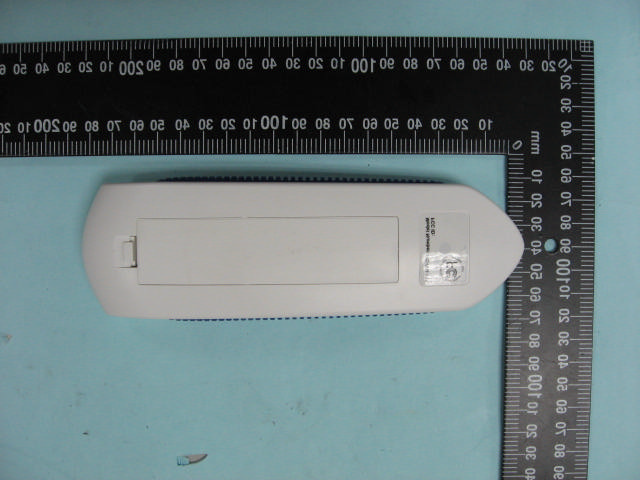

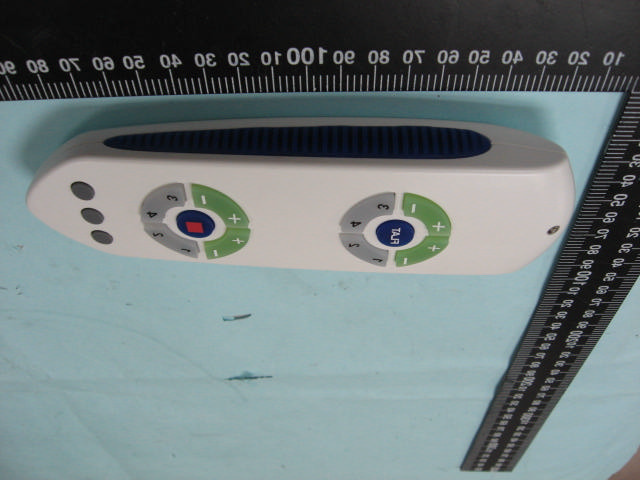

ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: RC-WM-101 Front View of EUT Rear View of EUT ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: RC-WM-101 Side View of EUT Side View of EUT ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Model: RC-WM-101 Top View of EUT Bottom View of EUT

FCC ID:VFKRC-WM-101

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Custom Memory Remote Control FCC ID. : VFKRC-WM-101 Model : RC-WM-101 Working Frequency : 433.92MHz for APPLICANT : Ascion,LLC. ADDRESS : 7 Craigie Circle Cambridge, Ma 02138 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 07-05-RBF-025 ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Ascion,LLC. 7 Craigie Circle Cambridge, Ma 02138 Manufacture : Washington Electronics CO., LTD No.38-3,Chaoma 1st Street, Situn District Taichung City 407, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Custom Memory Remote Control b) Trade Name : Reverie c) Model No. : RC-WM-101 d) FCC ID : VFKRC-WM-101 e) Working Frequency : 433.92 MHz f) Power Supply : DC Battery 1.5V*4 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Date Test Item Received : May. 24, 2007 Date Test Campaign Completed : Jun. 11, 2007 Date of Issue : Jun. 25, 2007 Test Engineer : (Vincent Chang ) Approve & Authorized : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME......................................................................................................................................................................10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................................10 4.7 RADIATED TEST EQUIPMENT...............................................................................................................................................17 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................................17 4.9 RADIATED MEASUREMENT PHOTOS........................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:07-05-RBF-125 FCC ID.: VFKRC-WM-101 Rev. No 1.0 4.9 Radiated Measurement Photos
