VG5WIN7258WiMAX pBST base station transceiver

RuggedMAX™ WiN7200 Small Form Factor Base Station Installation Guide Version 1.0 - June 18, 2012 RuggedMAX™ WiN7200 Small Form Factor Base Station RuggedMAX™ WiN7200 Small Form Factor Base Station: Installation Guide Copyright © 2012 RuggedCom Inc. All Rights Reserved Dissemination or reproduction of this document, or evaluation and communication of its contents, is not authorized except where expressly permitted. Violations are liable for damages. All rights are reserved, particularly for the purposes of patent application or trademark registration. This document contains proprietary information, which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced or translated to another language without the prior written consent of RuggedCom Inc. Disclaimer Of Liability We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material. The information given in this document is reviewed regularly and any necessary corrections will be included in subsequent editions. We appreciate any suggested improvements. We reserve the right to make technical improvements without notice. Registered Trademarks ROX™, RuggedRated™, eRSTP™, RuggedBackbone™ and RuggedMAX™ are trademarks of RuggedCom Inc. RuggedRouter® is a registered trademark of RuggedCom Inc. Other designations in this manual might be trademarks whose use by third parties for their own purposes would infringe the rights of the owner. Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries. The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a world-wide basis. Warranty Five (5) years from date of purchase, return to factory. For warranty details, visit www.RuggedCom.com or contact your customer service representative. Contacting RuggedCom Corporate HeadquartersUS HeadquartersEurope Headquarters RuggedCom Inc. 300 Applewood Crescent, Concord, Ontario Canada, L4K 5C7 Tel: +1 905 856 5288 Fax: +1 905 856 1995 Toll-free: 1 888 264 0006 RuggedCom 1930 Harrison Street, Suite 209 Hollywood, Florida USA, 33020 Tel: +1 954 922 7938 ext.103 Fax: +1 954 922 7984 Toll-free: 1 888 264 0006 RuggedCom Unit 41, Aztec Centre, Aztec West, Almondsbury, Bristol United Kingdom BS32 4TD Tel: +44 1454 203 404 Fax: +44 1454 203 403 Email: [email protected] Technical Support Toll Free (North America): 1 866 922 7975 International: +1 905 856 5288 Email: [email protected] Web: www.RuggedCom.com RuggedMAX™ WiN7200 Small Form Factor Base Station RuggedMAX™3Installation Guide Rev 1.0 Table of Contents FCC Statement And Cautions ................................................................................................... 7 1. About This Guide ................................................................................................................... 8 1.1. Safety Information .. ..................................................................................................... 8 1.1.1. General ............................................................................................................. 8 1.1.2. Equipment Installation ...................................................................................... 8 1.1.3. Radio Frequency (RF) Exposure ......... ............................................................ 8 1.1.4. Lightning Protection .......................................................................................... 8 1.1.5. Power Cord Protection .......... ........................................................................... 9 1.1.6. Servicing ........................................................................................................... 9 1.1.7. Antenna Grounding Requirements ................................................................... 9 1.1.8. Outdoor Grounding System ... ........................................................................... 9 1.1.9. Safety Hazards ................................................................................................. 9 2. Introduction .. ........................................................................................................................ 11 2.1. About the RuggedMAX™ WiN7200 Small Form Factor Base Station ........ ............... 11 2.2. Capabilities and Features ......................................................................................... 12 2.3. System Architecture ... ............................................................................................... 12 2.4. Interfaces ................................................................................................................... 13 2.4.1. Bottom Panel .................................................................................................. 13 2.4.2. Top Panel ....................................................................................................... 14 3. Site and Installation Requirements ...................................................................................... 15 3.1. WiN7200 Small Form Factor Base Station Installation Location .... ........................... 15 3.1.1. Criteria for Outdoor Locations ........................................................................ 15 3.1.2. Criteria for Indoor Locations ........................................................................... 15 3.1.3. External GPS Antenna Installation Location ................................................... 15 3.1.4. Antenna Grounding Requirements ................................................................. 15 4. Installation Procedures .. ....................................................…

Text truncated - open the document above for the full version.

October 17, 2011 To whom it may concern: Being the current FCC contact person on record for RuggedCom Inc.(Concord, Ontario office), I am authorizing Israel Aminov (also employed by RuggedCom Inc., Israel office) to act on my behalf as the FCC registered signee for current RuggedCom wireless submissions. This means that Israel Aminov has my approval and authorization to sign off on all relevant FCC documentation for RuggedCom Inc. Please don’t hesitate to contact me if there is any further clarification needed on the information presented above. Regards, Phil Levy, P. Eng. Manager, Software Engineering RuggedCom Inc. Tel:(905) 482-4549 Email:[email protected] RuggedCom Inc.Tel:(905) 856-5288 300 Applewood CresFax:(905) 856-1995 Concord, OntarioToll-Free:(888) 264-0006 Canada, L4K 5C7 www.RuggedCom.com

Page 1 of 1 October 21, 2012 Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a base station operating in 5728 – 5846 MHz band, FCC ID:VG5WIN7258 Dear Gentlemen, Please find attached our application for certification of a base station operating in 5728 – 5846 MHz band, FCC ID:VG5WIN7258, prepared in accordance with FCC Rules, part 2 and part 15 section 15.247. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624. The FCC Designation Number is US1003. Hermon Labs responsible person is Mr. Michael Nikishin, tel: + 972 4626 8440, fax:+972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Sincerely, Israel Aminov HW Engineer

RF_160, Issue 02 Declaration of Authorization We Name: Ruggedcom Inc. Address: 30 Whitmore Road City: Woodbridge Country: Ontario, Canada Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. Address: Harakevet Industrial Zone City: Binyamina 30500 Country Israel Is authorized to apply for Certification of the following product(s): Product description:  WiMax Base Station Type designation: WIN7258 Trademark: RuggedMax On our behalf. Date: October 15, 2012 Name: Israel Aminov (2) Function: HW Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Company Name: Ruggedcom Inc. Address: 30 Whitmore Road City: Woodbridge Country: Ontario, Canada To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: VG5WIN7258 Reference number: 23640 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: October 18, 2012 Name and signature of applicant: Israel Aminov Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

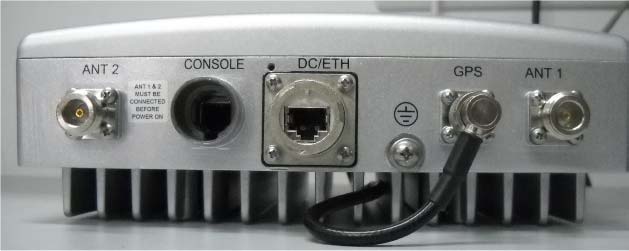

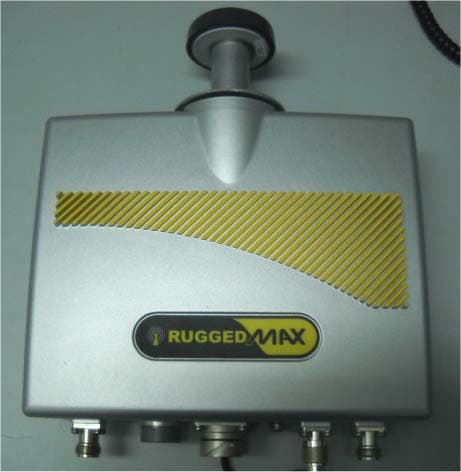

Ruggedcom Inc. FCC ID:VG5WIN7258 Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Ruggedcom Inc. FCC ID:VG5WIN7258 Page 2 of 4 Photograph No.1 Base station WiN7258 top view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 3 of 4 Photograph No.2 Base station WiN7258 rear side view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 4 of 4 Photograph No.3 Base station WiN7258 interface panel view

Ruggedcom Inc. FCC ID:VG5WIN7258 Page 1 of 1 Label Label location A pico base station shall bear the label with FCC ID:VG5WIN7258 on a side panel as shown in the photo below. The label material is PVC with a permanent adhesive. Label will be placed here.

Ruggedcom Inc. FCC ID:VG5WIN7258 Page 1 of 9 INTERNAL PHOTOGRAPHS This document contains 8 photographs Ruggedcom Inc. FCC ID:VG5WIN7258 Page 2 of 9 Photograph No.1 Base station WiN7258 internal general view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 3 of 9 Photograph No.2 Base station WiN7258 internal view with RF module removed Ruggedcom Inc. FCC ID:VG5WIN7258 Page 4 of 9 Photograph No.3 Base station WiN7258 chassis Ruggedcom Inc. FCC ID:VG5WIN7258 Page 5 of 9 Photograph No.4 Base station RF PCB front view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 6 of 9 Photograph No.5 Base station RF PCB bottom view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 7 of 9 Photograph No.6 RF PCB front view without shields Ruggedcom Inc. FCC ID:VG5WIN7258 Page 8 of 9 Photograph No.7 Base station main PCB front view Ruggedcom Inc. FCC ID:VG5WIN7258 Page 9 of 9 Photograph No.8 Base station main PCB second side view

Ruggedcom Inc. FCC ID:VG5WIN7258 Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range: The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the maximum equivalent isotropically radiated power (EIRP). To confirm compliance with a safe distance for base station fixed unit the following calculation was done: The peak output power of 26.3 dBm with 16 dBi antenna gain corresponds to the equivalent isotropically radiated power (EIRP) of 26.3 dBm + 16 dBi = 42.3 dBm, which is equal to 16982 mW. The minimum safe distance “r”, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {16982 / 12.56} ≈ 37 cm  2 m . General public cannot be exposed to dangerous RF level.
