VGAYCWU7BM2Transmitter

Arming the Security System Security System Armed and Activated Disarming the Security System The Valet Switch And Valet Mode The Red LED Status Light Optional Pre-Warning Shock Detection Circuit Programmable Features This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equip

1 Helen Zhao Subject:FW: FW: BIG KING HORN SPEAKER ENT.CO.,LTD., FCC ID: VGAYCWU7BM2, Assessment NO.: AN07T6996, Notice#1 Exhibit-C-Test_Rep ort.rev..pdf... From: Iris Lin Sent: Tuesday, July 10, 2007 10:52 PM To: Helen Zhao Cc: S. S. Liou (E-mail) Subject: Re: FW: BIG KING HORN SPEAKER ENT.CO.,LTD., FCC ID: VGAYCWU7BM2, Assessment NO.: AN07T6996, Notice#1 Dear Helen,, 1. Please refer to the updated "1.3 Methodology" in the attached report sheet 1 of 20 sheets. 2. We have revise the "Operation mode" in the attached report sheet 8 of 20 sheets. In the tesr report sheet 6 of 20 sheets 4.2 Measurement Procedure, it includes the explanation of three test orientation and the worst case was recorded. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN -----Original Message----- Sent: Tuesday, July 10, 2007 4:56 PM Subject: BIG KING HORN SPEAKER ENT.CO.,LTD., FCC ID: VGAYCWU7BM2, Assessment NO.: AN07T6996, Notice#1 Question #1: The test report does not indicate which version of the ANSI C63.4 has been used for testing. Please verify that the newest version, ANSI C63.4:2003 has been used and submit an updated test report indicating which version was used. Question #2: The test setup photos do not show any means of re-orienting this device in the X, Y & Z orientations during test. Please explain how the EUT was reoriented during the testing. Best regards, Helen Zhao The items indicated above must be submitted before processing can continue 2 on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

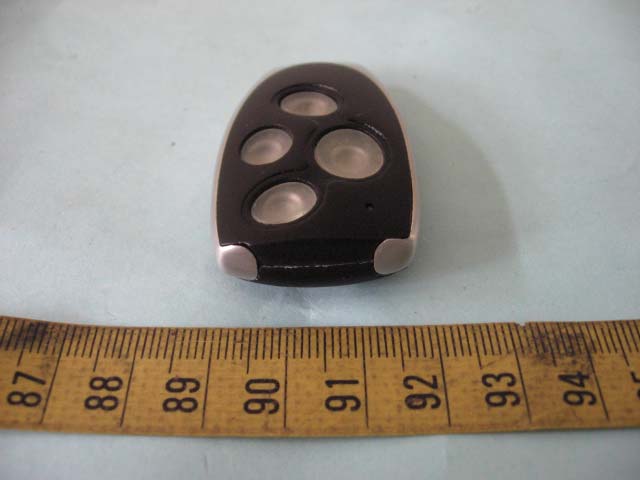

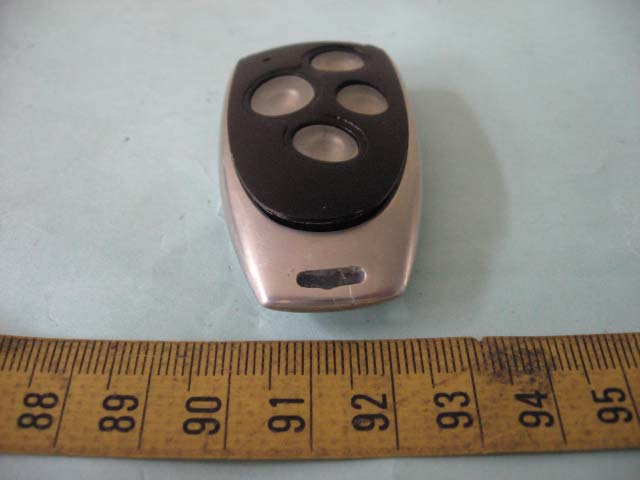

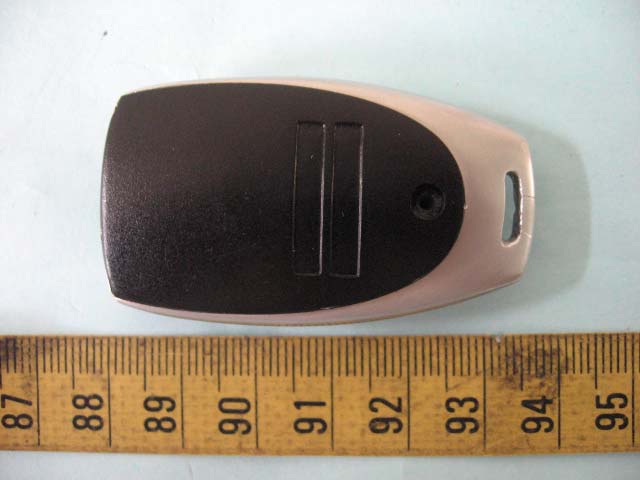

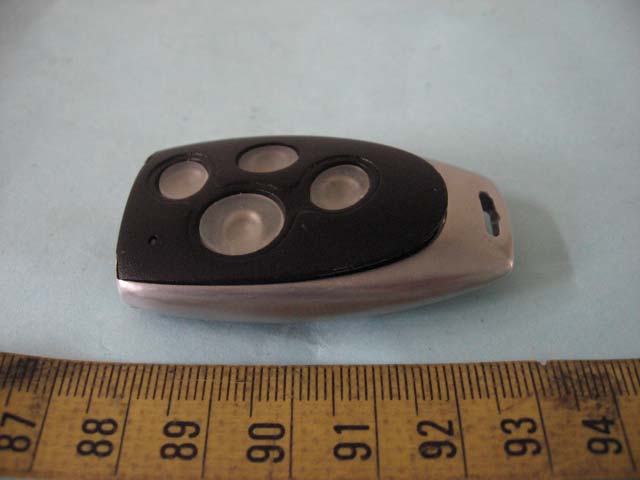

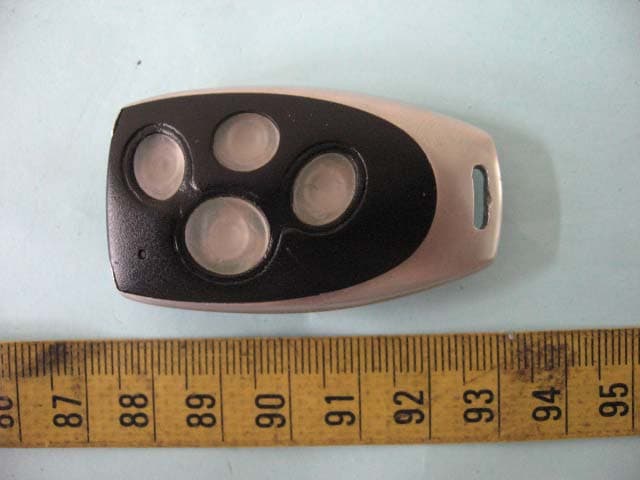

ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Side View of EUT ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Side View of EUT ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Rear View of EUT Bottom View of EUT

Model : T-U7BM2 FCC ID : VGAYCWU7BM2 22 mm 12mm

ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : TRANSMITTER FCC ID : VGAYCWU7BM2 MODEL : T-U7BM2 Working Frequency : 370 MHz for APPLICANT : BIG KING HORN SPEAKER ENT. CO., LTD. ADDRESS : NO.5, LANE 39, AN-LO ROAD, CHUNG-HO CITY, TAIPEI HSIEN, TAIWAN, ROC Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 07-06-RBF-095 ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : BIG KING HORN SPEAKER ENT. CO., LTD. NO.5, LANE 39, AN-LO ROAD, CHUNG-HO CITY, TAIPEI HSIEN, TAIWAN, ROC Manufacturer : BIG KING HORN ELECTRONIC (SHANGHAI) CO., LTD. NO. 3689, BEI QING RD., SONG SHAN VILLAGE, HUAXIN TOWN, 201705, QINGPU DISTRICT, SHANGHAI, CHIA Description of EUT : a) Type of EUT : TRANSMITTER b) Trade Name : BKH c) Model No. : T-U7BM2 d) FCC ID : VGAYCWU7BM2 e) Working Frequency : 370 MHz f) Power Supply : DC 3 V Battery*2 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jun. 27, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION.......................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE: ...............................................................................................................................1 1.3 TEST METHODOLOGY............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION....................................................................................................................... 2 2.3 LIMITATION............................................................................................................................................................ 2 2.4 LABELING REQUIREMENT....................................................................................................................................... 4 2.5 USER INFORMATION............................................................................................................................................... 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION.......................................................................................................................... 10 4.5 ACTIVATE TIME.................................................................................................................................................... 10 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 10 4.7 RADIATED TEST EQUIPMENT................................................................................................................................15 4.8 MEASURING INSTRUMENT SETUP......................................................................................................................... 15 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 16 5. BANDWIDTH OF EMISSION........................................................................................................................... 17 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH..................................................................................... 17 5.2 BANDWIDTH TEST EQUIPMENT....…

Text truncated - open the document above for the full version.

ETC Report No.:07-06-RBF-095 FCC ID.: VGAYCWU7BM2 Rev. No 1.0 Radiated Measurement Photos
