VJS-M812Wireless Speaker System

M812 User’s guide Guía del usuario  English The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Caution: To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION To prevent electric shock do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. . Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water – This apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. The apparatus should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The apparatus must not be placed in a built-in installation, such as a closed bookcase or cabinet that may impede the flow of air through the ventilation openings. Ventilation should not be impeded by covering the openings with items such as newspapers, tablecloths, curtains, etc. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. No naked flame sources, such as lighted candles, should be placed on the apparatus. 10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet. 11. Protect the power cord from being walked on or pinched – particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 12. Do not install in an area which impedes the access to the power plug. Disconnecting the power plug is the only way to completely remove power to the product and must be readily accessible at all times. 1. Power source – Use only power supplies of the type specified in the operating instructions or as marked on the appliance. If a separate power supply is included with this apparatus, do not substitute with any other power supply – use only manufacturer-provided power supplies. 14. Unplug this apparatus during lightning storms or when unused for long periods of time. 15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For service, refer to qualified service personnel, return to the dealer, or call the Altec Lansing service line for assistance. 16. For products which incorporate batteries, please refer to local regulations for proper battery disposal. 17. Only use attachments/accessories specified by the manufacturer. 18. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Altec Lansing One Year Limited Warranty (Two-Year Limited Warranty In the European Union and Asia) What Does The Warranty Cover?: Altec Lansing warrants that its products shall be free from defects in materials or workmanship, with the exceptions stated below. What Is The Period Of Coverage?: For units purchased in European Union or Asia, this warranty runs for two years from the date of purchase. For units not purchased in Europe or Asia, this warranty runs for one year from the date of purchase. The term of any warranties implied by law shall expire when your limited warranty expires. Some states and/or Member States in the European Union do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. What Does The Warranty Not Cover?: This warranty does not cover any defect, malfunction or failure that occurs as a result of: improper installation; misuse or failure to follow the product directions; abuse; or use with improper, unintended or faulty equipment. (For information on proper installation, operation and use consult the manual supplied with the product. If you require a replacement manual, you may download a manual from www.alteclansing.com.) Also, consequential and incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. What Will Altec Lansing Do To Correct The Problem?: Altec Lansing will, at its option, repair or replace any product that proves to be defective in material or workmanship. If your product is no longer being manufactured, or is out of stock, at its option, Altec Lansing may replace your product with a similar or better Altec Lansing product. How To Get Warranty Service: To get a covered product repaired or replaced, you must contact Altec Lansing during the warranty period by email (csu…

Text truncated - open the document above for the full version.

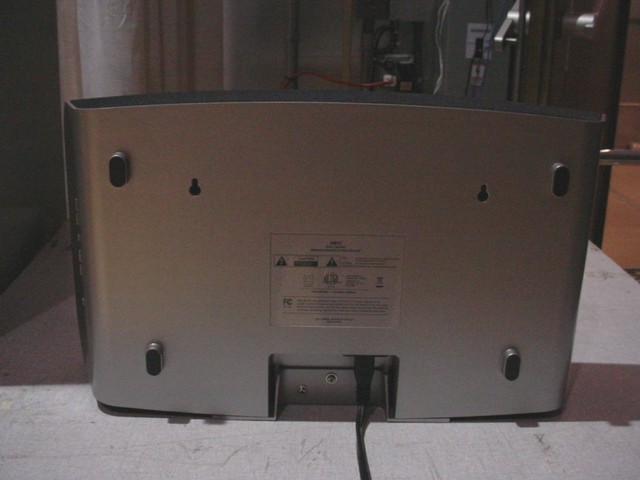

ALTEC LANSING WIRELESS SPEAKER SYSTEM FOR iPod ® M812 FCC ID: VJS-M812 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 100-240VAC ~ / 50-60Hz / 600mA CONFORMS TO ANSI/UL STD. 60065 CERTIFIED TO CAN/CSA STD. C22.2 No. 60065

A A 11/26/06 FRANK 11/26/06 FRANK DOCK BTM S/S CTRL DWG SEE NOTES DATE SLT SEE NOTES 03/01/07 FRANK SLT ALTEC LANSING TECHNOLOGIES INC. MILFORD PANNSYLVANIA 18337 R 1 OF 1 1 DRAWN 1:1 0 <= 10mm ±0.1mm 10 <= 100mm ±0.2mm 100 <= 500mm ±0.3mm THIRD ANGLE PROJECTION INITIAL ISSUE REV SH DWG. NO. APROV'D DATE DESCRIPTION REV. REVISIONS DO NOT SCALE DRAWING FINISH: MATERIAL: ± 0.5∞ ANGLES TOLERANCES ARE: DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED ISSUED CHECKED DRAWN APPROVALS A3 SHEET SCALE SIZE FSCM NO. DWG. NO. REV. 21 2 2 ADDEED ONE TABLE FILM # "02-002 044" WAS "02-001 985" C-M812-003 SECTION A-A 3, PRINTING COLOR: PMS 432C NOTES: 1, PRINTING APPLY TO P/N A11867 2, TOLERANCE : ±0.2mm C-M812-003 FILM A FILM B FILM # 02-002 044 01 REV 02 TABLE: 2 MORE DETAILS PLEASE REFER TO FILM B (SEE TABLE) 02-002 043 2 MORE DETAILS PLEASE REFER TO FILM A ( SEE TABLE) AUXIRFM 9 VDC /1.6A ALTEC LANSING WIRELESS SPEAKER SYSTEM FOR iPod ® M812 FCC ID: VJS-M812 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

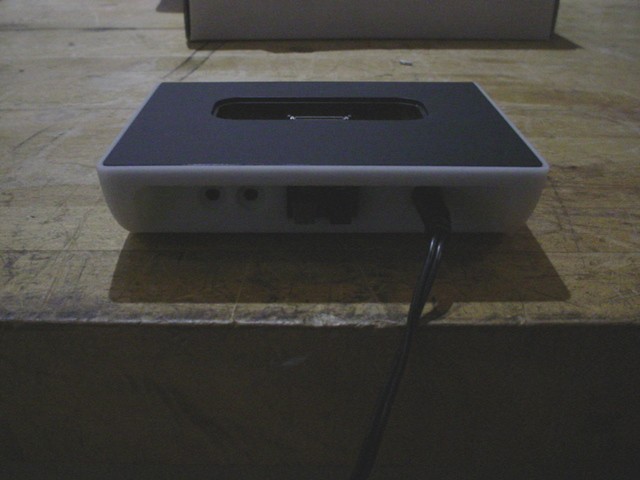

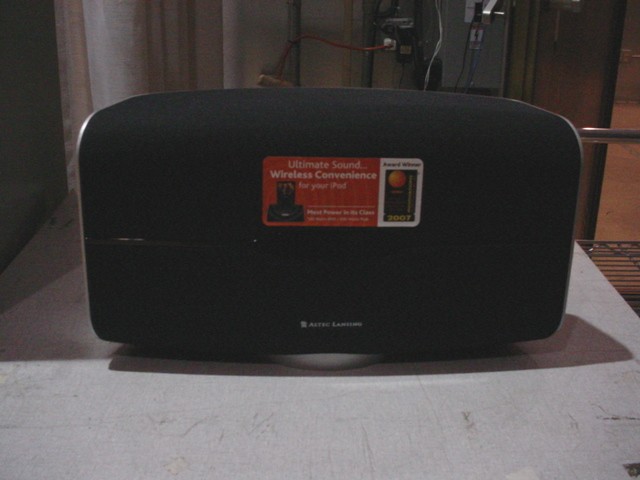

M812 Functional Description The M812 is an iPod docking speaker system that operates wirelessly on three separate frequencies (channels) in the 2.4GHz ISM band. The M812 consists of a docking station, speaker unit, wireless remote, and IR transmitter. Functionality will be described separately for each. The docking station serves its main purpose is as an audio source. The docking station houses an FM tuner, 3.5mm auxiliary input, and iPod dock. These audio sources are converted into a digital audio format which is then transmitted wirelessly via the RF module. The docking station has a DC jack for power via an external power adapter, 2 spring terminals for an FM dipole antenna, and an additional 3.5 mm jack for IR transmission. The user interface consists of a pushbutton and 3 LEDs. A single LED indicated standby and the 2 remaining LEDs indicate synchronization to one or more speaker units. The pushbutton has several functions: 1. Single press and release – The system enters/exits standby. 2. Hold for 3 seconds and release – The docking station enters RF channel select mode. The standby LED will blink at a rate of one flash per second to indicate RF channel select mode. The sync 1 and sync 2 LEDs will indicate the RF module’s current channel selection for wireless transmission. The RF channel selection is indicated as follows: a. Sync 1 LED and Sync 2 LED are off – Auto mode. b. Sync 1 LED is on and Sync 2 LED is off – Channel 1. c. Sync 1 LED is off and Sync 2 LED is on – Channel 2. d. Sync 1 LED and Sync 2 LED are on – Channel 3. The pushbutton can be pressed again to change the desired RF channel. Once the selection is made, the button must be held again for 3 seconds to save the change. Auto channel mode will force the RF module to select the cleanest channel for transmission. 3. Hold for 6 seconds and release – The wireless connection will be reset if the docking station is synchronized to any speaker unit. This is useful when the docking station synchronizes to an unwanted speaker unit. The docking station also serves as an IR transmitter via the connection of the IR transmitting LED. Three IR commands can be recorded by the speaker unit and are stored in memory on the docking station. IR transmission will be discussed more in the speaker unit section. The speaker unit houses most of the system controls and is also an amplified speaker system. The speaker unit is able to be placed on a desktop and can also be mounted to any wall with the designated wall bracket. An eight character LCD on the front of the speaker unit displays visual feedback for user interface. The right side of the speaker unit houses six pushbuttons for system control. The back of the unit houses the IEC power connector and two switches for mode control. The IR receiver is located to the right of the LCD display. The pushbutton controls consist of the following functions: 1. Standby – The standby button has three separate functions: a. Single press and release – The speaker unit will enter/exit standby. If the speaker unit is the only one synchronized to its associated docking station, then it will place the docking station in standby as well. b. Hold for 3 seconds and release – The speaker unit will enter system default mode. System volume, treble, bass, and input will all be set to default. c. Hold for 6 seconds and release – The wireless connection will be reset if the speaker unit is synchronized to a docking station. This can be useful if the receiver has synchronized to an unwanted docking station. 2. Vol-/Vol+ - The Vol buttons have two functions: a. Local volume – When idle, these buttons will control the volume of the speaker unit only. If multiple speaker units are connected, their volume level is not affected. Volume is displayed on the LCD. b. Menu position – When in menu mode, the Vol buttons act as increment and decrement buttons for the menu tree. 3. Trk FW/Trk BK – The Trk buttons have three functions: a. iPod track change – When idle and iPod is selected as the input source, the Trk buttons allow you to move forward or back in your iPod play list. b. FM station selection – When idle and FM is selected as the input source, the Trk buttons allow you to tune or seek the next available FM station. The station is displayed on the LCD. c. IR transmission – When idle and Aux is selected as the input source, the Trk buttons allow you to transmit the IR Remote command that is associated with those buttons. 4. Input – The input button has two functions: a. Single press and release – Audio input selection. Select between Aux, FM and iPod. The selected input is displayed on the LCD. b. Hold for three seconds and release – Enter Menu mode. You can use the Vol buttons to scroll up or down through the options. Pressing and releasing the input button will select the displayed option. The menu can be divided into 7 selections as follows: 1. Treble – Increase or decrease treble setting. Select this option by pressing and releasing the input button. Adjust this option by pressing the Vol buttons. The current treble setting is displayed on the LCD. 2. Bass - Increase or decrease bass setting. Select this option by pressing and releasing the input button. Adjust this option by pressing the Vol buttons. The current bass setting is displayed on the LCD. 3. FM Mode – Select the appropriate region for FM reception. Select this option by pressing and releasing the input button. Adjust this option by pressing the Vol buttons. The current FM region setting is displayed on the LCD. 4. RF Chan – Adjust the RF module’s receiving channel. Select this option by pressing and releasing the input button. Adjust this option by pressing the Vol buttons. Channel selections are channel 1 through channel 3 and Auto. Auto will force the RF module to search for a valid transmission from a docking station. The current RF Channel setting is displayed on the LCD. 5. IR Prog – IR programming mode. Select this option by pressing and releasin…

Text truncated - open the document above for the full version.

DWAM79 D2D Datasheet Rev1.3 020606 DWAM79 D2D Rev1.3 The information is provided “as is” without any express or implied warranty of any kind, including warranties of merchantability, non-infringement of intellectual property, or fitness for any particular purpose. In no event shall Wireless Sound Solutions and/or its affiliate companies, or its suppliers be liable for any damages whatsoever arising out of the use of or inability to use the information or the materials. Wireless Sound Solutions, its affiliate companies, and its suppliers further do not warrant the accuracy or completeness of information, text, graphics, or other items contained within materials. Wireless Sound Solutions, Inc., may make changes to materials, or the products described within, at any time, without notice. ©2006 Wireless Sound Solutions. All rights reserved. Wireless Sound Solutions, STS and STS-wireless are trademarks of Wireless Sound Solutions. DWAM79 D2D Datasheet Rev1.3 020606 DWAM79_D2D Digital Wireless Audio Module 1 DWAM79_D2D Module 1.1 Product Description The DWAM79_D2D is an OEM module (42x42mm) based on the STS DARR79. It is a wireless digital audio transceiver operating in the 2.4GHz ISM band. The wireless audio link supports up to 4 high quality and low latency audio channels in various network topologies. A unique set of protocols and algorithms provides extreme wireless robustness, capable of dealing with multiple interference sources as present in the 2.4 GHz band. In addition, a wireless bi-directional data channel is available (e.g. to control the volume of the receiver from the transmitter). The module integrates all functionality for a wireless digital audio connection, comprising: • Wireless Audio Processor, DARR79 • 2.4 GHz radio • Embedded Antennas • Dual Antenna Connector • Digital audio interfaces • I 2 C control interface • Boot EEPROM (Only for Autonomous Receivers, optional) • MCU (optional) • 26 pins interface connector (FFC) for power, digital audio and control interface and GPIOs DWAM79 D2D Datasheet Rev1.3 020606 1.2 DWAM79_D2D Block Diagram: 26 pins FFC Interface Connector DARR79 Wireless Audio Processor 802.11.b/g Radio CLK ANT A ANT B EEPROM (RX Only) MCU (Optional) RX I/Q TX I/Q Radio Control GPIOs I 2 S I 2 S & S/PDIF I 2 C Regulated Power Supply DWAM79 The DWAM79_D2D is used for both the Central Unit (CU, transmitter) and Mobile Unit (MU, receiver). The module is configured either through the I 2 C interface, through the EEPROM or through the optional microcontroller (see here below). The DWAM79_D2D holds an optional serial EEPROM (ST M24C64) or an optional microcontroller (Philips P89LPC920FDH). The EEPROM can be used in receiver units as a boot device where a microcontroller is not required. The microcontroller can run application software for more advanced applications. This yields full application flexibility in terms of configuration, data message transfer, GPIO management and link control. DWAM79 D2D Datasheet Rev1.3 020606 1.3 Basic Features: ƒ Secure, wide band, scrambled digital 2.4GHz wireless link in the world-wide license exempt 2400-2483.5 MHz ISM-band. ƒ Digital audio: o uncompressed audio (44.1ksps or 48ksps, 16bit) o or optional proprietary low latency compression algorithm o up to 4 audio streams ƒ Low latency (configurable from 5...17ms) ƒ Advanced dedicated base band controller to provide an enhanced level of robustness against both in- and out of band interferers: o Microwave ovens o WLAN (802.11.x) o 2.4GHz cordless phones o Bluetooth (class I, II, III) o GSM telephones o DECT telephones ƒ In-room or multi-room usage (point to multi-point is also supported) ƒ Possibility to combine up to 3 CU’s, yielding wireless audio network serving up to 12 audio streams ƒ I 2 S and S/PDIF input/output ƒ Programmable digital audio gain ƒ Soft audio muting under poor link circumstances ƒ Bi-directional data channel ƒ Wirelessly accessible registers (e.g. RF channel switching, audio volume) ƒ Wirelessly accessible GPIO (e.g. user control switches, LED indicators) ƒ Automatically controlled receiver/transmitter antenna spatial diversity ƒ Automatic frequency allocation ƒ WLAN sniffer to detect WLAN frequency and to select non-interfering frequency ƒ Compliance with applicable European and US American laws, especially EN 300 328 and FCC Part 15.247 ƒ I 2 C control bus ƒ Efficient link quality monitoring ƒ Power Down Duty Cycle mode: If no link is established, modules (both TX and RX) will enter PDDC mode. In this mode the module periodically tries to re-establish the link maintaining minimum power consumption ƒ Pairing Function: All units in the same wireless audio network are provided with a 16 bit network ID, shielding the network from neighbor audio networks. DWAM79 D2D Datasheet Rev1.3 020606 1.4 Example Applications 1. Wireless 4 Channel Audio System ƒ High quality, uni-directional 4 channel audio link ƒ Bi-directional data traffic 2. Wireless Stereo System ƒ Add any number of speakers/headsets to tune in on wireless audio ƒ High quality uni-directional 2-channel audio ƒ Bi-directional data traffic ƒ Multi-room, multi-speaker (point-to-multipoint) functionality 3. Wireless Headphone System ƒ High quality, stereo uni-directional audio link with multi-room, multi-speaker functionality ƒ Bi-directional data traffic, low power consumption receiver 4. Wireless Microphone System ƒ High quality, mono uni-directional audio link ƒ Bi-directional data traffic, low power consumption transmitter DWAM79 D2D Datasheet Rev1.3 020606 System Specifications ID Parameter Value Unit Remarks RF Characteristics RF frequency range 2400- 2483.5 MHz Number of RF channels 3 Air framing Addressing 12 Bit Data message size 16 or 8 Byte CRC 16, 24 and 32 Bit Hybrid Control Control interface I 2 C Compliant with the I2C protocol (slave), 0...400kbps. Base address 0x80, can be offset by A0 and A1 HW pins. Data Bandwidth 20 Kbps Bi-directional wireless data channel Data latency 15 ms Maximum Li…

Text truncated - open the document above for the full version.

Maximum Permissible Exposure - 2412MHz Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2412MHz (Vertical) EIRP 0.02Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.040W/m 2 - or - 0.0040mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.0397886W/m 2 - or - 0.0040mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2 Maximum Permissible Exposure Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2412MHz (Horizontal) EIRP 0.065Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.129W/m 2 - or - 0.0129mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.1293131W/m 2 - or - 0.0129mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2 Maximum Permissible Exposure - 2438MHz Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2438MHz (Horizontal) EIRP 0.061Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.121W/m 2 - or - 0.0121mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.1213554W/m 2 - or - 0.0121mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2 Maximum Permissible Exposure Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2438MHz (Vertical) EIRP 0.018Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.036W/m 2 - or - 0.0036mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.0358098W/m 2 - or - 0.0036mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2 Maximum Permissible Exposure - 2464MHz Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2464MHz (Vertical) EIRP 0.011Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.022W/m 2 - or - 0.0022mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.0218838W/m 2 - or - 0.0022mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2 Maximum Permissible Exposure Power Density = EIRP / (4 * Pi * R 2 ) EIRP Calculated in Test Report Controlled/Occupational & Uncontrolled Exposure Operating Frequency 2464MHz (Horizontal) EIRP 0.04Watts Separation Distance 0.2m -or- 7.874inches Peak Power Density 0.080W/m 2 - or - 0.0080mW/cm 2 Exposure % (over 30 minute timespan for occupational exposure) 100% Transmit Duty Cycle (Peak-to- Average Ratio) 100% Average Power Density 0.0795773W/m 2 - or - 0.0080mW/cm 2 Limit for Controlled/Occupational Exposure at Operating Frequency 50W/m 2 - or - 5mW/cm 2 Limit for Uncontrolled Exposure at Operating Frequency 10W/m 2 - or - 1mW/cm 2

Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. to public safety and committed to Melville, NY 11747 quality service for over 100 years Tel: (631) 271-6200 Fax: (631)439-6095 Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 740133 File Number: MC8319 Date: 17 Dec 07 Model: M812 FCC ID: VJS-M812 Electromagnetic Compatibility Test Report For Altec Lansing Technologies Copyright © 2007 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Job Number: 740133 File Number: MC8319 Page 2 of 159 Model Number: M812 FCC ID: VJS-M812 Client Name: Altec Lansing Technologies Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: Altec Lansing Technologies P. O. Box 277 Milford, PA 18337 Applicant Contact: STEVE BACHO Phone: 570-296-1310 E-mail: [email protected] Test Report Date: 17 Dec 07 Product Type: Wireless Speaker System Product standards FCC Part 15, Subpart C, 15.247 Model Number: M812 Sample Serial Number: Prototype EUT Category: Digital Transmitter Testing Start Date: 19 July 07 Date Testing Complete: 16 Dec 07 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Job Number: 740133 File Number: MC8319 Page 3 of 159 Model Number: M812 FCC ID: VJS-M812 Client Name: Altec Lansing Technologies Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007 Report Directory 1.0 G E N E R A L - Product Description..................................................................................................................4 1.1 Equipment Description ...................................................................................................................................4 1.2 Equipment Marking Plate ...............................................................................................................................4 1.3 Device Configuration During Test ..................................................................................................................5 1.3.1 Equipment Used During Test:....................................................................................................................5 1.3.2 Input/Output Ports:.....................................................................................................................................5 1.3.3 EUT Internal Operating Frequencies: ........................................................................................................6 1.3.4 Power Interface: .........................................................................................................................................6 1.4 Block Diagram: ...............................................................................................................................................7 1.5 EUT Configurations ........................................................................................................................................7 1.6 EUT Operation Modes....................................................................................................................................8 2.0 Summary ............................................................................................................................................................9 2.1 Deviations from standard test methods..........................................................................................................9 2.2 Device Modifications Necessary for Compliance ...........................................................................................9 2.3 Reference Standards .................................................................................................................................. 10 2.4 Results Summary ........................................................................................................................................ 10 3.0 Calibration of Equipment Used for Measurement ........................................................................................... 11 4.0 EMISSIONS TEST RESULTS ......................................................................................................................... 11 4.1 Test Conditions and Results – Mains Terminal – Conducted Emissions................................................... 12 4.2 Test Conditions and Results – Occupied Bandwidth .................................................................................. 50 4.3 Test Conditions and Results – Bandedge Measurement............................................................................ 54 4.4 Test Conditions and Results – Peak Pow…
