VJS-MN5000Wireless 2T2R Module

EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 Product Specification Model Name: EW-7722MUN Product: 300N Wireless LAN USB Module Date of Release :2011/9/5 Version : V1.0A EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 1 1. Introduction z Scope This document describes the EW-7722MUN V1.0A 802.11 b/g/n 2T2R 300N Wireless LAN module with USB interface hardware and software specifications. z Product Features • Comply with IEEE 802.11 b/g/n standards. • High transfer data rate – up to 300Mbps. • Farther coverage, less dead spaces and higher throughput with MIMO technology. • Enable xDSL router, Cable Modem, Set Top Box, or Multi-Media devices, etc. to have 11n Wi-Fi capability. • Supports QoS – WMM, WMM Power saving. • Supports USB 2.0/1.1 interface. • 4-PIN Pin-header form factor design for USB interface. EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 2 2. Product Specification Product 2T2R 300N Wireless LAN USB Module Model Name: EW-7722MUN V1.0A Main Chipset Ralink RT3072 Single Chip Standard IEEE 802.11 b/g/n Interface Type USB2.0/4 PIN-header design with USB interface Frequency Band 2.4000~2.4835GHz (subject to local regulations) Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM (11n) OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) BPSK, QPSK, CCK (11b) Data Rate 11b: 1/2/5.5/11Mbps 11g: 6/9/12/24/36/48/54Mbps 11n (20MHz): MCS0-15, up to 144Mbps 11n (40MHz): MCS0-15, up to 300Mbps auto fallback. Antenna I-PEX Connector x 2 (2T2R MIMO Technology) Power Consumption Voltage: 5V Idle: 110mA 11b/g: Max. 1.6W 11n: Max. 1.3W Transmit Power 11b:18±1.5dBm 11g:23±1.5dBm 11n(20MHz):24±1.5dBm 11n(40MHz):24±1.5dBm Receive Sensitivity 11b@11Mbps: -86±2dBm 11g@54Mbps:-70±2dBm 11n(20MHz, MCS7):-66±2dBm 11n(40MHz, MCS7):-64±2dBm Dimension 46.5(W) x 15(D) x 1.0(H)mm (4 Layers PCB) Temperature Operating: -4~131°F (-20~55°C) Storage: -13~140°F (-25~60°C) Humidity Operating: 10~90% (NonCondensing) Storage: Max.95% (NonCondensing) EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 4 z Mechanical Diagram EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 5 z Module photography z Main Chipset Information Item Model Number Vendor MAC/BBP/RF RT3072 Ralink z Main Chipset Specification MAC/Baseband/RF Processor The RT3072 is a highly integrated MAC/BBP and 2.4GHz RF single chip with 300Mbps PHY rate supporting. It fully complies with IEEE802.11n and IEEE 802.11b/g standards, delivers reliable, cost-effective, feature rich wireless connectivity at high throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient USB engine and hardware data processing accelerators without overloading the host processor. The RT3072 is designed to support standard based features in the areas of security, quality of service and EDIMAX TECHNOLOGY INC. NO.3, WU-CHUAN 3rd RD, WU-KU INDUSTRIAL PARK, TAIPEI HSIEN, TAIWAN. R.O.C. TEL: 886-2-7739-6888 FAX: 886-2-7739-6887 6 international regulation, giving end users the greatest performance anytime in any circumstance. RT3072 MAC/BBP/RF Features • 802.11n MAC/BBP/RF Interface ¾ 2T2R 802.11n MAC/BBP/RF integrated. ¾ 300Mbps PHY data rate for both transmit and receiving. ¾ 20MHz/40MHz channel bandwidth. ¾ Reverse direction data flow and frame aggregation. ¾ WEP 64/128, WPA, WPA2 ¾ Bluetooth Co-existence ¾ Multiple BSSID Support ¾ QOS - WMM, WMM Power Saving ¾ Cisco CCX Support up to v5.0 ¾ Low power with advanced power management ¾ Operating systems – Windows XP, 2000, Vista, Linux, MAC • Packaging ¾ 9mm x 9mm QFN-76LD Package ¾ I/O : 5V(USB) Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 3/16/2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Wireless 2T2R Module Model Number: EW-7722MUN-IP FCC ID: VJS-MN5000 We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

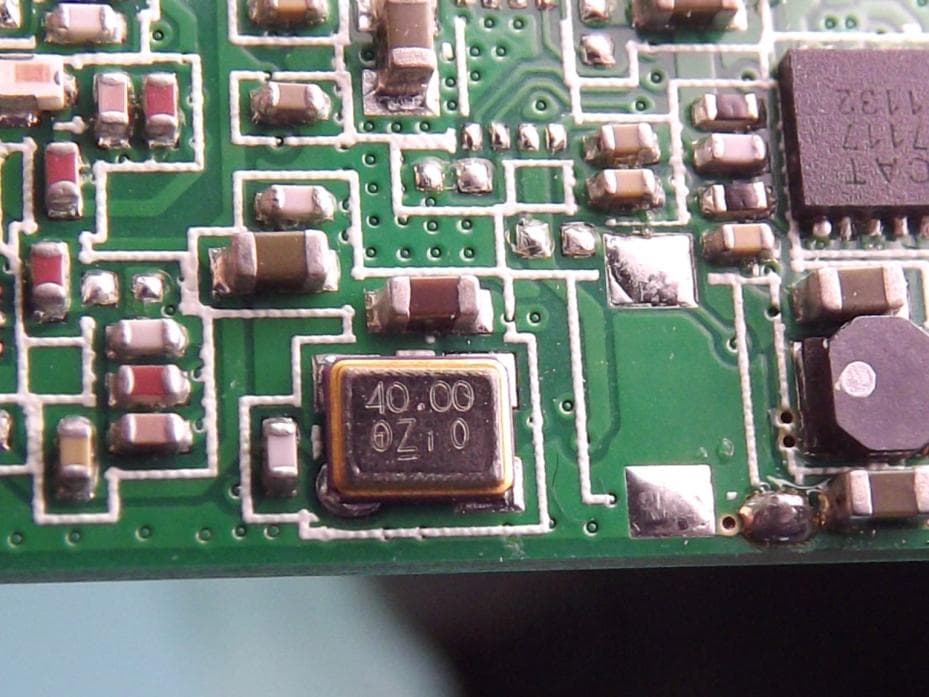

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C7 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 06, 2012 FAX : 886-2-2696-2255

Page No. : 1 of 3 FCC ID : VJS-MN5000 FCC TEST REPORT Report No. : FR1N2832 Appendix A. RF Exposure Evaluation Page No. : 2 of 3 FCC ID : VJS-MN5000 FCC TEST REPORT Report No. : FR1N2832 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : 3 of 3 FCC ID : VJS-MN5000 FCC TEST REPORT Report No. : FR1N2832 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for 2.4GHz Mobile For Single Chain: IEEE 802.11b Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.462 20 4.59 2.877398 19.82 95.9401 0.0549 IEEE 802.11g Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.437 20 4.59 2.877398 23.52 224.9055 0.1288 For Two Chains: Configuration ofIEEE 802.11n (20MHz) Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.437 20 4.59 2.877398 24.86 306.1963 0.1754 Configuration ofIEEE 802.11n (40MHz) Operating Frequency (GHz) Min. User Distance (cm) Gain (dBi) Numeric Gain Output Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.422 20 4.59 2.877398 24.73 297.1666 0.1702

SPORTON International Inc. Report Format Version: a FCC TEST REPORT Report No. : FR1N2832 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Wireless 2T2R Module Brand Name : Altec Lansing Model No. : EW-7722MUN-IP Filing Type : New Application Applicant : Altec Lansing, LLC 9330 Scranton Road, Suite 600, San Die go CA 92121 FCC ID : VJS-MN5000 Manufacturer : EDIMAX TECHNOLOGY CO., LTD. No.3,Wu-Chuan 3rd Road,Wu-Ku Industrial Park, New Taipei Cit y, Taiwan Received Date: Dec. 12, 2011 Final Test Date : Jan. 04, 2012 Statement Test result included is only for the 802.11b/g/n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 15, 2012 FAX : 886-3-318-0055 FCC ID : VJS-MN5000 FCC TEST REPORT Report No. : FR1N2832 Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details .........................................................................................................................................................................................3 2.2 Table for Filed Antenna ............................................................................................................................................................................3 2.3 Table for Carrier Frequencies ..................................................................................................................................................................4 2.4 Table for Test Modes ...............................................................................................................................................................................5 2.5 Table for Testing Locations ......................................................................................................................................................................5 2.6 Table for Supporting Units .......................................................................................................................................................................5 2.7 Table for Parameters of Test Software Setting ........................................................................................................................................6 2.8 EUT Operation during Test ......................................................................................................................................................................6 2.9 Test Configuration ....................................................................................................................................................................................7 3 TEST RESULT ......................................................................................................................................................... 9 3.1 AC Power Line Conducted Emissions Measurement ..............................................................................................................................9 3.2 Maximum Peak Output Power Measurement ........................................................................................................................................13 3.3 Power Spectral Density Measurement ...................................................................................................................................................16 3.4 6dB Spectrum Bandwidth Measurement ...............................................................................................................................................31 3.5 Radiated Emissions Measurement ........................................................................................................................................................58 3.6 Band Edge and Fundamental Emissions Measurement ........................................................................................................................88 3.7 Antenna Requirements ..........................................................................................................................................................................99 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................ 100 5 TEST LOCATION ................................................................................................................................................. 102 6 TAF CERTIFICATE OF ACCREDITATION ......................................................................................................... 103 APPENDIX A. RF EXPOSURE EVALUATION ............................................................................................... A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B6 APPENDIX C. PHOTOGRAPHS OF EUT ....................................................................................................... C1 ~ C7 SPORTON International Inc. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Mar. 15, 20…

Text truncated - open the document above for the full version.

Page No. : B1 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 Appendix B. Test Photos Page No. : B2 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Page No. : B3 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 SIDE VIEW Page No. : B4 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW Page No. : B6 of B6 FCC ID : VJS-MN5000 F FCC TEST REPORT Report No. : FR1N2832 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
