VKF-RAD87Pulse CO-Oximeter

Non-Conformities FCC ID: VKF-RAD87 (CKC CS Ref # E07-000096-FCC-01) The items listed below represent requests for information followi ng review of this application for certification under United States (FCC) regulations. . Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response Respondent / Date of Response x 1 The FCC logo printed in the users manual and on the label is inappropriate for this equipment. The FCC logo is reserved for equipment authorized under Declaration of Conformity; it is not a mark of compliance for the radio portion of the equipment. For more information review 15.19(a) and the following website: http://www.fcc.gov/oet/ea/Labelling_Guidelines_Parts_15_and_18.pdf Please remove the FCC logo from both the label and the users manual. Updated label provided. CKC Labs 10/19/07 x 2 The test report indicates on page 7 that voltage variations were measured on 802.11b mode only. Please clarify why 802.11g mode was not investigated. Updated test report provided. CKC Labs 10/19/07 x 3 The test report indicates on pages 32-34 that the resolution bandwidth used for measurement does not agree with the prescribed test procedure in KDB 558074 Updated test report provided. CKC Labs 10/19/07 x 4 The test report indicates on pages 51-52 that the spec limit is inconsistent with the 20dBc requirement. Please clarify the spec limit used. Updated test report provided. CKC Labs 10/19/07 x 5 The test report indicates the use of only a spectrum analyzer in the test equipment for the following tests: 15.31, 15.247(a)(2), 15.247(b), 15.247(e), 15.247(Occupied Bandwidth), 15.407(a) Occupied bandwidth, 15.407(a)(1), 15.407(a)(3), 15.407(a)(5) 15.407(a)(6), and 15.407(b). In some cases, it is clear that the cable insertion loss is unaccounted, however it is unclear for other cases. Please provide a revised test report as appropriate to accurately include all necessary insertion losses of the measurement system in accordance with ISO Guide 17025 and measurement procedures ANSI C63.4, DA02-2138 and KDB 558074. Updated test report provided. CKC Labs 10/19/07 x 6 Additional to item 5, on page 61 of the test report, the band edge measurements are clearly using 15.209 spec limits, however only a spectrum analyzer is listed for the test equipment. Please clarify how the test was performed. Please explain how the data represents compliance with the requisite specifications. Updated test report provided. CKC Labs 10/19/07 x 7 Please clarify the spec limit applied for 15.407(a)(1) Updated test report provided. CKC Labs 10/24/07 x 8 The test report indicates on page 77 a spec limit for spectral density which is inconsistent with the requirements Updated test report provided. CKC Labs 10/24/07 of 15.407(a). Please explain and revise test report as necessary. x 9 Please provide demonstration of compliance for 15.407(c), “(c) The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the tr ansmission of control or signalling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met.” The Rad-87 (device with optional radio) wirelessly transmits real-time sensor connectivity status, indicating a connect and/or disconnect state. If the device is in a failure mode then the radio power is disabled and an error message is indicated on the device display. The device does not have a powered state where no information is transmitted. CKC Labs 10/19/07 RF Safety concerns: x 10 Please clarly identify body worn accessories used with this equipment Updated manual provided. CKC Labs 10/24/07 x 11 Please provide users manual statements regarding user conditions for satisfying RF exposure complince (eg, the device must be used in body worn configurations only....) Updated manual provided. CKC Labs 10/24/07 x 12 The RF exposure report indicates testing performed without the use of test modes. Please identify the associated equipment used for this test and declare the duty cycle The statement listed below in black was taken from page 17 "Procedures Used to Establish Test Signal." The CKC Labs 10/19/07 used for measurement. statement is not what is in the report. What is written in the report is "When test modes are not available or inappropriate for testing a device, the actual transmission is activated through a base station simulator or similar equipment." The report then states "See data pages for actual procedure used in measurement." On each of the data summary pages (pgs. 19, 20, 21), item #3 is the Test Signal Call Mode used during the test. I have checked the Test code for each of the frequencies. The requirement of the SAR test standards require the testing to be conducted at 100% duty cycle.

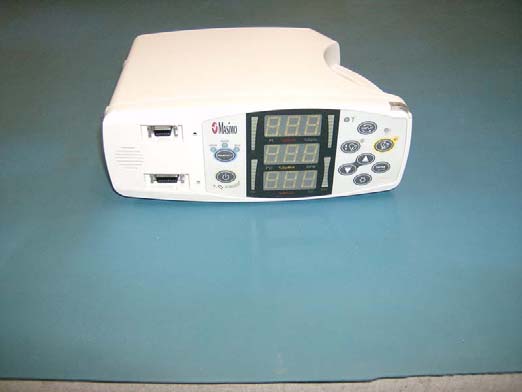

External Photos HPIM1134 HPIM1133 HPIM1131 HPIM1132 HPIM1156

MEDICAL ELECTRICAL EQUIPMENT UL 60601-1/CAN/CSA C22.2 No. 601.1 80FK Title: Label, Certifications, FCC, UL, Rad-87 LAB-4729 Revision: A DRO-18561 10/07 32133/4729A-1007 100-240v~50-60 Hz 15VA MAX100-240v~50-60 Hz 15VA MAX P2 RS-232 P1 Made in USA Manufactured by: Masimo Corporation Irvine, CA 92618 USA Rx Only Covered by one or more of the following U.S. Patents: RE38,492, RE38,476, 6,850,787, 6,826,419, 6,816,741, 6,699,194, 6,684,090, 6,658,276, 6,654,624, 6,650,917, 6,643,530, 6,606,511, 6,501,975, 6,463,311, 6,430,525, 6,360,114, 6,263,222, 6,236,872, 6,229,856, 6,206,830, 6,157,850, 6,067,462, 6,011,986, 6,002,952, 5,919,134, 5,823,950, 5,769,785, 5,758,644, 5,685,299, 5,632,272, 5,490,505, 5,482,036, international equivalents, or one or more of the patents referenced at www.masimo.com/patents. Other patents pending. Distributed by: Masimo Corporation Irvine, CA 92618 USA FCC ID: VKF-RAD87FCC ID: VKF-RAD87 IC: 7362A-RAD87IC: 7362A-RAD87

Title: Label, FCC Part 15 Statement LAB-4730 Revision: A DRO-XXXXX 09/07 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 32134/4730A-0907 .75 3.125

Internal Photos HPIM1136 HPIM1137 HPIM1140 HPIM1141 HPIM1143 HPIM1144 HPIM1157 HPIM1166 HPIM1168 HPIM1169 HPIM1170 HPIM1171 HPIM1172 HPIM1173 HPIM1174 HPIM1175 HPIM1176 HPIM1177 HPIM1178 HPIM1179 HPIM1180 HPIM1181 HPIM1182 HPIM1183 HPIM1184 HPIM1185 HPIM1186 HPIM1187

© 2007 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Masimo Corporation Dates of Test: September 27, 2007 40 Parker Test Report Number: SAR.20070905 Irvine, CA 92618 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: VKF-RAD87 IC Certificate: 7362A-RAD87 Model(s): Rad-87 Silex WLAN: Model: SX-550 Test Sample: Production Serial No.: 0873107.2 Equipment Type: Wireless Vital Signs Monitor Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz, 5180 – 5250 MHz, 5745 – 5825 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 2450 MHz – 15.5 dBm, 5200 MHz – 10.7 dBm, 5800 MHz – 7.6 dBm Conducted Signal Modulation: DSSS, OFDM Antenna Type (Length): Welch Allyn P/N 031-0168-00 Battery: Power Sonic Model PS-612 Application Type: Certification FCC Rule Parts: Part 15E Industry Canada: RSS-102 FCC ID: VKF-RAD87 © 2007 RF Exposure Lab, LLC Page 2 of 111 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup .....................................................................................................4 Robotic System .........................................................................................................................4 System Hardware .....................................................................................................................4 System Description ...................................................................................................................4 E-Field Probe ............................................................................................................................5 3. Robot Specifications .............................................................................................................7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................9 SAM Phantom ...........................................................................................................................9 Brain & Muscle Simulating Mixture Characterization ................................................................9 Device Holder ...........................................................................................................................9 6. Definition of Reference Points.............................................................................................10 Ear Reference Point................................................................................................................10 Device Reference Points ........................................................................................................10 7. Test Configuration Positions ...............................................................................................11 Positioning for Cheek/Touch [5] ..............................................................................................11 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................12 Body Worn Configurations ......................................................................................................13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................14 Uncontrolled Environment.......................................................................................................14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ...................................................................................................15 10. System Validation ........................................................................................................... 16 Tissue Verification...................................................................................................................16 Test System Verification ......................................................................................................... 16 11. SAR Test Data Summary ................................................................................................17 Procedures Used To Establish Test Signal.............................................................................17 Device Test Condition ........................................…

Text truncated - open the document above for the full version.

Page 1 of 116 Report No.: FC07-076 MASIMO CORPORATION TEST REPORT FOR THE RAD-87 PULSE CO-OXIMETER FCC PART C SECTIONS 15.207, 15.209, 15.247 & 15.407 AND RSS-210 ISSUE 7 TESTING DATE OF ISSUE: OCTOBER 9, 2007 PREPARED FOR: Masimo Corporation 40 Parker Irvine, CA 92618 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 535944 W.O. No.: 86964 Date of test:September 13-28, 2007 Report No.: FC07-076 This report contains a total of 116 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 116 Report No.: FC07-076 TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 Conditions During Testing...............................................................................................3 Summary of Results .........................................................................................................4 FCC 15.33(a) Frequency Ranges Tested .........................................................................5 FCC 15.203 Antenna Requirements ................................................................................5 EUT Operating Frequency ...............................................................................................5 Temperature And Humidity During Testing....................................................................5 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Report of Emissions Measurements.................................................................................6 Testing Parameters...............................................................................................6 FCC 15.31(e) Voltage Variation..........................................................................8 FCC 15.207 Conducted Emissions ......................................................................15 FCC 15.209 Radiated Emissions .........................................................................22 FCC 15.247(a)(2) 6dB Bandwidth.......................................................................33 FCC 15.247(b)(3) RF Power Output ...................................................................37 FCC 15.247(d) Antenna Conducted Spurious Emissions....................................47 FCC 15.247(e) Power Spectral Density...............................................................59 Band Edge ............................................................................................................63 FCC 15.247 Occupied Bandwidth .......................................................................65 FCC 15.407(a) Occupied Bandwidth...................................................................69 FCC 15.407(a)(1) Power Limits ..........................................................................73 FCC 15.407(a)(3) Power Limits ..........................................................................76 FCC 15.407(a)(5) Peak Power Spectral Density .................................................79 FCC 15.407(a)(6) Peak Excursion .......................................................................83 FCC 15.407(b) Antenna Conducted Undesirable Emission Limits.....................87 FCC 15.407(b) OATS Undesirable Emission Limits ..........................................101 FCC 15.407(g) Frequency Stability.....................................................................116 Page 3 of 116 Report No.: FC07-076 ADMINISTRATIVE INFORMATION DATE OF TEST: September 13-28, 2007 DATE OF RECEIPT: September 13, 2007 REPRESENTATIVE: George Pierpont MANUFACTURER: Masimo Corporation 40 Parker Irvine, CA 92618 TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 TEST METHOD: ANSI C63.4 (2003), RSS-210 Issue 7 and RSS GEN Issue 2 PURPOSE OF TEST: To perform the testing of the RAD-87 Pulse CO-Oximeter with the requirements for FCC Part C Sections 15.207, 15.209, 15.247 & 15.407 and RSS-210 devices. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE: TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Septimiu Apahidean, EMC Engineer CONDITIONS DURING TESTING For radiated emissions, the nurse call cable and RS232 cable have a Ferrite # 0444164281. Page 4 of 116 Report No.: FC07-076 SUMMARY OF RESULTS Test Specification/Method Results Voltage Variation FCC 15.31(e) Pass Conducted Emissions FCC 15.207 Pass Radiated Emissions FCC 15.209 Pass 6 dB Bandwidth FCC 15.247(a)(2) Pass RF Power Output FCC 15.247(b)(3) Pass Antenna Conducted Spurious Emissions FCC 15.247(d) Pass Power Spectral Density FCC 15.247(e) FCC 15.407(a)(5) Pass Band Edge ITU-R 55/1 Pass Occupied Bandwidth FCC 15.247 FCC 15.407(a) Pass Power Limits FCC 15.407(a)(1) FCC 15.407(a)(3) Pass Peak Excursion FCC 15.407(a)(6) Pass Antenna Conducted Undesirable Emissions FCC 15.407(b) Pass Oats Undesirable Emissions FCC 15.407(b) Pass Frequency Stability FCC 15.407(g) Pass Page 5 of 116 Report No.: FC07-076 FCC 15.33(a) Frequency Ranges Tested 15.207 Conducted Emissions: 150 kHz – 30 MHz 15.209 Radiated Emissions: 9 kHz – 40 GHz 15.247 Emissions: 9 kHz – 40 GHz 15.407 Emissions: 9 kHz – 40 GHz FCC 15.203 Antenna Requirements The antenna is an integral part of the EUT and is non-removable; therefore the EUT complies with Section 15.203 of the FCC rules. EUT Operating Frequency The EUT was opera…

Text truncated - open the document above for the full version.

Page 30 of 116 Report No.: FC07-076 Test Location: CKC Laboratories, Inc. •110 N Olinda Place • Brea, CA 92823 • 714-993-6112 Customer: Masimo Corporation Specification: FCC 15.209 Work Order #: 86964 Date: 9/25/2007 Test Type: Radiated Scan Time: 10:04:49 Equipment: Pulse Rate Monitor Sequence#: 19 Manufacturer: Masimo Corp Tested By: Sep Apahidean Model: RAD-87 S/N: 804173 Test Equipment: Function S/N Calibration Date Cal Due Date Asset # Antenna cable Cable#17 09/19/2006 09/19/2008 P04382 Horn Antenna 9603-4683 06/29/2006 06/29/2008 01646 Microwave Pre-amp 3123A00282 06/05/2007 06/5/2009 00787 Cable Big Blue 12237/4A 11/28/2005 11/28/2007 P05421 Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Antenna Cable Hi Freq 09/18/2006 09/18/2008 P05563 Equipment Under Test (* = EUT): Function Manufacturer Model # S/N Pulse Rate Monitor* Masimo Corp RAD-87 804173 Support Devices: Function Manufacturer Model # S/N Laptop IBM ThinkPAD 2366 99-TGPV9 Test Conditions / Notes: The EUT is on the table and all the probes and cables are connected to the unit. The Serial cable is connected to the laptop computer, which is used to change the TX characteristics. Worst case is where the unit is vertical to the table, and 11MBits data rate. 802.11B, Channel 1, 11Mbits. Frequency range tested: 9 kHz – 40 GHz. Transducer Legend: T1=Cable_#P5421_112807 T3=Horn 01646_062908 T5=84' Heliax Cable P04382 T2=Preamplifier 83017A 00787 T4=48' Heliax Cable 091808 P05563 Measurement Data: Reading listed by margin. Test Distance: 3 Meters # Freq Rdng T1 T5 T2 T3 T4 Dist Corr Spec Margin Polar MHz dBμV dB dB dB dB Table dBμV/m dBμV/m dB Ant 1 2390.000M 48.9 +0.0 48.5 54.0 -5.5 Vert Ave +1.4 +5.7 -39.0 +28.3 +3.2 ^ 2390.000M 60.3 +0.0 59.9 54.0 +5.9 Vert +1.4 +5.7 -39.0 +28.3 +3.2 3 2388.174M 48.8 +0.0 48.4 54.0 -5.6 Vert Ave +1.4 +5.7 -39.0 +28.3 +3.2 ^ 2388.170M 60.9 +0.0 60.5 54.0 +6.5 Vert +1.4 +5.7 -39.0 +28.3 +3.2 Page 31 of 116 Report No.: FC07-076 5 2397.170M 73.2 +0.0 72.8 80.0 -7.2 Vert +1.4 +5.7 -39.0 +28.3 +3.2 6 2399.200M 73.0 +0.0 72.7 80.0 -7.3 Vert +1.4 +5.7 -39.0 +28.4 +3.2 7 2400.000M 72.6 +0.0 72.3 80.0 -7.7 Vert +1.4 +5.7 -39.0 +28.4 +3.2 8 2390.500M 60.4 +0.0 60.0 80.0 -20.0 Vert +1.4 +5.7 -39.0 +28.3 +3.2 Page 32 of 116 Report No.: FC07-076 Test Location: CKC Laboratories, Inc. •110 N Olinda Place • Brea, CA 92823 • 714-993-6112 Customer: Masimo Corporation Specification: FCC 15.209 Work Order #: 86964 Date: 9/25/2007 Test Type: Radiated Scan Time: 09:43:16 Equipment: Pulse Rate Monitor Sequence#: 18 Manufacturer: Masimo Corp Tested By: Sep Apahidean Model: RAD-87 S/N: 804173 Test Equipment: Function S/N Calibration Date Cal Due Date Asset # Antenna cable Cable#17 09/19/2006 09/19/2008 P04382 Horn Antenna 9603-4683 06/29/2006 06/29/2008 01646 Microwave Pre-amp 3123A00282 06/05/2007 06/5/2009 00787 Cable Big Blue 12237/4A 11/28/2005 11/28/2007 P05421 Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Antenna Cable Hi Freq 09/18/2006 09/18/2008 P05563 Equipment Under Test (* = EUT): Function Manufacturer Model # S/N Pulse Rate Monitor* Masimo Corp RAD-87 804173 Support Devices: Function Manufacturer Model # S/N Laptop IBM ThinkPAD 2366 99-TGPV9 Test Conditions / Notes: The EUT is on the table and all the probes and cables are connected to the unit. The Serial cable is connected to the laptop computer, which is used to change the TX characteristics. Worst case is where the unit is vertical to the table, and 11MBits data rate. 802.11B, Channel 11, 11Mbits. Frequency range tested: 9 kHz – 40 GHz. Transducer Legend: T1=Cable_#P5421_112807 T3=Horn 01646_062908 T5=84' Heliax Cable P04382 T2=Preamplifier 83017A 00787 T4=48' Heliax Cable 091808 P05563 Measurement Data: Reading listed by margin. Test Distance: 3 Meters # Freq Rdng T1 T5 T2 T3 T4 Dist Corr Spec Margin Polar MHz dBμV dB dB dB dB Table dBμV/m dBμV/m dB Ant 1 2483.917M 53.2 +0.0 53.4 54.0 -0.6 Vert Ave +1.4 +5.9 -39.0 +28.7 +3.2 2 2483.500M 53.1 +0.0 53.3 54.0 -0.7 Vert Ave +1.4 +5.9 -39.0 +28.7 +3.2 ^ 2483.500M 56.0 +0.0 56.2 54.0 +2.2 Vert +1.4 +5.9 -39.0 +28.7 +3.2 4 2484.310M 52.9 +0.0 53.1 54.0 -0.9 Vert Ave +1.4 +5.9 -39.0 +28.7 +3.2 5 2484.487M 52.7 +0.0 52.9 54.0 -1.1 Vert Ave +1.4 +5.9 -39.0 +28.7 +3.2 Page 33 of 116 Report No.: FC07-076 FCC 15.247(a)(2) 6dB BANDWIDTH Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/04/2007 01/04/2009 02672 Cable Huber & Suhner 12237/4A 11/28/2005 11/28/2007 P05421 Programmable Power Source 01695/01696 05/15/07 05/15/09 250 / 245 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX characteristics. The bandwidth chosen were accordingly 1-3% of the occupied bandwidth. The data taken with 100kHz would produce results which also demonstrate compliance with the minimum 500kHz requirement. There is a 1.4 dB offset to correct for the cable. Summary Table Channel Mode Bandwidth MHz Limit MHz 1 802.11b 11.756 Minimum 500 kHz 7 802.11b 11.714 Minimum 500 kHz 11 802.11b 11.802 Minimum 500 kHz 1 802.11g 16.484 Minimum 500 kHz 7 802.11g 16.880 Minimum 500 kHz 11 802.11g 16.650 Minimum 500 kHz The minimum 6 dB bandwidth shall be at least 500 kHz. Page 34 of 116 Report No.: FC07-076 Test Plots FCC 15.247(a)(2) - CHANNEL 1 - 11 MBit 802.11b FCC 15.247(a)(2) - CHANNEL 7 - 11 MBit 802.11b Page 35 of 116 Report No.: FC07-076 FCC 15.247(a)(2) - CHANNEL 11 - 11 MBit 802.11b FCC 15.247(a)(2) - CHANNEL 1 - 6 MBit 802.11g Page 36 of 116 Report No.: FC07-076 FCC 15.247(a)(2) - CHANNEL 7 - 6 MBit 802.11g FCC 15.247(a)(2) - CHANNEL 11 - 6 MBit 802.11g Page 37 of 116 Report No.: FC07-076 FCC 15.247(b)(3) RF POWER OUTPUT Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Attenuator, 20 dB Pad 01432 09/13/2007 09/13/2…

Text truncated - open the document above for the full version.

Page 60 of 116 Report No.: FC07-076 Test Plots FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 1 802.11b FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 7 802.11b Page 61 of 116 Report No.: FC07-076 FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 11 802.11b FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 1 802.11g Page 62 of 116 Report No.: FC07-076 FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 7 802.11g FCC 15.247(e) POWER SPECTRAL DENSITY – CHANNEL 11 802.11g Page 63 of 116 Report No.: FC07-076 BAND EDGE Test Equipment Function S/N Calibration Date Cal Due Date Asset # Antenna cable Cable#17 09/19/2006 09/19/2008 P04382 Horn Antenna 9603-4683 06/29/2006 06/29/2008 01646 Microwave Pre-amp 3123A00282 06/05/2007 06/5/2009 00787 Cable Big Blue 12237/4A 11/28/2005 11/28/2007 P05421 Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Antenna Cable Hi Freq 09/18/2006 09/18/2008 P05563 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX characteristics. Page 64 of 116 Report No.: FC07-076 Test Plots BAND EDGE - CHANNEL 1 at 6 mb 802.11g BAND EDGE - CHANNEL 11 at 6 mb 802.11g Page 65 of 116 Report No.: FC07-076 FCC 15.247 OCCUPIED BANDWIDTH Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/04/2007 01/04/2009 02672 Cable Huber & Suhner 12237/4A 11/28/2005 11/28/2007 P05421 Programmable Power Source 01695/01696 05/15/07 05/15/09 250 / 245 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX characteristics. There is a 1.4 dB offset to correct for the cable. Summary Table Channel MBit Mode Occupied Bandwidth MHz 1 1 802.11b 36.69 7 1 802.11b 35.22 11 1 802.11b 34.65 1 6 802.11g 46.20 7 6 802.11g 44.18 11 6 802.11g 42.89 The occupied bandwidth data was used in order to derive the correct the power measurements reading. Page 66 of 116 Report No.: FC07-076 Test Plots FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 1 - 1 Mbit 802.11b FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 7 - 1 MBit 802.11b Page 67 of 116 Report No.: FC07-076 FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 11 - 1 MBit 802.11b FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 1 - 6 MBit 802.11g Page 68 of 116 Report No.: FC07-076 FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 7 - 6 MBit 802.11g FCC 15.247 OCCUPIED BANDWIDTH - CHANNEL 11 - 6 MBit 802.11g Page 69 of 116 Report No.: FC07-076 FCC 15.407(a) OCCUPIED BANDWIDTH Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Attenuator, 20 dB Pad 01432 09/13/2007 09/13/2009 P01392 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX characteristics. The 32db offset is 20 db for the attenuator, 2 db for the antenna gain. The other 10 db is the bandwidth integration. Summary Table Channel MBit Mode Occupied Bandwidth MHz 36 6 802.11a 16.44 44 6 802.11a 16.48 48 6 802.11a 16.42 149 6 802.11a 16.48 157 6 802.11a 16.35 161 6 802.11a 16.30 Page 70 of 116 Report No.: FC07-076 Test Plots FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 36 - 6 MBit 802.11A FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 44 - 6 MBit 802.11A

Page 71 of 116 Report No.: FC07-076 FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 48 - 6 MBit 802.11A FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 149 - 6 MBit 802.11A Page 72 of 116 Report No.: FC07-076 FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 157 - 6 MBit 802.11A FCC 15.407 OCCUPIED BANDWIDTH - CHANNEL 161 - 6 MBit 802.11A Page 73 of 116 Report No.: FC07-076 FCC 15.407(a)(1) POWER LIMITS Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Attenuator, 20 dB Pad 01432 09/13/2007 09/13/2009 P01392 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX characteristics. The 3 channels in the 5.2 GHz range were tested against the 50mW limit. The 3 channels in the 5.8 GHz range were tested against the 1 W limit. Page 74 of 116 Report No.: FC07-076 Test Plots FCC 15.407(a)(1) POWER LIMITS – CHANNEL 36 – 6 Mbits 802.11a FCC 15.407(a)(1) POWER LIMITS – CHANNEL 44 – 6 Mbits 802.11a Page 75 of 116 Report No.: FC07-076 FCC 15.407(a)(1) POWER LIMITS – CHANNEL 48 – 6 Mbits 802.11a Page 76 of 116 Report No.: FC07-076 FCC 15.407(a)(3) POWER LIMITS Test Equipment Function S/N Calibration Date Cal Due Date Asset # Spectrum Analyzer US44300438 01/03/2007 01/03/2009 02672 Attenuator, 20 dB Pad 01432 09/13/2007 09/13/2009 P01392 Test Setup Photos Test Conditions: The EUT is on the table and all the probes and cables are connected to the unit. Measurements are made by direct connect with the Serial cable connected to the laptop computer, which is used to change the TX char…
