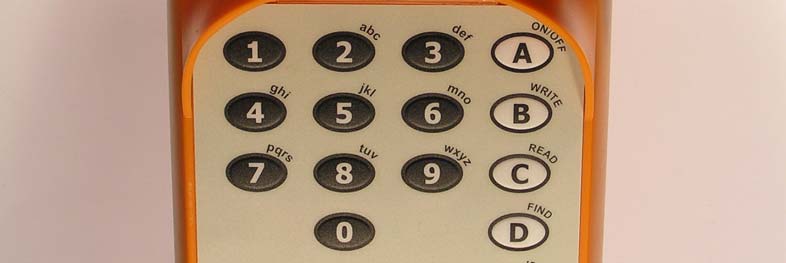

Annex No.5 Page 1 of 36 Functional description RFID Reader HH 500 (Users Interface Description) Mod. AAE-DOC04/1 Rev. 1_01 HANDHELD READER HH500 Users Interface Description AFG ASIA ENGINEERING CO.LTD. 65/12 M.10 T.Tonpao A.Sankumpang Chiangmai, Thailand 50130 Tel: +66 53 390 909 Fax: +66 53 390 910 Website : WWW.AAE.CO.TH 2 Contents : 1. Change Keyboar d picture ..................................................................................... 3 1. Support Bluet ooth Module .................................................................................... 3 1. FCC Stat ement ..................................................................................................... 3 1. Pictures of UHF RFID H andheld Reader HH500 .............................................. 3 2. Pre-installation Precautions ............................................................................... 4 3. Abstract .............................................................................................................. 4 4. General descr iption ........................................................................................... 4 5. Display and displa y Symbols ............................................................................. 4 5.1 Battery status ............................................................................................... 4 6. Keyboard ........................................................................................................... 5 7. Operation ........................................................................................................... 5 7.1 Power ON and OFF ..................................................................................... 5 7.2 Setting the TIME and DATE ........................................................................ 5 7.3 Selecting the kind of tags to read ................................................................ 6 7.4 Identifying t he OWNER ................................................................................ 6 7.5 Reading TAG IDs ......................................................................................... 6 7.6 Entering codes to the reading ...................................................................... 6 7.7 Writing data to tags ...................................................................................... 6 7.8 Reading user data from tags ....................................................................... 7 7.9 Finding tags ................................................................................................. 7 7.10 Setting the unit back to read TAG IDs ...................................................... 7 7.11 Clearing the t ag count ............................................................................... 7 7.12 Viewing the r eadings m ade....................................................................... 7 7.13 Viewing the Firmwa re versions ................................................................. 7 7.14 Downloading records fr om the reader ...................................................... 7 7.14.1 Downloading with an SD card ........................................................... 8 7.14.2 Downloading thr ough RS232 ............................................................ 8 7.14.3 Other download po ssibilitie s ............................................................. 8 8. Configuration ..................................................................................................... 8 8.1 Owner mode ................................................................................................ 8 8.2 Data length and start address ...................................................................... 8 8.3 Date format .................................................................................................. 8 8.4 Language ..................................................................................................... 9 8.5 Reader timeout ............................................................................................ 9 8.6 Speaker ........................................................................................................ 9 8.7 Reader ID ..................................................................................................... 9 8.8 Set TAG type ............................................................................................... 9 8.9 Set time and date ......................................................................................... 9 8.10 Set owner id .............................................................................................. 9 9. Support software (PC Applications)................................................................... 9 9.1 Dot Net Frame work 2 (m anual insta llation) .............................................. 10 9.2 RFID Note (manual installation) ................................................................. 10 9.2.1 Installation RFID Note ......................................................................... 10 9.2.2 Start RFID Note .................................................................................. 11 9.2.3 Connection tab (checking Re ader connection) .................................. 11 9.2.4 Download tab ...................................................................................... 12 9.2.5 Reader Setti ng tab .............................................................................. 13 9.2.5.1 Clock ............................................................................... 13 9.2.5.2 Data length and Start address ......................................... 13 9.2.5.3 Owner and Reader ID ..................................................... 13 9.2.5.4 Control functions ................................................................ 13 9.2.6 Write EPC ta g tab ............................................................................... 14 9.2.6.1 Se…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 21-07-05 RF_501, Issue 3 Page 1 of 1 m.dudde hochfrequenz-technik Rottland 5a 51429 Bergisch Gladbach Germany +49-2207-9689-0 +49-2207-9689-20 [email protected] http://www.dudde.com To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: VLUHH500 Reference number: Aee07/261a Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), m.dudde hochfrequenz-technik hereby requests non- disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: VLUHH500 Block Diagrams Schematic Diagrams Technical description Antenna description Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. m.dudde hochfrequenz-technik understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. 03.01.2008 Bergisch Gladbach Ralf Trepper

Annex No.1 Page 1 of 4 External photographs of the Equipment Under Test Annex No.1 Page 2 of 4 Annex No.1 Page 3 of 4 Annex No.1 Page 4 of 4

Annex No.1 Page 1 of 3 External photographs of the Equipment Under Test Annex No.1 Page 2 of 3 Annex No.1 Page 3 of 3

Annex No.4 Page 1 of 4 Sketch of label location Annex No.4 Page 2 of 4 Label sample Annex No.4 Page 3 of 4 Sketch of label location Annex No.4 Page 4 of 4

Annex No.2 Page 1 of 5 Internal photographs of the Equipment Under Test Annex No.2 Page 2 of 5 Annex No.2 Page 3 of 5 Annex No.2 Page 4 of 5 Photographs of SkyeModule M9 Annex No.2 Page 5 of 5

Annex No.2 Page 1 of 4 Internal photographs of the Equipment Under Test Annex No.2 Page 2 of 4 Annex No.2 Page 3 of 4 Photographs of SkyeModule M9 Annex No.2 Page 4 of 4

MPE calculation RFID Reader HH 500 (PR 500) Regulation 15.247(b) The maximum peak conducted output power of the intentional radiator shall not exceed the following: (4) The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Result The EUT will only be used with a separation of 20 centimetres or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, EIRP = 26.9 dBm P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) The numeric gain (G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (xx / 10) G = xx Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) S = (512.86) / (4 * 20 2 * π) P = Power input to the antenna (mW) G = Numeric power gain of the antenna S = 0.0974 mW/cm 2 R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG/4л) Where, P = Power input to the antenna (mW) R = √(489.78/4л) G = Numeric power gain of the antenna) R = 6.24 cm R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) R = 1.97 cm R = Distance to the backside of the radiation of the antenna (EIRP 10 dB below the center of radiation) (20cm = limit for MPE)

Test report no. 07004491 Page 1 of 40 EUT: RFID Reader HH 500 FCC ID: VLUHH500 Date of issue: 2007-12-11 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com DAT-P-225/96-02 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Advanced ID Asia Engineering Co. Ltd. RFID Reader HH 500 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no. 07004491 Page 2 of 40 EUT: RFID Reader HH 500 FCC ID: VLUHH500 Date of issue: 2007-12-11 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Advanced ID Asia Engineering Co. Ltd. Manufacturer’s grantee code VLU 65/12 Moo 10 T. Sankumpang A. Sankumpang Chiang Mai 501030 Thailand +66 53 39 09 09 +66 53 39 09 10 Manufacturer’s address [email protected] 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test Report prepared by Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category RFID reader Trade name Advanced ID Corporation Type designation RFID Reader HH 500 Serial no. 376680 RFID Reader PR 500 Variants Test report no. 07004491 Page 3 of 40 EUT: RFID Reader HH 500 FCC ID: VLUHH500 Date of issue: 2007-12-11 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 1. Test results CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement pass fail n.t. 15.205(a) 11.2 Operation in the restricted bands pass fail n.t. 15.207 11.3 Conducted emissions pass fail n.t. 15.209(a) 11.4 Radiated emissions pass fail n.t. 15.247(a)(1)(i) 11.5 Channel occupancy / bandwidth pass fail n.t. 15.247(b)(2) 11.6 Peak output power pass fail n.t. 15.247(b)(4) 11.7 Radio frequency hazard pass fail n.t. 15.247(d) 11.8 Out of band emissions pass fail n.t. Test requirements kept yes no Signature (Technical engineer) Ralf Trepper Signature (Manager) Manfried Dudde Test report no. 07004491 Page 4 of 40 EUT: RFID Reader HH 500 FCC ID: VLUHH500 Date of issue: 2007-12-11 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 1. Test results....................................................................................................................................................3 2. Test laboratory ..............................................................................................................................................6 3. Introduction..................................................................................................................................................6 4. Product.........................................................................................................................................................7 5. Test schedule ................................................................................................................................................7 6. Product and measurement documentation......................................................................................................8 7. Observations and comments..........................................................................................................................8 8. Summary ......................................................................................................................................................8 9. Conclusions .................................................................................................................................................9 10. Operation description..................................................................................................................................10 11.1 Antenna requirement ................................................................................................................................11 11.1.1 Regulation .......................................................................................................................................11 11.1.2 Result...............................................................................................................................................11 11.2 Operation in the restricted bands .............................................................................................................12 11.2.1 Regulation .......................................................................................................................................12 11.2.2 Result...............................................................................................................................................14 11.3 Conducted emissions ...............................................................................................................................15 11.3.1 Regulation .......................................................................................................................................15 11.3.2 Test equipment ................................................................................................................................16 11.3.3 Test procedures ....................................................................…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 4 Channel occupancy / bandwidth plots Annex No.3 Page 2 of 4 Annex No.3 Page 3 of 4 Annex No.3 Page 4 of 4

Annex No.6 Page 1 of 2 Test setup photos Annex No.6 Page 2 of 2
