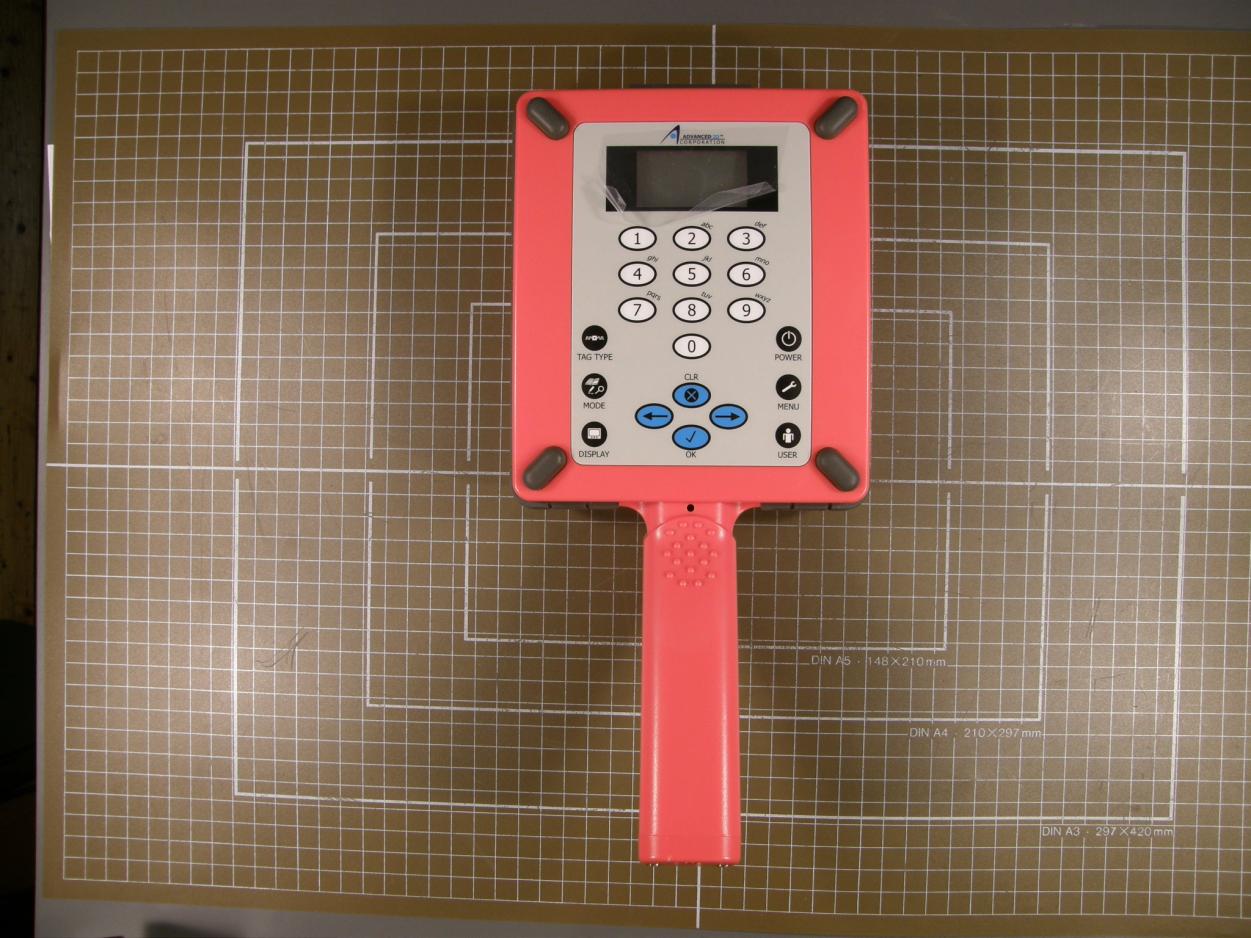

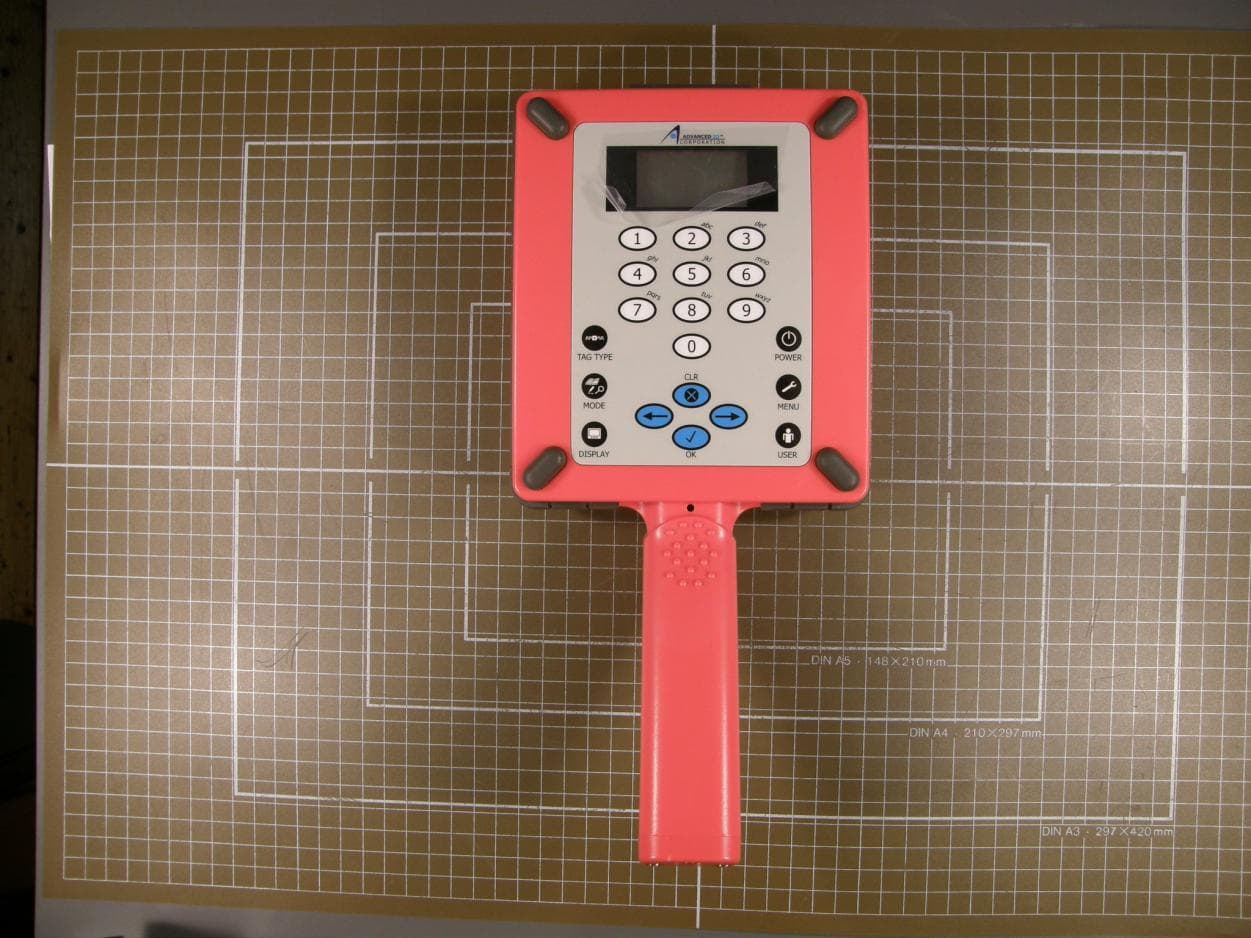

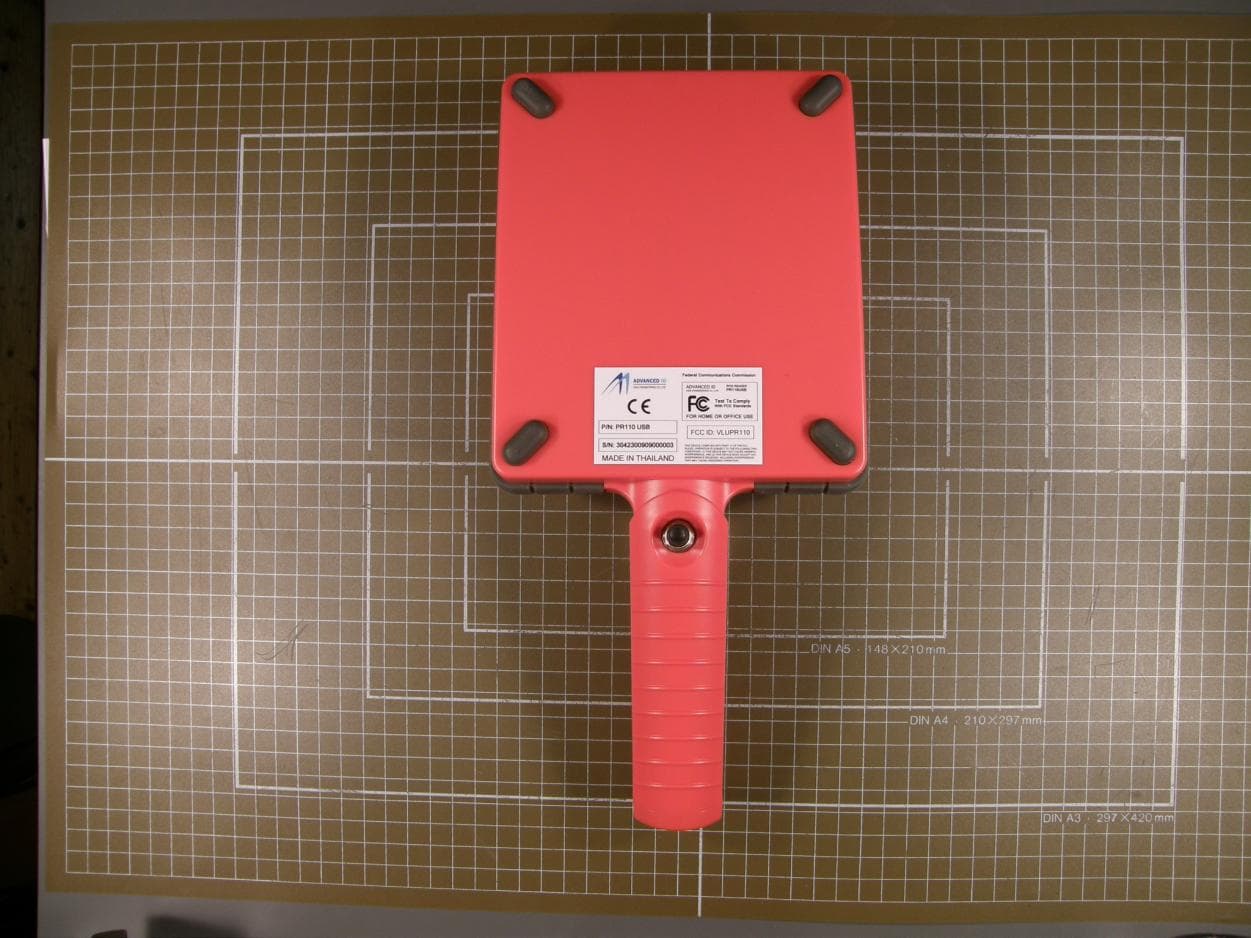

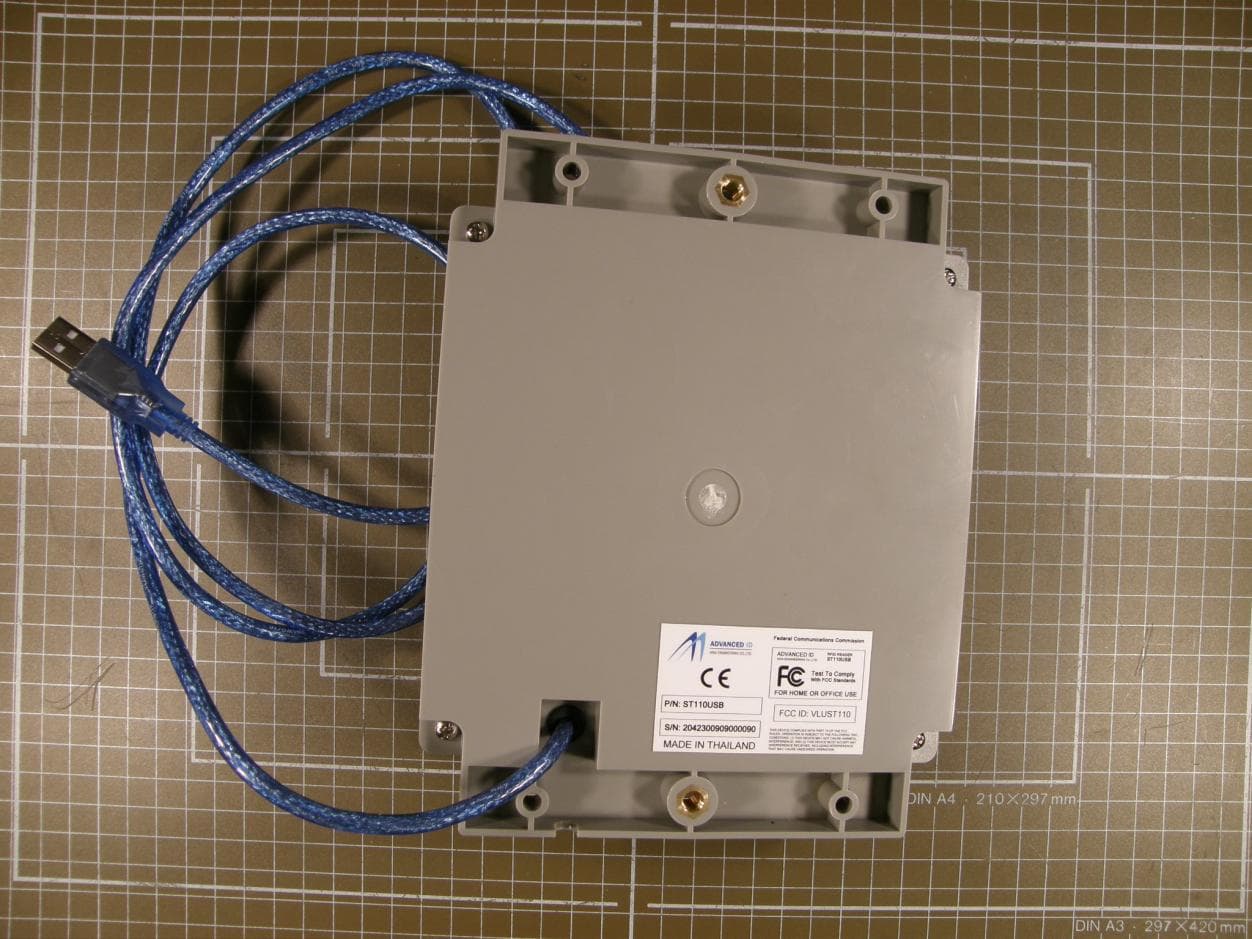

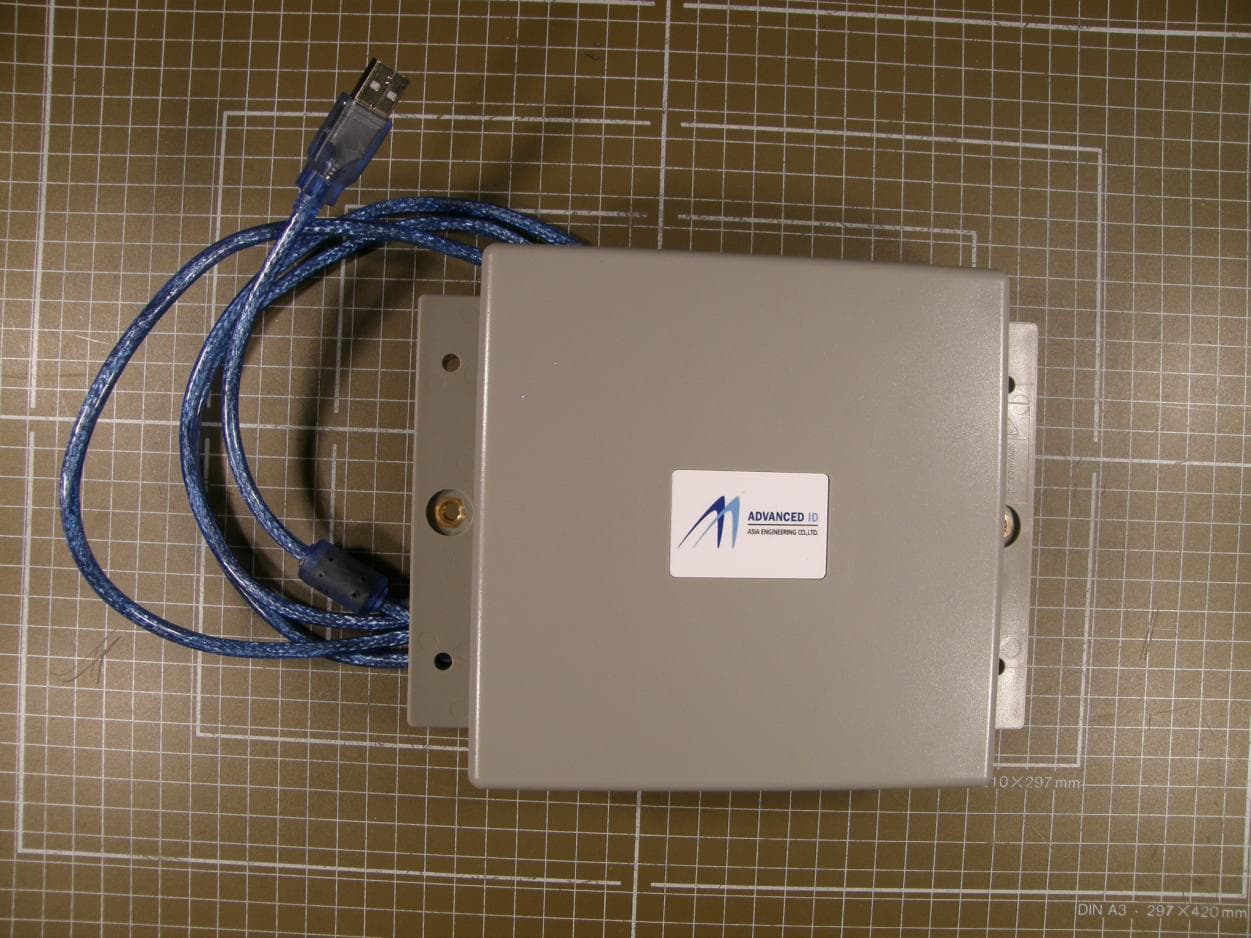

Annex No.1 Page 1 of 6 External photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO PR110 Annex No.1 Page 2 of 6 EXTERNAL REAR VIEW PHOTO PR110 Annex No.1 Page 3 of 6 EXTERNAL SIDE VIEW PHOTO PR110 Annex No.1 Page 4 of 6 EXTERNAL ASSEMBLY OF UNIT PARTS PR110 Annex No.1 Page 5 of 6 EXTERNAL FRONT VIEW PHOTO ST110 Annex No.1 Page 6 of 6 EXTERNAL REAR VIEW PHOTO ST110

Annex No.2 Page 1 of 7 Internal photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO PR110 Annex No.2 Page 2 of 7 INTERNAL LOWER SIDE PHOTO PR110 Annex No.2 Page 3 of 7 INTERNAL SIDE PHOTOS PR110 transmitter front Annex No.2 Page 4 of 7 INTERNAL SIDE PHOTOS PR110 transmitter rear Annex No.2 Page 5 of 7 INTERNAL SIDE PHOTOS ST110 Antenna Annex No.2 Page 6 of 7 INTERNAL SIDE PHOTOS ST110 transmitter platine rear Annex No.2 Page 7 of 7 INTERNAL SIDE PHOTOS ST110 transmitter platine front

MPE calculation Page 1 of 1 EUT: RFID Reader ST110 Date of issue: 2010-01-15 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.10 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com MPE calculation to the FCC ID: VLUST110 These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) Or S = EIRP/4πR 2 where EIRP = equivalent isotropically radiated power Calculation: (Calculated for max. EIRP) EIRP: 23.6 dBm = 229.1 mW calculated at distance of 20 cm: power density = 229.1 /4π20 2 = 0.0456 mW/ cm 2 Limit: Signature (Technical engineer) Ralf Trepper 0.6 mW/cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

Test report no. 10005913 Page 1 of 43 EUT: RFID Reader ST110 / PR110 FCC ID: VLUST110 Date of issue: 2010-01-15 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com DAT-P-225/96-02 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 2003 relating to Advanced ID Asia Engineering Co. Ltd RFID Reader ST110 / PR110 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no. 10005913 Page 2 of 43 EUT: RFID Reader ST110 / PR110 FCC ID: VLUST110 Date of issue: 2010-01-15 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Advanced ID Asia Engineering Co. Ltd. Manufacturer’s grantee code VLU Manufacturer’s address 116 Moo 3 T. Maekhue, A. Doisaket Chiang Mai 50220 Thailand Mr. Gottfried Auer Phone: +66 811738779 Fax: +66 53387319 E-mail: [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2003 Test Report prepared by Technical engineer Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 E-mail: [email protected] Equipment Under Test (EUT) Equipment category FHSS Transceiver Trade name ADVANCED ID Type designation ST110USB / PR110 Serial no. 2042300909000090 / 3042300909000003 Variants USB Reader (ST110USB) Pocket Reader (PR110) Test report no. 10005913 Page 3 of 43 EUT: RFID Reader ST110 / PR110 FCC ID: VLUST110 Date of issue: 2010-01-15 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 1. Test results CFR Section Report Chapter Requirements Headline Test result 15.203 11.1 Antenna requirement pass fail n.t. 15.205(a) 11.2 Operation in the restricted bands pass fail n.t. 15.209(a) 11.4 Radiated emissions pass fail n.t. 15.247(a)(1)(i) 11.5 Channel occupancy / bandwidth pass fail n.t. 15.247(b)(2) 11.6 Peak output power pass fail n.t. 15.247(b)(4) 11.7 Radio frequency hazard pass fail n.t. 15.247(d) 11.8 Out of band emissions pass fail n.t. 15.207 11.9 Conducted limits pass fail n.t. Test requirements kept yes no Signature (Technical engineer) Ralf Trepper Signature (Manager) Manfried Dudde Test report no. 10005913 Page 4 of 43 EUT: RFID Reader ST110 / PR110 FCC ID: VLUST110 Date of issue: 2010-01-15 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.07 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 1. Test results ................................................................................................................................................... 3 2. Test laboratory ............................................................................................................................................. 6 3. Introduction .................................................................................................................................................. 6 4. Product ......................................................................................................................................................... 7 5. Test schedule ................................................................................................................................................ 7 6. Product and measurement documentation .................................................................................................... 8 7. Observations and comments ......................................................................................................................... 8 8. Summary ...................................................................................................................................................... 8 9. Conclusions ................................................................................................................................................. 9 10. Operation description ................................................................................................................................. 10 11.1 Antenna requirement ................................................................................................................................ 11 11.1.1 Regulation ....................................................................................................................................... 11 11.1.2 Result ............................................................................................................................................... 11 11.2 Operation in the restricted bands ............................................................................................................. 12 11.2.1 Regulation ....................................................................................................................................... 12 11.2.2 Result ............................................................................................................................................... 14 11.3 Radiated emissions .................................................................................................................................. 15 11.3.1 Regulation ....................................................................................................................................... 15 11.3.2 Test equipment ..................................................................................................…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 Occupied bandwidth plot

Annex No.11 Page 1 of 4 Channel occupancy 50 hopping channels between 902.5 MHz and 927.0 MHz with a channel spacing of 500 kHz Annex No.11 Page 2 of 4 Lowest Channel 902.500 MHz maximum 1 hops in a 20 sec period shortest single hop measured longest single hop measured Annex No.11 Page 3 of 4 Middle Channel 915.000 MHz maximum 1 hops in a 20 sec period shortest single hop measured longest single hop measured Annex No.11 Page 4 of 4 Highest Channel 927.000 MHz maximum 1 hops in a 20 sec period shortest single hop measured longest single hop measured

Annex No.6 Page 1 of 12 Test setup photos ST110 Annex No.6 Page 2 of 12 ST110 Annex No.6 Page 3 of 12 ST110 Annex No.6 Page 4 of 12 ST110 Annex No.6 Page 5 of 12 ST110 Annex No.6 Page 6 of 12 ST110 Annex No.6 Page 7 of 12 PR110 Annex No.6 Page 8 of 12 PR110 Annex No.6 Page 9 of 12 PR110 Annex No.6 Page 10 of 12 PR110 Annex No.6 Page 11 of 12 PR110 Annex No.6 Page 12 of 12 PR110
