VMINVW650Wi-Fi NVR with Inbuilt Charger and Battery

2 Hardware Installation Guide Guide d’installation du matériel Guía de instalación de hardware To start using your NVR, you need the following: 1.A high-definition TV capable of displaying 720p, 1080p or 4K video. 2.A router with a broadband internet connection. 3.A mobile device (Android or iOS) to download the mobile app. Español Para comenzar a utilizar el NVR, necesita lo siguiente: 1.Un televisor de alta definición capaz de mostrar vídeo de 720p, 1080p o 4K. 2.Un enrutador con una conexión de Internet de banda ancha. 3.Un dispositivo móvil (Android o iOS) para descargar la aplicación. Français Pour commencer à utiliser votre NVR, vous avez besoin des éléments suivants: 1. Un téléviseur haute définition capable d’afficher des vidéos 720p, 1080p ou 4K. 2. Un routeur avec une connexion internet à large bande. 3. Un appareil mobile (Android ou iOS) pour télécharger l’application. QH_4_8CH_NVW650_600CMBGL_250522 | © Swann 2022 34 1. HDMI Port: Connect this to your TV with an HDMI input (HDMI cable supplied). 2. Ethernet Port: Connect this to your router so your NVR can connect to the internet (Ethernet cable supplied). Your NVR can also connect to your Wi-Fi to gain internet access. 3. USB Port: Connect a USB flash drive to copy recorded events and to perform a firmware upgrade. You can also connect the mouse here. 4. Reset Button: This will restore your NVR and reset all saved changes to the settings available. The storage device will be formatted as well, removing any recorded events: •Using a paper clip or pin, carefully insert this into the port marked “reset”. Press and hold until you hear four beeps, then release. •After a short moment, a message will appear on-screen, and your NVR will reboot. After booting, the Startup Wizard will appear on-screen. 5. USB Port (Storage): Connect the mouse here. It can also be used to connect a semi-permanent storage device (USB flash drive or portable USB hard drive) to record events to that device. 6: MicroSD Slot: If your NVR does not include an internal storage device (hard drive), you can insert a MicroSD card into the slot to record events to that device. The symbol next to the slot indicates how the card is inserted. 7. Power Port: Connect the 12V power adapter here. This installation guide will assist you in getting your NVR up and running as soon as possible. To make sure nothing was damaged during shipping, we recommend that you connect everything and try it before you do a permanent installation. Español: Esta guía le ayudará a conseguir su NVR funcionando tan pronto como sea posible. Para asegurarse de que nada se dañó durante el envío, le recomendamos que conecte todo y lo pruebe antes de realizar una instalación permanente. Français: Ce guide vous aidera à mettre votre NVR en marche dès que possible. Pour s’assurer que rien n’a été endommagé pendant l’expédition, nous vous recommandons de tout connecter pour essayer avant de faire une installation permanente. Step/Paso/Étape: 1 Step/Paso/Étape: 2 Battery Safety Information DANGER: This product contains a coin/button cell battery. •Keep the battery away from babies and small children at all times •This battery can cause severe or fatal injuries in two hours or less if it is swallowed or placed inside any part of the body •If the battery is suspected of or has been swallowed, or placed inside any part of the body, immediately seek medical attention FCC Warning Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Step/Paso/Étape: 3 1 Status LEDs Green: Your NVR has power. Blue: Your NVR has a storage device. Red: Your NVR is connected to your home network either wired (Ethernet) or via Wi-Fi. Español 1.Cargue la batería con el cable USB incluido. Siga la ilustración anterior (cargador de batería no incluido). Cargue la batería durante aproximadamente dos horas y, a continuación, desconéctese. 2.Retire primero la pegatina de seguridad, luego inserte la batería en la cámara (hará clic en su lugar). Luego escuchará dos pitidos. 3.La cámara se empareja de fábrica con su NVR. Deje la antena en posición vertical para la mejor recepción. Retire la película de plástico de la lente de la cámara. Français 1.Chargez la batterie avec le câble USB inclus. Suivez l’illustration ci-dessus (chargeur de batterie non inclus). Chargez la batterie pendant environ deux heures, puis débranchez- la. 2.Retirez d’abord l’autocollant de sécurité, puis insérez la batterie dans l’appareil photo (elle cliquera en place). Vous entendrez alors deux bips. 3.L’appareil photo est jumelé à l’usine avec votre NVR. Laissez l’antenne en position verticale pour la meilleure réception. Retirez le film plastique de l’objectif de l’appareil photo. 1.Before moving the camera to its location, charge the battery with the included USB cable. Follow the illustration above for connection (battery charger not included). Charge the battery for about two hours, then disconnect. 2.Remove the safety sticker first, then insert the battery into the camera (it will click into place). You will then hear two beeps. 3.The camera is paired at the factory with your NVR. Leave the antenna in a vertical position for the best reception. Remove the plastic film from the camera’s lens. 1 23 Remove the battery cover to access the USB-C connection. Charge the battery using a battery charger included with your mobile device. Remove the plastic film from the cam- era’s lens. 12V resetreset Mouse Backup Mouse Backup StorageStorage LANLAN 123 4 6 7 5 1.HDMI Port 2.Ethernet Port 3.USB Port 4.Reset Button 5.USB Port 6.MicroSD Slot 7.Power Port An additional battery is included that can be inserted into the rear of your NVR to charge. Remove the safety sticker on the battery and insert it until it clicks into place. A red LED indica…

Text truncated - open the document above for the full version.

Swann Communications Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022.05. 31 Subject; Request for Long Term Confidentiality FCC ID: VMINVW650 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: James Cain Title: VP Quality Assurance

Swann Communications Pty Ltd Agent Authorization Company: Swann Communications Pty Ltd Address: Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Product Name: Wi-Fi NVR with Inbuilt Charger and Battery Model Number(s): NVW-650 Product Description: Wi-Fi NVR with Inbuilt Charger and Battery We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-05-31 Name: James Cain Title: VP Quality Assurance Company: Swann Communications Pty Ltd

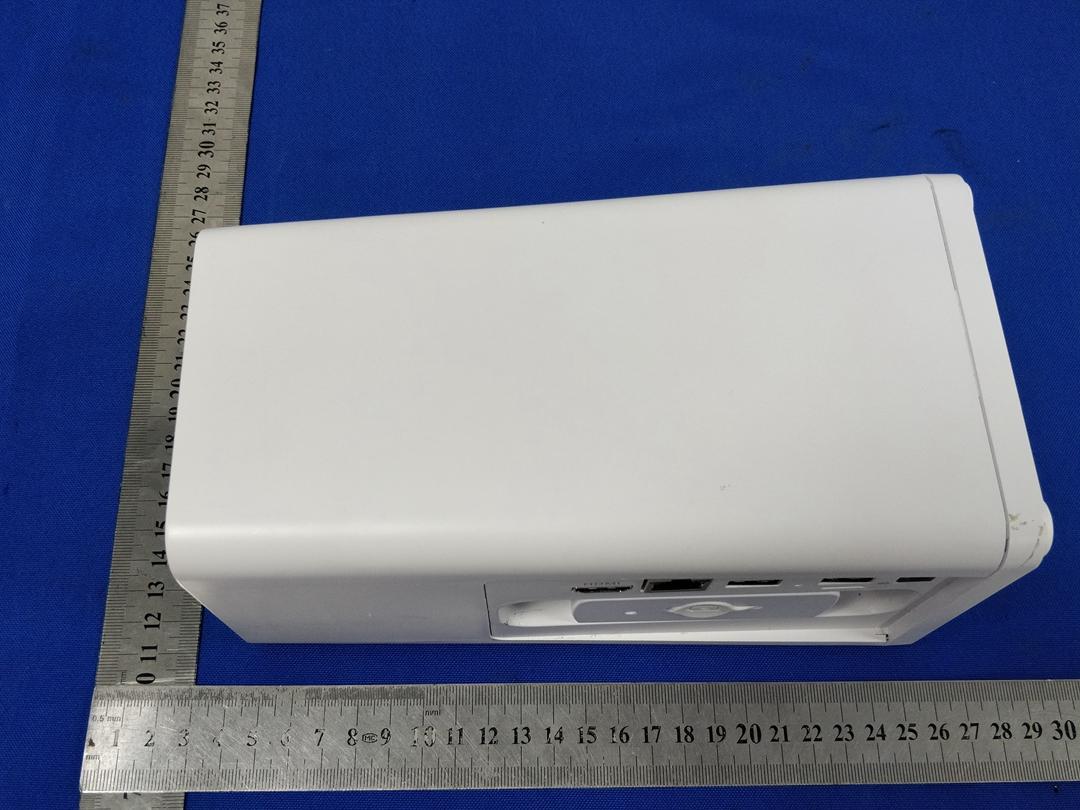

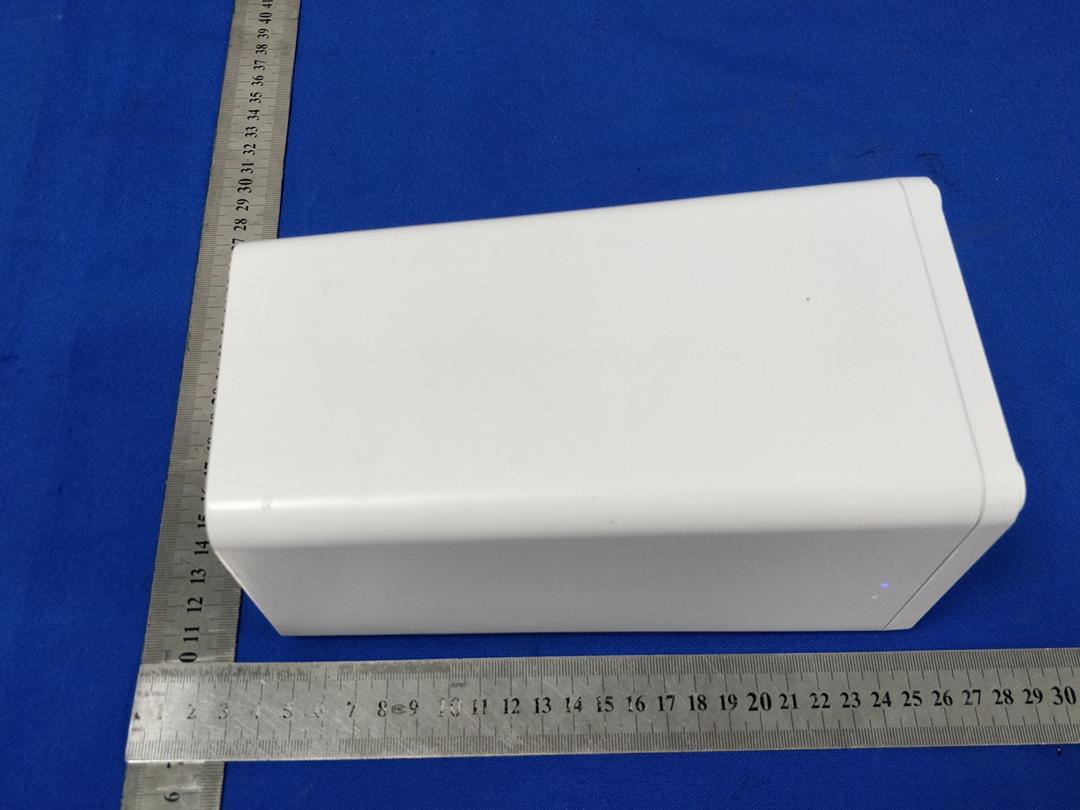

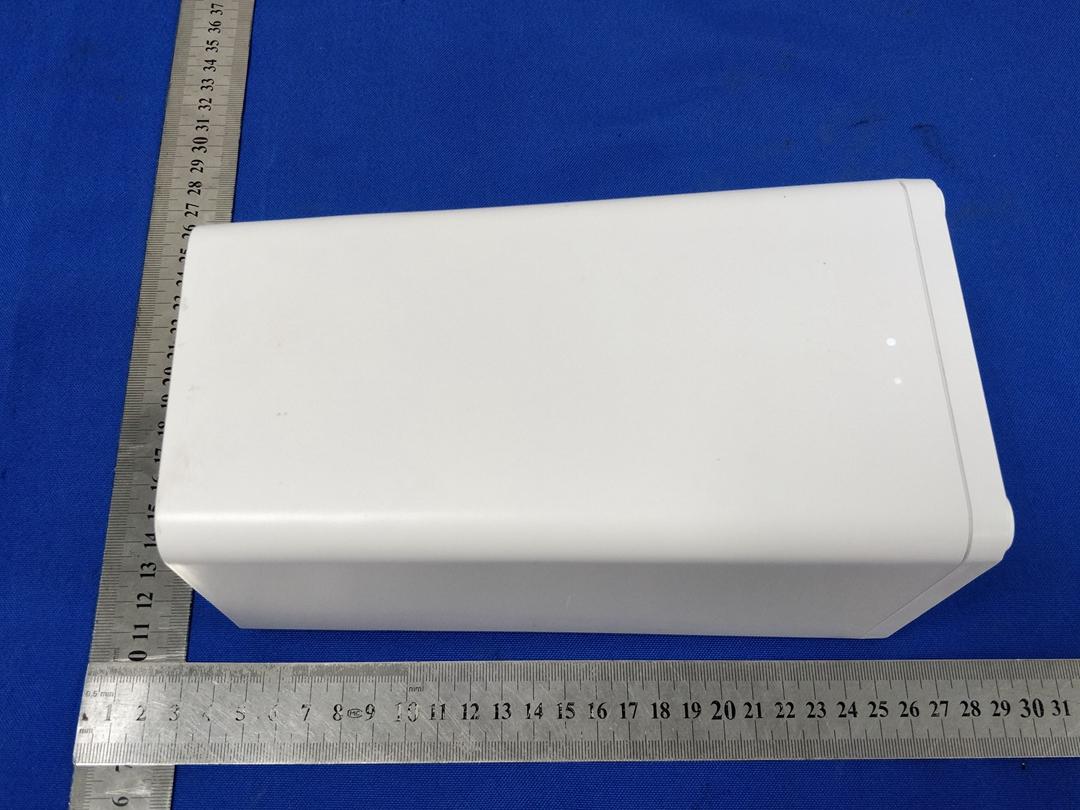

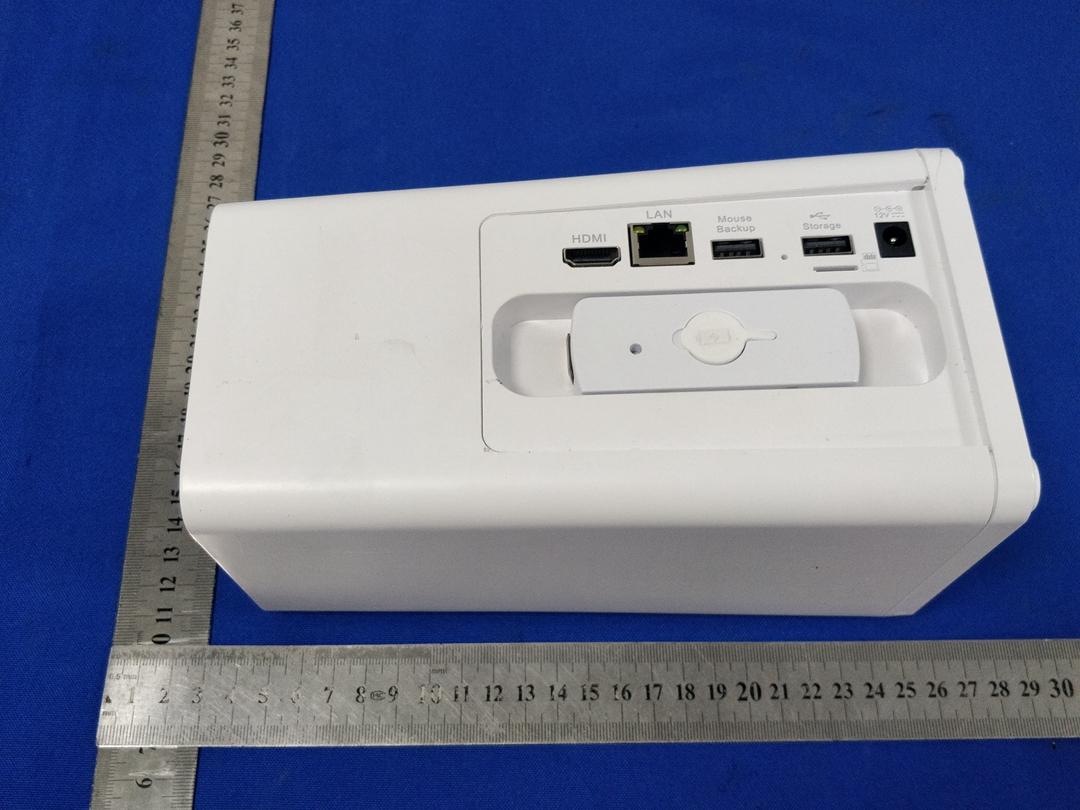

Page 1 of 3 Appendix C: Photographs of EUT Product: Wi-Fi NVR with Inbuilt Charger and Battery Model: NVW-650 External Photos Page 2 of 3 Page 3 of 3

LabelArtworkandLocation Model:NVW-650 Label: Size:L*W=30*30mm Location

Page 1 of 10 Appendix C: Photographs of EUT Product: Wi-Fi NVR with Inbuilt Charger and Battery Model: NVW-650 Internal Photos Antenna 0 Antenna 1 Page 2 of 10 Page 3 of 10 Page 4 of 10 Page 5 of 10 Page 6 of 10 Page 7 of 10 Page 8 of 10 Page 9 of 10 Page 10 of 10

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : VMINVW650 Test Report No. ............... : TCT220324E022 Date of issue ................... : Apr. 12, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Swann Communications Pty Ltd Address ........................... : Unit 5B, 706 Lorimer Street, Port Melbourne, 3207, Australia Manufacturer's name ... : Swann Communications Pty Ltd Address ........................... : Unit 5B, 706 Lorimer Street, Port Melbourne, 3207, Australia Standard(s) ..................... : FCC CFR Title 47 Part 1.1307 Product Name ................. : Wi-Fi NVR with Inbuilt Charger and Battery Trade Mark ...................... : Model/Type reference..... : NVW-650 Rating(s).......................... : DC 12V(From Adapter) Date of receipt of test item ......................................... : Mar. 24, 2022 Date (s) of performance of test ................................... : Mar. 24, 2022 ~ Apr. 12, 2022 Tested by (+signature) ... : Rleo LIU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220324E022 Page 2 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Test Results and Measurement Data ..................................................... 6 Report No.: TCT220324E022 Page 3 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Wi-Fi NVR with Inbuilt Charger and Battery Model/Type reference........... : NVW-650 Sample Number....................: TCT220324E021-0101 Operation Frequency ........... : 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Modulation Type ................... : DSSS(802.11b), OFDM (802.11g/802.11n) Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : 2.7dBi Rating(s)................................ : DC 12V(From Adapter) Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT220324E022 Page 4 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage DC 12V(From Adapter) Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name Adapter CS-1202000 / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT220324E022 Page 5 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. Facilities and Accreditations 3.1. Facilities The test facility is recognized, certified, or accredited by the following organizations: ● FCC - Registration No.: 645098 SHENZHEN TONGCE TESTING LAB Designation Number: CN1205 The testing lab has been registered and fully described in a report with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. ● IC - Registration No.: 10668A-1 SHENZHEN TONGCE TESTING LAB CAB identifier: CN0031 The testing lab has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing. 3.2. Location SHENZHEN TONGCE TESTING LAB Address: TCT Testing…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : VMINVW650 Test Report No. ............... : TCT220324E021 Date of issue ................... : Apr. 12, 2022 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : Swann Communications Pty Ltd Address ........................... : Unit 5B, 706 Lorimer Street, Port Melbourne, 3207, Australia Manufacturer's name ... : Swann Communications Pty Ltd Address ........................... : Unit 5B, 706 Lorimer Street, Port Melbourne, 3207, Australia Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Product Name ................. : Wi-Fi NVR with Inbuilt Charger and Battery Trade Mark ...................... : Model/Type reference..... : NVW-650 Rating(s).......................... : DC 12V(From Adapter) Date of receipt of test item ......................................... : Mar. 24, 2022 Date (s) of performance of test ................................... : Mar. 24, 2022 ~ Apr. 12, 2022 Tested by (+signature) ... : Rleo LIU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT220324E021 Page 2 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 1.3. Operation Frequency ............................................................................................ 4 2. Test Result Summary .............................................................................. 5 3. General Information ................................................................................. 6 3.1. Test environment and mode ................................................................................. 6 3.2. Description of Support Units ................................................................................ 7 4. Facilities and Accreditations .................................................................. 8 4.1. Facilities ................................................................................................................. 8 4.2. Location ................................................................................................................. 8 4.3. Measurement Uncertainty ..................................................................................... 8 5. Test Results and Measurement Data ..................................................... 9 5.1. Antenna requirement ............................................................................................ 9 5.2. Conducted Emission ........................................................................................... 10 5.3. Maximum Conducted (Average) Output Power ................................................ 14 5.4. Emission Bandwidth ........................................................................................... 16 5.5. Power Spectral Density ....................................................................................... 17 5.6. Conducted Band Edge and Spurious Emission Measurement ....................... 19 5.7. Radiated Spurious Emission Measurement ...................................................... 21 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT220324E021 Page 3 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Wi-Fi NVR with Inbuilt Charger and Battery Model/Type reference........... : NVW-650 Sample Number....................: TCT220324E021-0101 Operation Frequency ........... : 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation .............. : 5MHz Number of Channel .............. : 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology ....... : 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n: Orthogonal Frequency Division Multiplexing(OFDM) Data speed ............................ : 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps 802.11g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps 802.11n: Up to 300Mbps Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : 2.7dBi Rating(s)................................ : DC 12V(From Adapter) Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT220324E021 Page 4 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1.3. Operation Frequency For 802.11b/g/n(HT20) Channel Frequency Channel Frequency Channel Frequency Channel Frequency 1 2412MHz 4 2427MHz 7 2442MHz 10 2457MHz 2 2417MHz 5 2432MHz 8 2447MHz 11 2462MHz 3 2422MHz 6 2437MHz 9 2452MHz -- -- For 802.11n(HT40) Channel Frequency Channel Frequency Channel Frequency Channel Frequ…

Text truncated - open the document above for the full version.

Report No.: TCT220324E021 Page 84 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Tx. Spurious NVNT n40 2452MHz Ant0 Ref Tx. Spurious NVNT n40 2452MHz Ant0 Emission Report No.: TCT220324E021 Page 85 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Antenna 1 Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) NVNT b 2412 Ant1 96.36 0.16 NVNT b 2437 Ant1 99.25 0.03 NVNT b 2462 Ant1 97.06 0.13 NVNT g 2412 Ant1 90.42 0.44 NVNT g 2437 Ant1 92.15 0.36 NVNT g 2462 Ant1 91.53 0.38 NVNT n20 2412 Ant1 85.28 0.69 NVNT n20 2437 Ant1 91.49 0.39 NVNT n20 2462 Ant1 88.68 0.52 NVNT n40 2422 Ant1 85.95 0.66 NVNT n40 2437 Ant1 88.90 0.51 NVNT n40 2452 Ant1 87.23 0.59 Report No.: TCT220324E021 Page 86 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs Duty Cycle NVNT b 2412MHz Ant1 Duty Cycle NVNT b 2437MHz Ant1 Report No.: TCT220324E021 Page 87 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT b 2462MHz Ant1 Duty Cycle NVNT g 2412MHz Ant1 Report No.: TCT220324E021 Page 88 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT g 2437MHz Ant1 Duty Cycle NVNT g 2462MHz Ant1 Report No.: TCT220324E021 Page 89 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 2412MHz Ant1 Duty Cycle NVNT n20 2437MHz Ant1 Report No.: TCT220324E021 Page 90 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n20 2462MHz Ant1 Duty Cycle NVNT n40 2422MHz Ant1 Report No.: TCT220324E021 Page 91 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle NVNT n40 2437MHz Ant1 Duty Cycle NVNT n40 2452MHz Ant1 Report No.: TCT220324E021 Page 92 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT b 2412 Ant1 16.880 0.16 17.04 30 Pass NVNT b 2437 Ant1 17.841 0.03 17.871 30 Pass NVNT b 2462 Ant1 19.180 0.13 19.310 30 Pass NVNT g 2412 Ant1 16.591 0.44 17.031 30 Pass NVNT g 2437 Ant1 16.554 0.36 16.914 30 Pass NVNT g 2462 Ant1 17.967 0.38 18.347 30 Pass NVNT n20 2412 Ant1 15.177 0.69 15.867 30 Pass NVNT n20 2437 Ant1 17.221 0.39 17.611 30 Pass NVNT n20 2462 Ant1 17.550 0.52 18.070 30 Pass NVNT n40 2422 Ant1 12.969 0.66 13.629 30 Pass NVNT n40 2437 Ant1 14.875 0.51 15.385 30 Pass NVNT n40 2452 Ant1 14.912 0.59 15.502 30 Pass Report No.: TCT220324E021 Page 93 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs Power NVNT b 2412MHz Ant1 Power NVNT b 2437MHz Ant1 Report No.: TCT220324E021 Page 94 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power NVNT b 2462MHz Ant1 Power NVNT g 2412MHz Ant1 Report No.: TCT220324E021 Page 95 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power NVNT g 2437MHz Ant1 Power NVNT g 2462MHz Ant1 Report No.: TCT220324E021 Page 96 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power NVNT n20 2412MHz Ant1 Power NVNT n20 2437MHz Ant1 Report No.: TCT220324E021 Page 97 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power NVNT n20 2462MHz Ant1 Power NVNT n40 2422MHz Ant1 Report No.: TCT220324E021 Page 98 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power NVNT n40 2437MHz Ant1 Power NVNT n40 2452MHz Ant1 Report No.: TCT220324E021 Page 99 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT b 2412 Ant1 9.085 0.5 Pass NVNT b 2437 Ant1 9.989 0.5 Pass NVNT b 2462 Ant1 9.989 0.5 Pass NVNT g 2412 Ant1 14.477 0.5 Pass NVNT g 2437 Ant1 15.117 0.5 Pass NVNT g 2462 Ant1 14.915 0.5 Pass NVNT n20 2412 Ant1 15.692 0.5 Pass NVNT n20 2437 Ant1 15.950 0.5 Pass NVNT n20 2462 Ant1 16.552 0.5 Pass NVNT n40 2422 Ant1 35.065 0.5 Pass NVNT n40 2437 Ant1 34.960 0.5 Pass NVNT n40 2452 Ant1 31.333 0.5 Pass Report No.: TCT220324E021 Page 100 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs -6dB Bandwidth NVNT b 2412MHz Ant1 -6dB Bandwidth NVNT b 2437MHz Ant1 Report No.: TCT220324E021 Page 101 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth NVNT b 2462MHz Ant1 -6dB Bandwidth NVNT g 2412MHz Ant1 Report No.: TCT220324E021 Page 102 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth NVNT g 2437MHz Ant1 -6dB Bandwidth NVNT g 2462MHz Ant1 Report No.: TCT220324E021 Page 103 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth NVNT n20 2412MHz Ant1 -6dB Bandwidth NVNT n20 2437MHz Ant1 Report No.: TCT220324E021 Page 104 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth NVNT n20 2462MHz Ant1 -6dB Bandwidth NVNT n40 2422MHz Ant1 Report No.: TCT220324E021 Page 105 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -6dB Bandwidth NVNT n40 2437MHz Ant1 -6dB Bandwidth NVNT n40 2452MHz Ant1 Report No.: TCT220324E021 Page 106 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm/3kHz) Duty Factor (dB) Total PSD (dBm/3kHz) Limit (d…

Text truncated - open the document above for the full version.

Report No.: TCT220324E021 Page 142 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 143 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 144 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 145 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 146 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 147 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT220324E021 Page 148 of 148 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix B: Photographs of Test Setup Product: Wi-Fi NVR with Inbuilt Charger and Battery Model: NVW-650 Radiated Emission Page 2 of 2 Conducted Emission
