VMINVW800Wireless Network Video Recorder

2 Startup Wizard Quick Start Guide Guía de inicio rápido del asistente Guide de démarrage de l’Assistant 1.Completed the “Hardware Quick Start Guide” (the blue-colored guide). 2.Able to easily access your modem or Wi-Fi. 3.Your NVR is connected to your TV and both are turned on and visible. 4.Access to a computer to create a new email account for your NVR. Both Gmail and Outlook are supported. Español: Para comenzar a utilizar el NVR, necesita lo siguiente: 1.Completó la guía de color azul. 2.Puede acceder fácilmente a su módem o Wi-Fi. 3.Su NVR está conectado a su TV y ambos se encienden. 4.Acceso a un ordenador para crear una nueva cuenta de correo electrónico para tu NVR. Tanto gmail como Outlook son compatibles. Français: Pour commencer, veuillez avoir les éléments suivants: 1. Complété le Guide de couleur bleue. 2.Possibilité d’accéder facilement à votre modem ou Wi-Fi. 3. Votre NVR est connecté à votre téléviseur et les deux sont allumés. 4. Accès à un ordinateur pour créer un nouveau compte de messagerie pour votre NVR. Gmail et Outlook sont pris en charge. 34 QW_NVW800_GLOBAL_REV1 | © Swann 2021 Step/Paso/Étape: 1 Español 1.La primera cosa que verá en su televisor es la pantalla de selección de idioma. Haga clic en el menú desplegable para seleccionar el idioma que prefiera y, a con- tinuación, haga clic en “Siguiente” para continuar. 2. Si su NVR está conectado a su televisor con el cable HDMI, aparecerá un aviso en la pantalla indicando que se ha detectado una pantalla que admite la resolución máxima de su televisor. Haga clic en “Aceptar” para continuar (si no ve este mensa- je, puede seleccionar una resolución de pantalla en el paso tres). 3. Después de un corto momento, la resolución cambiará. Haga clic en “Aceptar” para confirmar. Aparecerá una pantalla de bienvenida explicando las opciones que puede establecer dentro del asistente de inicio. Haga clic en “Siguiente” para continuar. Français 1. La première chose que vous verrez sur votre TV est l’écran de sélection de langue. Cliquez le menu déroulant pour sélectionner votre langue préférée puis cliquez “Suivant” pour continuer. 2. Si votre NVR est connecté à votre téléviseur à l’aide du câble HDMI, un avis appa- raîtra à l’écran indiquant qu’un écran qui prend en charge la résolution maximale de votre téléviseur a été détecté. Cliquez sur “OK” pour continuer (si vous ne voyez pas ce message, vous pouvez sélectionner une résolution d’affichage à l’étape trois). 3. Après un court moment, la résolution changera. Cliquez “OK” pour confirmer. Un écran de bienvenue apparaîtra expliquant les options que vous pouvez régler dans l’Assistant de démarrage. Cliquez sur “Suivant” pour continuer. 1.The first thing you will see on your TV is the language selection screen. Click the drop-down menu to select your preferred language, then click “Next” to continue. 2. A notice will appear on-screen stating that a screen that supports the maximum resolution of your TV is detected. Click “OK” to continue (if you don’t see this message, you can select a display resolution in step three). 3. After a short moment, the resolution will change. Click “OK” to confirm. A welcome screen will appear explaining the options that you can set within the Startup Wizard. Click “Next” to continue. Step/Paso/Étape: 2 Español Contraseña: Este paso es bastante sencillo, sólo tienes que darle a tu NVR una contraseña. La contraseña tiene que ser un mínimo de seis caracteres y puede con- tener una mezcla de números y letras. Utilice el teclado en pantalla para introducir texto, números y caracteres. Haga clic en el botón de flecha arriba para cambiar de minúsculas a mayúsculas. Anote su contraseña en el espacio que se proporciona a continuación para un man- tenimiento seguro. Confirmar: Ingrese su contraseña de nuevo para confirmar. Anota tu contraseña: Correo electrónico: Introduzca una dirección de correo electrónico que pueda uti- lizar para recibir alertas por correo electrónico y un código de restablecimiento en caso de que haya perdido u olvidado la contraseña de su NVR. Haga clic en “Siguiente” para continuar. Français Mot de passe: Ceci est assez simple car vous n’avez qu’à fournir un mot de passe à votre NVR. Le mot de passe doit avoir un minimum de six caractères et peut conte- nir un mélange de chiffres et de lettres. Utilisez le clavier à l’écran pour saisir du texte, des chiffres et des caractères. Cliquez sur le bouton fléché vers le haut pour passer de minuscules à majuscules. Écrivez votre mot de passe dans l’espace fourni ci-dessous pour le conserver. Confirmer: Entrez de nouveau votre mot de passe pour confirmer. Écrivez votre mot de passe: Courriel: Entrez une adresse e-mail qui peut être utilisée pour recevoir des alertes par e-mail et un code de réinitialisation au cas où vous auriez perdu ou oublié le mot de passe de votre NVR. Cliquez sur “Suivant” pour continuer. Password: This step is pretty straight forward; you have to give your NVR a password. The password has to be a minimum of six characters, and it can contain a mixture of numbers and letters. Use a password that you are familiar with but is not known to others. Write down your password in the space provided below for safekeeping. The “Show Password” checkbox is enabled to reveal your password. Confirm: Enter your password again to confirm. Write down your password: Email: Enter an email address to be used to receive email alerts and a reset code in case you have lost or forgotten your NVR’s password. Click “Next” to continue. Step/Paso/Étape: 3 Español Idioma: Hay varios idiomas disponibles, confirme su selección. Formato de video: Seleccione el estándar de video correcto de su país. En EE.UU. y Canadá es NTSC. En Reino Unido y Australia es PAL. Resolución: Seleccione una resolución que sea adecuada para su televisor. Zona horaria: Seleccione la zona horaria de su región o ciudad. Formato de fecha: Seleccione un formato de visualización preferido. Formato de hora: Seleccione un format…

Text truncated - open the document above for the full version.

Swann Communications Pty Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.05.24 Subject; Request for Long Term Confidentiality FCC ID: VMINVW800 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: James Cain Title: VP Quality Assurance

Swann Communications Pty Ltd Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Statement Product: Wireless Network Video Recorder Model: NVW-800 Additional Model: A03-H8108AQ-N-W, A03-H8008AQ-N-W Trademark: We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2021/07/08 Name: James Cain Company Name : Swann Communications Pty Ltd Address: Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Tel / Fax: 61 3 84124611/61 3 9645 1697 E-Mail: [email protected]

Swann Communications Pty Ltd Agent Authorization Company: Swann Communications Pty Ltd Address: Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Product Name: Wireless Network Video Recorder Model Number(s): NVW-800, A03-H8108AQ-N-W, A03-H8008AQ-N-W Product Des cription: Wireless Network Video Recorder We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of o ur own. Signature: Date: 2020-05-24 Name: James Cain Title: VP Quality Assurance Company: Swann Communications Pty Ltd

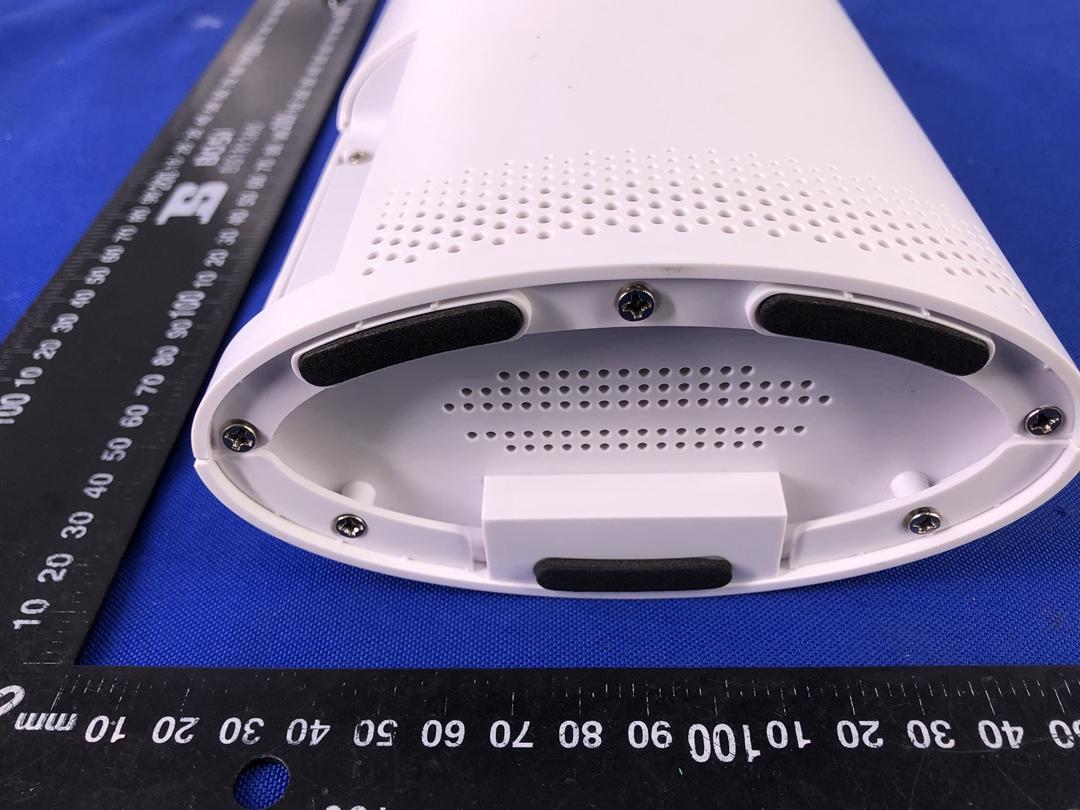

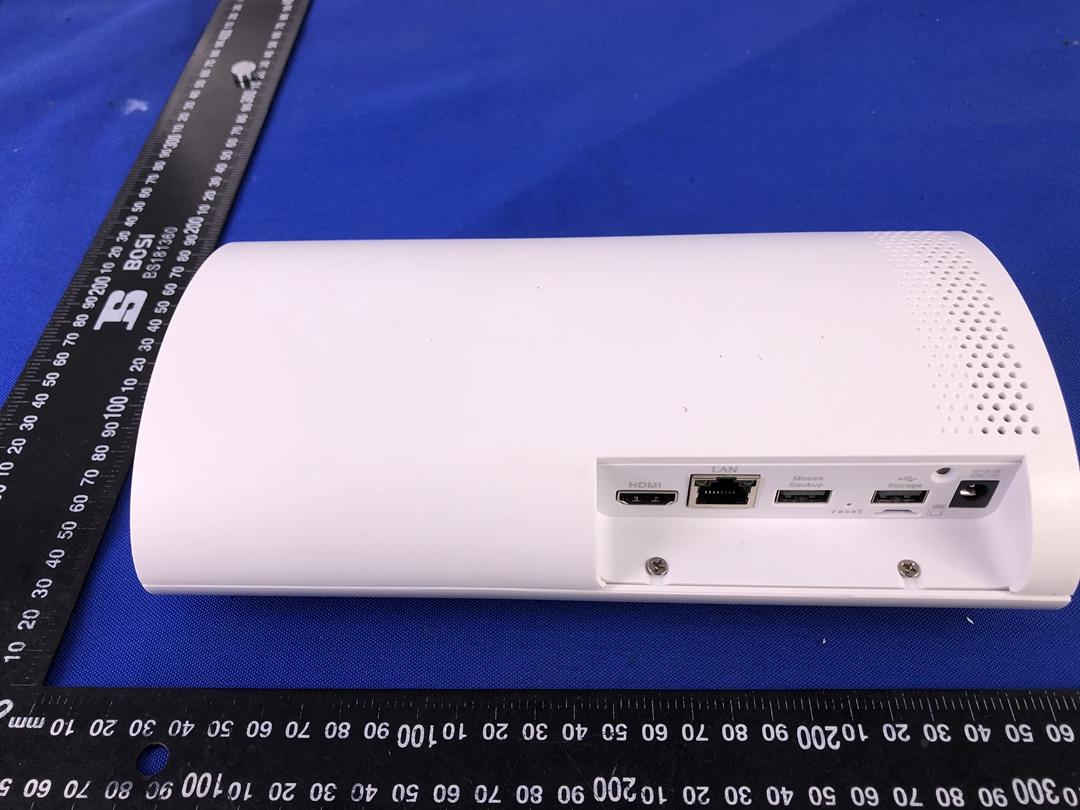

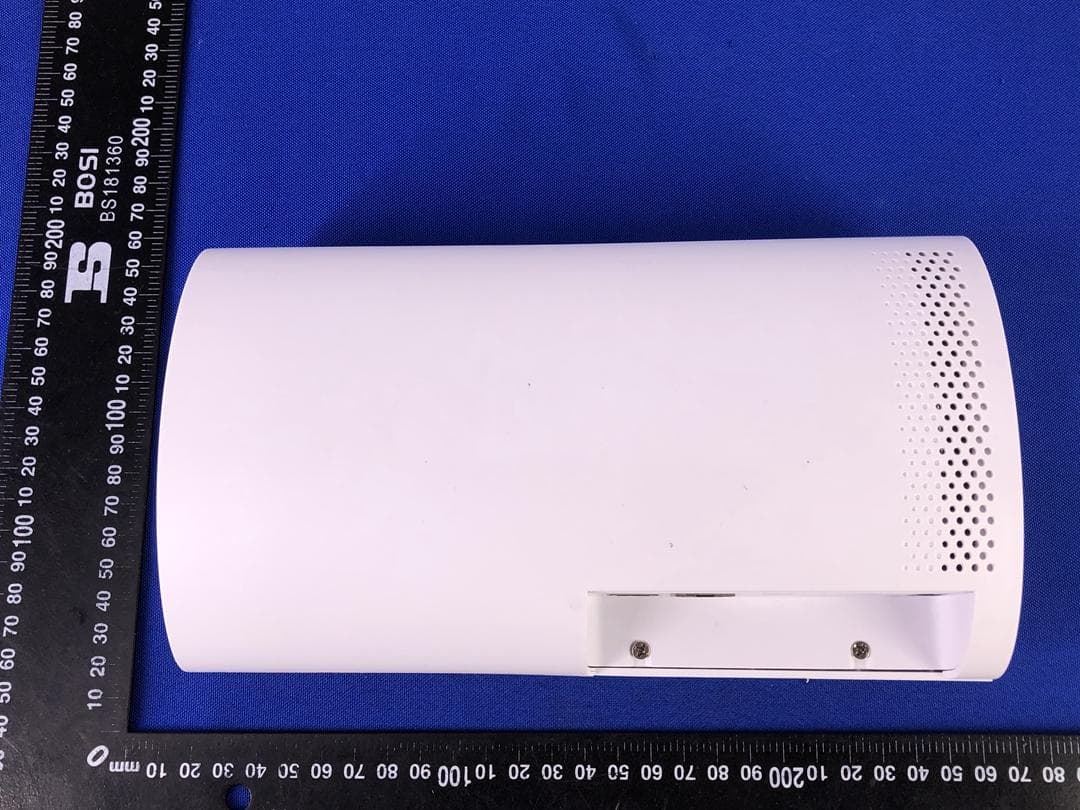

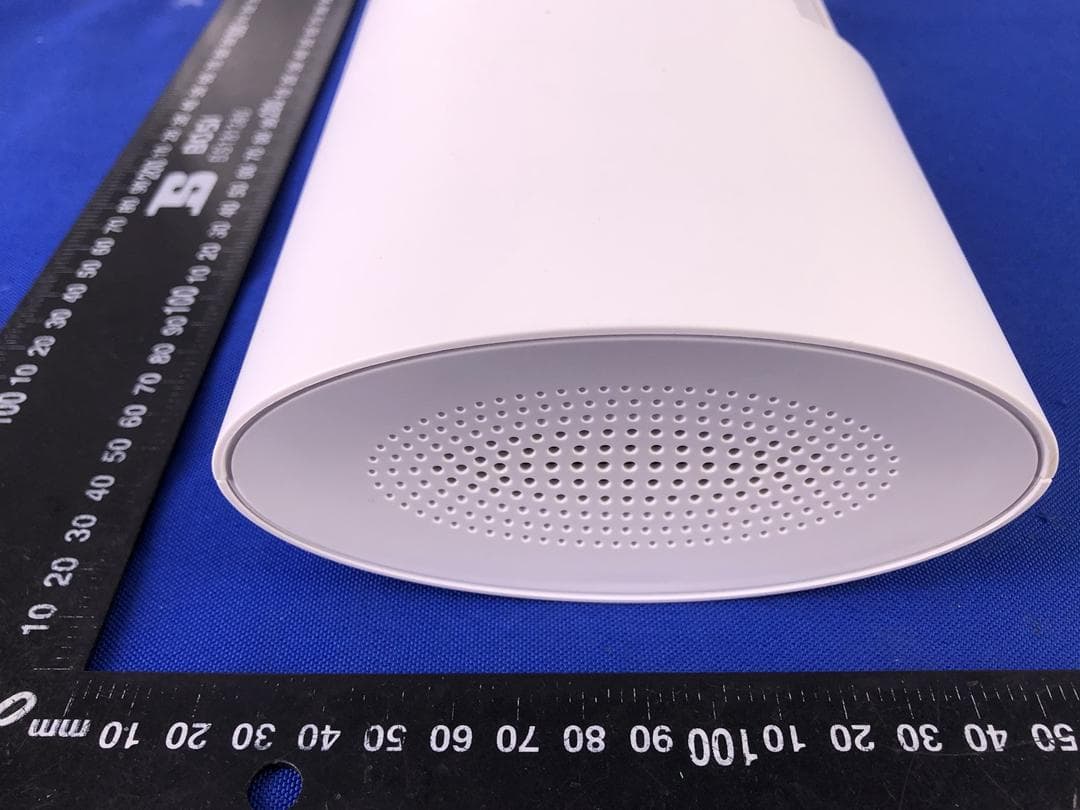

Page 1 of 3 Appendix C: Photographs of EUT Product: Wireless Network Video Recorder Model: NVW-800 External Photos Page 2 of 3 Page 3 of 3

Label Artwork and Location Model: NVW-800 Label: Size 1: L*W=27*15mm Location

Page 1 of 6 Appendix C: Photographs of EUT Product: Wireless Network Video Recorder Model: NVW-800 Internal Photos Antenna 2 Antenna 1 Page 2 of 6 Page 3 of 6 Memory: 2Gb*2 Page 4 of 6 Memory: 4Gb Page 5 of 6 Page 6 of 6

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 17.30dBm (53.70mW) at 2452MHz, 2.7dBi antenna gain(with 1.86 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 53.70mW Numeric Antenna gain= 1.86 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.01988mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: VMINVW800 Product: Wireless Network Video Recorder Model No.: NVW-800 Additional Model No.: A03-H8108AQ-N-W, A03-H8008AQ-N-W Trade Mark: Report No.: TCT210423E006 Issued Date: May 20, 2021 Issued for: Swann Communications Pty Ltd Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Issued By: SHENZHEN TONGCE TESTING LAB TCT Testing Industrial Park Fuqiao 5th Industrial Zone, Fuhai Street, Bao'an District Shenzhen, Guangdong, 518103, People's Republic of China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210423E006 Page 2 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 17 6.5. Power Spectral Density ....................................................................................... 18 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 20 6.7. Radiated Spurious Emission Measurement ...................................................... 22 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT210423E006 Page 3 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Wireless Network Video Recorder Model No.: NVW-800 Additional Model No.: A03-H8108AQ-N-W, A03-H8008AQ-N-W Trade Mark: Applicant: Swann Communications Pty Ltd Address: Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Manufacturer: Swann Communications Pty Ltd Address: Unit 5B, 706 Lorimer Street, Port Melbourne, 3207 Australia Date of Test: Apr. 26, 2021 – May 19, 2021 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10:2013 The above equipment has been tested by SHENZHEN TONGCE TESTING LAB and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: May 19, 2021 Brave Zeng Reviewed By: Date: May 20, 2021 Beryl Zhao Approved By: Date: May 20, 2021 Tomsin Report No.: TCT210423E006 Page 4 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT210423E006 Page 5 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Wireless Network Video Recorder Model No.: NVW-800 Additional Model No.: A03-H8108AQ-N-W, A03-H8008AQ-N-W Trade Mark: Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps Data speed (IEEE 802.11n): Up to 150Mbps Antenna Type: Internal Antenna Ant…

Text truncated - open the document above for the full version.

Report No.: TCT210423E006 Page 52 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_High_2462 11N20SISO_Low_2412 11N20SISO_High_2462 Report No.: TCT210423E006 Page 53 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Low_2422 11N40SISO_High_2452 Report No.: TCT210423E006 Page 54 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result Test Mode Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B 2412 Reference 6.47 6.47 --- PASS 30~1000 30~1000 -68.539 <=-23.53 PASS 1000~26500 1000~26500 -42.617 <=-23.53 PASS 2437 Reference 5.44 5.44 --- PASS 30~1000 30~1000 -68.548 <=-24.561 PASS 1000~26500 1000~26500 -42.364 <=-24.561 PASS 2462 Reference 5.96 5.96 --- PASS 30~1000 30~1000 -67.964 <=-24.038 PASS 1000~26500 1000~26500 -42.867 <=-24.038 PASS 11G 2412 Reference 1.09 1.09 --- PASS 30~1000 30~1000 -68.277 <=-28.912 PASS 1000~26500 1000~26500 -42.402 <=-28.912 PASS 2437 Reference 2.21 2.21 --- PASS 30~1000 30~1000 -68.421 <=-27.788 PASS 1000~26500 1000~26500 -42.85 <=-27.788 PASS 2462 Reference 2.28 2.28 --- PASS 30~1000 30~1000 -68.022 <=-27.72 PASS 1000~26500 1000~26500 -42.542 <=-27.72 PASS 11N20SISO 2412 Reference 1.35 1.35 --- PASS 30~1000 30~1000 -68.557 <=-28.655 PASS 1000~26500 1000~26500 -42.268 <=-28.655 PASS 2437 Reference 1.54 1.54 --- PASS 30~1000 30~1000 -69.168 <=-28.459 PASS 1000~26500 1000~26500 -42.952 <=-28.459 PASS 2462 Reference 1.05 1.05 --- PASS 30~1000 30~1000 -68.37 <=-28.948 PASS 1000~26500 1000~26500 -42.417 <=-28.948 PASS 11N40SISO 2422 Reference -1.55 -1.55 --- PASS 30~1000 30~1000 -65.414 <=-31.547 PASS 1000~26500 1000~26500 -42.524 <=-31.547 PASS 2437 Reference -1.27 -1.27 --- PASS 30~1000 30~1000 -67.262 <=-31.27 PASS 1000~26500 1000~26500 -42.897 <=-31.27 PASS 2452 Reference -1.12 -1.12 --- PASS 30~1000 30~1000 -67.324 <=-31.115 PASS 1000~26500 1000~26500 -42.872 <=-31.115 PASS Report No.: TCT210423E006 Page 55 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_2412_0~Reference 11B_2412_30~1000 11B_2412_1000~26500 Report No.: TCT210423E006 Page 56 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2437_0~Reference 11B_2437_30~1000 11B_2437_1000~26500 11B_2462_0~Reference Report No.: TCT210423E006 Page 57 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462_30~1000 11B_2462_1000~26500 11G_2412_0~Reference Report No.: TCT210423E006 Page 58 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2412_30~1000 11G_2412_1000~26500 11G_2437_0~Reference Report No.: TCT210423E006 Page 59 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2437_30~1000 11G_2437_1000~26500 11G_2462_0~Reference Report No.: TCT210423E006 Page 60 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2462_30~1000 11G_2462_1000~26500 11N20SISO_2412_0~Reference Report No.: TCT210423E006 Page 61 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412_30~1000 11N20SISO_2412_1000~26500 11N20SISO_2437_0~Reference Report No.: TCT210423E006 Page 62 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2437_30~1000 11N20SISO_2437_1000~26500 11N20SISO_2462_0~Reference Report No.: TCT210423E006 Page 63 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2462_30~1000 11N20SISO_2462_1000~26500 11N40SISO_2422_0~Reference Report No.: TCT210423E006 Page 64 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2422_30~1000 11N40SISO_2422_1000~26500 11N40SISO_2437_0~Reference Report No.: TCT210423E006 Page 65 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2437_30~1000 11N40SISO_2437_1000~26500 11N40SISO_2452_0~Reference Report No.: TCT210423E006 Page 66 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2452_30~1000 11N40SISO_2452_1000~26500 Report No.: TCT210423E006 Page 67 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N40SISO 2422 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2452 50.00 50.00 100.00 --- PASS Test Graphs 11B_2412 11B_2437 Report No.: TCT210423E006 Page 68 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462 11G_2412 11G_2437 11G_2462 Report No.: TCT210423E006 Page 69 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412 11N20SISO_2437 11N20SISO_2462 Report No.: TCT210423E006 Page 70 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2422 11N40SISO_2437 11N40SISO_2452 Report No.: TCT210423E006 Page 71 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210423E006 Page 72 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Antenna 2 DTS Bandwidth Test Result Test Mode Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B 2412 8.640 2407.440 2416.080 0…

Text truncated - open the document above for the full version.

Report No.: TCT210423E006 Page 73 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462 11G_2412 11G_2437 Report No.: TCT210423E006 Page 74 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2462 11N20SISO_2412 11N20SISO_2437 Report No.: TCT210423E006 Page 75 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2462 11N40SISO_2422 11N40SISO_2437 Report No.: TCT210423E006 Page 76 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2452 Report No.: TCT210423E006 Page 77 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum conducted output power Test Result Test Mode Channel Result[dBm] Limit[dBm] Verdict 11B 2412 14.67 <=30 PASS 2437 16.23 <=30 PASS 2462 15.13 <=30 PASS 11G 2412 15.02 <=30 PASS 2437 14.93 <=30 PASS 2462 13.91 <=30 PASS 11N20SISO 2412 13.54 <=30 PASS 2437 14.27 <=30 PASS 2462 13.27 <=30 PASS 11N40SISO 2422 13.33 <=30 PASS 2437 14.20 <=30 PASS 2452 14.25 <=30 PASS Test Graphs 11B_2412 11B_2437 Report No.: TCT210423E006 Page 78 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462 11G_2412 11G_2437 11G_2462 Report No.: TCT210423E006 Page 79 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412 11N20SISO_2437 11N20SISO_2462 Report No.: TCT210423E006 Page 80 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2422 11N40SISO_2437 11N40SISO_2452 Report No.: TCT210423E006 Page 81 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210423E006 Page 82 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum power spectral density Test Result Test Mode Channel Result[dBm/10kHz] Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 -11.69 -16.92 <=8 PASS 2437 -10.10 -15.33 <=8 PASS 2462 -11.33 -16.56 <=8 PASS 11G 2412 -12.57 -17.80 <=8 PASS 2437 -11.92 -17.15 <=8 PASS 2462 -13.58 -18.81 <=8 PASS 11N20SISO 2412 -13.49 -18.72 <=8 PASS 2437 -13.42 -18.65 <=8 PASS 2462 -14.20 -19.43 <=8 PASS 11N40SISO 2422 -17.34 -22.57 <=8 PASS 2437 -16.51 -21.74 <=8 PASS 2452 -16.39 -21.62 <=8 PASS Test Graphs 11B_2412 11B_2437 Report No.: TCT210423E006 Page 83 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_2462 11G_2412 11G_2437 11G_2462 Report No.: TCT210423E006 Page 84 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412 11N20SISO_2437 11N20SISO_2462 Report No.: TCT210423E006 Page 85 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2422 11N40SISO_2437 11N40SISO_2452 Report No.: TCT210423E006 Page 86 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT210423E006 Page 87 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band edge measurements Test Result Test Mode Ch Name Channel Ref Level[dBm] Result[dBm] Limit[dBm] Verdict 11B Low 2412 6.32 -38.51 <=-23.68 PASS High 2462 6.58 -49.48 <=-23.42 PASS 11G Low 2412 2.57 -37.03 <=-27.43 PASS High 2462 1.85 -47.72 <=-28.15 PASS 11N20SISO Low 2412 0.37 -37.26 <=-29.63 PASS High 2462 1.08 -49.15 <=-28.92 PASS 11N40SISO Low 2422 -2.45 -39.67 <=-32.45 PASS High 2452 -1.45 -46.99 <=-31.45 PASS Test Graphs 11B_Low_2412 11B_High_2462 11G_Low_2412 Report No.: TCT210423E006 Page 88 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_High_2462 11N20SISO_Low_2412 11N20SISO_High_2462 Report No.: TCT210423E006 Page 89 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Low_2422 11N40SISO_High_2452 Report No.: TCT210423E006 Page 90 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Spurious Emission Test Result Test Mode Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B 2412 Reference 5.98 5.98 --- PASS 30~1000 30~1000 -68.065 <=-24.023 PASS 1000~26500 1000~26500 -41.492 <=-24.023 PASS 2437 Reference 7.64 7.64 --- PASS 30~1000 30~1000 -68.224 <=-22.365 PASS 1000~26500 1000~26500 -42.927 <=-22.365 PASS 2462 Reference 5.64 5.64 --- PASS 30~1000 30~1000 -66.366 <=-24.364 PASS 1000~26500 1000~26500 -42.701 <=-24.364 PASS 11G 2412 Reference 2.49 2.49 --- PASS 30~1000 30~1000 -67.961 <=-27.508 PASS 1000~26500 1000~26500 -42.985 <=-27.508 PASS 2437 Reference 2.22 2.22 --- PASS 30~1000 30~1000 -61.65 <=-27.777 PASS 1000~26500 1000~26500 -42.482 <=-27.777 PASS 2462 Reference 1.26 1.26 --- PASS 30~1000 30~1000 -67.958 <=-28.737 PASS 1000~26500 1000~26500 -42.982 <=-28.737 PASS 11N20SISO 2412 Reference 1.03 1.03 --- PASS 30~1000 30~1000 -68.488 <=-28.973 PASS 1000~26500 1000~26500 -43.204 <=-28.973 PASS 2437 Reference 0.92 0.92 --- PASS 30~1000 30~1000 -67.76 <=-29.082 PASS 1000~26500 1000~26500 -42.141 <=-29.082 PASS 2462 Reference 0.21 0.21 --- PASS 30~1000 30~1000 -68.114 <=-29.787 PASS 1000~26500 1000~26500 -42.108 <=-29.787 PASS 11N40SISO 2422 Reference -2.57 -2.57 --- PASS 30~1000 30~1000 -67.665 <=-32.569 PASS 1000~26500 1000~26500 -42.731 <=-32.569 PASS 2437 Reference -1.29 -1.29 --- PASS 30~1000 30~1000 -66.035 <=-31.285 PASS 1000~26500 1000~26500 -42.94 <=-31.285 PASS 2452 Reference -1.53 -1.53 --- PASS 30~1000 30~1000 -66.503 <=-31.534 PASS 1000~26500 1000~26500 -42.633 <=-31.534 PASS Report No.: TCT210423E006 Page 91 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_2412_0~Reference 11B_2412_30~1000 11B_2412_1000~26500 Report No.: TCT210423E006 Page 92 of 118 Hotline: 400-6611-140 Tel: …

Text truncated - open the document above for the full version.

Report No.: TCT210423E006 Page 96 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_2462_30~1000 11G_2462_1000~26500 11N20SISO_2412_0~Reference Report No.: TCT210423E006 Page 97 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2412_30~1000 11N20SISO_2412_1000~26500 11N20SISO_2437_0~Reference Report No.: TCT210423E006 Page 98 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2437_30~1000 11N20SISO_2437_1000~26500 11N20SISO_2462_0~Reference Report No.: TCT210423E006 Page 99 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_2462_30~1000 11N20SISO_2462_1000~26500 11N40SISO_2422_0~Reference Report No.: TCT210423E006 Page 100 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2422_30~1000 11N40SISO_2422_1000~26500 11N40SISO_2437_0~Reference Report No.: TCT210423E006 Page 101 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2437_30~1000 11N40SISO_2437_1000~26500 11N40SISO_2452_0~Reference Report No.: TCT210423E006 Page 102 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_2452_30~1000 11N40SISO_2452_1000~26500 Report No.: TCT210423E006 Page 103 of 118 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 …

Text truncated - open the document above for the full version.
