VMISWADS-466CAMIP CAMERA

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter may not be co-located with any other transmitter or antenna.

Swann Communications Pty Ltd (Swann Global Limited - HK office)

Swann Communications Pty Ltd (Swann Global Limited - HK office)

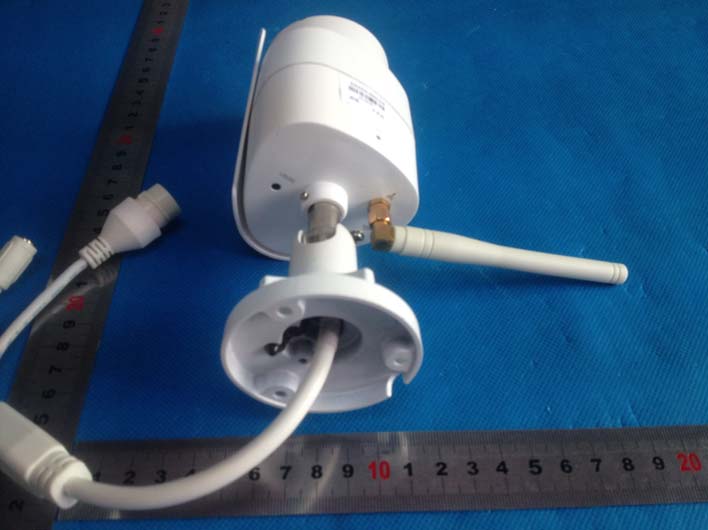

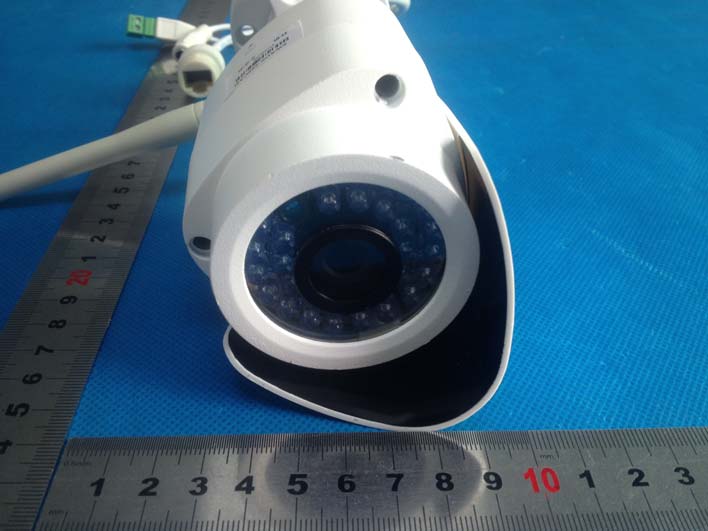

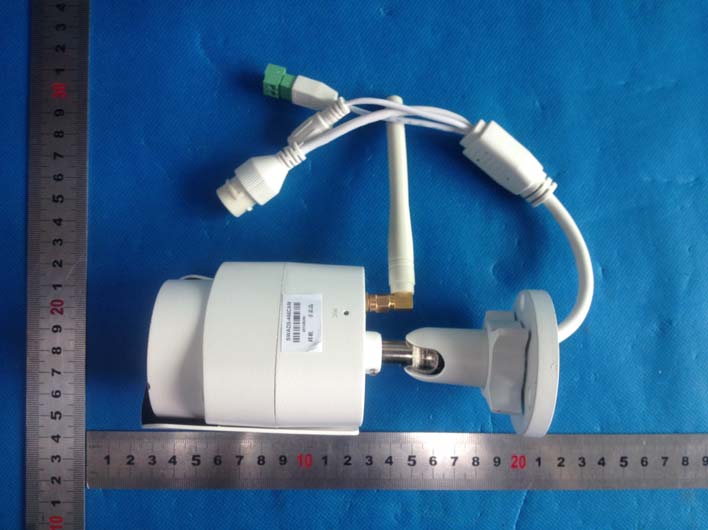

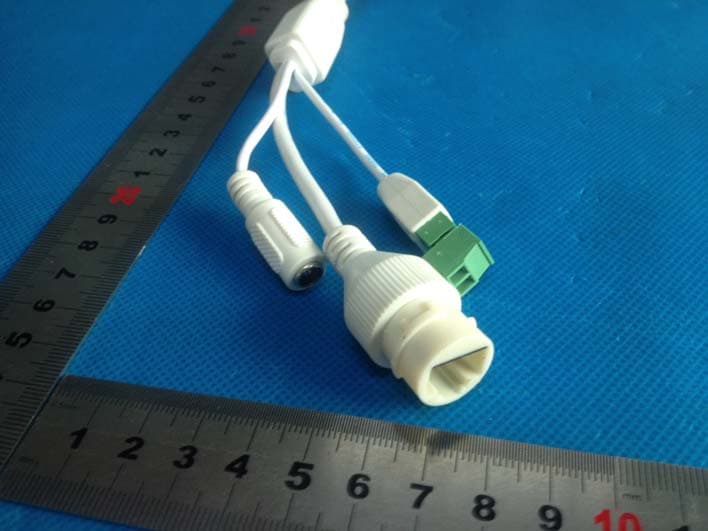

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 8 Photo 7 Photo 9 Photo 10

APPENDIX A - PRODUCT LABELING Proposed FCC ID Label Format 1.2*2.7cm

Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21

RF EXPOSURE TEST FCC ID: VMISWADS-466CAM Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=1.0 mW /cm 2 for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. 3. The Power Density at a distance of 20cm calculated from the formula is far below the limit of 1MW/ cm 2 TEST RESULTS NOTE: (For mobile or fixed location transmitters, the maximum power density is 1.0mW/cm 2 even if the calculation indicates that the power density would be larger) PK output power (MAX) (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 17.87 61.23 1.995(3dbi) 0.024 1 Pass

FCC Part 15C Measurement And Test Report For Swann Communications Pty Ltd (Swann Global Limited - HK office) Room 1601, Tung Ning Building249-255 Des Voeux Road Central Hong Kong FCC ID: VMISWADS-466CAM May. 21, 2014 This Report Concerns: Original Report Equipment Type: IP CAMERA Report Number: MTI140507001RF Test Engineer: Bill Chen Reviewed By: Jason Zheng Approved & Authorized By: Hebe Lee Test Date: May10- May21,2014 Prepared By: Shenzhen Microtest Technology Co.,Ltd 6F, Zhongbao Building, Gushu, Bao＇ an District, Shenzhen, P.R.China Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of Shenzhen Microtest Technology Co.,Ltd. Report No.：MTI140507001RF Page 2 of 59 TEST RESULT CERTIFICATION Applicant’s name ................. : Swann Communications Pty Ltd (Swann Global Limited - HK office) Address .................................. : Room 1601, Tung Ning Building249-255 Des Voeux Road Central Hong Kong. Manufacture's Name ............ : Hangzhou Hikvision Digital Technology Co., Ltd . Address .................................. : No.700, Dongliu Road, Binjiang District, Hangzhou 310052, China Product description Product name ............................: IP CAMERA Model and/or type reference : SWADS-466CAM Serial Model ...............................: N/A Standards .............................. : FCC Part15.247 Test procedure .............................ANSI C63.4-2003 Report No.：MTI140507001RF Page 3 of 59 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . POWER SPECTRAL DENSITY TEST 36 4.1 APPLIED PROCEDURES / LIMIT 36 4.1.1 TEST PROCEDURE 36 4.1.2 DEVIATION FROM STANDARD 36 4.1.3 TEST SETUP 36 4.1.4 EUT OPERATION CONDITIONS 36 4.1.5 TEST RESULTS 37 5 . BANDWIDTH TEST 43 5.1 APPLIED PROCEDURES / LIMIT 43 5.1.1 TEST PROCEDURE 43 5.1.2 DEVIATION FROM STANDARD 43 Report No.：MTI140507001RF Page 4 of 59 Table of Contents Page 5.1.3 TEST SETUP 43 5.1.4 EUT OPERATION CONDITIONS 43 5.1.5 TEST RESULTS 44 6 . PEAK OUTPUT POWER TEST 50 6.1 APPLIED PROCEDURES / LIMIT 50 6.1.1 TEST PROCEDURE 50 6.1.2 DEVIATION FROM STANDARD 50 6.1.3 TEST SETUP 50 6.1.4 EUT OPERATION CONDITIONS 50 6.1.5 TEST RESULTS 51 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 52 7.1 DEVIATION FROM STANDARD 52 7.2 TEST SETUP 52 7.3 EUT OPERATION CONDITIONS 52 7.4 TEST RESULTS 53 8 . ANTENNA REQUIREMENT 57 8.1 STANDARD REQUIREMENT 57 8.2 EUT ANTENNA 57 Report No.：MTI140507001RF Page 5 of 59 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Report No.：MTI140507001RF Page 6 of 59 1.1 TEST FACILITY Shenzhen Toby Technology Co., Ltd. Add.: 10/F.,A Block,Jiada R&D Bldg.,No.5 Songpingshan, Road, Science&Technology Park, Shenzhen, 518057 FCC Registration No.:811562 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Report No.：MTI140507001RF Page 7 of 59 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment IP CAMERA Trade Name Swann Model Name SWADS-466CAM Serial Model N/A Model Difference N/A Product Description The EUT is a IP CAMER A Operation Frequency: 802.11b/g/n:2412~2462 MHz Modulation Type: 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM 11b: DQPSK, DBPSK, DSSS, CCK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n:65/52/6.5Mbps Number Of Channel 802.11b/g/n:11CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 17.87 dBm (Max.) 802.11g: 15.78 dBm (Max.) 802.11n: 14.82 dBm (Max.) Antenna Gain (dBi) 3.0dbi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter Model:SW-050150 AC Power Input: 100-240V~, 50/60Hz, 0.3A Output: 5.0V , 1500mA Battery N/A Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Report No.：MTI140507001RF Page 8 of 59 2. Channel List for 802.11b/g/n(20) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 01 2412 04 2427 07 2442 10 2…

Text truncated - open the document above for the full version.

Report No.：MTI140507001RF Page 58 of 59 9. EUT TEST PHOTO Radiated Measurement Photos Report No.：MTI140507001RF Page 59 of 59 CONDUCTED EMISSION Photos
