VNN-LA48291.9GHz CORDLESS PHONE

User Guide PowerTel 500 2 CONTENTS User Guide ........................................... 1 Safety Information .............................. 4 Getting Started ................................... 6 Set Up ................................................... 6 Handset Display Icons ........................ 8 Phone Menu and Display Guide ......... 9 Calling Functions ............................... 10 Menu Options .................................... 14 Changing Menu Settings .................. 16 Changing Clock Settings .................. 17 Changing Base Settings ................... 18 Phone Book ........................................ 19 Adding a Handset .............................. 25 Help and Support .............................. 32 Troubleshooting Guide ..................... 32 Technical Details................................ 34 Default Settings ............................... 35 Maintenance and Warranty .............. 36 FCC Compliance Warning: Changes or modifi cations to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, connect the equipment into an outlet on a circuit different from that to which the receiver is connected, or consult the dealer or an experienced radio/TV technician for help. Caution: To maintain the compliance with the FCC’s RF exposure guideline, place the base unit at least 8 inches from nearby persons. For body worn operation, this handset has been tested and meets the FCC RF exposure guidelines when used with the (manufacturer name) accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Some cordless telephones operate at this frequencies may cause interference to nearby TVs and VCRs; to minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR; and, if interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference This equipment complies with Part 68 of the FCC rules. A label on the base unit of this equipment contains, among other information, the ACTA Product Number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company. Instructions available in other languages at www.amplicomusa.com. 33 PowerTel 500 Cordless handset and base 1 Memory 1 2 35dB Boost 3 Enter Menu/ Mute/Delete 4 Internal call 5 External call/ Handsfree 6 /Ringer on/off 7 Pause (long press 0) 8 Volume up/down 9 Memory 2 10 Up/Redial 11 Headset socket (Headset not included) 12 Phonebook/ Save/OK 13 Recall 14 End call 15 Down/Calls list/ Equalizer 16 Keypad 17 #/Keylock 18 Find handset/ Registration 1 2 3 5 6 4 7 8 9 10 12 11 13 14 15 16 17 18 PHONE GUIDE Warning: This Handset has been specially designed for hearing impaired individuals and has a normal volume which is louder than a standard phone. Use of the Boost feature can cause hearing damage to individuals who are not hearing impaired. Service Center 4 Safety Information When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fi re, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool. 2. Do not use the telephone to report a gas leak in the vicinity of the leak. 3. Use only the power cord and battery pack indicated in this manual. Do not dispose of battery pack in a fi re. It may explode. Check with local codes for possible special disposal instructions. Intended use This phone is suitable for use on a public telephone network. Any other use is considered unintended use. Unauthorized modifi cation or reconstruction is not permitted. Do not open the device and attempt any repair work yourself. Phone location Locate the base: • On a dry, fl at and stable surface • Where the power cable will not be a trip hazard • Where it is not obstructed by furniture • At least three feet from other electrical appliances SAFETY 1-866-AMPLICOM (267-5426) 5 SAFETY • Away from smoke, dust, vibration, chemicals, moisture, heat or direct sunlight. Power failure – What to do This telephone cannot be used to make calls in the event of a power failure. Alternative arrangements should be made for access to emergency services. Medical equipment Do not use the phone near emergency or intensive care medical equipment, or during an electrical storm. If you have a pacemaker check with a medical expert before using this product. Hearing aid compatibility This phone works with most popular hearing aids. However, given the wide range of hearing aids available, the phone may not function fully with every hearing aid. Telephone s identifi ed with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a …

Text truncated - open the document above for the full version.

17 May 2010 FCC ID: VNN-LA4829

17 May 2010

[FILENAME:VNN-VV6902_circuit.pdf] [FILENAME:VNN-VV6902_block.pdf] [FILENAME:VNN-VV6902_descri.pdf] [FILENAME:VNN-LA4829_circuit.pdf] [FILENAME:VNN-LA4829_block.pdf] [FILENAME:VNN-LA4829_descri.pdf] FCC ID:VNN-LA4829 17 May 2010

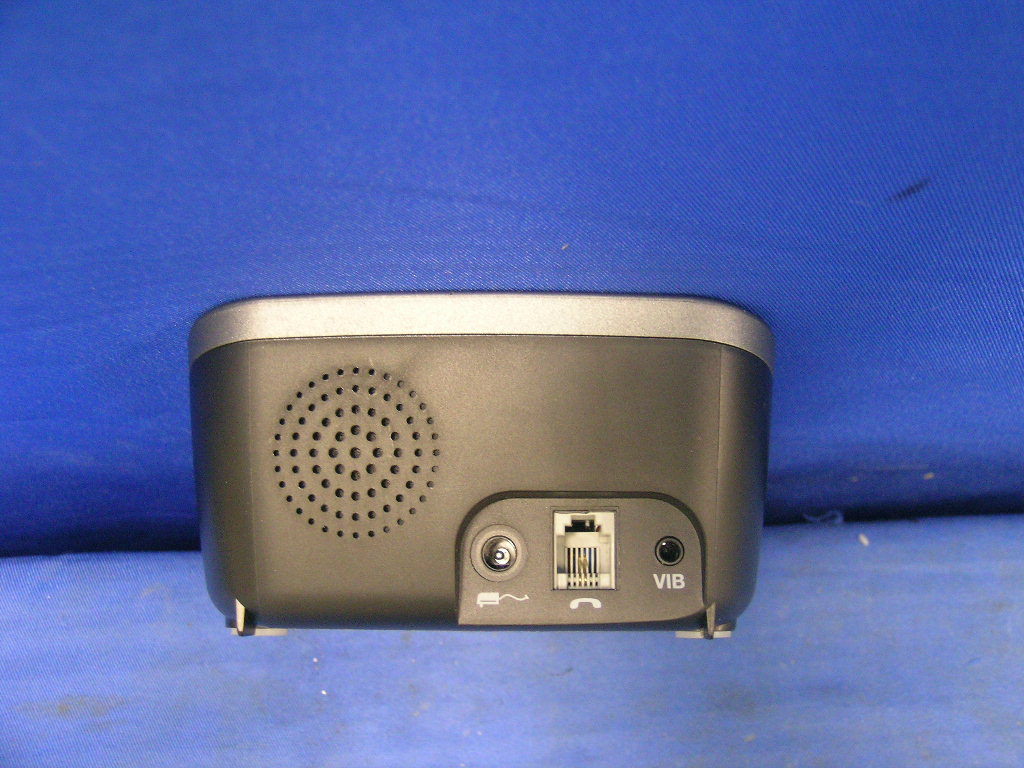

INTERTEK TESTING SERVICES External Photos FCC ID: VNN-LA4829 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VNN-LA4829 external photos - 2 of 2

LA4829HER1-USA-TB01 Packing Instruction for labels Page 1/3 Rev00 P/N: 710+04829-02500-00 Desc: base rating label with S008CU1200067 RoHS Barcode format: UPC(A) Size: 52X40MM Color: Black on White background Material: Label paper with plastic lamination on top Location: unit bottom Print the serial number here e.g.: G00218GC000001 Bottom of unit The serial number is printed by manufactory MADE IN CHINA HAC CLASS 2 S/N: 8115459 01000 US:7ARW401BLA4829 VNN-LA4829 MODEL NO.: PowerTel 500 THIS UNIT COMPLIES WITH 47 CFR PART 68 FCC RULES. FCC REGISTRATION NO.: FCC ID: RINGER EQUIVALENCE NO.: 0.1B REQUIRED CONNECTOR Rj11 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. For use only with power supply: S008CU1200067 Rating 12V 670mA Amplicom USA LLC New York, USA MADE IN CHINA HAC CLASS 2 S/N: 8115459 01000 US:7ARW401BLA4829 VNN-LA4829 MODEL NO.: PowerTel 500 THIS UNIT COMPLIES WITH 47 CFR PART 68 FCC RULES. FCC REGISTRATION NO.: FCC ID: RINGER EQUIVALENCE NO.: 0.1B REQUIRED CONNECTOR Rj11 For use only with power supply: S008CU1200067 Rating 12V 670mA Amplicom USA LLC New York, USA G00218GC000001 P/N: 710+04829-02600-00 Desc: Handset label, PowerTeel 500 USA AAA 2.4V 740mAh, RoHS Dsize: 28X12 Color: black on white background Material: Label paper with plastic lamination on top Location : H/S batt. compartment. Print the serial number here e.g.: G00218GC000001 LA4829HER1-USA-TB01 Packing Instruction for labels Page2/3 Rev00 M odel N o. : P o w erTel 50 0 Batter y: 1 x Ni - M H AA A 2 .4 V 7 5 0 m Ah S /N:G 0 0 2 1 8 GC0 0 0 0 0 1 FC C I D : VNN-LA4 8 2 9 M a d e i n C h i n a Model No.: PowerTel 500 Battery: 1 x Ni-MH AAA 2.4V 750mAh S / N: FCC ID : VNN-LA4829 Made in China Carton Front P/N:710+04829-03500-00 Desc.: SN label Color : Black on the white background Size: 30X8 MM Material: art paper Location: one side of Master shipping carton. Model:PowerTel 500 S/N: Print the serial number here e.g.: G00218GC000001 Model:PowerTel 500 S/N: G00218GC000001 mm

INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 1 of 7 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 2 of 7 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 3 of 7 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 4 of 7 Handset assembly (View 1) Handset assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 5 of 7 Handset Main PCB comp side Handset Main PCB display side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 6 of 7 Handset Main PCB display side (View 2) Handset LED Keyboard front side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-LA4829 internal photos - 7 of 7 Handset LED Keyboard rear side Handset Oscillator PCB comp side

Report No.: TS10050031-EME Page 1 of 76 Specific Absorption Rate (SAR) Test Report for Global China Technology Limited on the DECT 6.0 Cordless Phone Model Number: LA4829HER2, LA4829HER1, LG4821HER1, Power Tel 500, Power Tel 502, Power Tel 501 Test Report: TS10050031-EME Date of Report: May 11, 2010 Date of test: May 10, 2010 Review Date: May 11, 2010 Total No of Pages Contained in this Report: 76 The test report was prepared by: Sign on File Sunny Liu / Senior Officer These measurements were taken by: Sign on File Rex Liao / Engineer The test report was reviewed by: Name Rico Deng Title Senior Engineer All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. 0597 Report No.: TS10050031-EME Page 2 of 76 Table of Contents 1.0 General information .................................................................................................... 3 2.0 SAR Evaluation........................................................................................................... 7 3.0 Test Instruments and Tissue Liquids ........................................................................ 19 4.0 Measurement Uncertainty ........................................................................................ 24 5.0 Test Results...............................................................................................................26 6.0 E-Field Probe and 1900 Dipole Antenna Calibration ............................................... 27 7.0 WARNING LABEL INFORMATION - USA ............................................................... 27 8.0 REFERENCES ......................................................................................................... 27 9.0 DOCUMENT HISTORY ............................................................................................ 28 APPENDIX A - SAR Evaluation Data ............................................................................. 29 APPENDIX B - Photographs .......................................................................................... 40 APPENDIX C - E-Field Probe and 1900MHz Dipole Antenna Calibration Data............ 47 Report No.: TS10050031-EME Page 3 of 76 1.0 General information The LA4829HER2 handset supplied for Specific Absorption Rate (SAR) testing is a 1.9 GHz DECT cordless phone device. The device was tested at the facility of Intertek Testing Services in Hsinchu, Taiwan. The maximum output power declared by Global China Technology Limited. EUT model #LA4829HER2 was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65 Supplement C (Edition 01-01), RSS-102 and meet the SAR requirement. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the head Specific Anthropomorphic Mannequin (SAM) phantom and the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%. SAR testing was performed at both the left and right ear of the phantom at the two-handset positions stated in the specification. 2mm thick box phantom for body configuration was also evaluated. Testing was performed at the middle frequency of 1900 band with a rechargeable battery and in Normal mode of operation. Any accessories supplied with LA4829HER2 have also been tested. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Worst Case Position SAR 1g , W/kg Head Specific Anthropomorphic Mannequin (SAM) phantom EUT Right Cheek to the phantom 0.080 W/kg 2mm thick box phantom wall Separating the Box with belt-clip attached in rear position from EUT 0.083 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65 Supplement C (Edition 01-01) and RSS-102 for head and body configurations. The customer confirmed the models listed as below were series model to model LA4829HER2 (EUT), the difference between main model and series model are listed as below. Model Number Trade Name Different LA4829HER2 GCT 1 base + 2 handsets + 1 charger LA4829HER1 GCT 1 base + 1 handset LG4821HER1 GCT 1 handset + 1 charger Power Tel 500 Amplicom 1 base + 1 handset Power Tel 502 Amplicom 1 base + 2 handsets + 1 charger Power Tel 501 Amplicom 1 handset + 1 charger Report No.: TS10050031-EME Page 4 of 76 1.1 Client Information The DECT 6.0 cordless phone has been tested at the request of: Applicant: Global China Technology Limited Room 308, 3/F Kwong Sang Hong Centre, 151-153 Hoi Bun Road, Kwun Tong, Hong Kong 1.2 Equipment under test (EUT) Product Descriptions: Equipment DECT 6.0 cordless phone Trade Name GCT Model No. LA4829HER2 FCC ID VNN-LA4829 S/N No. Not Labeled Category Portable RF Exposure Uncontrolled Environment Frequency Band 1921.536 -1928.448 MHz System / Power Level DECT EUT Antenna Description Type Integral ConfigurationFixed Dimensions 40 mm length Gain 0 dBi Location Embedded Use of product: DECT 6.0 cordless phone Manufacturer: Shenzhen G. Credit Electronics Co. Ltd. Production is planned: [X] Yes, [ ] No EUT receive date: May 10, 2010 EUT received condition: Good operating condition prototype EUT status: Normal mode Test start date: May 10, 2010 Test end date: May 10, 2010 Report No.: TS10050031-EME Page 5 of 76 1.3 Modifications required for compliance The EUT has no modifications during test. 1.4 System test configuration 1.4.1 System block diagram & Support equipment Support Equipment Item # Equipment Model No. S/N 1 Base unit LA4829HER2 N/A 2 Ea…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-LA4829 26bw - 1 of 4 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-LA4829 26bw - 2 of 4 A0 Base unit, Lowest channel, Dummy carrier, RBW = 10kHz Base unit, Lowest channel, Dummy carrier, RBW = 30kHz INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-LA4829 26bw - 3 of 4 A0 Base unit, Highest channel, Dummy carrier, RBW = 10kHz Base unit, Highest channel, Dummy carrier, RBW = 30kHz INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-LA4829 26bw - 4 of 4 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK10041640-1 Handset Charging with Base Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 5.MAY.2010 18:11:36 Report no.: HK10041640-1 Handset Charging with Base Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average204 kHz 39.53 L1 gnd -13.91 1 Quasi Peak 208.5 kHz 42.73 L1 gnd -20.52 2 CISPR Average253.5 kHz 39.28 L1 gnd -12.35 1 Quasi Peak 258 kHz 43.19 L1 gnd -18.30 2 CISPR Average357 kHz 44.65 L1 gnd -4.14 1 Quasi Peak 366 kHz 50.89 L1 gnd -7.69 1 Quasi Peak 505.5 kHz 47.81 L1 gnd -8.18 2 CISPR Average505.5 kHz 38.59 L1 gnd -7.40 2 CISPR Average618 kHz 32.27 L1 gnd -13.73 1 Quasi Peak 748.5 kHz 44.48 L1 gnd -11.51 2 CISPR Average802.5 kHz 32.45 L1 gnd -13.54 1 Quasi Peak 1.0905 MHz 45.42 L1 gnd -10.57 2 CISPR Average1.1445 MHz 34.24 L1 gnd -11.75 1 Quasi Peak 1.4505 MHz 45.29 L1 gnd -10.70 1 Quasi Peak 1.977 MHz 44.93 N gnd -11.06 2 CISPR Average2.0805 MHz 33.62 L1 gnd -12.37 2 CISPR Average2.868 MHz 34.62 L1 gnd -11.37 1 Quasi Peak 2.9175 MHz 48.19 N gnd -7.80 2 CISPR Average4.0065 MHz 36.68 L1 gnd -9.31 1 Quasi Peak 4.056 MHz 51.83 N gnd -4.16 Date: 5.MAY.2010 18:11:19 Report no.: HK10041640-1 Handset Charging with Base Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average4.6455 MHz 38.37 L1 gnd -7.62 1 Quasi Peak 4.992 MHz 55.78 N gnd -0.21 2 CISPR Average5.73 MHz 40.14 N gnd -9.85 1 Quasi Peak 5.7345 MHz 58.72 N gnd -1.27 2 CISPR Average7.9845 MHz 31.26 N gnd -18.73 1 Quasi Peak 8.061 MHz 42.22 N gnd -17.77 1 Quasi Peak 11.1795 MHz 33.65 L1 gnd -26.34 Date: 5.MAY.2010 18:11:28 Report no.: HK10041640-1 Speakerphone On Line Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 5.MAY.2010 18:49:29 Report no.: HK10041640-1 Speakerphone On Line Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 41.88 L1 gnd -21.75 2 CISPR Average204 kHz 38.72 L1 gnd -14.72 2 CISPR Average249 kHz 37.91 L1 gnd -13.87 1 Quasi Peak 289.5 kHz 35.43 L1 gnd -25.10 1 Quasi Peak 393 kHz 51.12 L1 gnd -6.87 2 CISPR Average397.5 kHz 42.65 L1 gnd -5.24 2 CISPR Average406.5 kHz 41.32 L1 gnd -6.39 1 Quasi Peak 415.5 kHz 47.26 L1 gnd -10.27 1 Quasi Peak 735 kHz 42.59 L1 gnd -13.40 2 CISPR Average748.5 kHz 32.05 L1 gnd -13.94 1 Quasi Peak 1.0815 MHz 45.08 L1 gnd -10.91 2 CISPR Average1.0815 MHz 32.74 L1 gnd -13.26 2 CISPR Average1.131 MHz 33.87 L1 gnd -12.12 1 Quasi Peak 1.4955 MHz 44.29 L1 gnd -11.70 2 CISPR Average2.067 MHz 33.87 L1 gnd -12.12 1 Quasi Peak 2.094 MHz 44.71 L1 gnd -11.28 2 CISPR Average2.8455 MHz 33.54 L1 gnd -12.45 1 Quasi Peak 2.8905 MHz 46.45 N gnd -9.54 1 Quasi Peak 3.9345 MHz 52.57 N gnd -3.42 2 CISPR Average4.0245 MHz 36.34 L1 gnd -9.65 Date: 5.MAY.2010 18:48:49 Report no.: HK10041640-1 Speakerphone On Line Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average4.7085 MHz 37.77 L1 gnd -8.22 1 Quasi Peak 5.6445 MHz 57.27 N gnd -2.72 1 Quasi Peak 5.7795 MHz 58.04 N gnd -1.95 2 CISPR Average5.901 MHz 39.90 N gnd -10.09 1 Quasi Peak 8.0745 MHz 42.51 N gnd -17.49 2 CISPR Average8.088 MHz 30.71 N gnd -19.28 1 Quasi Peak 11.1705 MHz 33.32 L1 gnd -26.67 Date: 5.MAY.2010 18:49:08

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VNN-LA4829 inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VNN-LA4829 inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VNN-LA4829 inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VNN-LA4829 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VNN-LA4829 peaktp - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VNN-LA4829 peaktp - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN-LA4829 psd - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN-LA4829 psd - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN-LA4829 psd - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Global China Technology Limited Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices FCC ID: VNN-LA4829 Model: LA4829HER2, LA4829HER1, LG4821HER1, PowerTel 500, PowerTel 502, PowerTel 501 Test Report Number: HK10041640-1 Issue Date: May 26, 2010 MN/ sl INTERTEK TESTING SERVICES Test Report Number: HK10041640-1 Page 1 of 65 FCC ID: VNN-LA4829 MEASUREMENT/TECHNICAL REPORT Global China Technology Limited Model: LA4829HER2, LA4829HER1, LG4821HER1, PowerTel 500, PowerTel 502, PowerTel 501 FCC ID: VNN-LA4829 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : ________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10041640-1 Page 2 of 65 FCC ID: VNN-LA4829 Table of Contents 1.0 Summary of Test Results.....................................................................................5 2.0 General Description..............................................................................................8 2.1 Product Description ..............................................................................................8 2.2 Technical Description ...........................................................................................8 2.3 Test Methodology.................................................................................................9 2.4 Test Facility..........................................................................................................9 3.0 System Test Configuration.................................................................................11 3.1 Justification ........................................................................................................11 3.2 Conducted Emission Test Configuration .............................................................12 3.3 Conducted Monitoring and Operational Test Configuration.................................12 3.4 EUT Exercising Software....................................................................................12 3.5 Details of EUT and Description of Accessories...................................................13 3.6 Measurement Uncertainty ..................................................................................13 3.7 Equipment Modification ......................................................................................13 4.0 Measurement Results.........................................................................................15 4.1 Antenna Requirement........................................................................................15 4.2 Digital Modulation Techniques............................................................................15 4.3 Emission Bandwidth...........................................................................................16 4.4 Directional Gain of the Antenna ..........................................................................17 4.5 Peak Transmit Power .........................................................................................18 4.6 Power Spectral Density ......................................................................................19 4.7 Automatic Discontinuation of Transmission.........................................................20 4.8 Unwanted Emission Inside the Sub-Band ...........................................................21 4.9 Emissions Outside the Sub-Band .......................................................................23 4.9.1 Radiated Emissions Configuration Photographs ..............................................24 4.9.2 Radiated Emissions Data ................................................................................24 4.9.3 Field Strength Calculation................................................................................35 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements .............36 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT.............37 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................38 4.10.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Transmitter ON Time Plots FCC ID: VNN-LA4829 txon - 1 of 2 Base unit, Traffic carrier Base unit, Dummy carrier INTERTEK TESTING SERVICES Transmitter ON Time Plots FCC ID: VNN-LA4829 txon - 2 of 2 Handset unit, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VNN-LA4829 config photos (radiated emission – base unit) - 1 of 2 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VNN-LA4829 config photos (radiated emission – handset) - 2 of 2 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Handset Charging with Base FCC ID: VNN-LA4829 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Handset Charging with Base FCC ID: VNN-LA4829 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
