VNN-VL48341.9GHz Cordless Phone

User Guide PowerTel 680 Service Center 4 P HONE G UIDE 1 Menu/OK 2 Play/Pause 3 Stop/Esc/ Ans on off 4 Mute/ Delete 5 Equalizer 6 Boost (under handset) 7 Volume up 8 Volume down 9 Keypad 10 Handsfree 11 Headset 12 Find handset/ Intercom/Registration 13 Quick dial memories/User profi les 14 Phonebook 15 Fast forward/ Memo 16 Up/Redial/ Pause 17 Incoming call light/New messages received 18 Down/Calls list/Recall 19 Rewind/ OGM 1 9 8236457 10 11 12 13 14 15 17 18 19 16 Corded phone base 1-866-AMPLICOM (267-5426) 5 Wrist shaker 1 Emergency button Note: Can only be used with thePowerTel 680 telephone 2 Battery charging red light 3 Power on/off 4 Wrist strap 5 Registration mode/ Out of range/Low battery 2 color green or red light 6 Charging contacts 7 Charging unit 8 Incoming call green light 1 2 8 3 45 6 7 P HONE G UIDE Service Center 6 Important Safety InstructionsWhen using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fi re, electric shock and injury to persons, including the following:1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.2. Do not use the telephone to report a gas leak in the vicinity of the leak. 3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fi re. They may explode. Check with local codes for possible special disposal instructions. Save these instructions for future use.SAVE THESE INSTRUCTIONS Intended useThis phone is suitable for use on a public telephone network. Any other use is considered unintended use. Unauthorized modifi cation or reconstruction is not permitted. Do not open the device and attempt any repair work yourself. Phone locationLocate the base, corded phone, and wrist-shaker base:• On a dry, fl at and stable surface • Where the power cable will not be a trip hazard• Where it is not obstructed by furniture S AFETY 1-866-AMPLICOM (267-5426) 7 S AFETY • At least three feet from other electrical appliances• Away from smoke, dust, vibration, chemicals, moisture, heat or direct sunlight. Power failure – What to doPower failure can affect your phone and equipment. Only the corded phone will work if there is a power failure. Medical equipmentDo not use the phone near emergency or intensive care medical equipment, or during an electrical storm. If you have a pacemaker check with a medical expert before using this product.Hearing aid compatibilityThis phone works with most popular hearing aids. However, given the wide range of hearing aids available, the phone may not function fully with every hearing aid.Telephone s identifi ed with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Caution: The phone will produce high volume when Boost is switched on. 1-866-AMPLICOM (267-5426) 9 G ETTING STARTED Important: Use only Power supply model S008CU1200067 supplied by Ten Pao Industrial Co., Ltd. for Base unit. 2. Connect cordless phone charger basePlug the other power adapter that is already attached to charger base into the wall socket and switch the power on.3. Install battery packInsert the rechargeable battery pack into the handset and plug it in as shown.Dispose of battery pack properly. Do not allow battery pack to come into contact with fi re or water. 4. Charge handsetPlace the handset on its base to charge for a minimum of 15 hours before use. Important: Only use the rechargeable battery pack model GPHCH73N07, 750mAh NiMH supplied by GPI INTERNATIONAL LIMITED. 5. Connect telephone cableAfter initial charge, plug the telephone cable into the telephone wall socket. Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Service Center 10 Connect and charge wrist shaker Important: Use only the power adapter supplied, otherwise wrist shaker may not work. 1. Plug in the charger unitPlug the charger unit into the wall socket. 2. Place the wrist shaker in the charger unitPlace wrist shaker on its charger unit, with the two connection points facing down. A red light on the wrist shaker indicates it is charging properly. Charge the wrist shaker for 10 hours before use. Note: When fully charged, the wrist shaker’s battery will last fi ve days. The larger red light will fl ash slowly when the battery is low and needs to charge for 10 hours. 3. Switch wrist shaker on/offPress and hold for fi ve seconds, until the green light with the warning triangle comes on. G ETTING STARTED 1-866-AMPLICOM (267-5426) 11 Note: The light fl ashes green then red if the wrist shaker is not registered or is out of range. Bring it closer to the PowerTel telephone to ensure it is with-in range. If the light still fl ashes, see page 57 for registration instructions. Off: Press and hold for about fi ve seconds, until the green light goes off. 5. Turn on SOS Motor featureThe SOS Motor feature causes the wrist shaker to vibrate when a call comes in.i. At the corded phone base: Press (under the display). ii. Use to scroll to SOS Motor. Press again. iii. Use or to scroll to On. Press again. Saved is displayed. Power on/off button G ETTING STARTED Service Center 12 Wrist strapThe wrist strap allows the wrist shaker to be worn like a watch. To attach or adjust the wrist strap:1. Thread it from the back through one of the slots.2. Slide the strap across the back of the wrist shaker. 3. Thread it back to front through the other slot. 4. Place the strap around the wrist and connect the velcro fasteners. The telephones and wrist shaker are now ready for use! G ETTING STARTED 1-866-AMPLICOM (267-5426) 13 Corded Phone Base Display IconsThe following icons can appear in the handset display: Phone book mode Ringer off Handsfree mode Call in progress Boost receiver…

Text truncated - open the document above for the full version.

Base unit ,handset unit and shaker unit will act as theinitiating devices, which will initiatethe establishment of duplex connection. c

26 May 2010 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Authorization Letter September 10, 2009 To who may concern As an officer of Intertek Testing Services, I do hereby authorize Mr. Melvin Nip to sign documents for all of applications under the FCC Part 15 & RSS-210. Regards Ken Sit Manager

[FILENAME:VNircuit.pdf] [FILENAME:VNN-VV6902_block.pdf] [FILENAME:VNN-VV6pd FCC ID:VNN-VL4834 26 May 2010

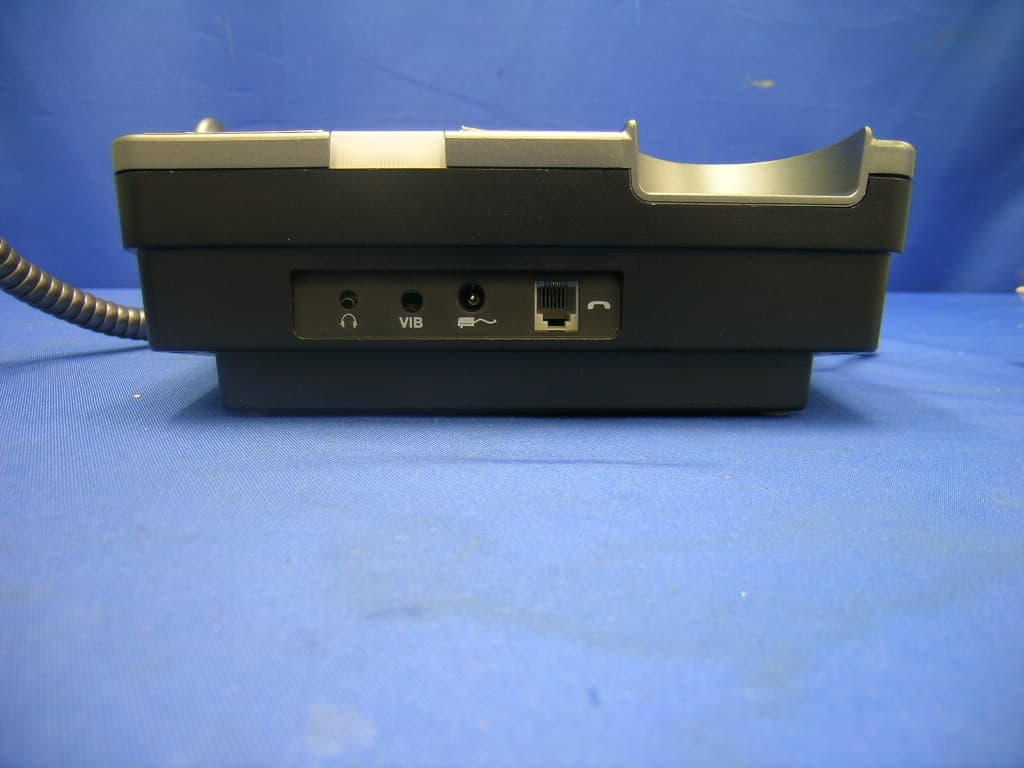

INTERTEK TESTING SERVICES External Photos FCC ID: VNN-VL4834 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: VNN-VL4834 external photos - 2 of 2

Scale: 50% P/N: 710-04834-02000-01 Desc: base rating labelRoHS Barcode format: UPC(A) Size: 52X40MMColor: Black on White background Material: Label paper with plastic lam ination on top Location: unit bottom (The material had been approved by UL. 材质必须通过UL认证) Print the serial number here e.g.: G00218GC000001 MADE IN CHINA HAC S/N: 86 15459 01005 US:7ARW423BVL4834 VNN-VL4834 MODEL NO .: PowerTel 680 THIS UNIT COMPLIES WITH 47 CF R PART 68 FCC RULES. FCC REGISTRATION NO .: FCC ID : RINGER EQUIVALENCE NO .: 2.3B REQUIRED CONNECTOR Rj11 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including in terference that may cause undesired oper ation. Privacy of communications may not be ensured when using this phone. Rating 12VDC 6 70mA , Amplicom USA LLC New York, USA CLASS 2 MADE IN CHINA HAC S/N: 86 15459 01005 US:7ARW401BVL4834 VNN-VL4834 MODEL NO .: PowerTel 680 THIS UNIT COMPLIES WITH 47 CFR PART 68 FCC RULES. FCC REGISTRATION NO .: FCC ID : RINGER EQUIVALENCE NO .: 0.1B REQUIRED CONNECTOR Rj11 Rating 12VDC 670mA , Amplicom USA LLC New York, USA CLASS 2 E CHG

INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 1 of 7 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 2 of 7 Base Unit Main PCB comp side Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 3 of 7 Base Unit Keypad PCB front side (View 1) Base Unit Keypad PCB front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 4 of 7 Base Unit Keypad PCB front side (View 3) Base Unit LCD Board front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 5 of 7 Base Unit LCD Board front side (View 2) Base Unit On-Hook Key Board front side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 6 of 7 Base Unit On-Hook Key Board rear side Base Unit 35dB Key Board front side INTERTEK TESTING SERVICES Internal photos FCC ID: VNN-VL4834 internal photos - 7 of 7 Base Unit 35dB Key Board rear side Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:VNN-VL4834 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of VL4834PER1, the maximum field strength measured (FS) was 113.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time- averaging duty factor in two-handsets operation is 8.86%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 65.63 mW The radiated (EIRP) source-based time-averaging output power = (65.63 * 0.089) mW = 5.82 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0012 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-VL4834 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: VNN-VL4834 26bw - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Report no.: HK10051662-1 Model no.: VL4834PER1 Cordless Handset On Line Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 25.MAY.2010 17:49:49 Report no.: HK10051662-1 Model no.: VL4834PER1 Cordless Handset On Line Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 199.5 kHz 42.34 L1 gnd -21.28 2 CISPR Average199.5 kHz 37.32 L1 gnd -16.30 2 CISPR Average253.5 kHz 38.85 L1 gnd -12.78 1 Quasi Peak 289.5 kHz 44.22 L1 gnd -16.31 2 CISPR Average352.5 kHz 42.98 L1 gnd -5.92 1 Quasi Peak 357 kHz 50.56 L1 gnd -8.23 2 CISPR Average505.5 kHz 33.77 L1 gnd -12.22 1 Quasi Peak 555 kHz 42.32 L1 gnd -13.67 2 CISPR Average609 kHz 34.69 L1 gnd -11.30 1 Quasi Peak 613.5 kHz 46.35 L1 gnd -9.65 1 Quasi Peak 978 kHz 42.75 L1 gnd -13.25 2 CISPR Average1.0815 MHz 32.03 L1 gnd -13.96 2 CISPR Average1.131 MHz 32.31 L1 gnd -13.68 1 Quasi Peak 1.3425 MHz 40.90 L1 gnd -15.09 2 CISPR Average1.959 MHz 31.63 L1 gnd -14.36 1 Quasi Peak 2.0445 MHz 40.45 L1 gnd -15.54 1 Quasi Peak 2.481 MHz 41.29 L1 gnd -14.70 2 CISPR Average2.9445 MHz 31.78 L1 gnd -14.21 2 CISPR Average3.975 MHz 33.11 L1 gnd -12.88 1 Quasi Peak 4.0695 MHz 45.26 N gnd -10.73 Date: 25.MAY.2010 17:49:20 Report no.: HK10051662-1 Model no.: VL4834PER1 Cordless Handset On Line Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average4.9875 MHz 32.42 L1 gnd -13.57 1 Quasi Peak 5.6265 MHz 50.84 N gnd -9.15 2 CISPR Average5.7345 MHz 32.94 N gnd -17.05 1 Quasi Peak 5.82 MHz 51.19 N gnd -8.80 Date: 25.MAY.2010 17:49:35

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VNN-VL4834 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: VNN-VL4834 inband - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VNN-VL4834 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: VNN-VL4834 peaktp - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN-VL4834 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: VNN-VL4834 psd - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Global China Technology Limited Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices (Base Unit) FCC ID: VNN-VL4834 Model: VL4834PER1, LL4824HER1, LG4821HER1, PowerTel 680, PowerTel 580 combo, PowerTel 501 Test Report Number: HK10051662-1 Issue Date: June 21, 2010 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10051662-1 Page 1 of 50 FCC ID: VNN-VL4834 MEASUREMENT/TECHNICAL REPORT Global China Technology Limited - Model: VL4834PER1, LL4824HER1, LG4821HER1, PowerTel 680, PowerTel 580 combo, PowerTel 501 FCC ID: VNN-VL4834 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10051662-1 Page 2 of 50 FCC ID: VNN-VL4834 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration.................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Peripherals....................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 13 3.7 Equipment Modification ......................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 18 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 19 4.9 Emissions Outside the Sub-Band .......................................................................... 20 4.9.1 Radiated Emissions Configuration Photographs ................................................. 21 4.9.2 Radiated Emissions Data ................................................................................... 21 4.9.3 Field Strength Calculation................................................................................... 27 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 28 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT................ 29…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Transmitter ON Time Plots FCC ID: VNN-VL4834 txon - 1 of 2 Base unit, Traffic carrier Base unit, Dummy carrier INTERTEK TESTING SERVICES Transmitter ON Time Plots FCC ID: VNN-VL4834 txon - 2 of 2 Handset unit, Traffic carrier

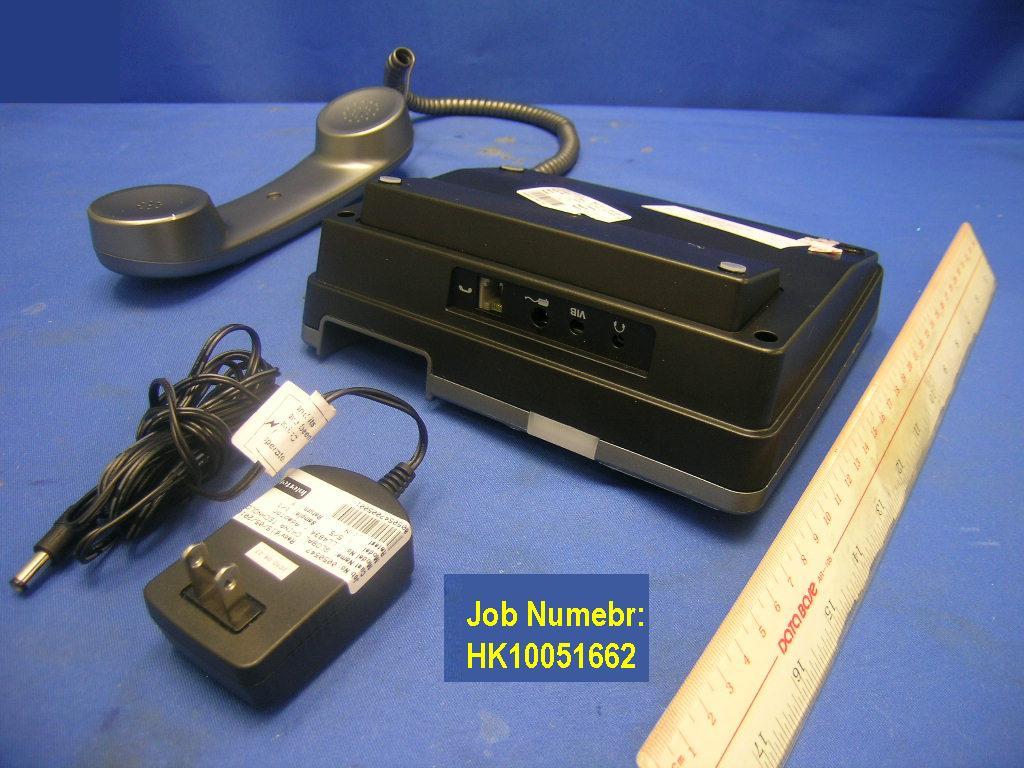

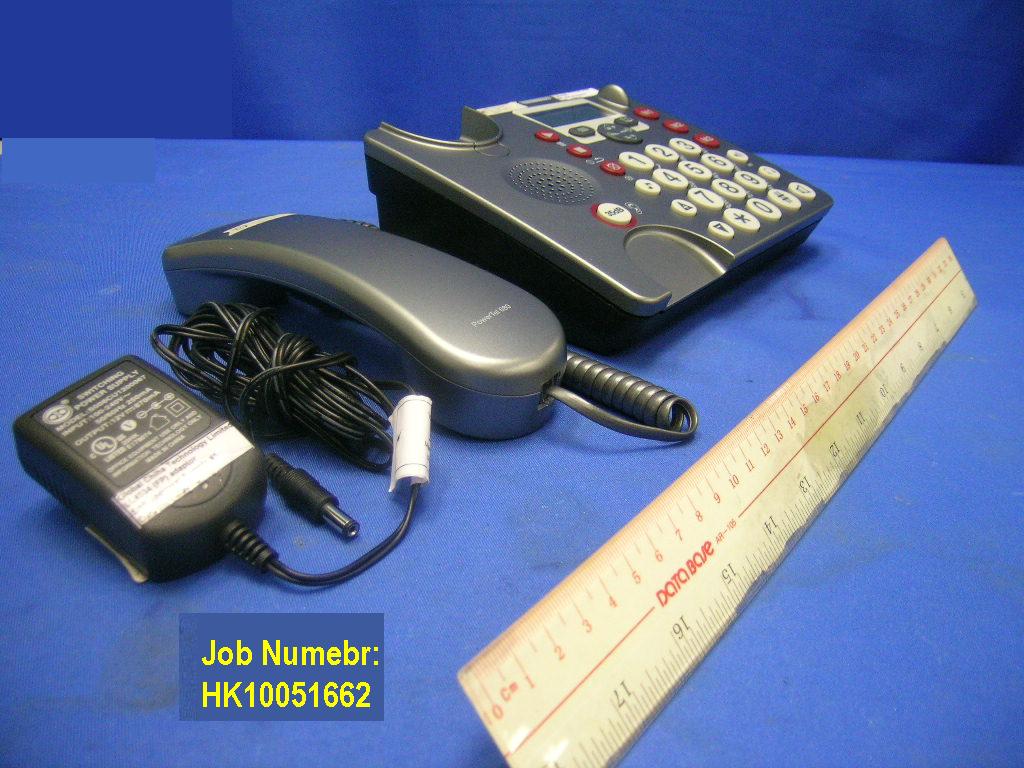

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: VNN-VL4834 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Cordless HS Online FCC ID: VNN-VL4834 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Cordless HS Online FCC ID: VNN-VL4834 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
