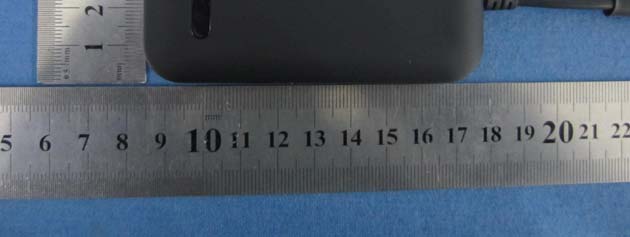

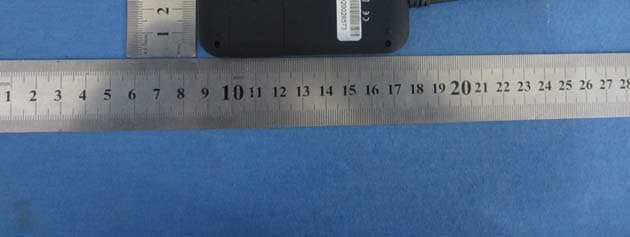

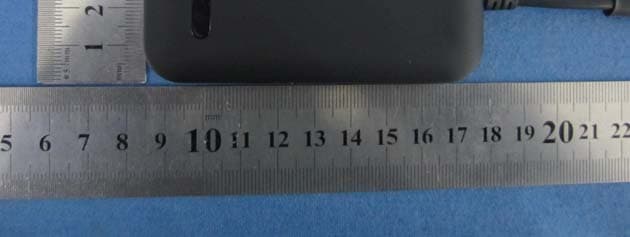

VOI-ANMRHLTCU-01GPS Tracker

GP S User Manual 一. Functions and Use help 1. Note: 1. Dear users, before using the equipment, you should combine your mobile phone and the device by send a registration command. Send “ZC device password # receiving alarm information mobile phone number # SIM card number of device”. e.g.: ZC000000#15888185569#0 2. Device displays green on platform means online Device displays Yellow on platform means over speed Device displays grey on platform means offline or non-positioning ·AC C Security 1. ACC ON (Car key start ON), cancel anti theft function automatically. 2 . ACC OFF (Car key switch off), anti theft function activate. ·V ibration Warning 1 Cancel vibration alert: Send “ZC000000#0#0” 2. Platform alert: automatic implementation ·S OS Alarm 1. Platform alarm: automatic implementation ·Acces s Equipment Address 1. Send “DW” command returns map link(e.g.: ht tp://maps.google.com/maps/?f=q&hl=en&&q=31.237395,121.390373333333;S=0;T =2012-5-23 12:00:00;D=0 & equipment current position information (Assure SIM with GPSR service) ·C ut off Oil or Power 1.Send “DO” cut of oil or power, send “TO” regain oil or power 2.Platform oil or power cut warning: automatic implementation ·R eal Time Monitoring 1.Mobile phone real time monitoring: e.g.: www.gps588.com/wap 2. Platform real time monitoring: e.g.: www.gps588.com ·Track Playback Login platform, press replay button ·S tatement Statistics(Parking statements, Driving statements, Mileage statements, Over speed statements) Login platform, press statement statistics button ·E -fence: 1. Mobile phone E-fence Settings: Send: “RCMA1” 2. Mobile phone clear E-fence: Send “DRC” · Over speed Alarm Mobile phone over speed settings: Send “ ODn” (0<n<100; 0 means close over speed setting ). e.g.: OD80, over 80km/h, equipment issues warning · Blind Area Storage When there is GPS no GSM signal, it can store 1000 positions; Device will upload blind area positions automatically when GSM regains. · Domain Name Settings: e.g.: IP:1#www.gps588.com#(port) 8169# Format: IP:1#XXX.XXXXXXXX.XXX#XXX# · Modify Password MP + Original password + New password e.g.: MP000000987654, 987654 is the new password · Time interval Positioning Moving Vehicle: e.g.: XTn (5<n<65530) Static Vehicle: e.g.: XTn (5<n<65530 Default 5min) · GPS Restart Send “GPSCQ” · Equipment Restart Send “SBCQ” · Acquire Equipment Information Receiving alert information mobile phone sends “CX”, returns ID, IP, APN, upload time interval and stand-by time. · ID Settings 1. 15 bit ID modification: Send “IMEI15” 2. 10 bit ID modification: Send “IMEI10” · Dial the Phone Make a call and hang up within 7 sec, it returns current position information and map link, if not hang up, it will turns to monitoring lately. · APN Settings Send “APN:AA,XX,YY” (AA is the Operator, XX is user name, YY is password) e.g.: APN:cmnet,, 二． LED State Red LED（ Power ） Flashing Low power alarm Always light Charging Slow Flashing Charge full, Normal working Dark Low power/Shut 1、Yellow LED（GSM） Slow Flashing(15 sec) GSM initialization Flashing GSM signal regular Always light GSM calling/GPRS start dark GSM no signal 2、Blue LED（GPS） Flashing GSM signal regular dark GSM no signal 三 三三 三. Appearance schemes Picture 1 Picture 2 四. Product Specification 1.Product Dimensions: L: 7cm, W: 4cm, H: 0.6cm 2. Product Weight: 45g 3.Standard Voltage: 9V-36VDC 五. Installation Statement 1.Preparation before installation a . Terminal needs insert a SIM card b. GSM card China Unicom or Mobile optional (GSM worldwide application) 2.Relay Use Method Connect relay yellow cable with device yellow cable. See Picture 2. GPS vehicle positioning terminal warranty card Special statement： ：： ： 1 . We reserve the right for the technology change without prior notice 2.Product appearance and color changed subject to prevail kind. 3. Warranty card is only applicable to the IMEI number listed machines. 4. Please keep the card, show this card and the original purchase documents when gua rantee. 5.The specific warranty scope, please see table explanation below. Thi s card for the warranty certificate, please fill in this card and save. This card for the warranty certificate, please fill in this card and save.This card for the warranty certificate, please fill in this card and save. This card for the warranty certificate, please fill in this card and save.。 。。 。 Name NameName Name Phone PhonePhone Phone Address AddressAddress Address Model ModelModel Model IMEI NO. IMEI NO.IMEI NO. IMEI NO. Buying date Buying dateBuying date Buying date Invoice number Invoice numberInvoice number Invoice number Sales unit name Sales unit nameSales unit name Sales unit name Sales unit address Sales unit addressSales unit address Sales unit address Sales unit phone Sales unit phoneSales unit phone Sales unit phone 1. From the purchase date, non-artificial damage is guaranteed for one year. 2. Belong to one of the following circumstances, not warranty, but can pay for maintenance. 1)Exceed guarantee period. 2)Without our authorization, disassemble or repair damaged. 3) Water damage or destroyed printed circuit board. 4)Improper installation, use, maintenance, safeguarding, caused damage. 5)The process of using that caused housing, lens, built-in antennas damaged. 6)IMEI number was damaged or blur. 7)The warranty card and the product model are inconsistent or the card is alter. FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or te…
