VPX-3160-37AWiMAX CPE

Microwave Digital Radios 260-668104-001 StarMAX™ 3100 SERIES SUBSCRIBER STATION USER MANUAL StarMAX™ 3100 Series Subscriber Station User Manual Release 4.1.1 iiHarris Stratex Networks StarMAX™ 3100 Series Subscriber Station User Manual 260-668104-001 December 2009 This manual incorporates features and functions provided with the StarMAX™ 3100 Series, Release 4.1.1, (GA Preliminary Draft). Copyright © 2009 by Harris Stratex Networks, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Harris Stratex Networks Inc. To request permission, contact [email protected] . Warranty Harris Stratex Networks makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties or merchantability or fitness for any particular purpose. Further, Harris Stratex Networks reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Harris Stratex Networks to notify any person of such revision or changes. Safety Recommendations The following safety recommendations must be considered to avoid injuries to persons and/or damage to the equipment: 1.Installation and Service Personnel: Installation and service must be carried out by authorized personnel who have the technical training and experience necessary to be aware of any hazardous operations during installation and service, and of measures to avoid any danger to themselves, to any other personnel, and to the equipment. 2.Access to the Equipment: Access to the equipment in use must be restricted to service personnel only. 3.Safety Norms: Local safety regulations must be used if mandatory. Safety instructions in this document should be used in addition to the local safety regulations. In the case of conflict between safety instructions stated in this manual and those indicated in local regulations, mandatory local norms will prevail. 4.Service Personnel Skill: Service personnel must have received adequate technical training on telecommunications and in particular on the equipment this manual refers to. Trademarks All trademarks are the property of their respective owners. 260-668104-001 December 2009iii StarMAX™ 3100 Series Subscriber Station User Manual Contact Information Sales and Sales Support: For sales information, contact one of the Harris Stratex Networks headquarters, or find your regional sales office at http://www.harrisstratex.com/contact. Customer Service: For customer service, contact one of the regional Technical Help Desks listed below. Or you can contact your local Harris Stratex Networks office. Contact information is available on our website at: www.harrisstratex.com/support/customer/. Corporate Headquarters North Carolina, USA International Headquarters Singapore Harris Stratex Networks, Inc. Research Triangle Park 637 Davis Drive Morrisville, North Carolina 27560 United States Phone: + 1 919-767-3230 Fax: + 1 919-767-3233 Toll Free for Sales Inquiries: + 1 888-HSTX-NOW (888-478-9669) Harris Stratex Networks (S) Pte. Ltd. 17, Changi Business Park Central 1 Honeywell Building, #04-01 Singapore 486073 Phone: +65 6496 0900 Fax: + 65 6496 0999 Sales Inquiries: +1-321-674-4252 Americas Technical Help Desk EMEA Technical Help DeskAsia Pacific Technical Help Desk Harris Stratex Networks 120 Rose Orchard Way San Jose, CA 95134 U.S.A. Harris Stratex Networks 4 Bell Drive Hamilton International Technology Park Blantyre, Glasgow, Scotland G72 0FB United Kingdom Harris Stratex Networks Bldg 10, Units A&B Philexcel Industrial Park M. Roxas Hi-way Clark Freeport Zone Philippines 2023 Phone:+1 210 561 7400 Toll-free in US: +1 800 227 8332 Fax:+1 408 944 1683 Phone:+44 1698 714 073 Fax:+44 1698 717 204 Phone:+63 45 599 5192 Fax:+63 45 599 5196 [email protected] [email protected]@hstx.com ivHarris Stratex Networks FCC Notices 1.The StarMAX Subscriber Station must be professionally installed and maintained. 2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. 3. Notes specific to the 3.65 – 3.675GHz band: •The StarMAX 3160-37 Subscriber Station complies with FCC CFR47, Part 90, Subpart Z. •For FCC CFR47, Part 90, Subpart Z, StarMAX operation is restricted to the 25MHz band 3.65GHz – 3.675GHz. •To ensure compliance with the FCC RF exposure requirements, a minimum distance of 25cm must be maintained between the subscriber station antenna and any persons whilst the unit is operational at 5MHz and 34cm for 10MHz operation. This calculation is based on the EIRP limits within Part 90, Subpart Z. •The 3160-37 Subscriber Station has been tested and certified to FCC CFR47, Part 90, Subpart Z with an integral antenna with a gain of 14dBi. •FCC CFR47, Part 90, Subpart Z, applies strict limitations on EIRP. 5MHz operation has an EIRP limit of 5W and 10MHz operation has an EIRP limit of 10W. The StarMAX Subcriber Station is not field programmable so the power is set during production. Model 3160-37-14-05 should be used for all installations within the United States. 260-668104-001 December 2009v StarMAX™ 3100 Series Subscriber Station User Manual WARNING Making adjustments and/or modifications to this equipment that are not in accordance with the provisions of this instruction manual or other supplementary documentation may result in personal injury or damage to the equipment, and may void the equipment warranty. AVERTISSEMENT Tout réglage ou modification faits à cet équipement hors du cadre édicté par ce guide d’utilisation ou par toute autre documentation supplémentaire pourraient causer des blessures ou endommager l’équipement et peut entraîner l’annulation de sa garantie. WARNUNG Die an diesen Geräten…

Text truncated - open the document above for the full version.

21 December, 2009 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality for VPX-3160-37A Harris Stratex Networks requests according to FCC 47 CFR 0.459 that the following items are held permanently confidential and from public view: Block diagrams All schematic diagrams Parts list Tune-up information Operational description These items contain proprietary information that represents considerable investment on the part of Harris Stratex Networks. Public disclosure of this information would be damaging for Harris Stratex due to the competitive nature of our industry. Ruth French Product Compliance Manager

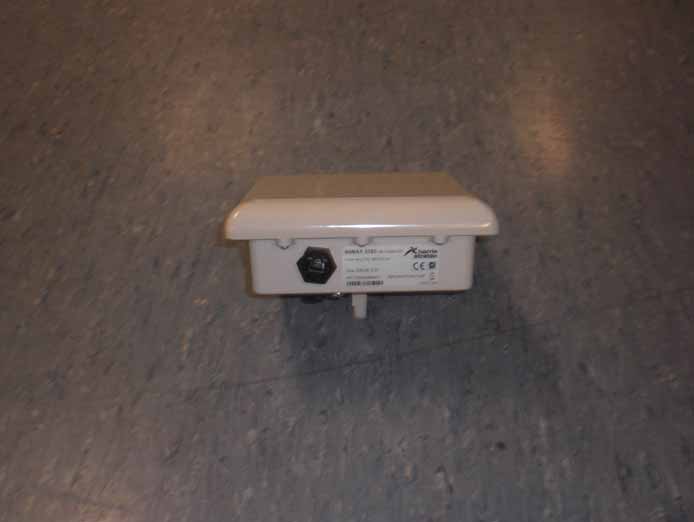

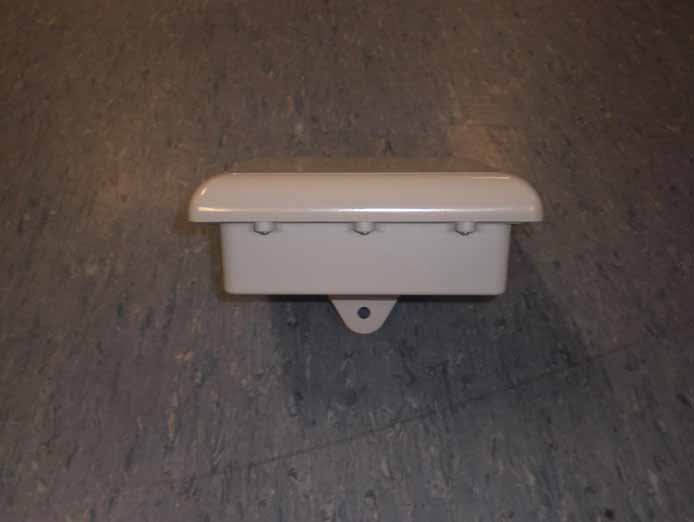

StarMAX 3160 External photographs – Six sides Photograph 1 Photograph 2 Photograph 3 Photograph 4 Photograph 5 Photograph 6

Label for VPX-3160-37A

StarMAX 3160 Subscriber Station Label Location

January, 2010. FCC application VPX-3160-37A StarMAX 3160-37 Internal Photographs January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A

MPE CALCULATION REPORT FROM RFI GLOBAL SERVICES LTD Evaluation of: Harris Stratex Networks 3.65GHz StarMax 3160 WiMax™ SS To: FCC OET Bulletin 65 Edition 97-01 Report Serial No: RFI/REGA2/TP75361D01A This Test Plan Is Issued Under The Authority Of Nick Hooper, Head of Inspection Written By: John Bellairs Checked By: Report Copy No: PDF01 Issue Date: 23 December 2009 This report may be reproduced in full. Partial reproduction may only be made with the written consent of RFI Global Services Ltd. This report is produced on the basis of our understanding of the information supplied. If our understanding of the information supplied is incorrect, this may affect the response given. In the event that our understanding of the matter is incorrect, you should not place any reliance up on it until you have advised the correct nature of the problem and we have been able to reconsider the matter. This report is issued in Portable Document Format (PDF) and may only be copied in full. RFI GLOBAL SERVICES LTD MPE CALCULATION REPORT S.No. RFI/REGA2/TP75361D01A Page: 2 of 8 Issue Date: 23 December 2009 For: Harris Stratex Networks Product: 3.65GHz StarMax 3160 WiMax™ SS This page has been left intentionally blank. RFI GLOBAL SERVICES LTD MPE CALCULATION REPORT S.No. RFI/REGA2/TP75361D01A Page 3 of 8 Issue Date: 23 December 2009 For: Harris Stratex Networks Product: 3.65GHz StarMax 3160 WiMax™ SS Table of Contents 1. Client Information........................................................................................................... 4 2. Equipment Under Evaluation......................................................................................... 5 3. Applicable FCC Rule Parts: ........................................................................................... 6 4. MPE Calculation for the StarMax 3160 SS .................................................................... 6 5. Conclusion...................................................................................................................... 8 RFI GLOBAL SERVICES LTD MPE CALCULATION REPORT S.No. RFI/REGA2/TP75361D01A Page: 4 of 8 Issue Date: 23 December 2009 For: Harris Stratex Networks Product: 3.65GHz StarMax 3160 WiMax™ SS 1. Client Information Company Name: Harris Stratex Networks Address: 4 Bell Drive Hamilton International Technology Park Blantyre G72 0FB, Scotland Contact Name: Ms R French RFI GLOBAL SERVICES LTD MPE CALCULATION REPORT S.No. RFI/REGA2/TP75361D01A Page 5 of 8 Issue Date: 23 December 2009 For: Harris Stratex Networks Product: 3.65GHz StarMax 3160 WiMax™ SS 2. Equipment Under Evaluation The following information has been supplied by the client: 2.1. Identification of Equipment Under Evaluation Brand Name: Harris Stratex Networks. Model Name or Number: StarMax 3160; FCC ID: VPX-3160-37A Equipment Category: WiMax™ Subscriber Station Serial Number: No specific equipment Frequency of Operation: 3.65GHz Transmitting Power: See Section 2.2 Antenna Gain See Section 2.2 Channel Bandwidth: 5 and 10MHz Duplex Method TDD Max. TDD TX Duty Cycle 74% 2.2. Description of EUT The equipment under evaluation is the Harris Stratex StarMax WiMax™ 3160 Subscriber Station. This evaluation covers operation at 3.65GHz. The StarMax WiMax™ 3160 SS is intended to be used in fixed outdoor installations. The equipment utilises integrated high gain antennas and Harris Stratex has confirmed that for each antenna to be used the transmitter power will be adjusted for conformance to FCC Rule Part 90.1321(c) EIRP requirement. RFI GLOBAL SERVICES LTD MPE CALCULATION REPORT S.No. RFI/REGA2/TP75361D01A Page: 6 of 8 Issue Date: 23 December 2009 For: Harris Stratex Networks Product: 3.65GHz StarMax 3160 WiMax™ SS 3. Applicable FCC Rule Parts: Part 90.1335. Licensees and manufacturers are subject to the radio frequency radiation exposure requirements specified in sections 1.1307(b), 2.1091 and 2.1093. Part 1.1310. Radiofrequency radiation exposure limits. Part 90.1321(a). (a) Base and fixed stations are limited to 25 watts/25 MHz equivalent isotropically radiated power (EIRP). In any event, the peak EIRP power density shall not exceed 1 Watt in any one-megahertz slice of spectrum. (b) In addition to the provisions in paragraph (a) of this section, transmitters operating in the 3650- 3700 MHz band that emit multiple directional beams, simultaneously or sequentially, for the purpose of directing signals to individual receivers or to groups of receivers provided the emissions comply with the following: (1) Different information must be transmitted to each receiver. (2) If the transmitter employs an antenna system that emits multiple directional beams but does not emit multiple directional beams simultaneously, the total output power conducted to the array or arrays that comprise the device, i.e., the sum of the power supplied to all antennas, antenna elements, staves, etc. and summed across all carriers or frequency channels, shall not exceed the limit specified in paragraph (a) of this section, as applicable. The directional antenna gain shall be computed as follows: (i) The directional gain, in dBi, shall be calculated as the sum of 10 log (number of array elements or staves) plus the directional gain, in dBi, of the individual element or stave having the highest gain. (ii) A lower value for the directional gain than that calculated in paragraph (b)(2)(i) of this section will be accepted if sufficient evidence is presented, e.g., due to shading of the array or coherence loss in the beam-forming. (3) If a transmitter employs an antenna that operates simultaneously on multiple directional beams using the same or different frequency channels and if transmitted beams overlap, the power shall be reduced to ensure that the aggregate power from the overlapping beams does not exceed the limit specified in paragraph (b)(2) of this section. In addition, the aggregate power transmitted simultaneously on all beams shall not exceed the limit specified in pa…

Text truncated - open the document above for the full version.

26 March, 2010 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Response to OET Correspondence Numbers 82741, 82742, 82744 Aviat Networks submits information in relation to the abovementioned correspondence numbers. The StarMAX 3160 Series is WiMAX Forum compliant terminal station (IEEE802.16-2005 standard based). The WiMAX Forum has created standard TDD system profiles where the DL:UL split ratios are specified. The DL:UL ratio range (in symbols, total amount of symbols in one 5ms air frame is 47) for 5MHz and 10MHz channel BW is between 35:12 and 26:21. The first 3 symbols in the UL are used for ranging and transmission of various feedback messages that are communicated with a relatively low duty cycle (every few 5ms frames) and minimum power on just few subchannels (3-10% of bandwidth) – so the terminal station TX duty cycle range is between 19% (9/47) and 38% (18/47). For particular applications the required DL:UL ratio could be very low and outside WiMAX Forum system profile values. Extreme DL:UL ratio supported by StarMAX 3160 Series is 11:36 which translates to 70% (33/47) TX duty cycle. Ruth French Product Compliance Manager

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: StarMax 3160 Subscriber Station To: FCC Part 90 Subpart Z: October 2008 Test Report Serial No: RFI/RPT1/RP75476JD03A This Test Report Is Issued Under The Authority Of Brian Watson, Operations Director: Checked By: Nigel Davison Signature: Date of Issue: 08 January 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 Page 2 of 67 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 RFI Global Services Ltd Page 3 of 67 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 11 5. Measurements, Examinations and Derived Results ................................................................ 12 6. Measurement Uncertainty .......................................................................................................... 64 Appendix 1. Test Equipment Used ................................................................................................65 TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 Page 4 of 67 RFI Global Services Ltd 1. Customer Information Company Name: Harris Stratex Networks Address: 4 Bell Drive Hamilton International Technology Park Blantyre, Lanarkshire Scotland G72 0FB TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 RFI Global Services Ltd Page 5 of 67 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR90 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2008: Part 90 Subpart Z – Wireless Broadband Services In The 3650-3700 MHz Band- Private Land Mobile Radio Services Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, England Test Dates: 21 August 2009 to 24 December 2009 2.2. Summary of Test Results FCC Reference (47CFR ) Measurement Port Type Result FCC Part 15.107 Idle Mode AC Conducted Emissions AC Mains FCC Part 15.109 Idle Mode Radiated Spurious Emissions Enclosure FCC Part 15.207 Transmitter AC Conducted Emissions AC Mains FCC Part 90.205 / 2.1046 / 90.1321 Transmitter Carrier Output Power (EIRP) Antenna FCC Part 90.1321 / 2.1046 Transmitter Peak Power Spectral Density (Conducted) Antenna FCC Part 90.209 / 2.1049 Transmitter Occupied Bandwidth (Bandwidth Limitations) Antenna FCC Part 90.1323 / 2.1051 Transmitter Conducted Emissions Antenna FCC Part 90.1323 / 2.1051 Transmitter Band Edge Conducted Emissions Antenna FCC Part 90.1323 / 2.1053 Transmitter Radiated Emissions Antenna FCC Part 90.1323 / 2.1053 Transmitter Band Edge Radiated Emissions Antenna FCC Part 90.213 / 2.1055 Transmitter Frequency Stability (Temperature & Voltage Variation) Antenna Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 Page 6 of 67 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 RFI Global Services Ltd Page 7 of 67 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: WiMAX 802.16e Subscriber Station Brand Name: Harris Stratex Model Name or Number: StarMax 3160-37-14-05 Serial Number: TSS40420900004 Hardware Version Number: Rev-B Software Version Number: Kernel: 4.1.1.13 Application: 4.1.1.13 BootLoader: 4.1.1.11 FCC ID Number: VPX-3160-37A Description: Power over Ethernet power injector Brand Name: PowerDsine Model Name or Number: 3001 Serial Number: R08126050010732901 Hardware Version Number: Not marked or stated Software Version Number: Not marked or stated FCC ID Number: N/A TEST REPORT SERIAL NO: RFI/RPT1/RP75476JD03A ISSUE DATE: 08 JANUARY 2010 Page 8 of 67 RFI Global Services Ltd 3.2. Description of EUT The Equipment Under Test (EUT) was a radio Subscriber Station operating in the 3.6 GHz band. The equipment operates according to WiMax IEEE 802.16e -2005. The Subscriber Station comprises of a radio transceiver and digital control unit mounted in a weatherproof metal casing with an integrated, cross polarised, high gain antenna. Power to the Subscriber Station is supplied from a Power over Ethernet power injector via Ethernet cable. The Power over Ethernet power injector is in turn, powered from a 120 VAC 60 Hz supply. 3.3. Modifications Incorporated in the EUT The following modifications were applied to the EUT during testing: Date Description of Modification Tests Affected 08-12-2009 Disconnect…

Text truncated - open the document above for the full version.

January, 2010. FCC application VPX-3160-37A StarMAX 3160-37 Set-up Photographs AC Conducted January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A Radiated Spurious January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A January, 2010. FCC application VPX-3160-37A
