VTV-BA21NBluetooth dongle

BLUETOOTH MODULE INSTALLATION GUIDE Bluetooth wireless technology is a low-power consuming way to communicate between devices. It has a maximum range of 30 feet (10m). The Bluetooth device connects to your printer’s serial port and confirms to V2.1+EDR of the Bluetooth specification. Installing the Bluetooth Device to the Printer Please follow the steps below to install the Bluetooth device. 1.Turn off the printer power. 2.Plug in the Bluetooth device into the RS-232 port. 3.Fasten the device by two screws. Setting the Communication Settings For industrial printer, the RS-232 communication parameters can be configured from the LCD control panel by the following procedures. 1.Turn on the printer power. 2.Enter the main menu. 3.Select “Serial Comm.” option. 4.Make sure the communication parameters are set to 115200 bps baud rate, None parity, 8 data bits, 1 stop bit. For desktop printer models, the RS-232 communication parameters can be setup by following command or using Diagnostic Tool. Syntax: SET COM1 115, N, 8, 1 LED Indication LED Status Green Power on Amber Bluetooth device is connected Baud Rate -- Parity -- Data Bite -- Stop Bits -- Exit Serial Comm. Bluetooth device Screw LED indicator Note: This RS-232 interface of Bluetooth device is used with the printer only. P/N: 39-0250041-00LF FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. RSS-Gen(P23): This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. . RSS-102(P9): The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps.

RF_160, Issue 04 TSC Auto ID Technology Co., Ltd. Declaration of Authorization We Name: TSC Auto ID Technology Co., Ltd. Address: 9F., No. 95, Minquan Rd. Xindian Dist. City: New Taipei City Country: Taiwan Declare that: Name Representative of agent: Ms. Grace Chen Agent Company name: BTL Inc. Address: 4F,No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist.114, City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Bluetooth dongle Type designation: BT-EM01, BT-EM101, RF-BA21N Trademark: TSC Validity/ expiry date: From December 30, 2022 to December 29, 2023 on our behalf. Date: December 30, 2022 City: New Taipei City Name: Roger wu Function: Senior Engineer Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 08-Oct-2021 RF_501, Issue 9 Page 1 of 1 Company Name: TSC Auto ID Technology Co., Ltd. Address: 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141 City: New Taipei City Country: Taiwan To: Telefication B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: VTV-BA21N Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: December 30, 2022 Name and signature of applicant: Roger wu Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

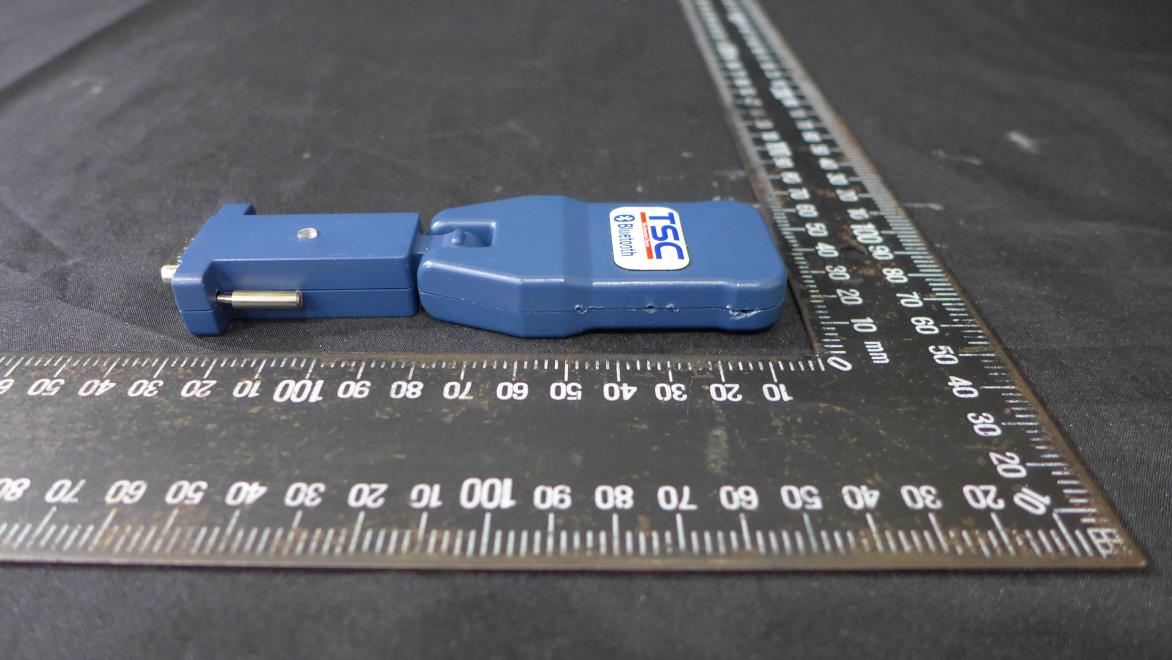

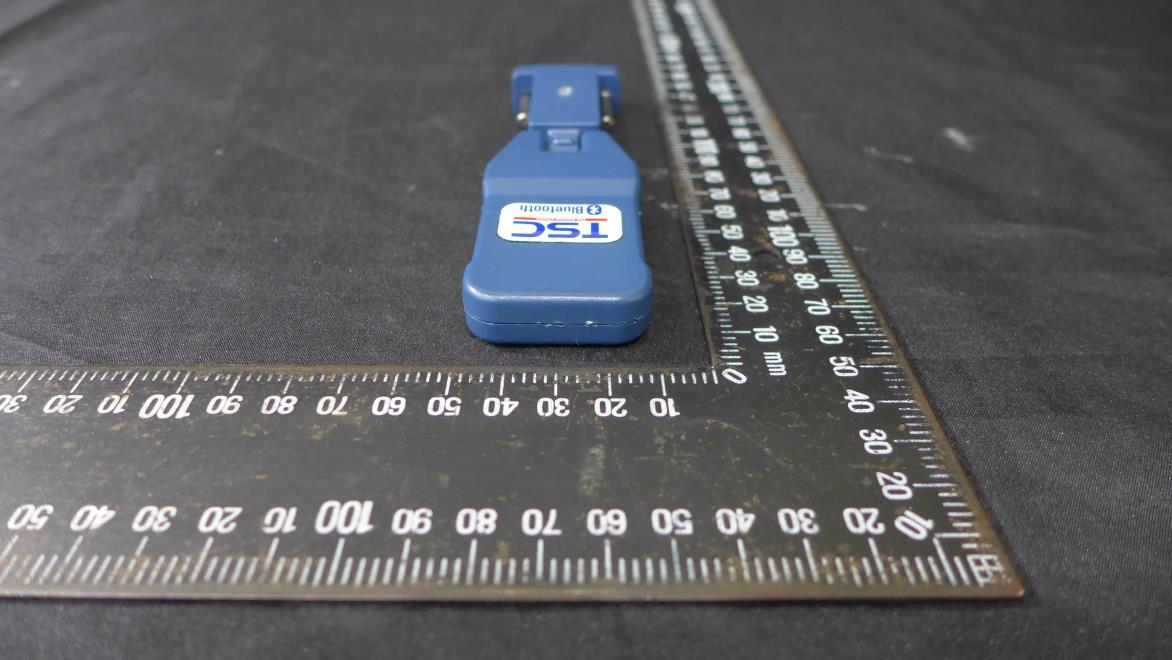

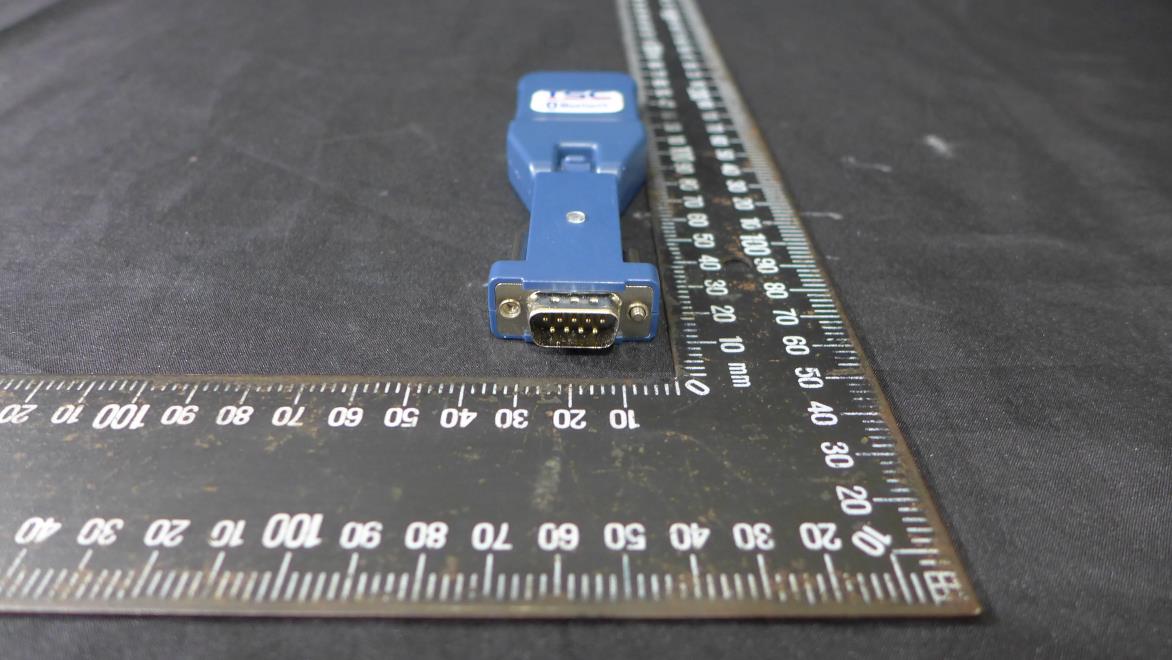

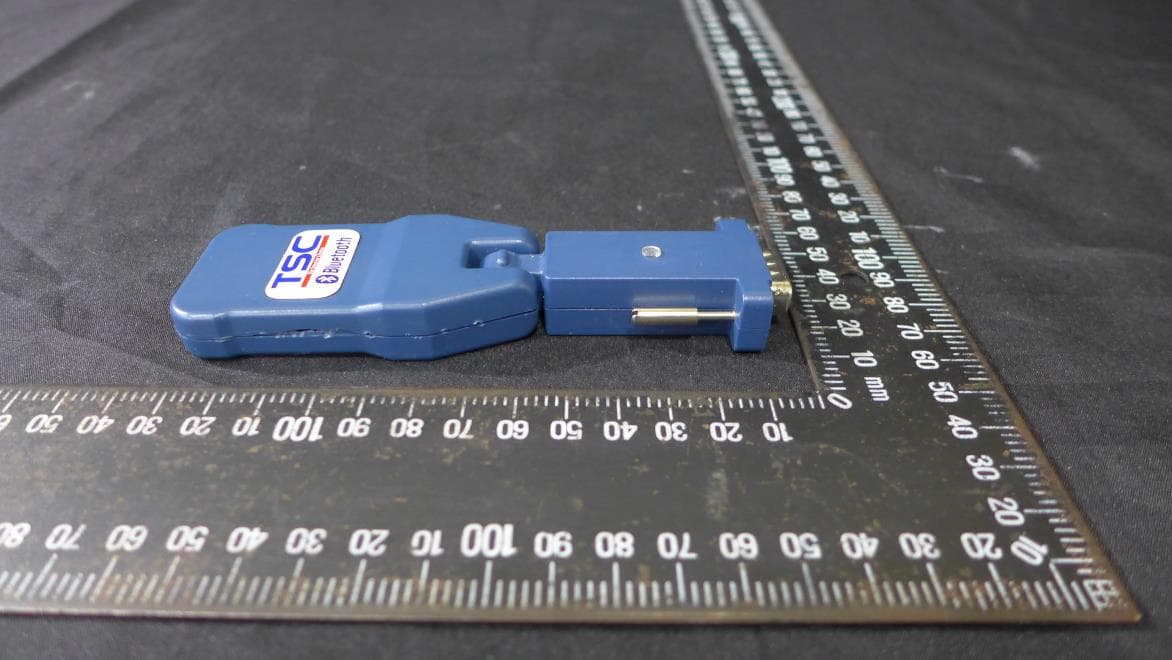

Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 1 of 24 BT-EM01 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 2 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 3 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 4 of 24

Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 5 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 6 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 7 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 8 of 24 Antenna Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 9 of 24 BT-EM101 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 10 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 11 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 12 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 13 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 14 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 15 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 16 of 24 Antenna Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 17 of 24 RF-BA21N Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 18 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 19 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 20 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 21 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 22 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 23 of 24 Appendix No.: EP-2210T081-1 APPENDIX-EUT PHOTOS Project No.: 2210T081 Page 24 of 24 Antenna

Report No.: BTL-FCCP-2-2210T081 Project No.: 2210T081 Page 1 of 5 Report Version: R01 Maximum Permissible Exposure Report FCC ID: VTV-BA21N Report No. : BTL-FCCP-2-2210T081 Equipment : Bluetooth dongle Model Name : BT-EM01, BT-EM101, RF-BA21N Brand Name : TSC Applicant : TSC Auto ID Technology Co., Ltd. Address : 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141,Taiwan Standard(s) : FCC CFR Title 47, Part 2.1091 FCC Guidelines for Human Exposure IEEE C95.1 Date of Receipt : 2022/10/26 Date of Test : 2022/10/28~ 2023/1/3 Issued Date : 2023/1/4 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eric Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2210T081 Project No.: 2210T081 Page 2 of 5 Report Version: R01 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2210T081 Project No.: 2210T081 Page 3 of 5 Report Version: R01 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2210T081 R00 Original Report. 2022/12/21 Invalid BTL-FCCP-2-2210T081 R01 Revised typo. 2023/1/4 Valid Report No.: BTL-FCCP-2-2210T081 Project No.: 2210T081 Page 4 of 5 Report Version: R01 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Manufacturer Model number Type Connector Frequency (MHz) Gain (dBi) 1 AtechOEM Inc. ACA-3216 ACA-3216 Chip N/A 2400-2500 -1.55 Note: The above Antenna information are derived from the antenna data sheet provided by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. Maximum RF OUTPUT POWER: Mode Maximum Output Power (dBm) BT 3.34 Report No.: BTL-FCCP-2-2210T081 Project No.: 2210T081 Page 5 of 5 Report Version: R01 CALCULATED RESULT Band Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Pow er (dBm) Max. Output Pow er ( mW ) Pow er Density (S) (mW/cm 2 ) Limit of Pow er Density (S) (mW/cm 2 ) Result BT -1.55 0.6998 3.34 2.1577 0.000301 1 Pass Note: 1. The calculated distance is 20 cm. End of Test Report

Antenna Test Report 2018.01.24 Prepared by :LiZnong Chen Checked by :Leeting Hsieh Approved by :Zhi Wei Chen Customer亞元 ProjectACA-3216 Product / Antenna Overview Test Results -Match Circuit -Antenna VSWR Chamber Information -Antenna Gain&Efficiency -Antenna 3D Radiation 2 WE CONNECT WE PROTECT Contents Product / Antenna Overview 3 WE CONNECT WE PROTECT ApplicationAnt TypeFrequency (MHz) WiFiACA-3216 Chip2400~2500 8.2nH Match circuit 4 LocationDescriptionVendor Series010.3pFMurata Shunt014.3nHMurata Shunt028.2nHMurata 0.3pF Antenna System Shunt01 Series01 Shunt02 4.3nH Antenna VSWR 5 WE CONNECT WE PROTECT Chamber Information AUT Theta Phi Dual Polarization Horn Antenna Z Y X ETS Ams-8600 12x3.05x3.05 m3 TaperedChamber QUIPMENTBRANDMODULE TYPE SpectrumAgilentE4402B Signal GeneratorAgilent8960 SwitchAgilent3499A SwitchETS2090 Network AnalyzerAgilentN5230A Figure 1: System diagram for test system including compact-size tapered anechoic chamber and optional test instrumentation WE CONNECT WEPROTECT 6 Antenna Gain & Efficiency WE CONNECT WEPROTECT 7 Frequency (MHz) Peak Gain (dBi) Average Gain (dB) Efficiency (%) 2400-3.09 -7.19 19.09 2410-2.82 -7.00 19.94 2420-2.33 -6.84 20.70 2430-2.06 -6.69 21.41 2440-1.68 -6.50 22.39 2450-1.58 -6.35 23.18 2460-1.55 -6.32 23.36 2470-1.55 -6.31 23.38 2480-1.74 -6.35 23.18 2490-2.07 -6.42 22.79 2500-2.31 -6.65 21.64 WiFi Axis Definition 2450MHz Front ViewBack View Antenna 3D Radiation Pattern 8 WE CONNECT WEPROTECT X Z Y Response (dB) -35 5 -25 -15 -5 Z Y X Azimuth = 100.0 Elevation = -30.0 Roll = -70.0 Response (dB) -35 5 -25 -15 -5 X Y Z Azimuth = -80.0 Elevation = 30.0 Roll = 70.0

Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 1 of 72 Report Version: R02 FCC Radio Test Report FCC ID: VTV-BA21N Report No. : BTL-FCCP-1-2210T081 Equipment : Bluetooth dongle Model Name : BT-EM01, BT-EM101, RF-BA21N Brand Name : TSC Applicant : TSC Auto ID Technology Co., Ltd. Address : 9F., No. 95, Minquan Rd. Xindian Dist. New Taipei City 23141,Taiwan Radio Function : Bluetooth BR/EDR FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2022/10/26 Date of Test : 2022/10/28~ 2023/1/18 Issued Date : 2023/1/18 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eric Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 2 of 72 Report Version: R02 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL’s reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority’s logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 3 of 72 Report Version: R02 CONTENTS REVISION HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 1.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 8 1.5 DUTY CYCLE 9 2 GENERAL INFORMATION 10 2.1 DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.4 SUPPORT UNITS 14 3 AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 TEST RESULT 16 4 RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 18 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULT – BELOW 30 MHZ 20 4.7 TEST RESULT – 30 MHZ TO 1 GHZ 20 4.8 TEST RESULT – ABOVE 1 GHZ 20 5 NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 HOPPING CHANNEL SEPARATION MEASUREMENT 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 TEST RESULTS 23 Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 4 of 72 Report Version: R02 8 BANDWIDTH TEST 24 8.1 APPLIED PROCEDURES 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 OUTPUT POWER TEST 25 9.1 APPLIED PROCEDURES / LIMIT 25 9.2 TEST PROCEDURE 25 9.3 DEVIATION FROM STANDARD 25 9.4 TEST SETUP 25 9.5 EUT OPERATION CONDITIONS 25 9.6 TEST RESULTS 25 10 ANTENNA CONDUCTED SPURIOUS EMISSION 26 10.1 APPLIED PROCEDURES / LIMIT 26 10.2 TEST PROCEDURE 26 10.3 DEVIATION FROM STANDARD 26 10.4 TEST SETUP 26 10.5 EUT OPERATION CONDITIONS 26 10.6 TEST RESULTS 26 11 LIST OF MEASURING EQUIPMENTS 27 12 EUT TEST PHOTO 29 13 EUT PHOTOS 29 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 30 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 35 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 38 APPENDIX D NUMBER OF HOPPING CHANNEL 55 APPENDIX E AVERAGE TIME OF OCCUPANCY 57 APPENDIX F HOPPING CHANNEL SEPARATION MEASUREMENT 60 APPENDIX G BANDWIDTH 63 APPENDIX H OUTPUT POWER 66 APPENDIX I ANTENNA CONDUCTED SPURIOUS EMISSION 68 Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 5 of 72 Report Version: R02 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2210T081 R00 Original Report. 2022/12/5 Invalid BTL-FCCP-1-2210T081 R01 Revised typo. 2023/1/4 Invalid BTL-FCCP-1-2210T081 R02 Revised report to address TAF Audit’s comments. 2023/1/18 Valid Report No.: BTL-FCCP-1-2210T081 Project No.: 2210T081 Page 6 of 72 Report Version: R02 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiat…

Text truncated - open the document above for the full version.

Appendix No.: TP-2210T081-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T081 Page 1 of 3 AC Power Line Conducted Emissions test photos Appendix No.: TP-2210T081-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T081 Page 2 of 3 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2210T081-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T081 Page 3 of 3 Radiated emissions test photos Above 1 GHz
