VU65692SHOW DMX TRANSCEIVER

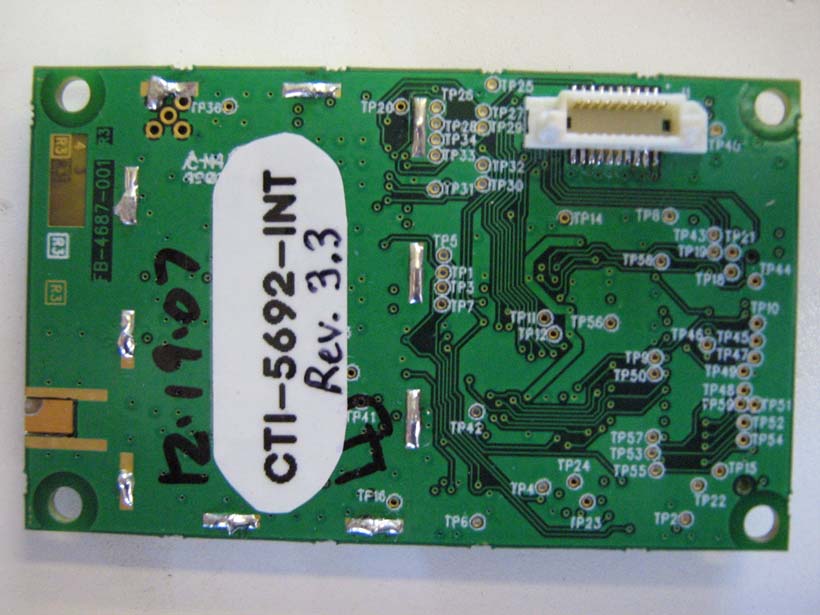

5692 ShoW DMX Radio Transceiver International Version Component Side 5692 ShoW DMX Radio Transceiver International Version Solder Side

5692 Chemical Etch Stencil 100% Scale Dimensions 1.475” H x .975” W 1-11-08, BWM SHoW DMX 5692 PATENT PENDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : VU65692 IC ID: 7480A-5692 CE1177 Tested to comply with FCC standards for home or office use. 5692 Chemical Etch Stencil 400% Scale Dimensions 1.475” H x .975” W 1-11-08, BWM SHoW DMX 5692 PATENT PENDING This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : VU65692 IC ID: 7480A-5692 CE1177 Tested to comply with FCC standards for home or office use.

City Theatrical WDS Mark II Transceiver Test Fixture User Manual Rev 1.0 Functional Test Proposal Dec 12, 2007 Prepared by: M. Schneider Pacific Design Engineering 8505 Eastlake Drive Burnaby, BC Canada, V5A 4T7 Tel: 604 421 1311 Fax: 604 421 9202 Pacific Design Engineering Approved by: © 2006, Pacific Design Engineering (1996) Ltd.. All rights reserved. The PDE logo is a Registered Trademark of Pacific Design Engineering (1996) Ltd. This document contains Confidential Information which is Proprietary to PDE. All information disclosed herein is subject to the terms and conditions of the Confidentiality Agreement entered into by the receiving party. No part of this document may be used or reproduced in any form by any means without prior written permission of PDE. Unless otherwise agreed, this document remains the property of PDE and must be returned along with any copies thereof. Rev 1.0 ii Table of Contents 1 Introduction -----------------------------------------------------------------------------------1 1.1 Purpose of Document...........................................................................................1 2 Introduction -----------------------------------------------------------------------------------2 2.1 The Test Fixture ...................................................................................................2 2.2 Special Instructions ..............................................................................................2 3 Installation of Test Fixture Software and Hardware ----------------------------3 3.1 Installing the PCI serial card................................................................................3 3.2 Installing the software..........................................................................................3 3.3 Installing the hardware.........................................................................................3 3.4 Replacing the DAQ modules ...............................................................................3 3.5 Changing the firmware file ..................................................................................4 4 Calibration of Test Fixture ---------------------------------------------------------------5 4.1 Introduction..........................................................................................................5 4.2 Starting the Software............................................................................................5 5 Operation and Use of the Test Fixture-----------------------------------------------6 5.1 Starting the Test Software....................................................................................6 5.2 Board Insertion.....................................................................................................7 5.3 Testing the PCB ...................................................................................................7 Failed Boards ---------------------------------------------------------------------------------- 12 Passed Boards --------------------------------------------------------------------------------- 12 Displaying Results .........................................................................................................13 Rev 1.0 1 1 Introduction 1.1 Purpose of Document The purpose of this Manual is to outline the use of the WDS Mark II PCB Test Fixture (‘Test Fixture’). Rev 1.0 2 2 Introduction 2.1 The Test Fixture The Test Fixture is used for testing the printed circuit boards (PCBs). It is a roughly one foot cube box shaped jig, that clamps the PCB to register it in place with respect to electrical connections connected to the test circuitry located below the board. The test fixture is operated in conjunction with a computer running the test fixture software, to be described below. There are two versions of software; one is for testing product for the North American market, the other, for the European market. Only the North American version is talked about in this manual as the European version’s only difference is the transmitter power is aligned to different values and everything in this manual is applicable to the European version. 2.2 Special Instructions In this document where “press” is written with reference to a button on the computer screen, this can be taken to mean ‘press’ should there be a touch screen monitor displaying the software test program user interface and it can be taken to mean ‘single- click with your mouse’ in case there is no touch screen. Rev 1.0 3 3 Installation of Test Fixture Software and Hardware 3.1 Installing the PCI serial card 1. Please refer to the “SERIAL INSTALLATION GUIDE.pdf” file included on the NI-Serial CD that was included with the serial card. 3.2 Installing the software The following procedure will describe method to install the software application and associated drivers. 1. Insert CD labelled ``WDS MARKII Test Fixture Application Ver 2.1`` 2. Follow directions.................................... 3. Reboot PC 4. Double click the Setup_JLinkARM_V374f.zip included in the Drivers section of the CD and then run the Setup_JLinkARM_V374f.exe application to install the J- Link driver. 5. Run the Install AT91-ISP v1.9.exe included in the Drivers section of the CD. 3.3 Installing the hardware The following procedure will describe the procedure for connecting the test fixture. 1. Plug the power cord into 120VAC mains. 2. Plug the USB cable into a USB2.0 socket on the PC. 3. Plug the serial cable labelled DUT into COM3 of the PCI serial card. 4. Plug the serial cable labelled Golden into COM4 of the PCI serial card. 3.4 Replacing the DAQ modules Inside the test fixture are two USB Data Acquisition (DAQ) modules. They need to be configured as “Golden” and “DUT”. The test fixture will be delivered from PDE pre configured. If at some point the DAQ modules are replaced, the new DAQ modules need to be reconfigured. The following is the procedure to replace the DAQ modules: Note: On…

Text truncated - open the document above for the full version.

EMC Comoatibility Testinq Report Rev.,l.o City Theatricat tnc - #5692 SHoW DMX Radio Tmnsceiver -]rtemational Version cit Theatrical lnc #5692 SHoW DMX Radio Transceiver lnternational Version Report of Measurements per f ndustry Canada RSS -210 lssue 7 Annex 8 and FCC CFR47 Part 15lB; FCG CFR47 Part 1ilC - 15.247 Revision 4.0 March 04. 2008 Protocol Data Systems Inc, EMC Labn Abbotsford BC, Canada SCC ISO/17025 (CAN-P4E) Accredited Laboratory No. 612 FCC O.A.T.S. Registration Number 96437 Industry Canada O.A.T.S. Registration Number 1C3384 Approved by Checked by .g Dan Petrufian EMC Eng. Ituntt\rothtr Date fnis ieport is for tfre exctusrve use oTplotocot Data Systemselstomer inO iJ p-roviAeO pursuant to the agreement between Protocol and its Customer. Protocol's responsibility and liability are limited to the terms and conditions of the agreement. Protocol assumes no liability to any parg, other than to the Customer in accordance with the agreement, for any loss, rnt to tfre agreement Oetween - nditions of the agreement i I e wltn LnE agleeIlrcllt, lut dlly luss, I horized to copy or distribute this report i le or advertisement of the tested material, I observations and test results in this report I i expense or damage occasioned by the use of this report. Only the Customer is authorized to copy or distribute this report Ltrre reP'v.i. vuv.vrrrvr rv I and then only in its entirety. Any use of the Protocol Data Systems name for the sale or advertisement of the tested material, I product or service must first be approved in writing by Protocol Data Systems. The observations and test results in this report I are relevant onlv to the samole/s tested. telqfglg!'a4l_on!y_!o!!e!A4ple/S_le!ted:______* Report Number: 03275 Page 1 of50 EMC Compatibility Testing Report Rev.4.0 City Theatrical Inc – #5692 SHoW DMX Radio Transceiver –International Version Report Number: 03275 Page 2 of 50 Index Section I: Report of Measurments Testing Information ......................................................................3 Section II: Report of Measurements for IC RSS-210 Issue 7 Annex 8 - Emissions Testing ...............6 Part 1 - Unintentional Radiated Emission Testing ..............................................................9 Part 2 - Conducted Emission, AC power lines Testing.....................................................10 Part 3 - Radiated Emissions – Transmit Mode .................................................................11 Part 4 - Conducted Emission Transmit ModeTesting .......................................................13 Part 5 - Frequency Hopping System operating within the 2400 – 2483.5 MHz band ......14 Part 6 - Output Power and EIRP Emissions .....................................................................17 Section III: Report of Measurements for FCC CFR47 Part 15/C........................................................18 Part 1 - Unintentional Radiated Emission Testing ............................................................20 Part 2 - Conducted Emission AC Mains Iddle/Receiving ModeTesting............................21 Part 3 - Radiated Emissions – Transmit Mode Testing ....................................................22 Part 4 - Conducted Emission Transmit ModeTesting .......................................................24 Part 5 - Antenna Requirement - 15.203............................................................................25 Part 6 - Frequency Hopping Spectrum Operation within the 2400-2483.5 MHz band .....26 Part 7 - Output Power and EIRP Emissions .....................................................................29 Appendix A: Report of Measurements Data and Plots..........................................................................30 Appendix B: EUT Photos Unintentional Radiated Emissions Test Set-up............................................49 EUT Photos – AC Conducted Power Line Emissions Test Set-up.............................................................50 EMC Compatibility Testing Report Rev.4.0 City Theatrical Inc – #5692 SHoW DMX Radio Transceiver –International Version Report Number: 03275 Page 3 of 50 Section I: Report of Measurments Testing Information Testing Details TESTED BY: Dan Petrulian TEST CONDITIONS: Temperature and Humidity: October 23, 2007 19°C in, 5.3°C out, 42% November 17, 2007 18°C in, 6.1°C out, 50% December 06, 2007 18°C in, 4.1°C out, 44% December 11, 2007 20°C in 3.4°C out, 42% December 13, 2007 21°C in 1.8°C out, 46% February 20, 2008 19°C in 6.6°C out, 49% February 21, 2008 19°C in 3.6°C out, 36% March 04, 2008 20 °C in 8.5°C out, 48% TEST VOLTAGE: +5Vdc via Power Supply Anatek 25-2D, delivered for the Under Test Equipment power supply having the local input voltage 120Vac, 60Hz. Test Facilities Protocol Data System Inc., Labs 28945 McTavish Rd. Abbotsford BC, Canada, V4X 2E7 SCC ISO/17025 (CAN-P-4E) Accredited Laboratory No. 612 FCC Registration Number 96437 Industry Canada Registration Number IC3384 Test Equipment List EMISSION: ManufacturerModel Equipment Description Serial No. Next Cal HP 85650A CDN Quasi-Peak Adapter 2043A00240 12/09/09 HP 85662A Spectrum Analyzer Display 2318A05184 18/09/09 HP 8566B Spectrum Analyzer RF Section 2241A02102 18/09/09 HP 85685A RF-Preselector 3107A01222 18/09/09 EMCO 3110B Antenna Biconical 20-300MHz 1850 01/12/08 EMCO LPA30 Ant. Log Periodic 200-1000MHz 563 05/12/08 EMCO 3115 Antenna Horn 1-18GHz 9005-3429 06/03/08 SOLAR 8012-50-R-24- BNC LISN(25A 50Ω 50/250μH 10k-50MHz) 863092 28/09/08 Marconi 6960B RF Power Meter 236966/013 12/06/08 Rhientech Custom Antenna Mast N/A N/A Protocol EMC Custom Turntable N/A N/A Measurement Uncertainty Parameter Uncertainty Radio Frequency ±1 x 10-5 Total RF power, conducted ±1,5 dB RF power density, conducted ±3 dB Spurious emissions, conducted ±3 dB All emissions, radiated ±6 dB Temperature ±1°C Humidity ±5 % DC and low frequency voltages ±3 % Company Under Test NAME: City Theatrical Inc. (Manufacturer of Record) ADDRESS: 4…
