Instruction 1. Purpose Zhejiang NVC’s CFL has implemented three phosphors together into one compact fluorescent. It is a new type of light resource of green environment. The product’s applications are practical for supermarkets, shopping centers, retail stores, and gymnasium. 2. Characteristics Zhejiang NVC’s CFL provides instant start, long-life and high lumen output. The lamp is designed to perform up to the industry standards by using less electricity. Lamp can operate under -18 °C below zero degrees Celsius. From NVC’s testing results shows the self ballast lamp only uses 20% of the electricity and it is compared and equivalent to a regular incandescent bulb. 3. Directions 1) For Safety purposes, the lamp fixture must be powered off before being installed, changed or being cleaned 2) This self ballast lamp cannot be operated with dimmer device. In order to keep the lamp’s high performance it should be used in defined voltage. 3) This Lamp can be performed under environmental areas in temperature from -18° C to 45° C, it cannot be used in enclosed fixture or wet areas. 4). Please check the power, voltage and contacts of the lamp incase the lamp performs abnormal signs such as the light blinking or the light turns off suddenly 5). Do not hold the tube by the hands while changing or cleaning the lamp. The proper way is to hold the lamp by the plastic housing. 4． Warnning： This device complies with Part 18 of the FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If this occurs, please change outlet or move the lamp far away from other appliance. Zhejiang NVC Lamps Co., Ltd.

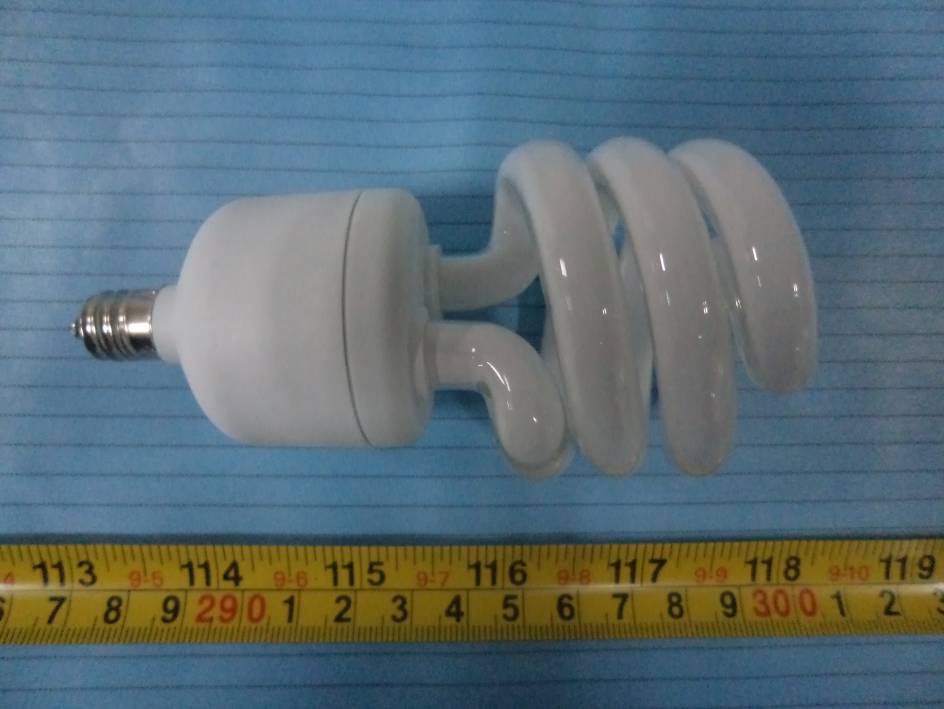

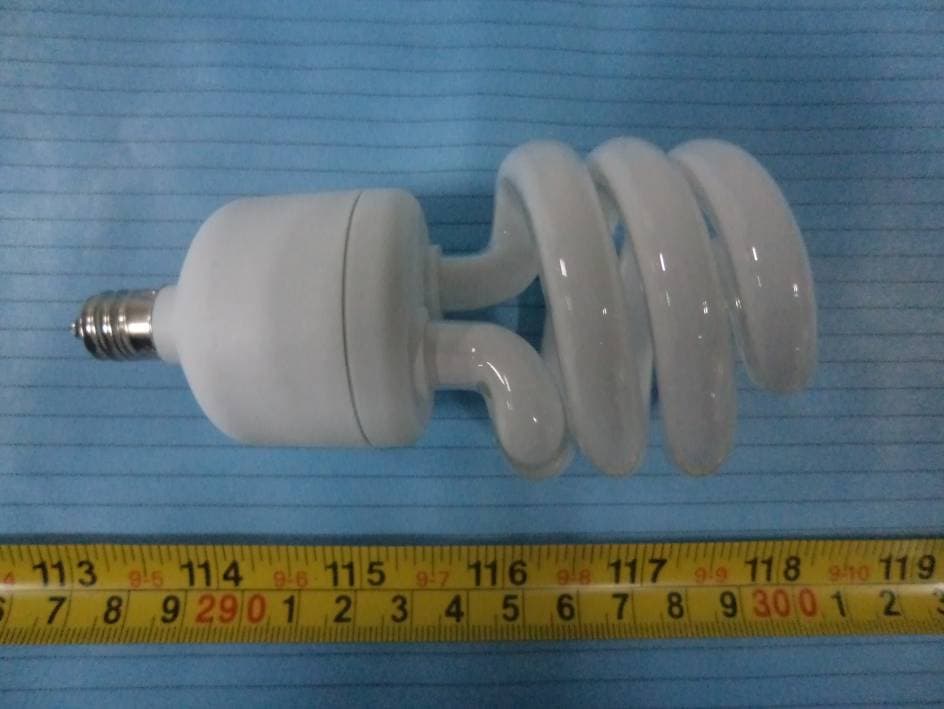

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: ESP-13W E12 EUT View Model: ESP-13W E17 EUT View

VVO ESP13 E318186 220 Hg Risk of Electric Shock- Use In Dry Locations Only. Not for use with dimmers. Not for use in totally enclosed fixtures. 0111 C US ESP-13W E12 VVO ESP13 E318186 220 Hg Risk of Electric Shock- Use In Dry Locations Only. Not for use with dimmers. Not for use in totally enclosed fixtures. 0111 C US ESP-13W E17 Model No.: ESP-13W E12 Label Model No.: ESP-13W E17 Label

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View (Model: ESP-13W E12) EUT – Main Board TopView EUT – Main Board Bottom View

1 BOM LIST Model Name:ESP-13W E12,ESP-13W E17 NO COMPONENT TYPE/RATINGS MANUFACTURR UL NO. 1 bulb Φ10 S 3T13W 7~8Ω Jiangshan Sanyou / 2 PCB NVC-33 PFR-1 94 V-0 Zhejiang Pan’an E199273 3 Plastics Φ39.6 PBT 0.8mm V2 NANTONG ZHONGLAN ENGINEERING PLASTICS CO LTD E255317 4 Transistor Q1/Q2 4124DL/13003V1D, TO-92 β:20-25 Ts:≤3.5 Huawei Semiconductors/ WuXi Huajing Microelectronics / 5 Diode D1~D5 M7 1000V .Changzhou Yinhe/ChangZhou Star Sea Electronice Co.,Ltd / 6 Diode DB3 DB3 28V-36V 2A Changzhou Yinhe/ Jinan Jingheng / 7 Capacitor C7 332/1000V CH11 Zhejiang Wufeng/ Zhejiang Qixing / 8 Capacitor C6 332/1000V CH11 Zhejiang Wufeng/ Zhejiang Qixing / 9 Capacitor C4 223/50V SMD 0805 Guangdong Fenghua/ Taiwang Heshengtang/ Chaozhou Shanghuang / 10 Capacitor C3 102/1000V CH11 Zhejiang Wufeng/ Zhejiang Qixing 11 CapacitorC1、 C5 472/250V CL21 Zhejiang Wufeng/ Zhejiang Qixing / 12 Capacitor C2 10μF/200V Yiyang Zijiang / 13 Resistor R1/R2 SMD 1206 330KΩ 1/4W / SMD 1206 27Ω 1/4W 14 Resistor R3/R4 Guangdong Fenghua/ Taiwan Lizhi/ Guoju (suzhou) sales Co., LTD / 15 P1~P4 0.65*0.65*10 Jianhu / 16 UL FUSE L RXF-0.47Ω 1W Shenzhen Great Electronics E301541 EE13 1.9±0.1mH φ0.23 . Changxing Dongxing/ Jianshan Tengda / Adhesive Tape 130°C Magnet wire EUW 155°C 1 7 Choke trans (L2) Main trans. φ4*6 0.4mH φ0.21 Changxing Dongxing Magnet wire QA-2 155°C 18 Main trans. (L1) Adhesive Tape JY-133 130°C 19 Lead wire(N) 105°C 300 V ac 24AWG 80±1.0 mm TONGXIANG TENGFEI ELECTRON & WIRING CO LTD/ TONGXIANG YISHENG ELECTRIC CO LTD E238015/ E255495 20 O trans (T1) φ9*5*3 3：8：3 5K 13W Sichuang Boyi / 21 Bobbin Plastic BK V-0/150°C . 22 Magnet wire 155°C

ESP-13W E12,ESP-13W E17

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For ZHEJIANG NVC LAMPS CO., LTD. NO. 201-16, TONGDA ROAD, SOUTH ZONE, HUSHAN DISTRICT, JIANGSHAN, ZHEJINAG, CHINA FCC ID: VVOESP13 Report Type: Original Report Product Type: CFL Test Engineer: Lebron Wang Report Number: RSZ111213550-00 Rev. A Report Date: 2012-02-16 Reviewed By: Lisa Zhu EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ111213550-00 FCC Part 18 Page 2 of 15 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL I/O CABLE................................................................................................................................................. 5 CONFIGURATION OF TEST SETUP................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 7 APPLICABLE STANDARD.............................................................................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST PROCEDURE........................................................................................................................................................ 8 TEST RESULTS SUMMARY........................................................................................................................................... 8 TEST DATA.................................................................................................................................................................. 9 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 11 MEASUREMENT UNCERTAINTY................................................................................................................................. 11 EUT SETUP............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP...................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 12 TEST PROCEDURE...................................................................................................................................................... 12 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 12 TEST DATA..…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conduction Emissions – Front View AC Line Conduction Emissions – Side View Radiated Emissions – Front View Radiated Emissions – Rear View
