User Manual Dear Customer, Thank you for buying NVC Self-Ballast Lamp, Please read carefully the product instruction before using! The Model Name: ESP-23W use only on 120 volt, 60Hz circuit. The wattage marked on the lamp. And the operating Frequency is more than 40 kHz and less than 50 kHz Features Energy Saves up to 75% compared to common incandescent Lamps Long lamp life, average 9 years High Lumens efficiency; Rapid on/off with silent operation; Reduces Carbon Dioxide Electromagnetic Volume Consumes natural resources Generate less heat in the building Note & Attention Always turn-off power before re-lamping; Avoid installing lamp by gripping the glass tube; Do not use with dimmers or electronic timers Reliable operating temperature -18°C~60°C Not suitable for damp surroundings or sealed occasions Risk of electric shock-use in dry locations For best result use in proper voltage range as mentioned on lamp base Applications: Home, Office, Hotel, Shop, Restaurant...and so on lighting FCC Information 1．This device complies with Part 18 of the FCC Rules. 2．Information on the following matters shall be provided to the user in the Instruction manual: (a) The interference potential of the device or system; (b) Maintenance of the system; (c) Simple measures that can be taken by the user to correct interference; (d) Manufacturers of RF lighting devices must provide an advisory statement, either on the product packaging or with other user documentation, similar to the following: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating is in between 40 kHz and 50 kHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style.

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

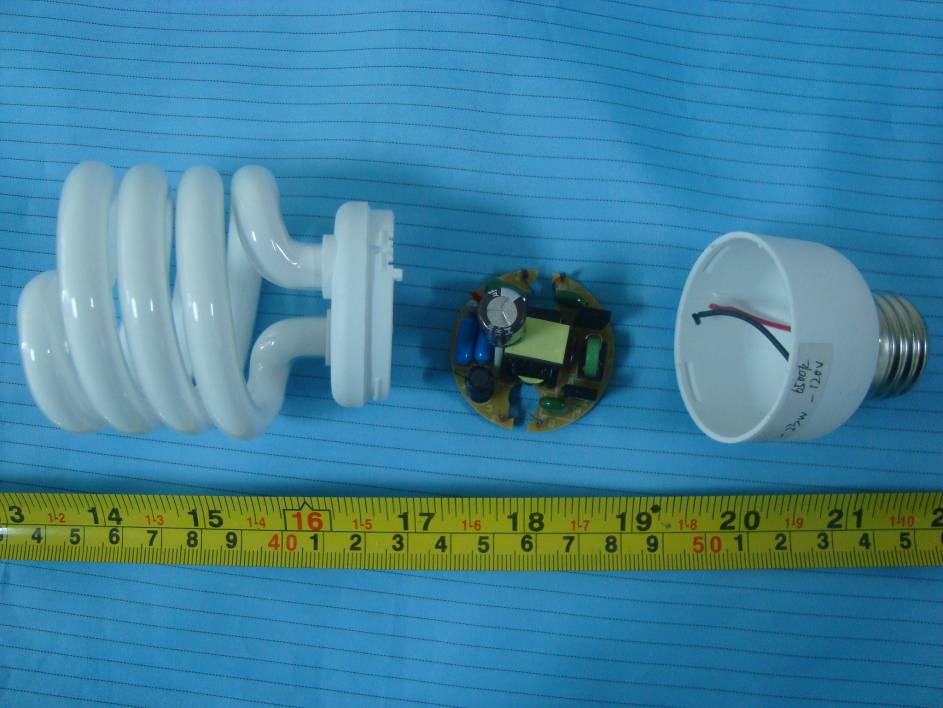

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Mainboard Top View EUT – Main Board Bottom View

ESP-23W

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 MEASUREMENT AND TEST REPORT For ZHEJIANG NVC LAMPS CO., LTD. NO 201-16, TONGDA ROAD, SOUTH ZONE, HUSHAN DISTRICT, JIANGSHAN, ZHEJIANG, CHINA FCC ID: VVOESP23 Report Type: Original Report Product Type: CFL Test Engineer: Abel Yang Report Number: RSZ10102553 Report Date: 2011-01-20 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 ZHEJIANG NVC LAMPS CO., LTD FCC ID: VVOESP23 Report No.: RSZ10102553 Page 2 of 13 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EUT EXERCISE SOFTWARE..........................................................................................................................................5 SPECIAL ACCESSORIES.................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 CONDUCTED EMISSIONS ........................................................................................................................................7 MEASUREMENT UNCERTAINTY....................................................................................................................................7 EUT SETUP..................................................................................................................................................................7 EMI TEST RECEIVER SETUP.........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 RADIATED EMISSIONS...........................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 CORRECTED AMPLITUDE CALCULATION....................................................................................................................12 TEST DATA................................................................................................................................................................12 ZHEJIANG NVC L…
