VXPBTP-06Bluetooth Desktop Phone

BTP-06.L.ENG.MAN.User_manual.03 - 1 - BTP-06L Landline BlueSynergy User‘s Guide BTP-06.L.ENG.MAN.User_manual.03 - 2 - Index 1. Introduction 1.1 Basic features Thank you for purchasing BlueSynergy. The device offers a comfortable and very efficient way to operate both your mobile phone and landline at the office or at home. With BlueSynergy you can: ƒmake and answer phone calls ƒsend and receive text messages ƒsynchronize contacts and calls with your mobile phone ƒuse free JabloTool software to operate all functions from your PC Index .........................................................................2 1. Introduction .......................................................2 1.1 Basic features .................................................................2 1.2 Description .....................................................................3 2. Starting ................................................................4 2.1 Package contents ...........................................................4 2.2 Assembly and power up.................................................4 2.3 Pairing the BlueSynergy with your mobile phone ........ 5 2.4 First use ...........................................................................6 3. Basic Functions ....................................................8 3.1 Dialing and answering calls ...........................................8 3.2 Contacts ..........................................................................8 3.3 Messaging .....................................................................10 3.4 Call history ...................................................................10 4. Advanced functions ..........................................10 4.1 Quick dial buttons.........................................................10 4.2 Advanced call features .................................................10 4.3 Managing mobile phones ............................................11 4.4 Dialing settings .............................................................12 4.5 Other settings ...............................................................12 5. Configuration via PC with JabloTool .............. 13 6. Troubleshooting ...............................................14 7. Technical data ....................................................15 7.1 Bluetooth support ........................................................15 7.2 Technical specifications ...............................................16 7.3 Warranty .......................................................................16 7.4 Safety Instructions .......................................................17 7.5 Disposal Information ....................................................18 BTP-06.L.ENG.MAN.User_manual.03 - 3 - 1.2 Description 1 3 2 9 4 5 6 8 7 1 New text message indicator13 ALT key to write special characters 2 Cellular network signal indicator14 Shift key (upper case / lower case) 3 Name of currently paired mobile phone15 Cancel (ESC) key 4 Data synchronization in progress16 Confirm (OK) key 5 Time and date17 Navigation keys 6 Mobile phone battery indicator18 Text messages 7 Missed call indicator19 Call history 8 Name of current cellular network20 Contacts 9 Active lines21 Speakerphone 10 Context keys22 Backspace 11 Speed dial buttons23 Redial function 12 Start writing a text message24 SPACE key 11 10 15 16 17 19 21 23 24 12 13 14 20 22 18 BTP-06.L.ENG.MAN.User_manual.03 - 4 - 2. Starting 2.1 Package contents ƒUnpack the phone and check the package contents. 1 2 3 6 7 8 5 4 1 Phone console 2 Phone receiver 3 Connecting cord 4 A/C power adaptor 5 USB cable 6 Installation CD 7 User’s guide 8 Phone cable 2.2 Assembly and power up ƒConnect the cord between the receiver and the console. Connect the phone cable to the connector at the rear of the phone and to your landline socket. *Not for BTP-06 B ƒFirst connect the power adaptor to the connector at the rear of the phone and then plug the adaptor into the wall socket. 1 2 ƒChoose the desired language and confirm by pushing the Select button. BTP-06.L.ENG.MAN.User_manual.03 - 5 - 2.3 Pairing the BlueSynergy with your mobile phone The BlueSynergy needs to be connected to your mobile phone by a procedure called pairing. This guide will instruct you in this pairing procedure: ƒOnce the BlueSynergy is powered up for first time (or choosing Menu > Settings > Mobile phones > Add... ) it automatically enters the pairing mode. ƒMake your mobile phone visible for BlueSynergy – please check your mobile phone user guide for detailed in- structions. Ensure that the Bluetooth function is activated on your mobile phone and visible to other devices. This usually involves going to a Setup, Connect or Bluetooth menu on your mobile phone and selecting the option to Discover or Add a Bluetooth device. ƒThen select the Next on the BlueSynergy and it will find your mobile phone. Please note that you may also see some other Bluetooth devices that are within working range of the BlueSynergy. Select the mobile phone that you want the BlueSynergy to pair with and choose Pair. ƒAccept pairing your mobile phone by selecting YES or OK on your mobile phone, if the mobile phone asks for a passkey or PIN, enter “0000” (4 zeros). Your mobile phone should confirm that the pairing procedure has finished. ƒConfirm with YES if your mobile phone asks to allow the BlueSynergy profiles — functions (such as hands-free, DUN, IrMC, SyncML, PBA, etc.). ƒThe BlueSynergy will warn you about functions that your mobile phone doesn‘t support via Bluetooth. 1 3 2 Bluetooth: ON VISIBLE 4 5 6 78 9 BlueSynergy Accept connection? YESNO BlueSynergy Enter your PIN code * * * * Enter ,,0000” Please note that the working range for BlueSynergy is up to 10 meters. If there are obstructions between the BlueSynergy and your mobile phone (such as walls, metal objects, etc.) the working range may narrow considerably. BTP-06.L.ENG.MAN.User_manual.03 - 6 - Once you have finished the pai…

Text truncated - open the document above for the full version.

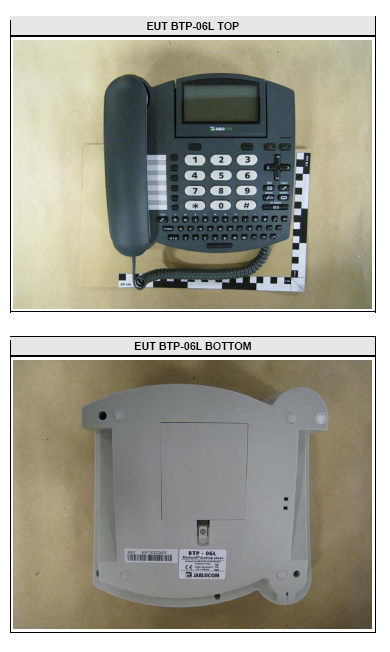

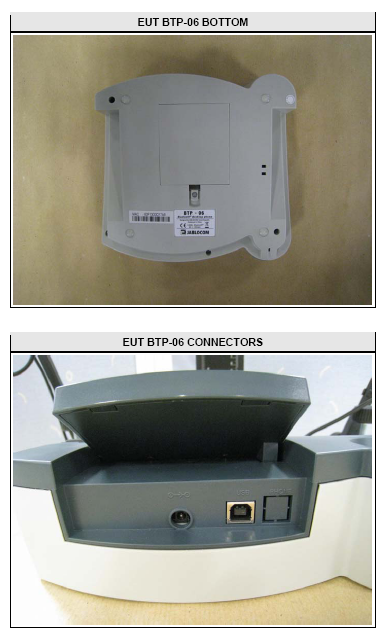

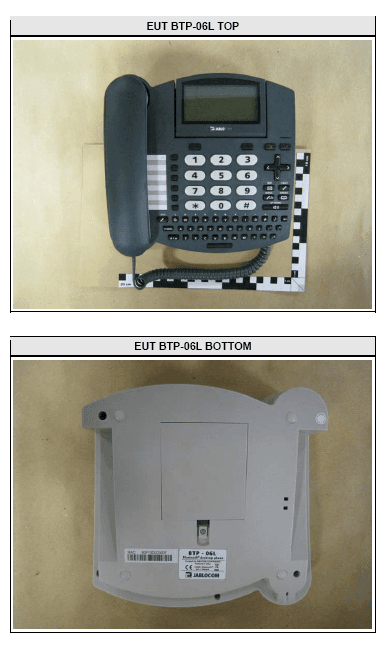

Product Service External Pictures page 1 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Product Service External Pictures page 2 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Product Service External Pictures page 3 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Product Service External Pictures page 4 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

MATERIALSCALE FORMAT VERSIONPAGES PAGE SURFACE AUTHOR DA TE CHECKED DR W.NO. / NAME: V Nivách 12 466 01 Jablonec n. N. Czech Republic T.: +420 483 559 771 F.: +420 483 559 713 Mezni uchylky netolerovanych rozmeru Tolerances for dimensions without individual tolerance Pres/above 6 Do/to up 6 Do/to up 30 Do/to up 120 Do/to up 400 Pres/above 30 Pres/above 120 Pres/above 400 Product label for the BTP-06L Material: Coated PET label, white (RAL 9010) Print colour: black (RAL 9011) Dimension: 44 x 30 mm Coated PET label, white (RAL 9010) BTP-06.L.ENG.LAB.product-label 1:1 02 01 01 A4 Dvořáková - 31.8.2011 31.8.2011 Detailed specification of the printing: BTP-06.L.ENG.LAB.product-label.02.Print.ai 44 30 M 1:1 BTP - 06L Bluetooth ® desktop phone Designed by JABLOCOM, Czech Republic Produced in China 2.4GHz- Bluetooth ® 6V 300mA FCC ID: VXPBTP-06

MATERIALSCALE FORMAT VERSIONPAGES PAGE SURFACE AUTHOR DA TE CHECKED DR W.NO. / NAME: V Nivách 12 466 01 Jablonec n. N. Czech Republic T.: +420 483 559 771 F.: +420 483 559 713 Mezni uchylky netolerovanych rozmeru Tolerances for dimensions without individual tolerance Pres/above 6 Do/to up 6 Do/to up 30 Do/to up 120 Do/to up 400 Pres/above 30 Pres/above 120 Pres/above 400 Product label for the BTP-06 Material: Coated PET label, white (RAL 9010) Print colour: black (RAL 9011) Dimension: 44 x 30 mm Coated PET label, white (RAL 9010) BTP-06.ENG.LAB.product-label. 1:1 03 01 01 A4 Dvořáková - 31.8.2011 31.8.2011 Detailed specification of the printing: BTP-06.ENG.LAB.product-label.03.Print.ai 44 30 M 1:1 BTP - 06 Bluetooth ® desktop phone Designed by JABLOCOM, Czech Republic Produced in China 2.4GHz- Bluetooth ® 6V 300mA FCC ID: VXPBTP-06

Product Service Internal Pictures page 1 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Product Service Internal Pictures page 2 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany Product Service Internal Pictures page 3 Model No.: BTP-06, BTP-06L FCC ID: VXPBTP-06 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Product Service GmbH Declaration concerning RF-Exposure Federal Communication Commission Re: application for FCC ID: VXPBTP-06 We hereby indicate that the product: Bluetooth Desktop Phone – BTP-06/BTP-06L is considered to be mobile transmitter for General Population/Uncontrolled exposure. This device and its transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement will be integrated in the user’s manual to provide end-users with transmitter operating instructions for satisfying RF exposure compliance. As BTP-06/BTP-06L is a spread spectrum device according to rule part 15.247 equipment class DSS it is excluded from routine environmental evaluation for RF exposure as it does not fall under the product categories listed in Section 2.1093 of the FCC’s rules. The maximum transmitter conducted output power is: 1.25 mW (1 dBm) That is far below the low threshold of ≤ 60/f (GHz) (mW) where RF evaluation is typically not required for FCC or TCB approval.

Eurofins Product Service GmbH Storkower Str. 38c, 15526 Reichenwalde, Phone +49-33631-888 0 Germany Fax +49-33631-888 660 EUROFINS PRODUCT SERVICE GMBH TEST-REPORT FCC PART 15 SUBPART C IC RSS 210 ISSUE 8 Bluetooth Desktop Phone BTP-06L FCC ID: VXPBTP-06 TEST REPORT NUMBER: G0M-1108-1337-P-15 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany TABLE OF CONTENTS 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of approval holder 5 1.4 Application details 5 1.5 Acronyms and abbreviations 5 1.6 Test standards 6 1.7 Test item 6 1.8 Additional information 7 2 Technical test 8 2.1 Summary of test results 8 2.2 Test environment 8 2.3 Test equipment utilized 9 2.4 Sample emission level calculation 10 2.5 Test results 11 3 Informational Transmitter parameters 12 3.1 Transmitter Modes for conformance testing 12 3.2 Transmitter parameters 13 3.3 20dB Bandwidth 13 3.4 Frequency hopping channel number 15 3.5 Frequency hopping channel spacing 17 3.6 Time of occupancy (Dwell time) 19 3.7 Maximum peak conducted output power 21 3.8 Maximum e.i.r.p. output power 23 3.9 Transmitter band-edge compliance 25 3.10 Transmitter conducted spurious emissions 27 3.11 Transmitter radiated spurious emissions 29 4 Power Line parameters 33 4.1 AC power line conducted emissions 33 Annex A Photos 34 Annex B Transmitter 20dB bandwidth 46 Annex C Hopping channels 55 Annex D Hopping channel separation 59 Annex E Time of occupancy 60 Annex F AC Power line Conducted Emissions 61 Annex G Transmitter conducted spurious emissions 70 Annex H Band edge compliance 82 Annex I Transmitter radiated spurious emissions 94 Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Testing laboratory EUROFINS PRODUCT SERVICE GMBH Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone :+49 33631 888 00 Telefax :+49 33631 888 660 DA KKS ACCREDITED TESTING LABORATORY DA KKS-REGISTRATION NUMBER: D-PL-12092-01-01 R ECOGNIZED NOTIFIED BODY EMC R EGISTRATION NUMBER: BNetzA-bS EMV-07/61 R ECOGNIZED NOTIFIED BODY R&TTE R EGISTRATION NUMBER: BNetzA-bS-02/51-53 FCC FILED TEST LABORATORY R EG.-NO. 96970 A2LA ACCREDITED TESTING LABORATORY C ERTIFICATE NO. 1983.01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD I NDUSTRY CANADA FILED TEST LABORATORY R EG. NO. IC 3470 Test location, where different: Name : ./. Street : ./. Town : ./. Country : ./. Telephone : ./. Fax : ./. Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Details of approval holder Name : JABLOCOM s.r.o. Street : V Nivach 12 Town : 466 01 Jablonec nad Nisou Country : CZECH REPUBLIC Telephone : +420 483 559 711 Fax : +420 483 559 713 Contact : Mr. Filip Kopriva Telephone : +420 483 559 711 Manufacturer: (if applicable) Name : JABLOCOM s.r.o. Street : V Nivach 12 Town : 466 01 Jablonec nad Nisou Country : CZECH REPUBLIC 1.4 Application details Date of receipt of application : 31.08.2011 Date of receipt of test item : 31.08.2011 Date of test : 01.09.2011 -10.10.2011 1.5 Acronyms and abbreviations EUT : Equipment under Test TX : Transmission RX : Reception RBW : Measurement Resolution Bandwidth Pol : Measurement Polarization e.i.r.p. : Equivalent isotropic radiated power FHSS : Frequency hopping spread spectrum DSSS : Direct Sequence Spread Spectrum OFDM : Orthogonal frequency division multiplexing CCK : Complementary code keying GFSK : Gaussian frequency shift keying DQPSK : Differential quadrature phase shift keying PSK : Phase shift keying T nom : Nominal Temperature T min : Minimum Temperature T max : Maximum Temperature V nom : Nominal Supply Voltage V min : Minimum Supply Voltage V max : Maximum Supply Voltage VDC : DC voltage N/A : Not applicable IC : Industry Canada Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.6 Test standards Technical standard : FCC PART 15 SUBPART C IC RSS 210 ISSUE 8 1.7 Test item Description of test item : Bluetooth Desktop Phone Type identification : BTP-06 / BTP-06L Serial number : unspecified Hardware version : XE10204 Software version : XE630.1.4 Equipment type : End product Technical data Radio type : Transceiver Radio technology : Bluetooth Frequency range : 2400 - 2483.5MHz Assigned frequency band : 2400 - 2483.5MHz Tested frequencies : F 1 2402MHz F 2 2441MHz F 3 2480MHz Spreading : FHSS Modulation(s) : GFSK, PI/4-DQPSK, 8-PSK Operating mode(s) : semi duplex Number of channels : 79 Duty cycle(s) : 54% Number of antennas : 1 Antenna type(s) : integrated Antenna model(s) : λ/4 wire antenna Antenna manufacturer(s) : see manufacturer Antenna gain(s) : 2.7dBi Power supply : 6.0VDC supplied via dedicated AC/DC-Adaptor AD/DC-Adaptor : Ktec, Model KSAS0100600167D5 Device classification : Mobile Device (Human Body distance > 20 cm) Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.8 Additional information The two model BTP-06 and BTP-06L are identical except that model BTP-06L consists a PSTN line connector. The radio part of both models is the same. Due to the similarity of both models only model BTP-06L has been measured as worst case model. Test Report No.: G0M-1108-1337-P-15 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 22 ... 26°C Relative humidity content : 20 ... 75% Air pressure : 86 ... 103kPa Extreme conditions parameters: V nom : 6.0VDC V min (V nom -15%) : N/A V max (V nom +15%) : N/A T nom : 25°C Other parameter: None Tes…
