VYXARGTEK-0001Wireless LAN USB Adapter

Date:2008/2/22 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Kevin Wang /V.P. of Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Kevin Wang of CCS TW on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

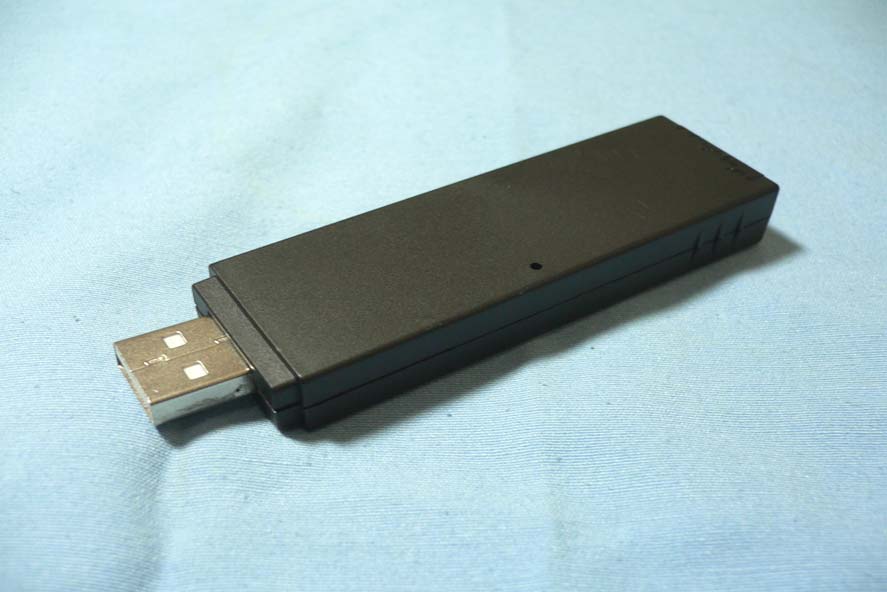

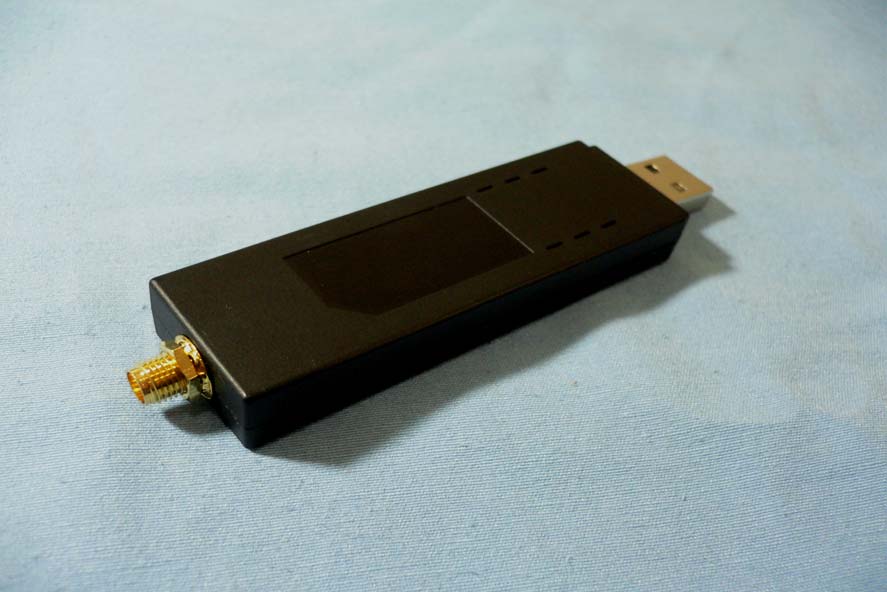

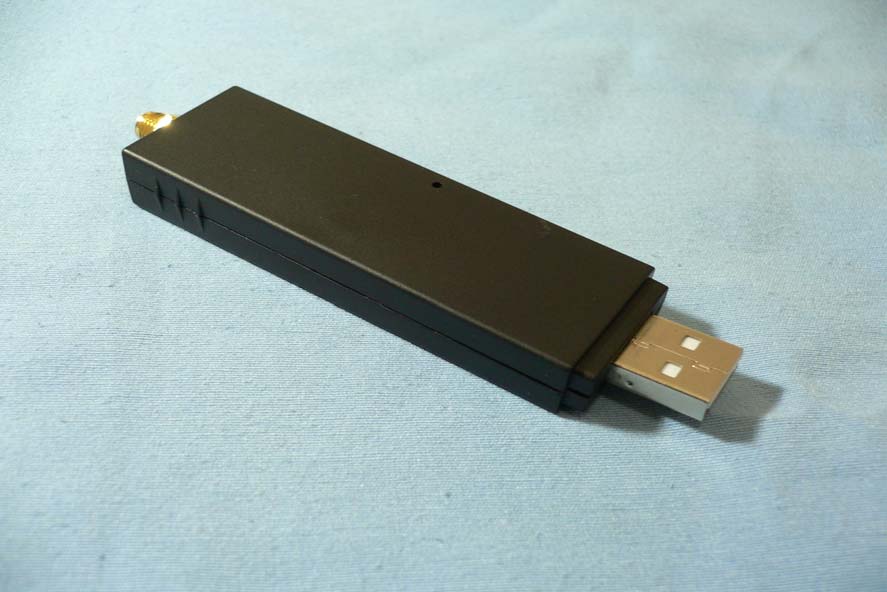

Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 1 Total Page: 9 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Model: Wi-Queen Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 3 Rev.00 Model: Wi-Prince

ARGtek Wireless LAN USB Adapter Model: FCC ID: VYXARGTEK-0001

Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Model: Wi-Queen Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 7 Rev.00 Model: Wi-Prince Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 80118002 Date of Issue: March 4, 2008 Page 9 Rev.00

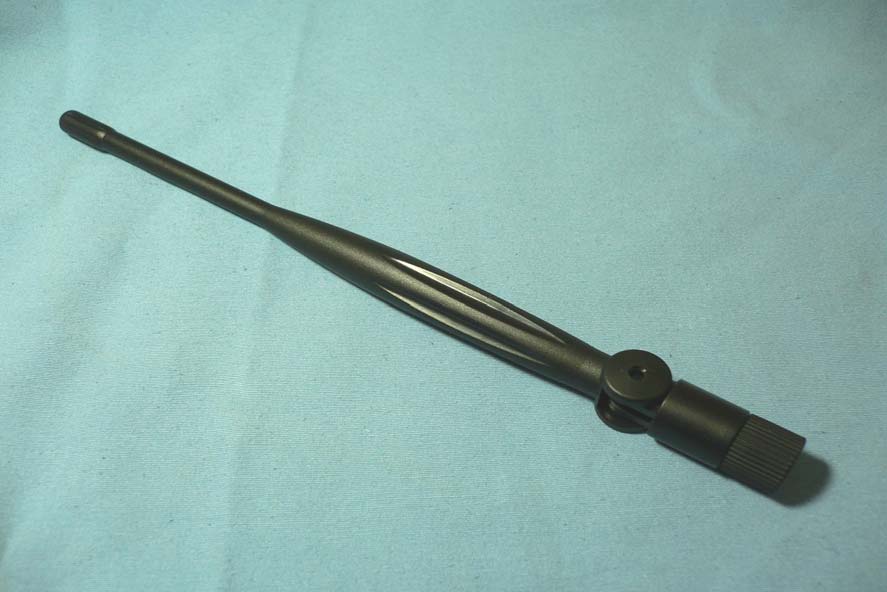

RFA-02-5-C7M3-B70 Specifications Frequency range 2400 MHz – 2500 MHz Peak gain 5 dBi Average gain 4 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Temperature -10°C to +55°C Connector R/P SMA PLUG Cable RG178

970212-2400-E Antenna Specification Antenna type : Printed antenna Antenna gain : 2.61 dBi 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2400-E Date:2008/2/12 Time:下午 02:15 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2400 Polarization : E Plane Max gain(dBi):2.53 Min gain(dBi):-29.06 Avg gain(dBi):-3.90 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2400-H Date:2008/2/12 Time:下午 02:26 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2400 Polarization : H Plane Max gain(dBi):-8.95 Min gain(dBi):-22.70 Avg gain(dBi):-12.71 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2450-E Date:2008/2/12 Time:下午 02:17 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2450 Polarization : E Plane Max gain(dBi):2.61 Min gain(dBi):-24.78 Avg gain(dBi):-4.00 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2450-H Date:2008/2/12 Time:下午 02:23 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2450 Polarization : H Plane Max gain(dBi):-9.09 Min gain(dBi):-27.23 Avg gain(dBi):-13.83 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2500-E Date:2008/2/12 Time:下午 02:18 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2500 Polarization : E Plane Max gain(dBi):1.66 Min gain(dBi):-28.51 Avg gain(dBi):-4.72 970212-2400-E CCS WUGU Antenna Pattern Job No.:970212-2500-H Date:2008/2/12 Time:下午 02:22 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2500 Polarization : H Plane Max gain(dBi):-9.72 Min gain(dBi):-26.17 Avg gain(dBi):-15.23

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 2 : NOVERMBER 2005 FOR 802.11b/g USB Dongle MODEL: Wi-Queen FCC ID: VYXARGTEK-0001 REPORT NUMBER: 08I11611-1 ISSUE DATE: FEBRUARY 12, 2008 Prepared for ARGTEK COMMUNICATION INC. 8F-9, NO. 4, LANE 609 SEC. 5, CHUNG HSIN RD. SAN CHUNG CITY, TAIPEI HSIEN TAIWAN 241 ROC Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET, FREMONT, CA 94538 USA REPORT NO: 08I11611-1 DATE: February 12, 2008 FCC ID: VYXARGTEK-0001 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 22 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- 2-12-08 Initial issue Hsin Fu Shih REPORT NO: 08I11611-1 DATE: February 12, 2008 FCC ID: VYXARGTEK-0001 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 22 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: February 7, 2008 APPLICANT: ADDRESS: ARGTEK COMMUNICATION INC. 8F-9, NO. 4, LANE 609 SEC. 5, CHUNG HSIN RD. SAN CHUNG CITY, TAIPEI HSIEN TAIWAN 241 ROC FCC ID: MODEL: VYXARGTEK-0001 WI-QUEEN DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure 802.11 B/G USB DONGLE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) for 802.11b Orthogonal Frequency Division Multiplexing (OFDM) for 802.11g Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] FCC 15.247 2412 - 2462 0.194 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Jonathan King Engineering Supervisor EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 08I11611-1 DATE: February 12, 2008 FCC ID: VYXARGTEK-0001 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 22 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 DEVICE UNDER TEST (DUT) DESCRIPTION ................................................................................... 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATING LIQUIDS .............................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................ 10 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 11 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 12 6 SAR MEASURMENT PROCEDURE ................................................................................................. 13 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 14 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 15 8 SAR MEASURMENT RESULTS........................................................................................................ 16 8.1 ANTENNA VERTICAL ...............................................................................................................16 8.2 ANTENNA HORIZONTAL.......................................................................................................... 17 9 MEASURMENT UNCERTAINTY ....................................................................................................... 18 9.1 MEASURMENT UNCERTAINTY FOR 300 MHZ – 3000 MHZ ................................................. 18 10 EQUIPMENT LIST AND CALIBRATION............................................................................................ 19 11 PHOTOS ............................................................................................................................................ 20 12 ATTACHMENTS................................................................................................................................. 22 REPORT NO: 08I11611-1 DATE: February 12, 2008 FCC ID: VYXARGTEK-0001 COMPLIANCE CERTIFICATION SERVICES Page: 5 of 22 This report shall not be reproduced except in full, without the written approval of CCS. 1 DEVICE UNDER TEST (DUT) DESCRIPTION 802.11 B/G USB DONGLE Normal operation: Lap-held position Duty cycle: 100% Host Device(s): Dell Inspiron 6400 Series Laptop Antenna(s) Antenna type: Dipole, Maximum gain is 5 dBi Power supply: Power supplied through the laptop computer (host device). REPORT NO: 08I11611-1 DATE: February 12, 2008 FCC ID: VYXARGTEK-0001 COMPLIANCE CERTIFICATION SERVICES Page: 6 of 22 This report shall not be reproduced except in full, without the written approval of CCS. 2 FACILITIES AND ACC…

Text truncated - open the document above for the full version.

Date/Time: 2/19/2008 2:52:26 PM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Body DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2450 MHz; σ = 1.96 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.1 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3552; ConvF(6.95, 6.95, 6.95); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.2 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 90.9 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 34.2 W/kg SAR(1 g) = 14.3 mW/g; SAR(10 g) = 6.27 mW/g Maximum value of SAR (measured) = 16.0 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 16.1 mW/g Page1 Page2 Date/Time: 2/19/2008 3:30:19 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Wi-Prince Horizontal USB T60 DUT: Wi-Prince; Type: 802.11 b/g USB dongle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.1 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3552; ConvF(6.95, 6.95, 6.95); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Middle CH, Rate=1M/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.268 mW/g Middle CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 6.18 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 0.510 W/kg SAR(1 g) = 0.200 mW/g; SAR(10 g) = 0.089 mW/g Maximum value of SAR (measured) = 0.293 mW/g Page1 Page2 Date/Time: 2/19/2008 6:18:33 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Wi-Prince Horizontal USB T60 DUT: Wi-Prince; Type: 802.11 b/g USB dongle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.98 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.1 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3552; ConvF(6.95, 6.95, 6.95); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 High CH, Rate=1M/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.213 mW/g High CH, Rate=1M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 4.60 V/m; Power Drift = -0.052 dB Peak SAR (extrapolated) = 0.403 W/kg SAR(1 g) = 0.165 mW/g; SAR(10 g) = 0.075 mW/g Maximum value of SAR (measured) = 0.233 mW/g Page1 Page2 Date/Time: 2/19/2008 3:50:13 PM Test Laboratory: Compliance Certification Services Inc. 802.11g Bottom Flat Touched mode Wi-Prince Horizontal USB T60 DUT: Wi-Prince; Type: 802.11 b/g USB dongle; Serial: N/A Communication System: IEEE 802.11g WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.1 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3552; ConvF(6.95, 6.95, 6.95); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Middle CH, Rate=6M/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.246 mW/g Middle CH, Rate=6M/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 5.74 V/m; Power Drift = -0.050 dB Peak SAR (extrapolated) = 0.498 W/kg SAR(1 g) = 0.198 mW/g; SAR(10 g) = 0.089 mW/g Maximum value of SAR (measured) = 0.281 mW/g Page1 Page2 Date/Time: 2/19/2008 4:26:22 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Bottom Flat Touched mode Wi-Prince Vertical USB T60 DUT: Wi-Prince; Type: 802.11 b/g USB dongle; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.93 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.1 deg C;Liquid Temperature:23.1 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3552; ConvF(6.95, 6.95, 6.95); z Sensor-Surface: 2.5mm (Mechanical Surface Detection) z Electronics: DAE4 Sn558; Calibrated: 8/29/2007 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1…

Text truncated - open the document above for the full version.

Date/Time: 2/7/2008 6:25:56 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2;Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz;Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 51; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 11/16/2007 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.7 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 86.1 V/m; Power Drift = -0.033 dB Peak SAR (extrapolated) = 27.2 W/kg SAR(1 g) = 13.3 mW/g; SAR(10 g) = 6.18 mW/g Maximum value of SAR (measured) = 15.2 mW/g 0 dB = 15.2mW/g Date/Time: 2/7/2008 6:47:54 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 15.3 mW/g

Date/Time: 2/7/2008 6:51:31 PM Test Laboratory: Compliance Certification Services Lapheld DUT: ARGtek USB Dongle; Type: 802.11bg;Serial: N/A Communication System: 802.11bg;Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 11/16/2007 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 B mode vertical - M ch/Area Scan (11x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.076 mW/g B mode vertical - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.15 V/m; Power Drift = 0.159 dB Peak SAR (extrapolated) = 0.170 W/kg SAR(1 g) = 0.086 mW/g; SAR(10 g) = 0.042 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.097 mW/g Date/Time: 2/7/2008 8:16:20 PM Test Laboratory: Compliance Certification Services Lapheld DUT: ARGtek USB Dongle; Type: 802.11bg;Serial: N/A Communication System: 802.11bg;Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.94 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 11/16/2007 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 B mode horizontal - L ch/Area Scan (7x16x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.192 mW/g B mode horizontal - L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = -0.084 dB Peak SAR (extrapolated) = 0.357 W/kg SAR(1 g) = 0.190 mW/g; SAR(10 g) = 0.095 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.212 mW/g B mode horizontal - L ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.5 V/m; Power Drift = -0.084 dB Peak SAR (extrapolated) = 0.199 W/kg SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.050 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.115 mW/g Date/Time: 2/7/2008 8:40:57 PM Test Laboratory: Compliance Certification Services Lapheld DUT: ARGtek USB Dongle; Type: 802.11bg; Serial: N/A Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 B mode horizontal - L ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.214 mW/g Date/Time: 2/7/2008 7:32:56 PM Test Laboratory: Compliance Certification Services Lapheld DUT: ARGtek USB Dongle; Type: 802.11bg;Serial: N/A Communication System: 802.11bg;Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.1; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 11/16/2007 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 B mode horizontal - M ch/Area Scan (9x17x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.169 mW/g B mode horizontal - M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.05 V/m; Power Drift = 0.129 dB Peak SAR (extrapolated) = 0.339 W/kg SAR(1 g) = 0.173 mW/g; SAR(10 g) = 0.085 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.193 mW/g B mode horizontal - M ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.05 V/m; Power Drift = 0.129 dB Peak SAR (extrapolated) = 0.207 W/kg SAR(1 g) = 0.102 mW/g; SAR(10 g) = 0.049 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.115 mW/g Date/Time: 2/7/2008 8:46:46 PM Test Laboratory: Compliance Certification Services Lapheld DUT: ARGtek USB Dongle; Type: 802.11bg;Serial: N/A Communication System: 802.11bg;Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.01 mho/m; ε r = 51; ρ = 1000 kg/m 3 Phantom section: Flat Section Room AmbientTemperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and witha peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3554; ConvF(6.14, 6.14, 6.14); Calibrated: 4/24/2007 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 11/16/2007 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1003 - Me…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 80118002-SF FCC ID: VYXARGTEK-0001 Date of Issue: February 27, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 25 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Wireless LAN USB Adapter Model: Wi-Prince Trade Name: ARGtek Issued to ARGtek Communication Inc. 8F-9,No. 4, Lane 609,Sec.5, Chung Hsin Rd., San Chung City, Taipei Hsien 241, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80118002-SF Date of Issue: February 27, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. EUT DESCRIPTION ..................................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .................5 3. DOSIMETRIC ASSESSMENT SYSTEM ................................................................................5 3.1 MEASUREMENT SYSTEM DIAGRAM .........................................................................6 3.2 SYSTEM COMPONENTS.................................................................................................7 4. EVALUATION PROCEDURES ...............................................................................................9 5. MEASUREMENT UNCERTAINTY ......................................................................................13 6. EXPOSURE LIMIT ..................................................................................................................14 7. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS .15 8. MEASUREMENT RESULTS..................................................................................................16 8.1 SYSTEM PERFORMANCE CHECK..............................................................................16 8.2 TEST LIQUID CONFIRMATION...................................................................................17 8.3 EUT TUNE-UP PROCEDURES AND TEST MODE.....................................................18 8.4 SAR MEASUREMENTS RESULTS...............................................................................20 9. EUT PHOTOS ...........................................................................................................................22 10. EQUIPMENT LIST & CALIBRATION STATUS................................................................23 11. FACILITIES..............................................................................................................................24 12. REFERENCES ..........................................................................................................................24 13. ATTACHMENTS......................................................................................................................25 Compliance Certification Services Inc. Report No.: 80118002-SF Date of Issue: February 27, 2008 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: ARGtek Communication Inc. 8F-9,No. 4, Lane 609,Sec.5, Chung Hsin Rd., San Chung City, Taipei Hsien 241, Taiwan, R.O.C. Equipment Under Test: Wireless LAN USB Adapter Trade Name: ARGtek Model Number: Wi-Prince Date of Test: February 19, 2008 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C (Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Reviewed by: Rex Lai Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 80118002-SF Date of Issue: February 27, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless LAN USB Adapter Trade Name ARGtek Model Number Wi-Prince Model Discrepancy N/A Frequency Range 802.11b: 2400 ~ 2483.5 MHz 802.11g: 2400 ~ 2483.5 MHz Max. O/P Power: (Conducted/Peak) 802.11b: 14.47 dBm 802.11g: 14.88 dBm Max. SAR (1g): 802.11b: 0.259 W/kg 802.11g: 0.260 W/kg Modulation Technique 802.11b: Direct Sequence Spread Spectrum(DSSS) 802.11g: Orthogonal Frequency Division Multiplexing (OFDM) Antenna Specification Antenna type: Printed antenna Host 1 Lenovo T60, Model: 1951-I3V, SN: L3B2188 Remark: The sample selected for test was prototype that approximated to production product and was provided by manufacturer. Compliance Certification Services Inc. Report No.: 80118002-SF Date of Issue: February 27, 2008 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to eq…
